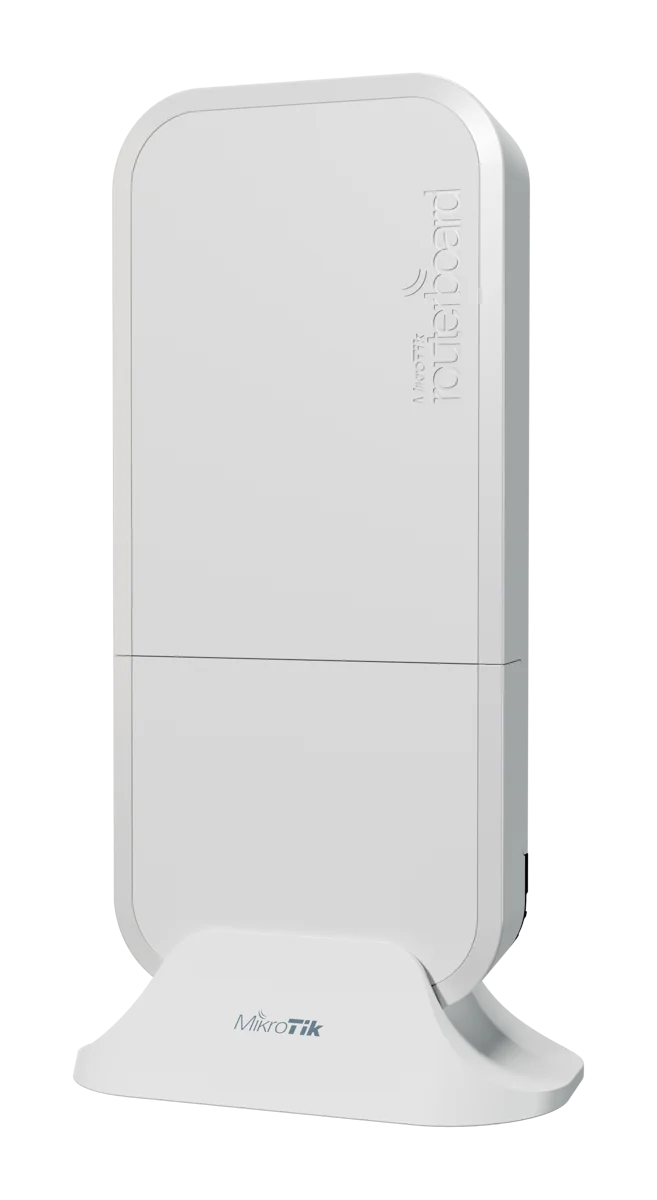

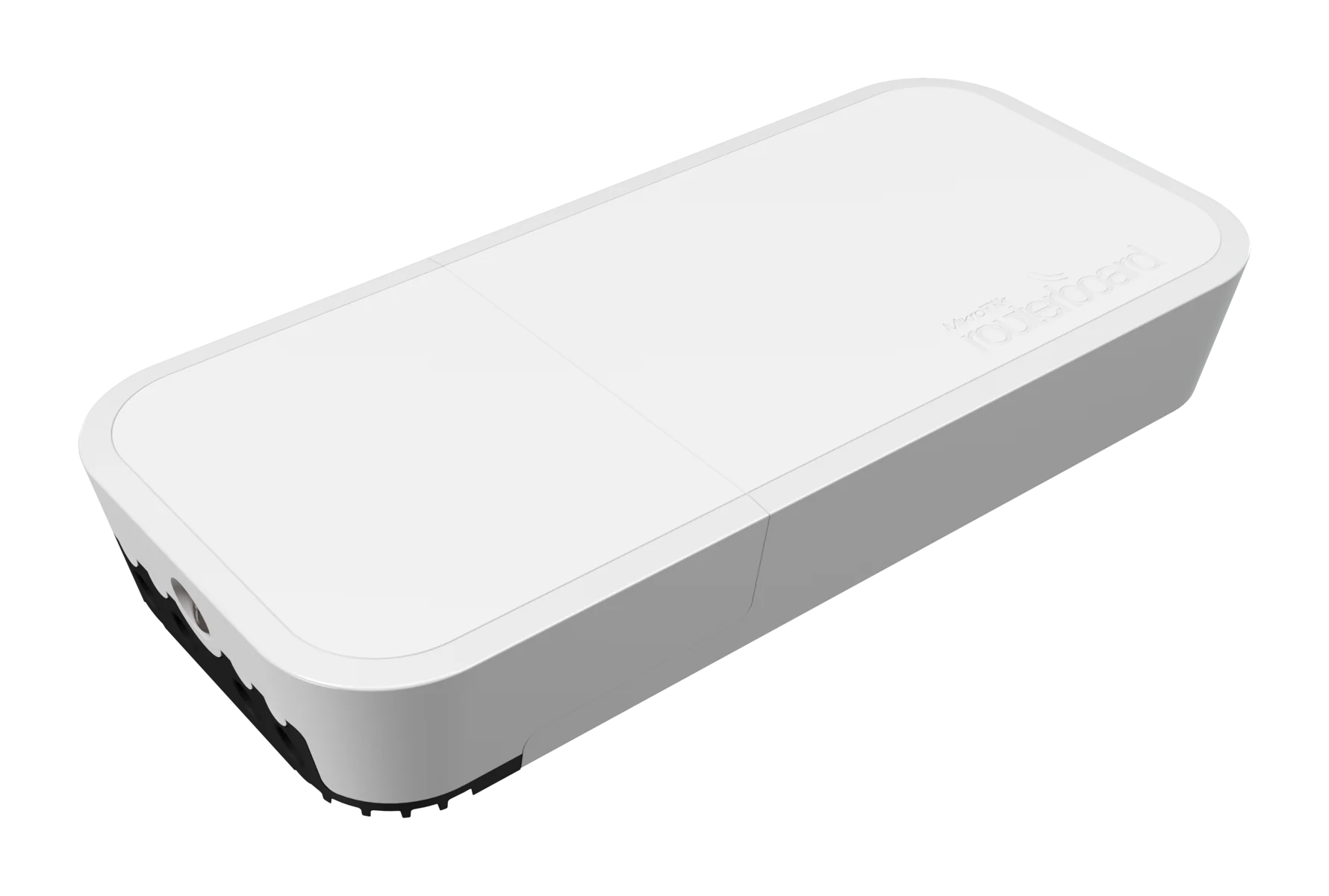

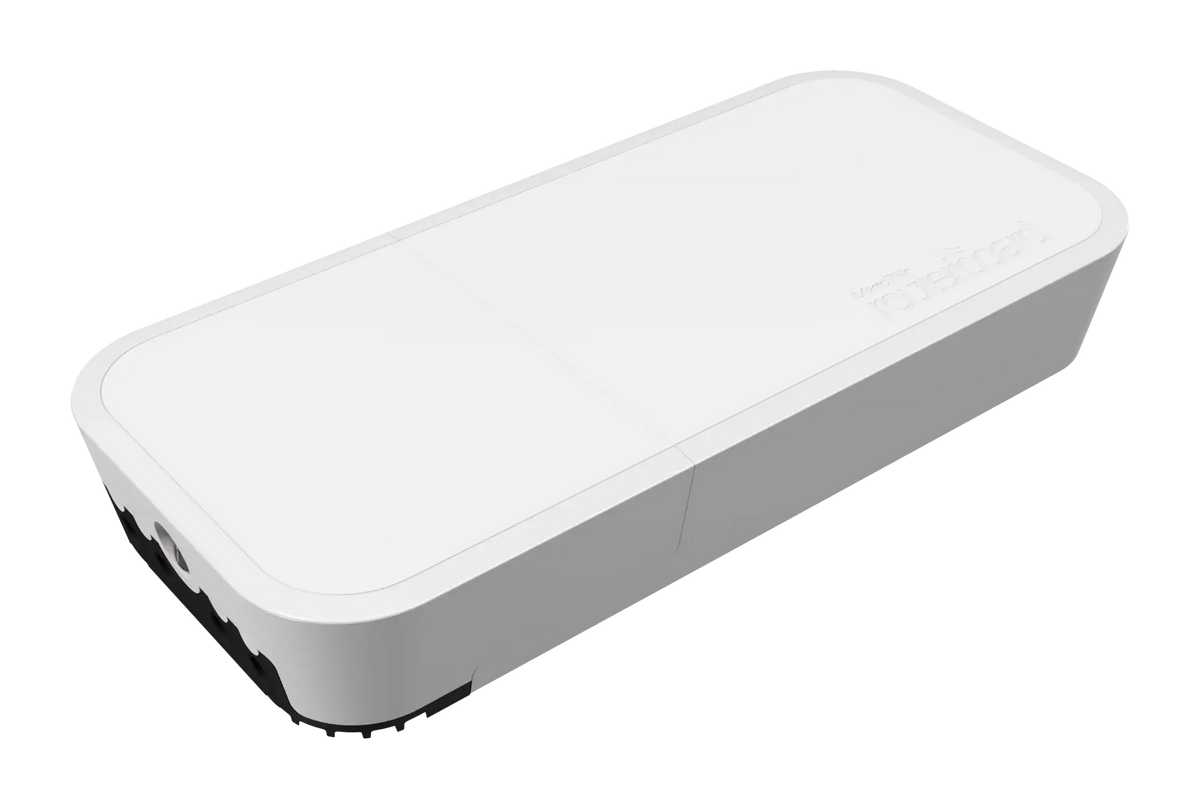

wAP ax brings fast and reliable Wi-Fi 6 to your countryside getaway or any other challenging environments – like a rural gas station or a bus stop.

wAP ax: Fast and Reliable Wi-Fi 6 for Challenging Environments

wAP ax brings fast and reliable Wi-Fi 6 to your countryside getaway or any other challenging environments – like a rural gas station or a bus stop. wAP’s legendary weatherproof form-factor has been tested for several generations all across the globe, and remains a favorite among MikroTik users for its simplicity and durability.

A mighty dual-band, dual-chain (2x2 MIMO) radio ensures fast and reliable wireless connection both indoors and outdoors.

Wi-Fi 6: More Than Just Speed

Without a doubt – Wi-Fi 6 is much faster in both 2.4 GHz spectrum (speed increase up to 90%!) and 5 GHz spectrum (up to 40% faster!), but there’s so much more to it. Wi-Fi 6 offers significantly improved energy efficiency and security. OWE/WPA3-PSK/WPA3-EAP encryption and management frame protection help prevent all sorts of attacks, like brute-forcing and Deauthentication Attacks.

And, if you have multiple wAP ax devices over a larger area, you’ll enjoy the improved seamless fast transition roaming – your devices will switch to the strongest signal… seamlessly!
wAP ax
  • wAP ax
  • wAP ax
  • wAP ax
  • wAP ax

Enhanced Hardware for Uninterrupted Connectivity and Simple Management

This compact access point is equipped with a modern dual-core ARM CPU and runs on RouterOS v7, ensuring stable internet and excellent VPN performance across your property. The wAP ax also supports our new CAPsMAN for easy centralized management of multiple devices with just a few clicks.

The device features two Gigabit Ethernet ports, with PoE-in on one for flexible powering options. You can also use the standard DC jack – because we believe in giving you options.

Stealthy Design – Weatherproof and Vandalproof

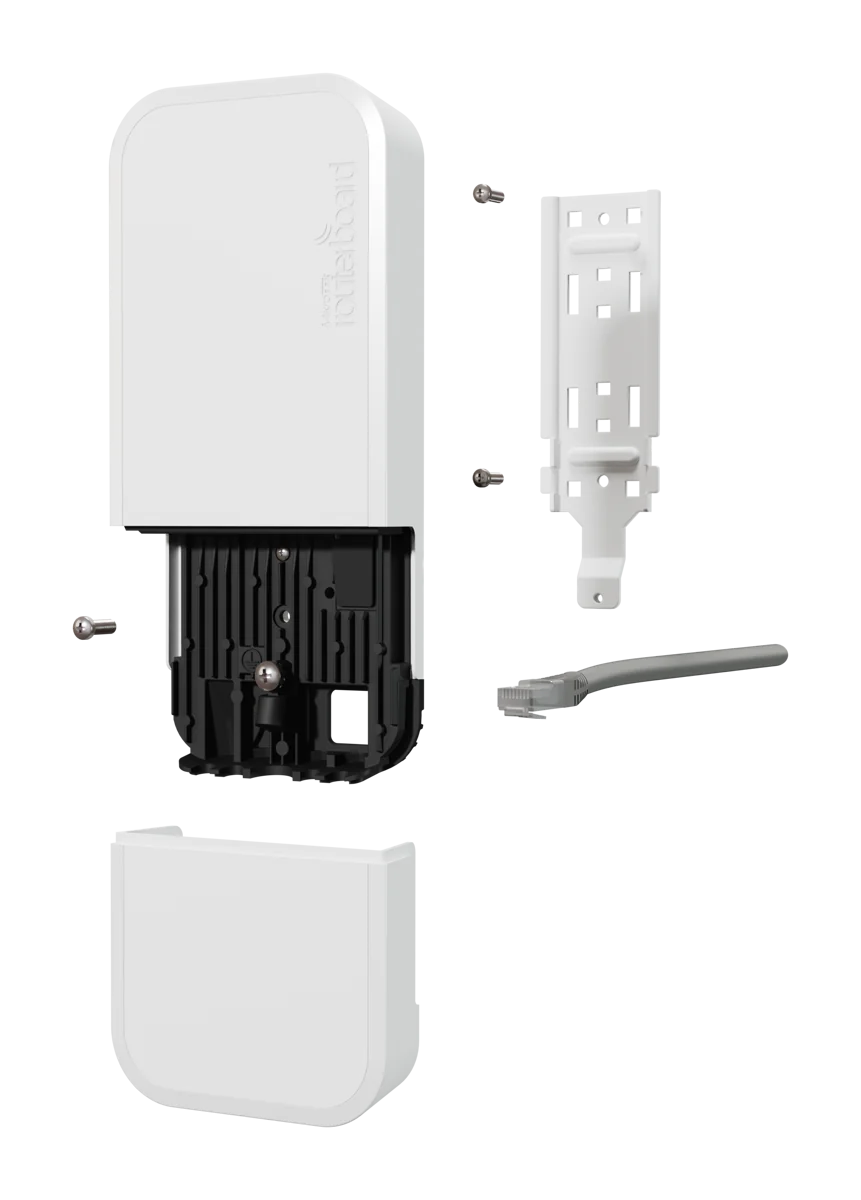

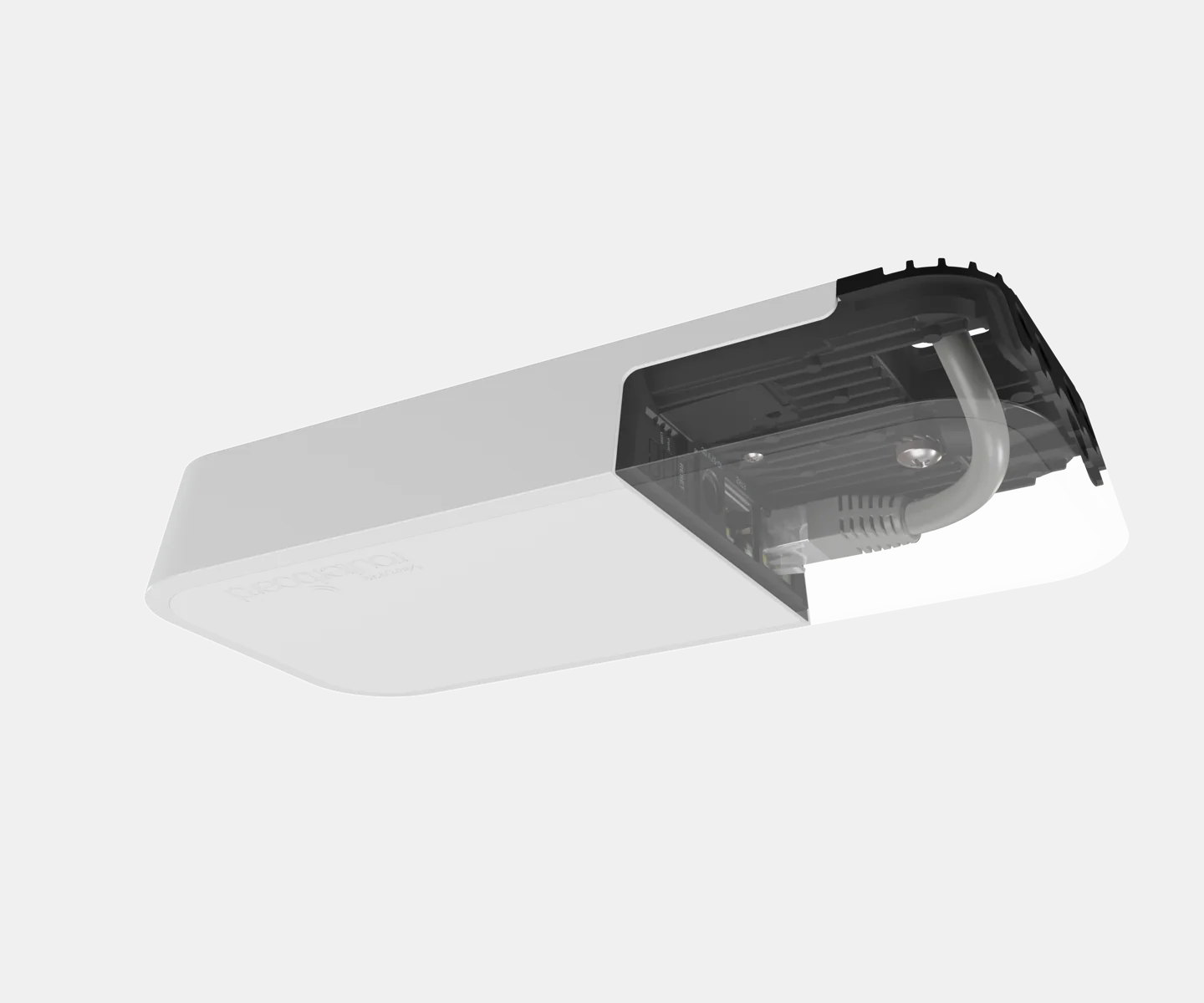

wAP ax is designed to blend into any environment. Its simple, elegant design doesn’t attract any unwanted attention, making it perfect for busy public spaces or private properties alike. wAP can be securely fixed to any external wall or roof from the inside of the case, and there is an opening at the back of the case for running the Ethernet cable directly through the wall, keeping the setup extra discreet and secure.

Specification

Specifications

  • Product codewAPG-5HaxD2HaxD
  • Suggested price$89.00
  • ArchitectureARM 32bit
  • CPUIPQ-5010
  • CPU core count2
  • CPU nominal frequency800 MHz
  • CPU Threads count2
  • RouterOS license4
  • Operating SystemRouterOS v7
  • Size of RAM256 MB
  • Storage size128 MB
  • Storage typeNAND
  • MTBFApproximately 100'000 hours at 25C
  • Tested ambient temperature-40°C to 70°C

Wireless capabilities

  • Wireless 2.4 GHz Max data rate574 Mbit/s
  • Wireless 2.4 GHz Number of chains2
  • Wireless 2.4 GHz standards802.11b/g/n/ax
  • Antenna gain dBi for 2.4 GHz6.9
  • Wireless 2.4 GHz chip modelIPQ-5010
  • Wireless 2.4 GHz generationWi-Fi 6
  • Wireless 5 GHz Max data rate2400 Mbit/s
  • Wireless 5 GHz Number of chains2
  • Wireless 5 GHz standards802.11a/n/ac/ax
  • Antenna gain dBi for 5 GHz7
  • Wireless 5 GHz chip modelQCN-6102
  • Wireless 5 GHz generationWi-Fi 6
  • WiFi speedAX3000

Ethernet

  • 10/100/1000 Ethernet ports2

Powering

  • Number of DC inputs2 (DC jack, PoE-IN)
  • DC jack input Voltage12-57 V
  • Max power consumption9 W
  • Max power consumption without attachments9 W
  • PoE in802.3af/at
  • Cooling typePassive
  • PoE in input Voltage18-57 V

Certification & Approvals

  • CertificationCE, FCC, IC, EAC, ROHS
  • IP54

Other

  • CPU temperature monitorYes
  • PCB temperature monitorYes
  • Voltage MonitorYes

Included parts24V 0.8A power adapterGigabit PoE injectorwAP desktop standK-52 fastening setwAP ceiling mount bracketwAP mountHose clamp 1Plastic zip tieNoteThe device has an operating system preinstalled and licensed. No separate purchase is necessary and the product is ready to use. The device includes free software updates for the life of the product or a minimum of 5 years starting from date of purchase.
