RB1100AHx4 Dude Edition

RB1100AHx4 Dude Edition

$538.63 CAD
RB1100AHx4 Dude Edition

RB1100AHx4 Dude Edition

RB1100Dx4
$538.63 CAD
Shipping calculated at checkout.
Out of stock

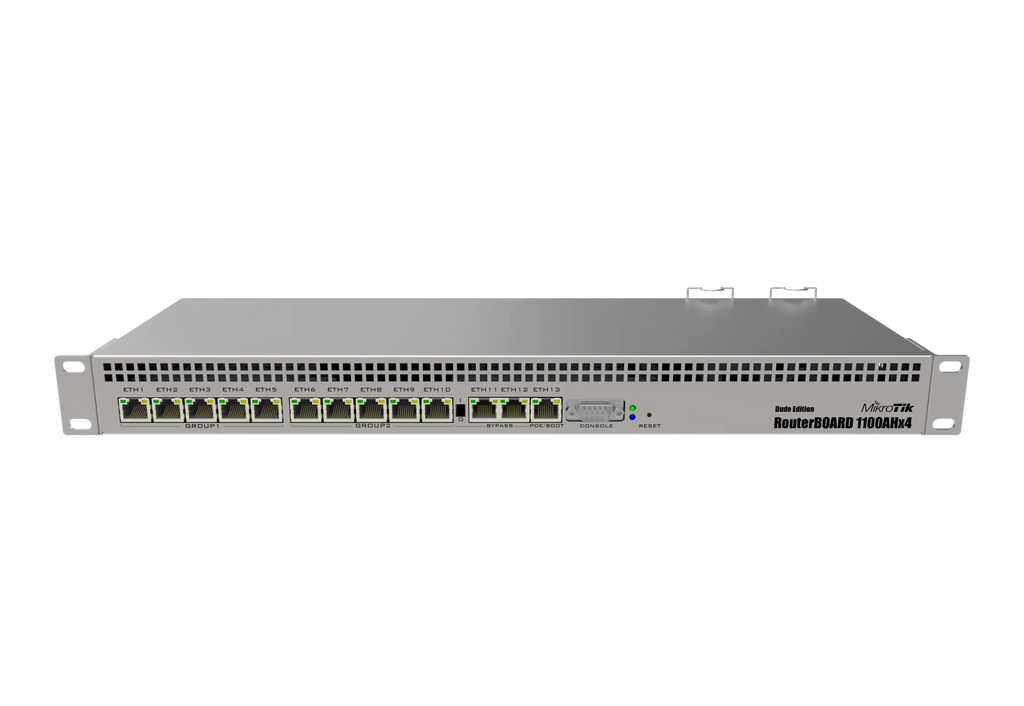

Powerful 1U rackmount router with 13x Gigabit Ethernet ports, 60GB M.2 drive for Dude database.

New RB1100AHx4 Dude Edition has Annapurna Alpine AL21400 CPU with four Cortex A15 cores clocked at 1.4GHz each, for a maximum throughput of up to 7.5Gbps. The device supports IPsec hardware acceleration and is faster at it than any previous RouterBOARD device (up to 2.2Gbps with AES128).

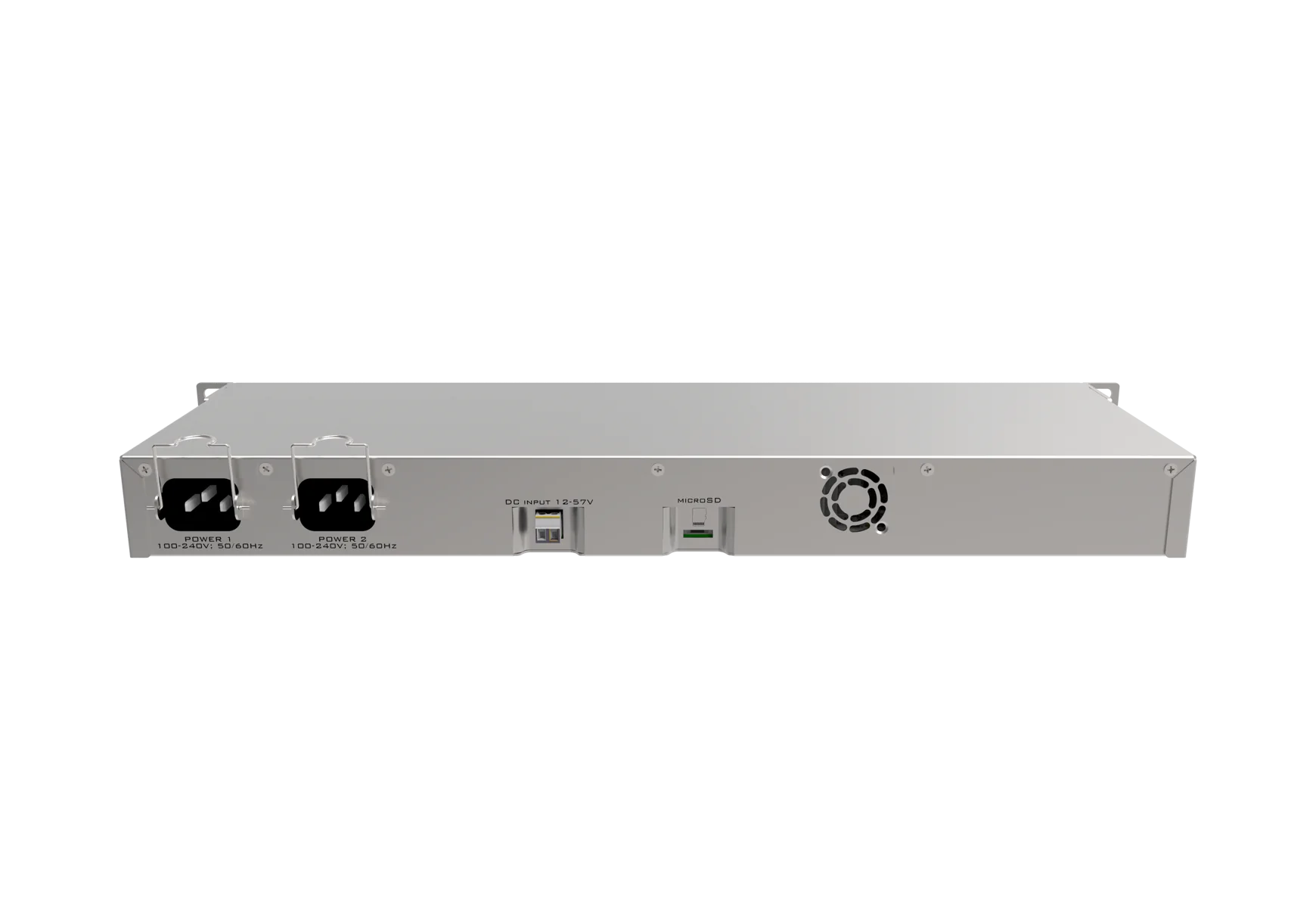

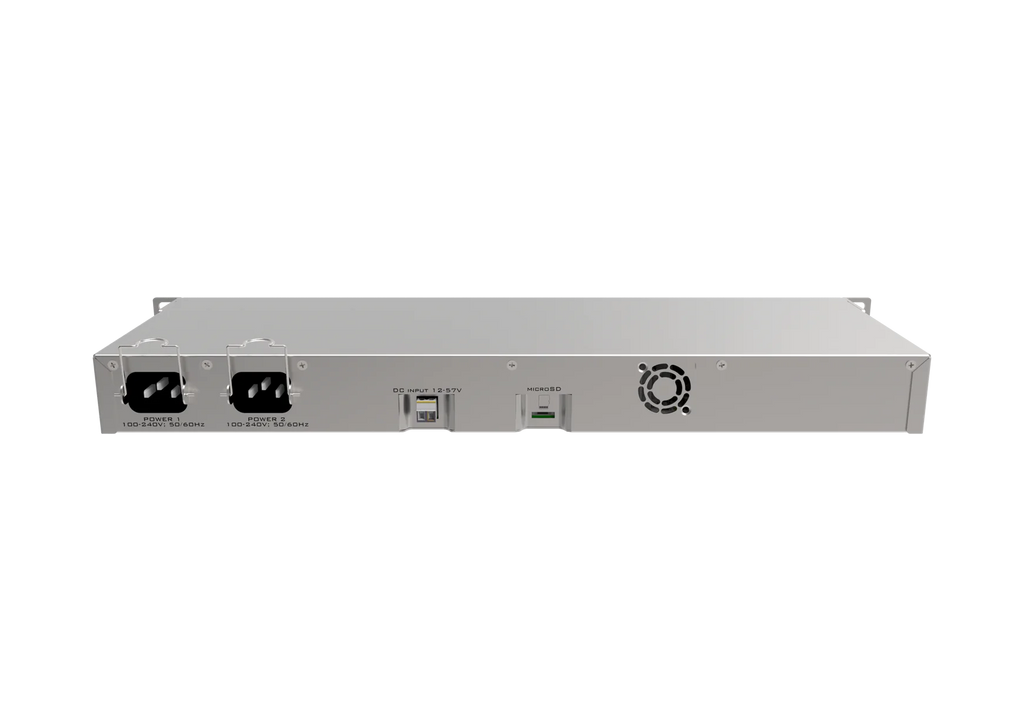

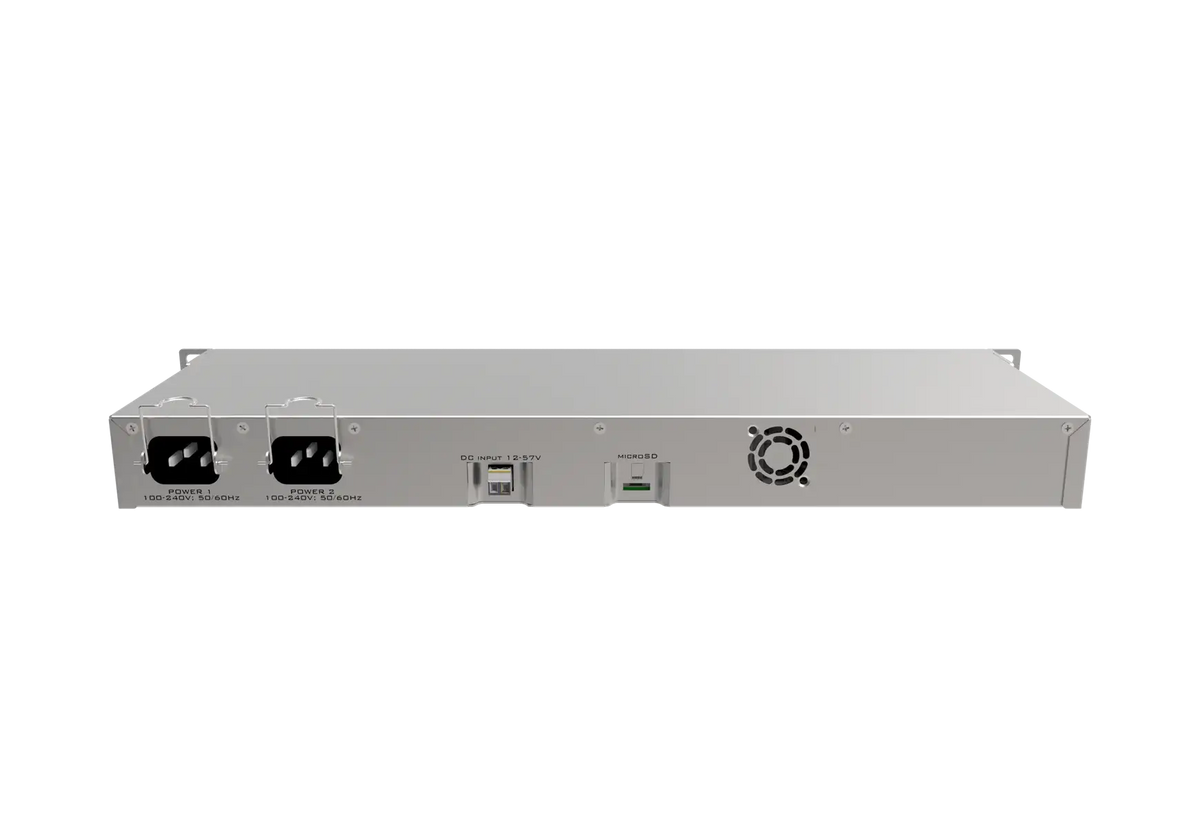

Unit comes with 1U rackmount case, 13x Gigabit Ethernet ports, RS232 serial port and dual redundant power supplies (with -48v DC telecom power and 802.3at/af support). The RB1100AHx4 Dude edition features several high speed storage connectors (two SATA and two M.2) for using a Dude database, proxy cache or any other storage intensive feature. It includes a 60GB M.2 drive already installed.
RB1100AHx4 Dude Edition
  • RB1100AHx4 Dude Edition
  • RB1100AHx4 Dude Edition
  • RB1100AHx4 Dude Edition
  • RB1100AHx4 Dude Edition

Specification

Specifications

  • Product codeRB1100Dx4
  • Suggested price$385.00
  • ArchitectureARM 32bit
  • CPUAL21400
  • CPU core count4
  • CPU nominal frequency1.4 GHz
  • CPU Threads count4
  • Switch chip modelRTL8367
  • Dimensions443 x 148 x 44 mm
  • RouterOS license6
  • Operating SystemRouterOS
  • Size of RAM1 GB
  • Storage size128 MB
  • Storage typeNAND
  • MTBFApproximately 200'000 hours at 25C
  • Tested ambient temperature-40°C to 70°C

Powering

  • Number of AC inputs2
  • Number of DC inputs2 (PoE-IN, 2-pin terminal)
  • 2-pin terminal input Voltage-48, 20-57 V
  • Max power consumption33 W
  • Max power consumption without attachments25 W
  • PoE in802.3af/at
  • Cooling typePassive
  • PoE in input Voltage20-57 V

Ethernet

  • 10/100/1000 Ethernet ports13

Peripherals

  • Extended storage60GB M.2 SSD included
  • Memory card typemicroSD
  • Memory Cards1
  • SATA ports2x SATA3
  • Serial console portRS232
  • Number of M.2 slots2

Other

  • Current MonitorYes
  • PCB temperature monitorYes
  • Voltage MonitorYes
  • BeeperYes

Certification & Approvals

  • CertificationCE, EAC, ROHS
  • IPIP20

Included partsSATA cablesRack earsM.2 SSD 60GB2x IEC cordsK-57 kitNoteThe device has an operating system preinstalled and licensed. No separate purchase is necessary and the product is ready to use. The device includes free software updates for the life of the product or a minimum of 5 years starting from date of purchase.
