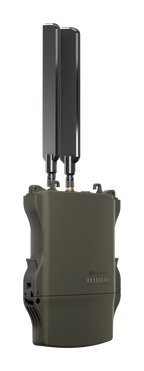

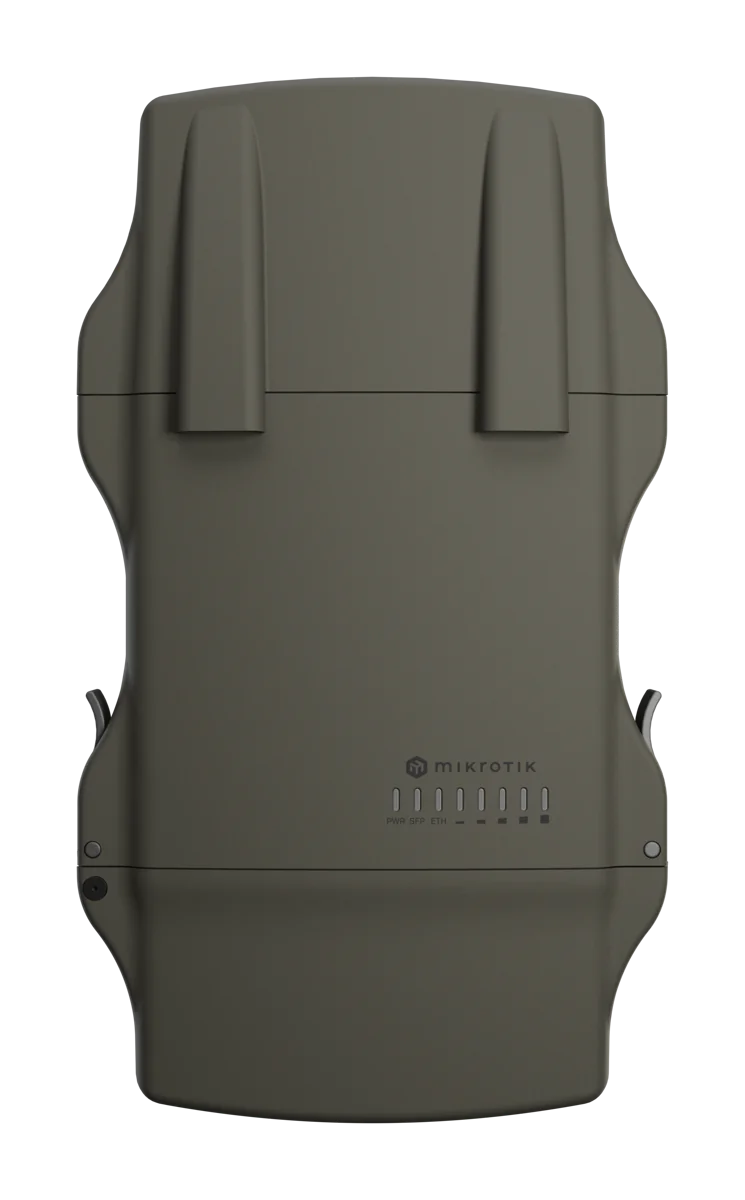

The Mars rover of networking. Our toughest long-range outdoor access point – now with Wi-Fi 6!

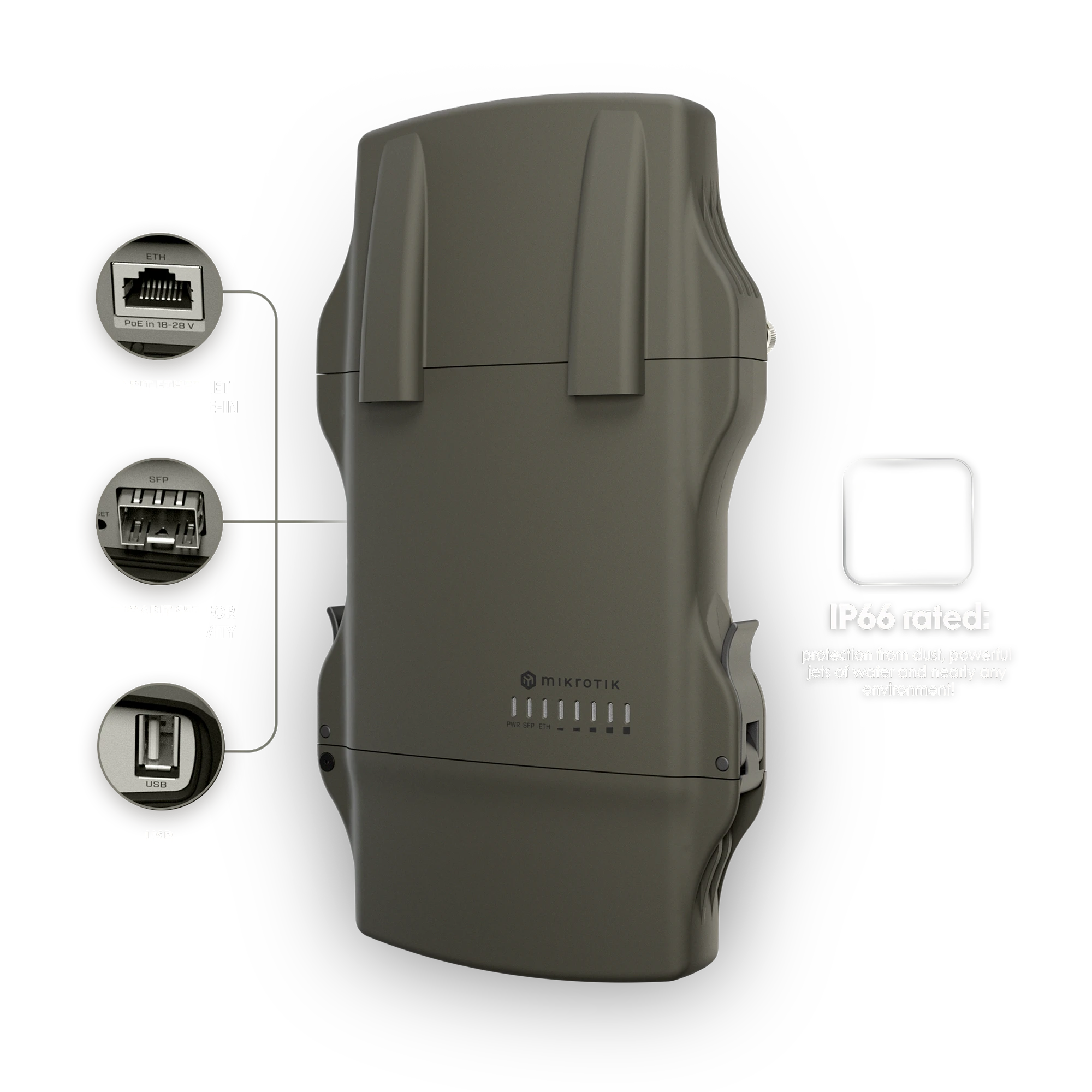

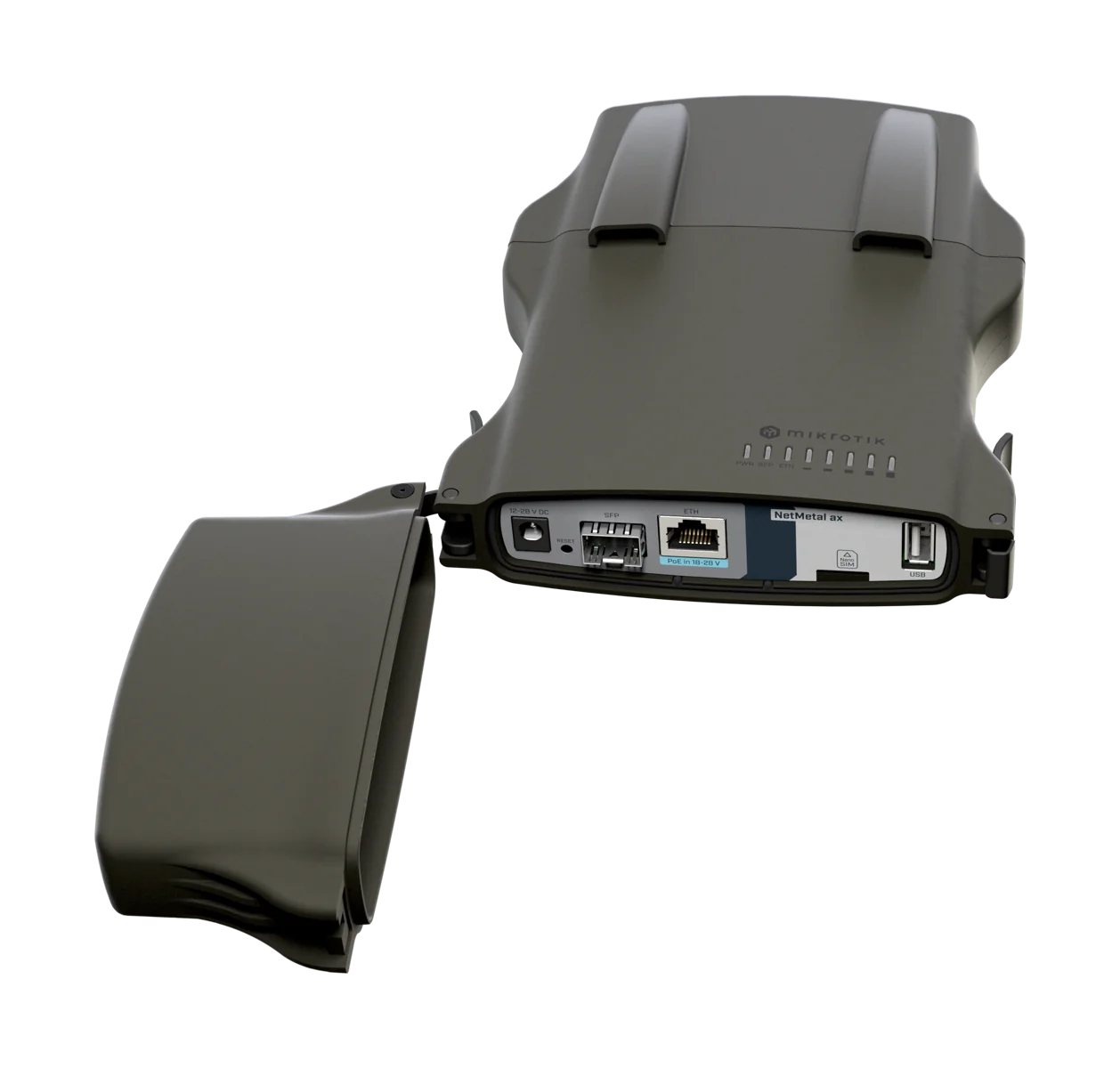

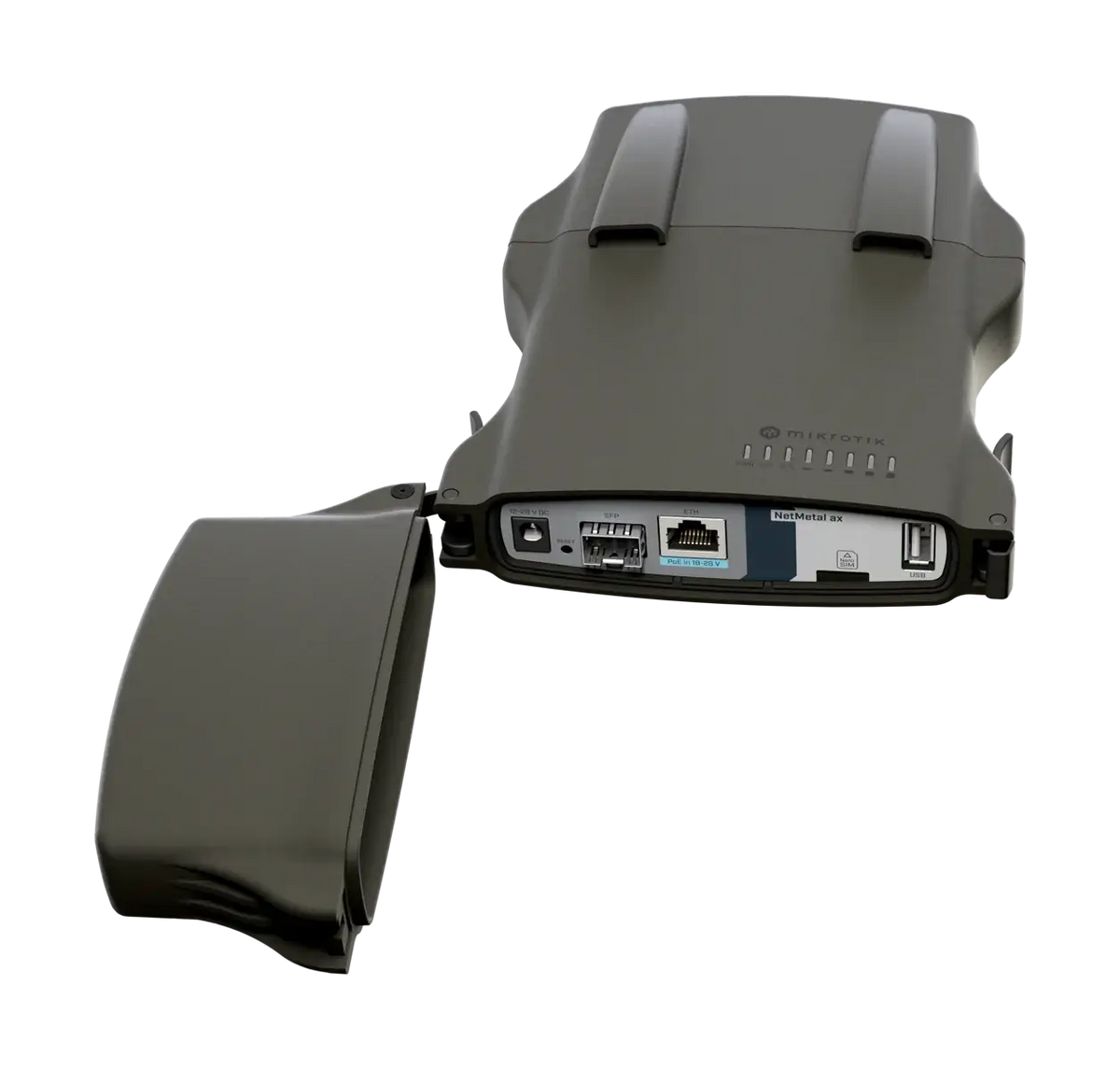

Meet one of your most versatile companions: the NetMetal ax – a powerful long-range outdoor access point that thrives in any environment. Designed for extra durability, it can be installed almost anywhere with ease – you can open and close the case with one hand. The rated IP66 protection will keep the device safe from dust and powerful water jets - in damp attics and elevator shafts, bustling docks, or coastal tower structures. No terrain is too rough for the NetMetal ax – the Mars rover of networking!
NetMetal ax
  • NetMetal ax
  • NetMetal ax
  • NetMetal ax
  • NetMetal ax
  • NetMetal ax

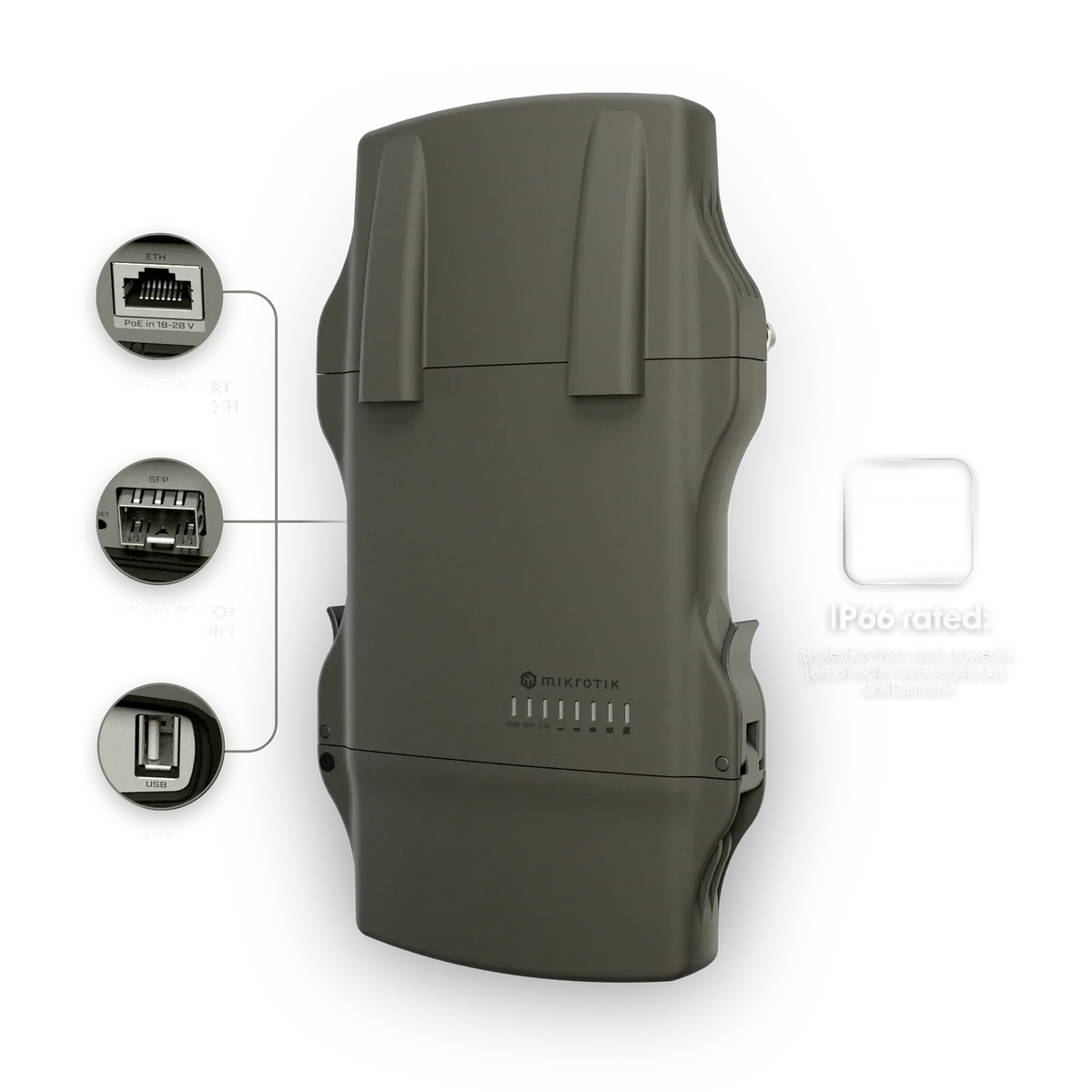

It features a modern dual-core ARM CPU, Gigabit Ethernet and 2.5 Gigabit SFP for fiber connectivity, a USB port, and a free miniPCIe slot that allows further customization. You could, for example, add an LTE modem for a mobile internet backup – we’ve added a NanoSIM slot on the NetMetal! But there are other options, like adding a gateway for LoRa IoT setups, such as our R11e-LR8!

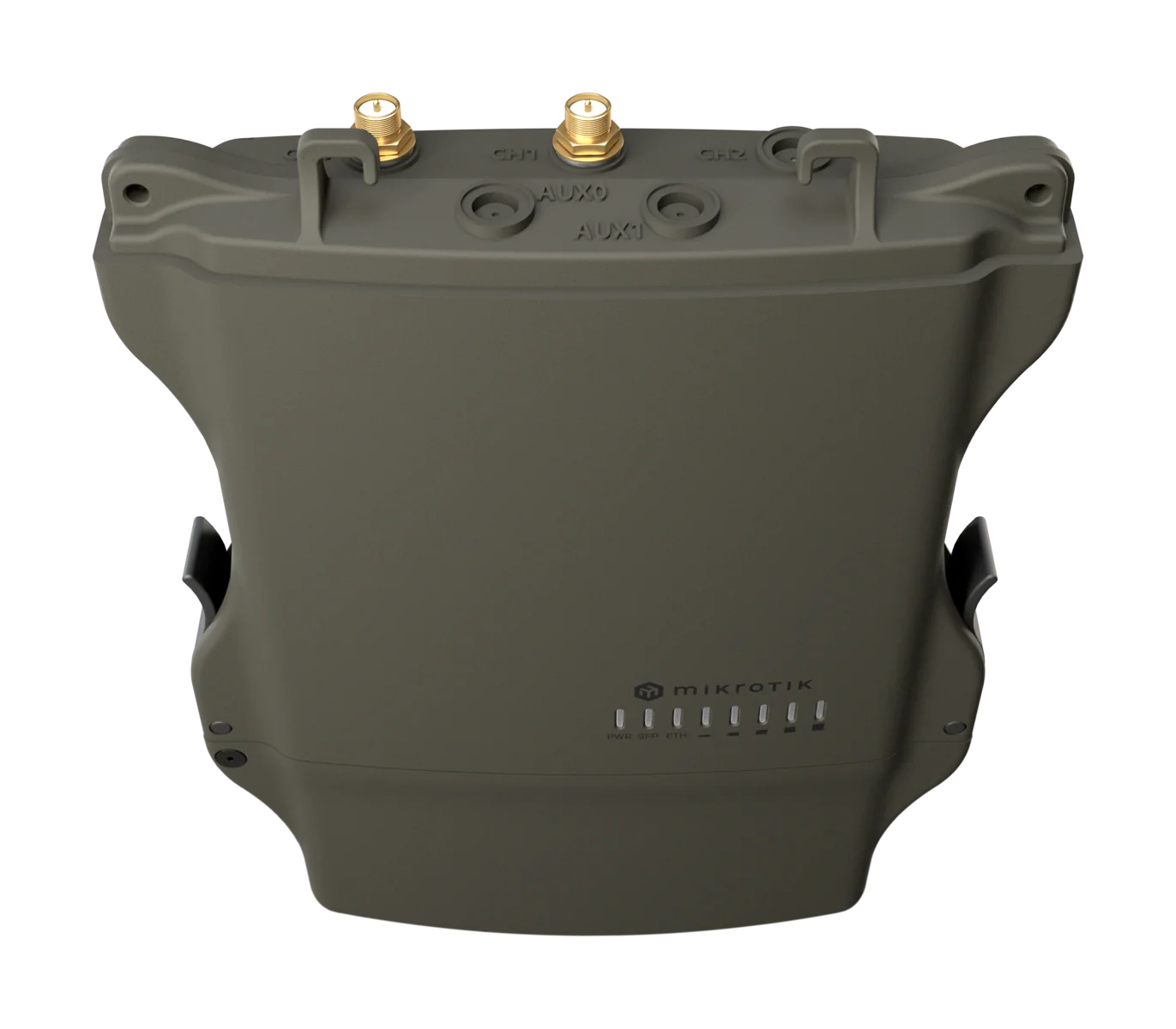

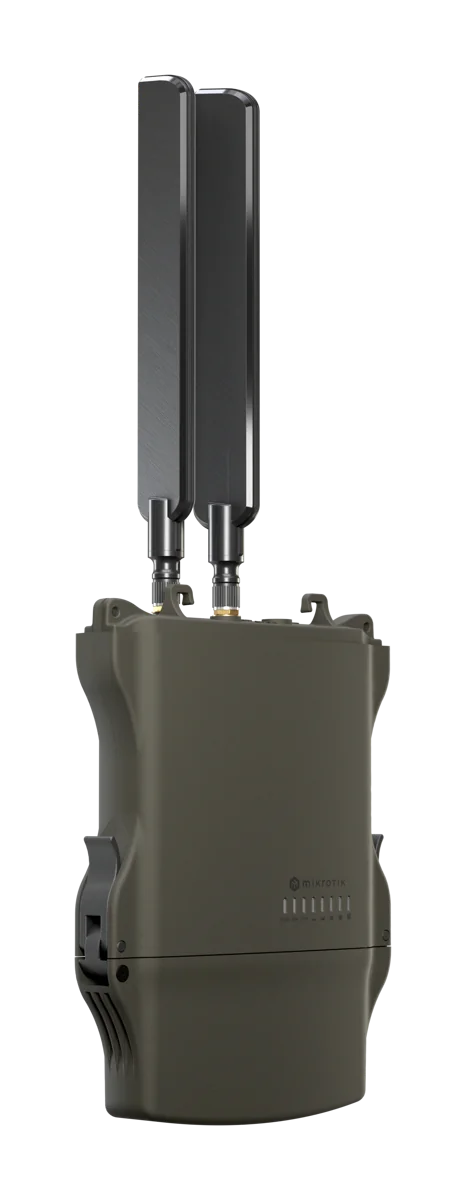

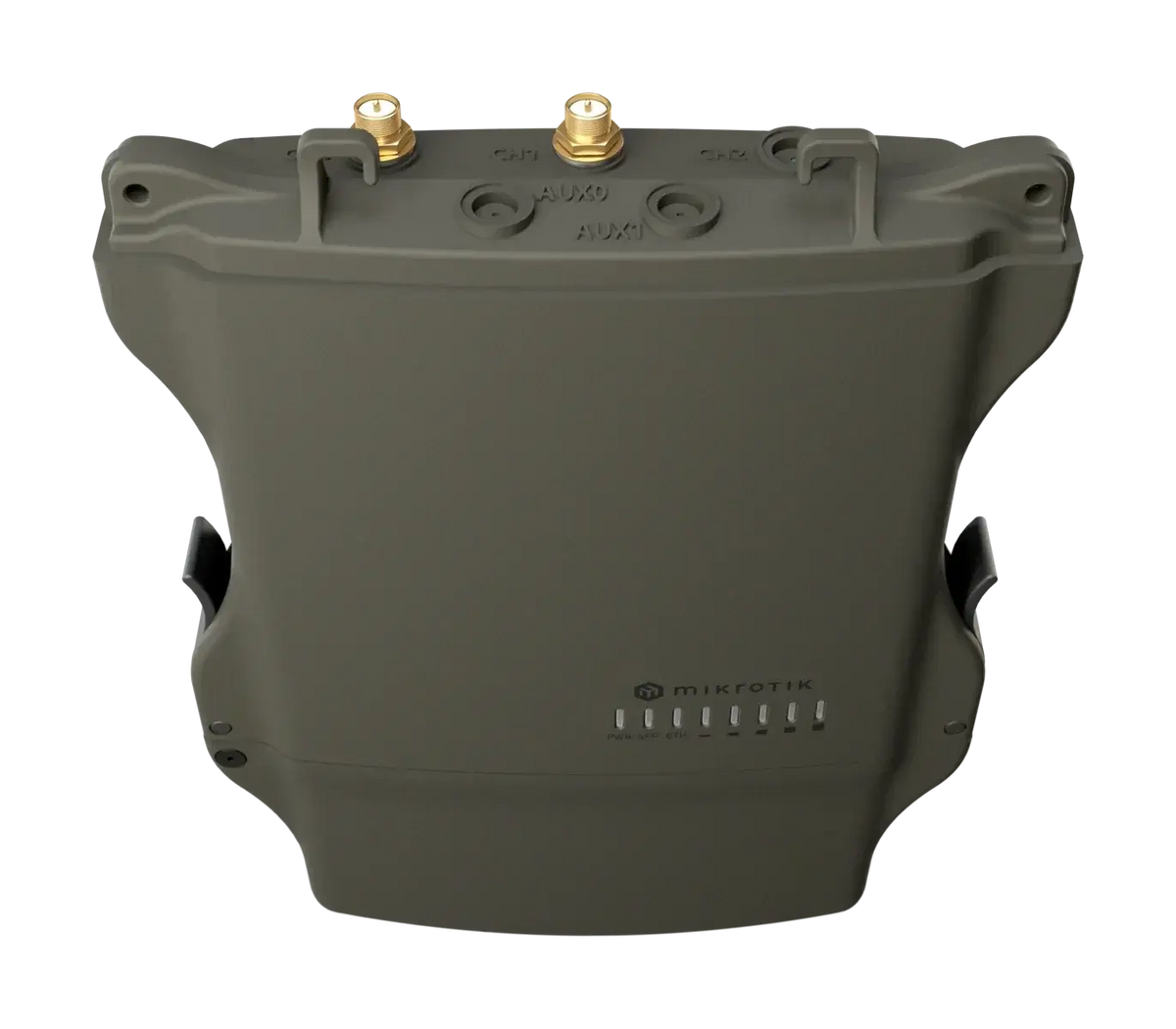

A powerful dual-band, dual-chain Wi-Fi 6 radio offers increased speed, stability, security, roaming, power management, and other features, compared to the previous wireless protocols. Two RP-SMA female connectors allow adding an antenna of your choice for distances up to 30 kilometers.*. If necessary, you can adapt the NetMetal ax for lower range use with such antennas as our HGO-antenna-OUT screw-on omni antenna unit. It provides 3.3 dBi gain for the 2.4 GHz band and 5.5-7.1 dBi gain for the 5 GHz band. If you’ve read this far, here’s a little bonus feature: we’ve kept the good old beeper for various alarms or creative outputs.

Specification

Specifications

  • Product codeL23UGSR-5HaxD2HaxD-NM
  • Suggested price$169.00
  • ArchitectureARM 32bit
  • CPUIPQ-5010
  • CPU core count2
  • CPU nominal frequency800 MHz
  • CPU Threads count2
  • RouterOS license4
  • Operating SystemRouterOS v7
  • Size of RAM256 MB
  • Storage size128 MB
  • Storage typeNAND
  • MTBFApproximately 200'000 hours at 25C
  • Tested ambient temperature-40°C to 70°C

Powering

  • Number of DC inputs2 (DC jack, PoE-IN)
  • DC jack input Voltage12-28 V
  • Max power consumption25 W
  • Max power consumption without attachments12 W
  • PoE inPassive PoE
  • Cooling typePassive
  • PoE in input Voltage18-28 V

Wireless specifications

  • Wireless 2.4 GHz Max data rate574 Mbit/s
  • Wireless 2.4 GHz Number of chains2
  • Wireless 2.4 GHz standards802.11b/g/n/ax
  • Wireless 2.4 GHz chip modelIPQ-5010
  • Wireless 2.4 GHz generationWi-Fi 6
  • Wireless 5 GHz Max data rate2400 Mbit/s
  • Wireless 5 GHz Number of chains2
  • Wireless 5 GHz standards802.11a/n/ac/ax
  • Wireless 5 GHz chip modelQCN-6102
  • Wireless 5 GHz generationWi-Fi 6

Ethernet

  • 10/100/1000 Ethernet ports1

Fiber

  • SFP ports1 (2.5G supported)

Peripherals

  • Number of SIM slots1 Modem (Nano SIM)
  • MiniPCI-e slots1
  • Number of USB ports1
  • USB Power ResetYes
  • USB slot typeUSB type A
  • Max USB current (A)1.5

Other

  • PCB temperature monitorYes
  • Voltage MonitorYes
  • BeeperYes

Certification & Approvals

  • CertificationCE, FCC, IC, EAC, ROHS
  • IP66

Included parts24V 1.2A power adapterGigabit PoE injectorMetal ring (one)DIN mount (K-27)NoteThe device has an operating system preinstalled and licensed. No separate purchase is necessary and the product is ready to use. The device includes free software updates for the life of the product or a minimum of 5 years starting from date of purchase.
