NetBox 5 ax

NetBox 5 ax

$152.50 CAD
NetBox 5 ax

NetBox 5 ax

L11UG-5HaxD-NB
$152.50 CAD
Shipping calculated at checkout.
Out of stock

A Wi-Fi 6 upgrade of the popular NetBox 5. AP/CPE/Point-to-point – it can do it all! PoE-in, DC jack, Gigabit Ethernet, durable outdoor enclosure, modern dual-core ARM CPU, Wi-Fi-6 5GHz wireless.

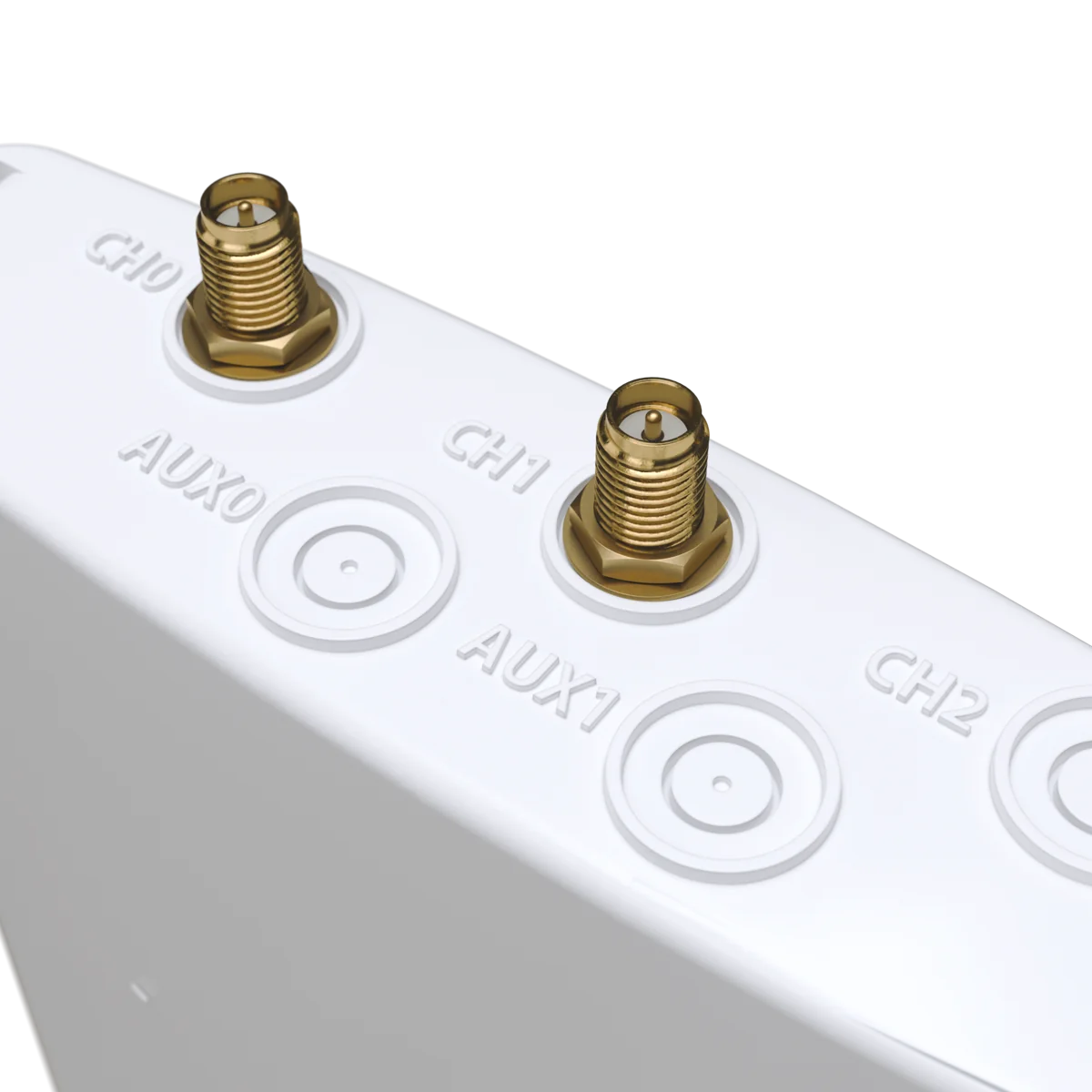

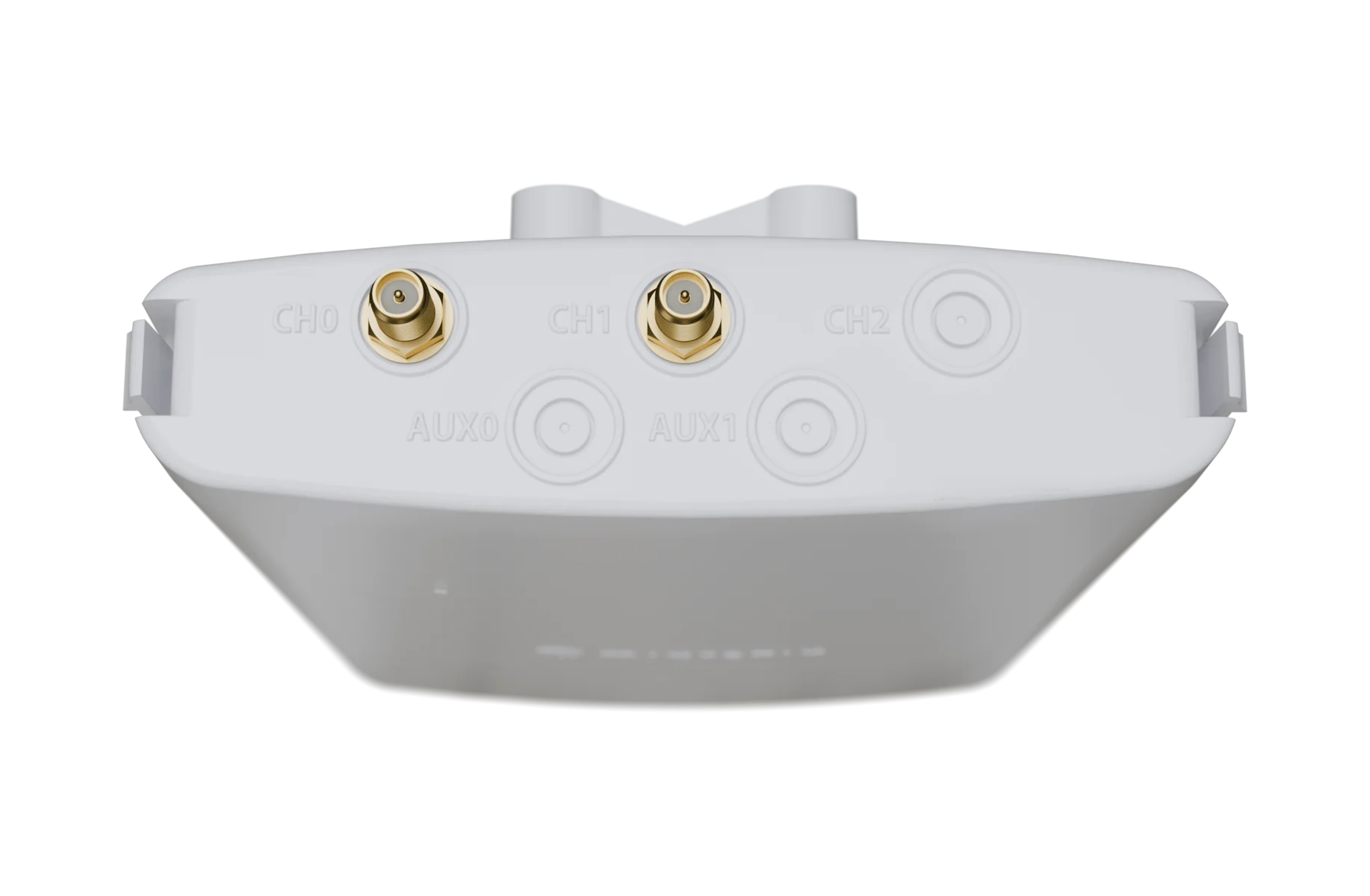

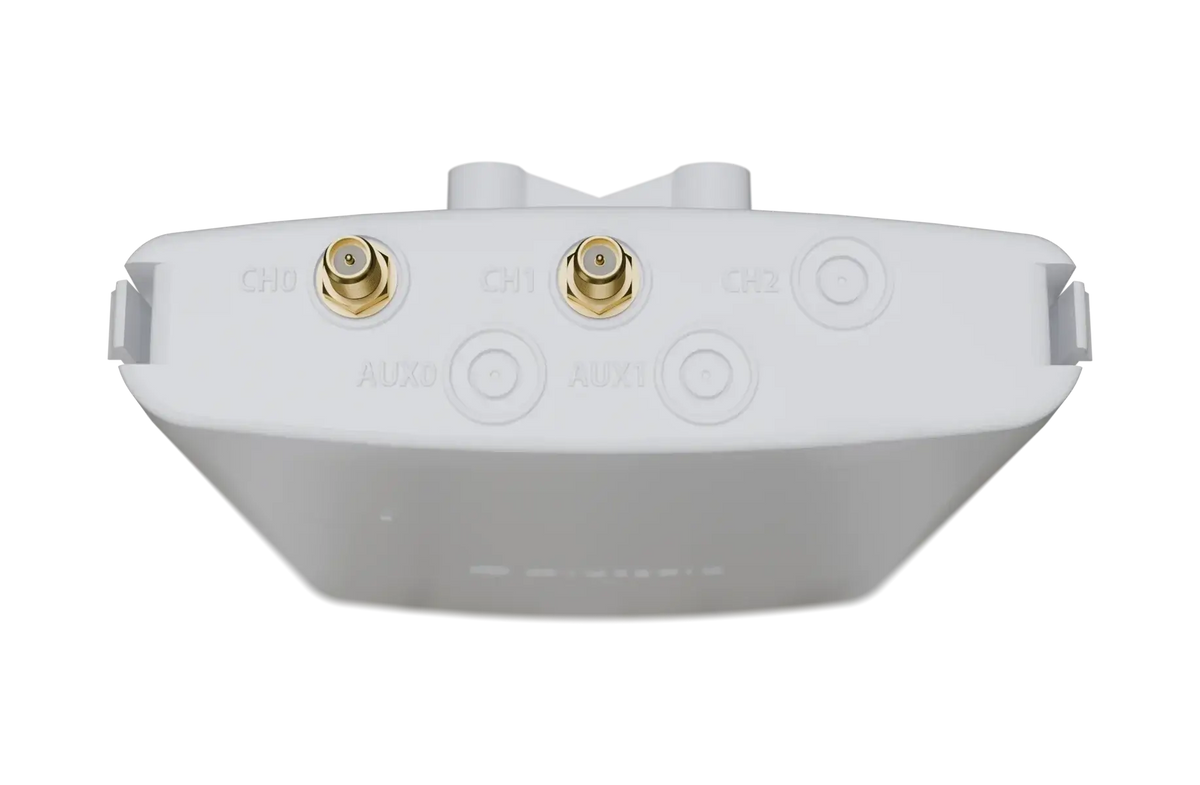

NetBox 5 ax is a powerful dual-chain outdoor device that can fill multiple roles in your setups: AP/CPE/Point-to-point. The strong 5 GHz Wi-Fi 6 radio comes with handy RP-SMA connectors. That means you can add a HGO-antenna-OUT and you’ve got yourself an excellent omnidirectional AP… or try the mANT30 PA antenna to create a powerful long-range point-to-point link for distances up to 30 kilometers.*

This weatherproof board features a modern Qualcomm Maple CPU based on the ARM architecture, 256 MB of RAM, a USB port for extra storage or other needs, and a Gigabit Ethernet port with PoE-in.

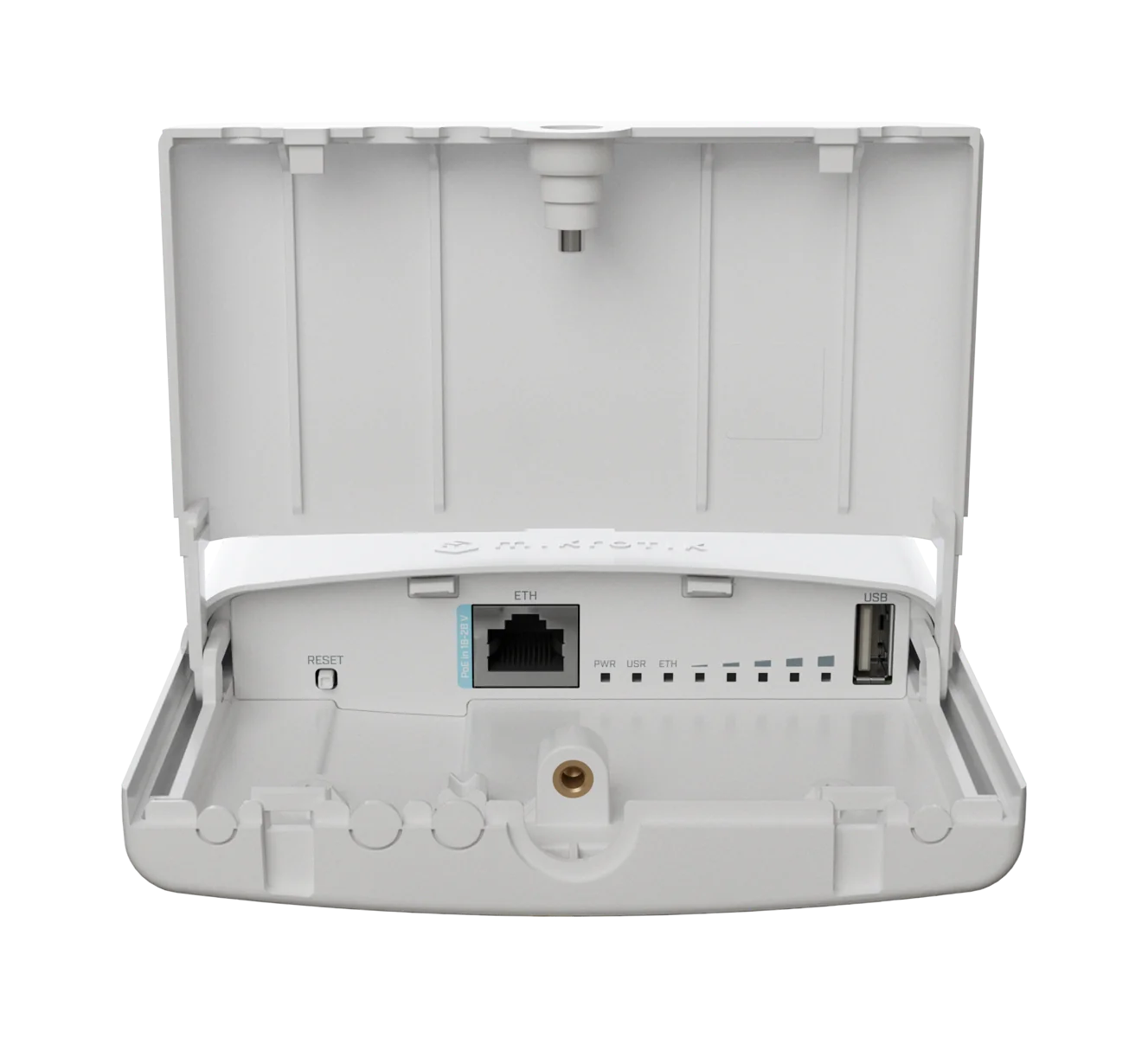

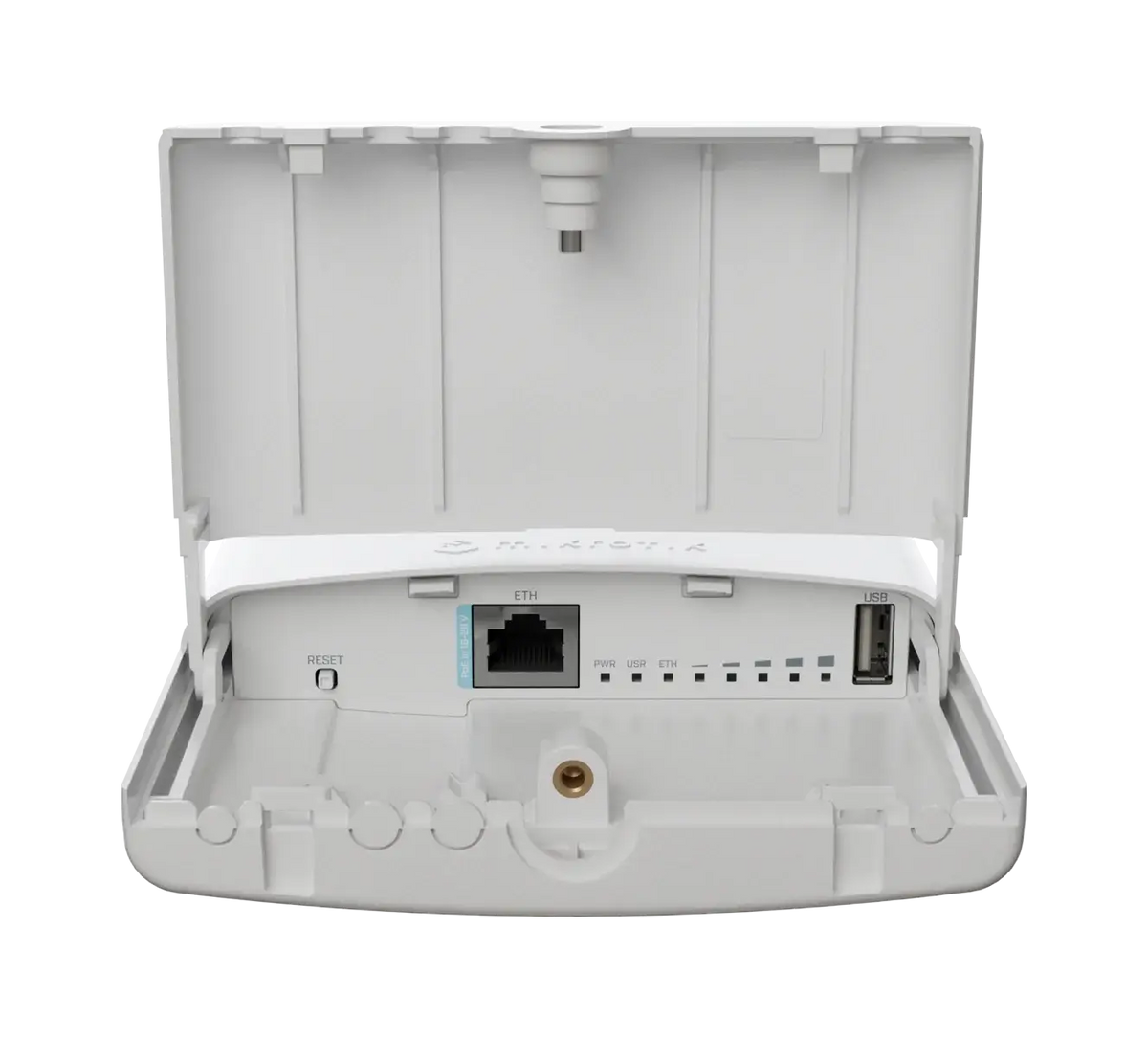

We’ve designed the case to make a sysadmins life easier. You can open the case effortlessly with just one hand. At the bottom, concealed behind a protective door, you’ll find exits for Ethernet. Equipped with a mounting loop for easy tower/pole installation, it also offers a separate DIN rail mount.
NetBox 5 ax
  • NetBox 5 ax
  • NetBox 5 ax
  • NetBox 5 ax
  • NetBox 5 ax

Specification

Specifications

  • Product codeL11UG-5HaxD-NB
  • Suggested price$109.00
  • ArchitectureARM 32bit
  • CPUIPQ-5010
  • CPU core count2
  • CPU nominal frequency800 MHz
  • CPU Threads count2
  • RouterOS license4
  • Operating SystemRouterOS v7
  • Size of RAM256 MB
  • Storage size128 MB
  • Storage typeNAND
  • MTBFApproximately 200'000 hours at 25C
  • Tested ambient temperature-40°C to 70°C

Powering

  • Number of DC inputs1 (PoE-IN)
  • Max power consumption15 W
  • Max power consumption without attachments6 W
  • PoE inPassive PoE
  • Cooling typePassive
  • PoE in input Voltage18-28 V

Wireless specifications

  • Wireless 5 GHz Max data rate2400 Mbit/s
  • Wireless 5 GHz Number of chains2
  • Wireless 5 GHz standards802.11a/n/ac/ax
  • Wireless 5 GHz chip modelQCN-6102
  • Wireless 5 GHz generationWi-Fi 6

Ethernet

  • 10/100/1000 Ethernet ports1

Peripherals

  • Number of USB ports1
  • USB Power ResetYes
  • USB slot typeUSB type A
  • Max USB current (A)1.5

Other

  • PCB temperature monitorYes
  • Voltage MonitorYes
  • BeeperYes

Certification & Approvals

  • CertificationCE, FCC, IC, EAC, ROHS
  • IP54

Included parts24V 1.2A power adapterGigabit PoE injectorHose clamp 1DIN mount (K-27)NoteThe device has an operating system preinstalled and licensed. No separate purchase is necessary and the product is ready to use. The device includes free software updates for the life of the product or a minimum of 5 years starting from date of purchase.
