LHG XL HP5

LHG XL HP5

$124.52 CAD
LHG XL HP5

LHG XL HP5

RBLHG-5HPnD-XL
$124.52 CAD
Shipping calculated at checkout.
Out of stock

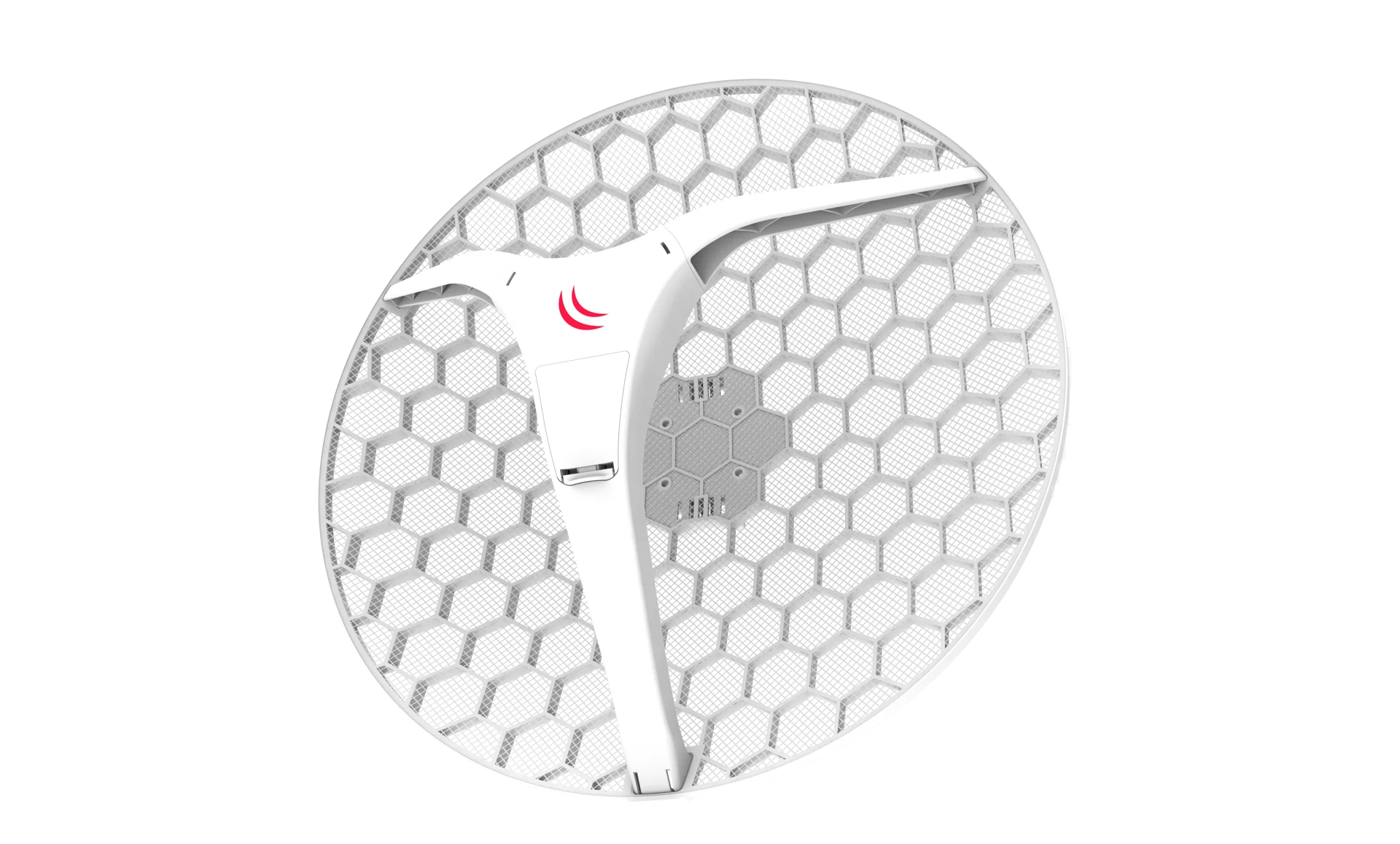

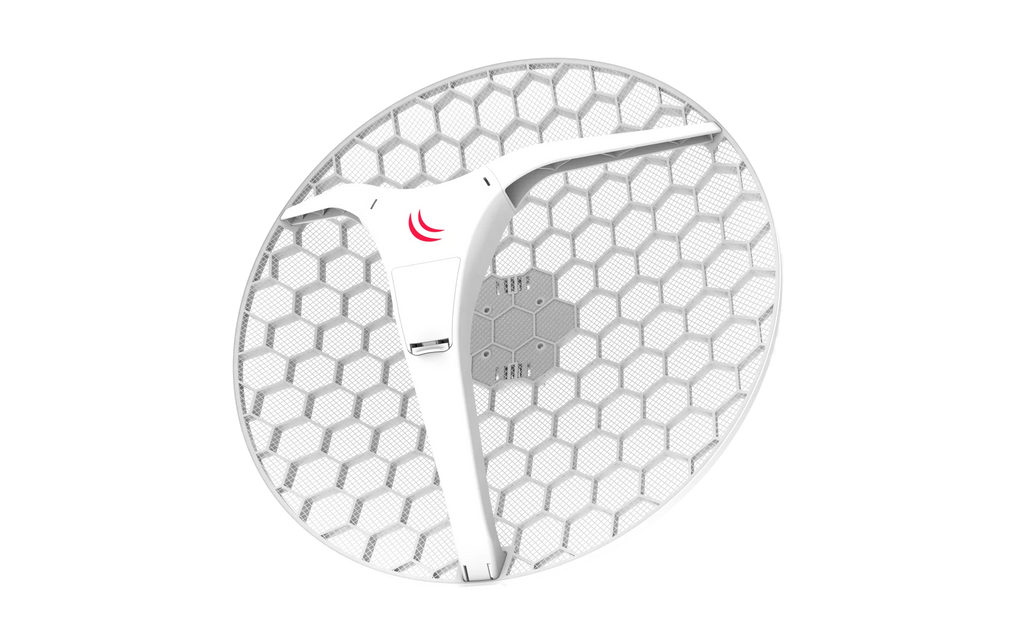

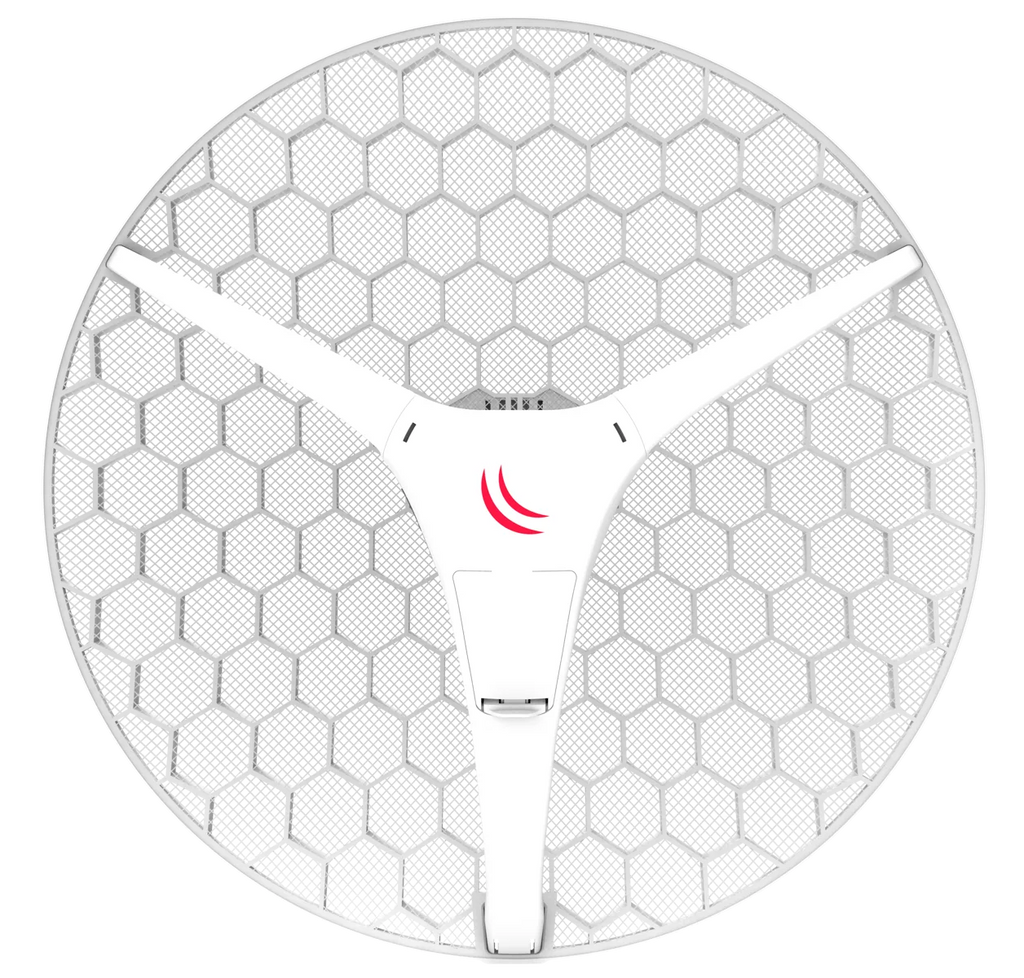

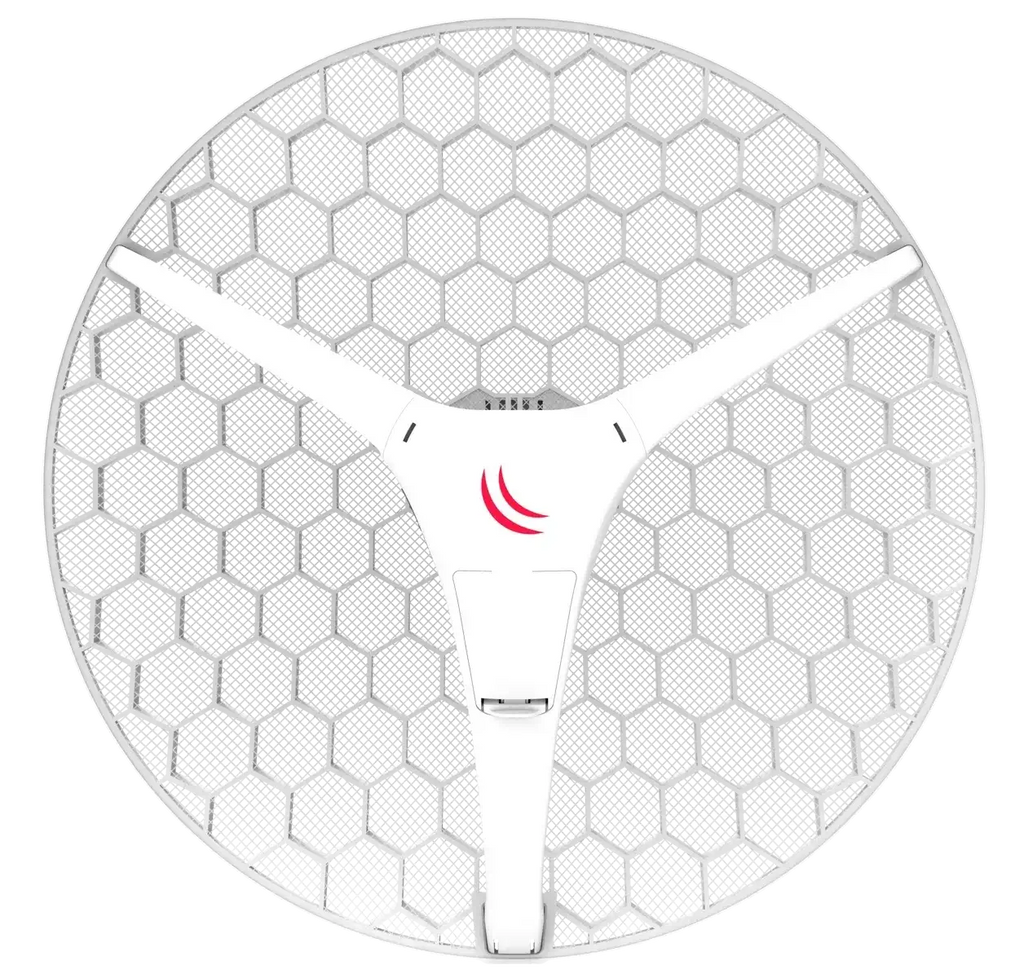

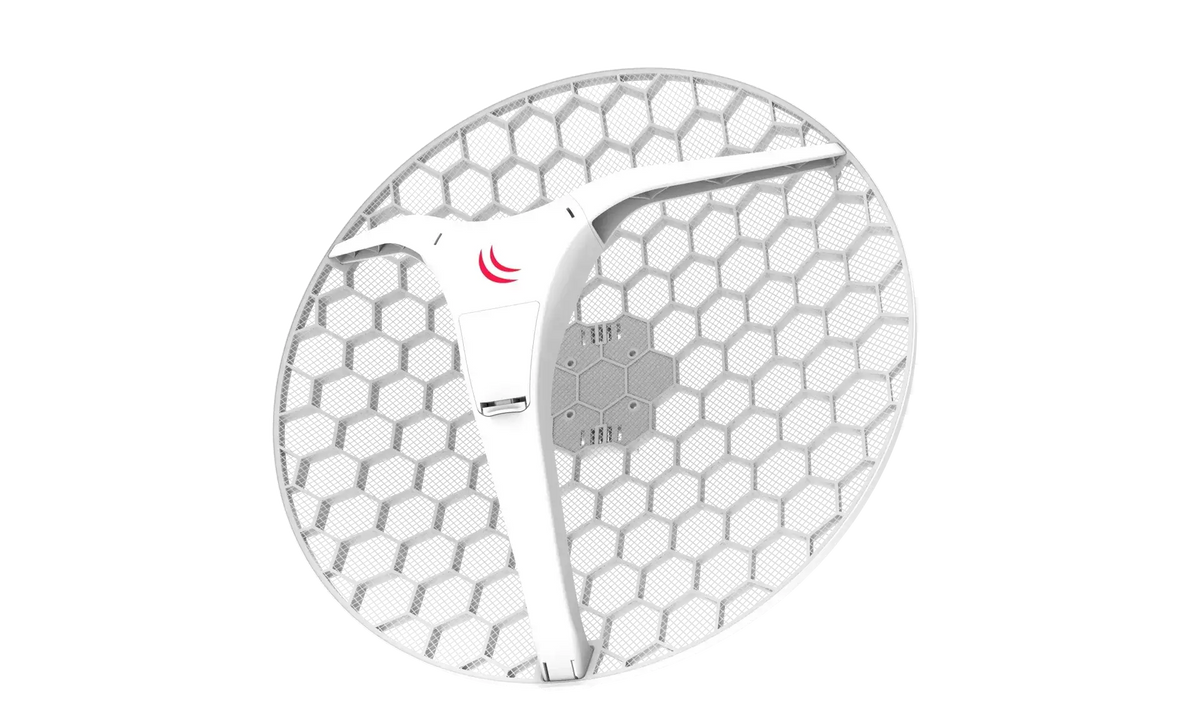

Dual chain eXtra Large High Power 27dBi 5GHz CPE/Point-to-Point Integrated Antenna

The LHG XL HP5 is a 5GHz 802.11 a/n wireless device with an integrated dual polarization 27 dBi grid antenna and high TX output power, designed to reach up to 40km in point-to-point setups at full speed.

The grid design ensures protection against wind, and the fact that the antenna element is built into the wireless unit means no loss on cables.

Shipped as a kit of 4 units (RBLHG-5HPnD-XL4pack) - 4 antennas in a single box
LHG XL HP5
  • LHG XL HP5
  • LHG XL HP5

We have two versions available.

LHG XL HP5-US (USA) is factory locked for 5170-5250MHz and 5725-5835MHz frequencies. This lock can not be removed.

LHG XL HP5 (International) supports 5150MHz-5875MHz range (Specific frequency range can be limited by country regulations).

Specification

Specifications

  • Product codeRBLHG-5HPnD-XL
  • Suggested price$89.00
  • ArchitectureMIPSBE
  • CPUAR9344
  • CPU core count1
  • CPU nominal frequency600 MHz
  • DimensionsØ 550 x 245 mm;
  • RouterOS license3
  • Operating SystemRouterOS
  • Size of RAM64 MB
  • Storage size16 MB
  • Storage typeFLASH
  • MTBFApproximately 100'000 hours at 25C
  • Tested ambient temperature-40°C to 70°C

Powering

  • Number of DC inputs1 (PoE-IN)
  • Max power consumption7 W
  • PoE inPassive PoE
  • Cooling typePassive
  • PoE in input Voltage10-28 V

Wireless specifications

  • Wireless 5 GHz Max data rate300 Mbit/s
  • Wireless 5 GHz Number of chains2
  • Wireless 5 GHz standards802.11a/n
  • Antenna gain dBi for 5 GHz27
  • Wireless 5 GHz chip modelAR9344
  • Wireless 5 GHz generationWi-Fi 4

Ethernet

  • 10/100 Ethernet ports1

Certification & Approvals

  • CertificationCE, FCC, IC, EAC, ROHS
  • IPIP54

Included parts24V 0.38A power adapterMetal rings (two)PoE injectorK-LHG kitNoteThe device has an operating system preinstalled and licensed. No separate purchase is necessary and the product is ready to use. The device includes free software updates for the life of the product or a minimum of 5 years starting from date of purchase.
