Dual chain 24.5dBi 5GHz CPE/Point-to-Point Integrated Antenna, 600Mhz CPU, 64MB RAM.

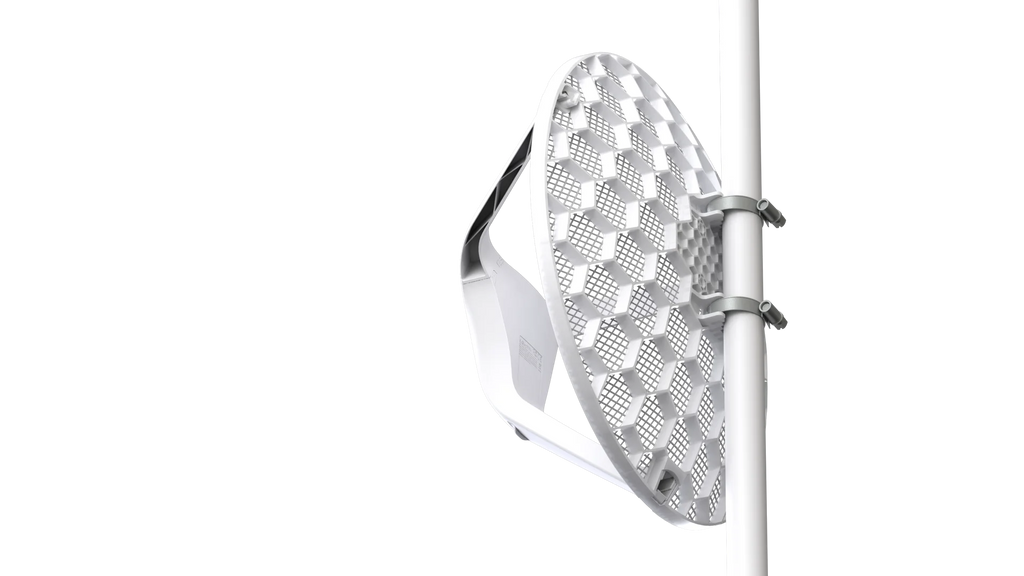

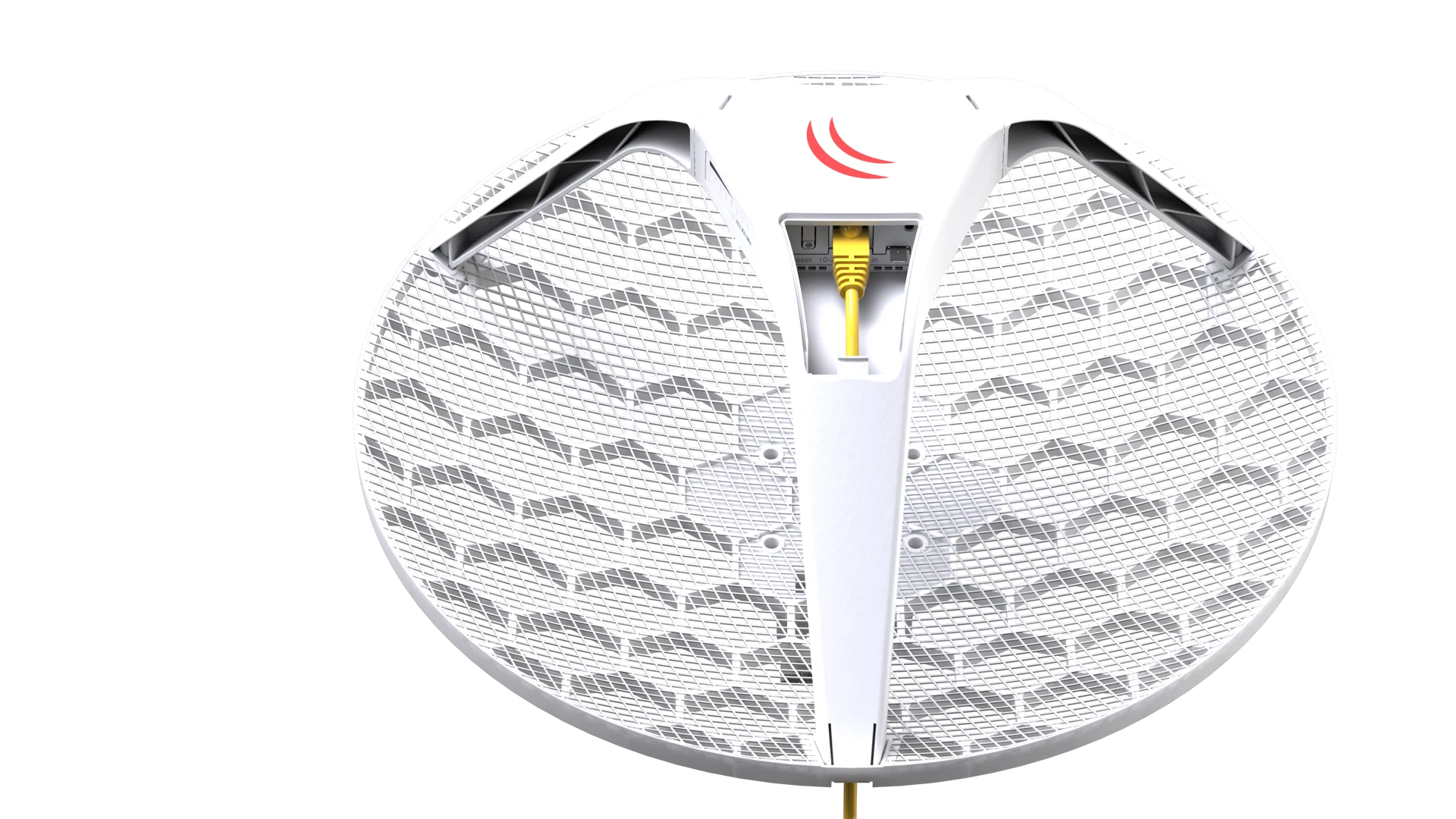

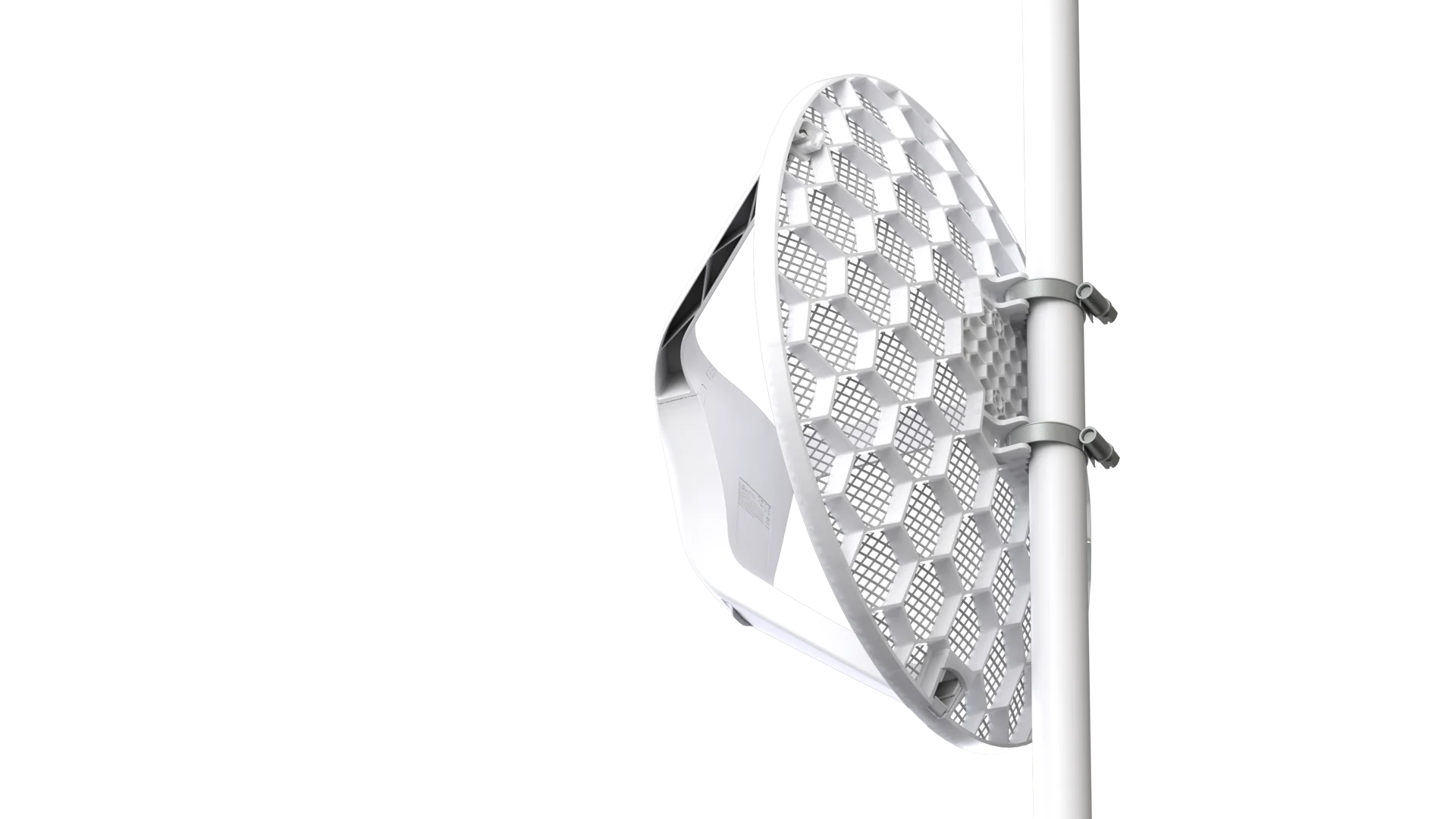

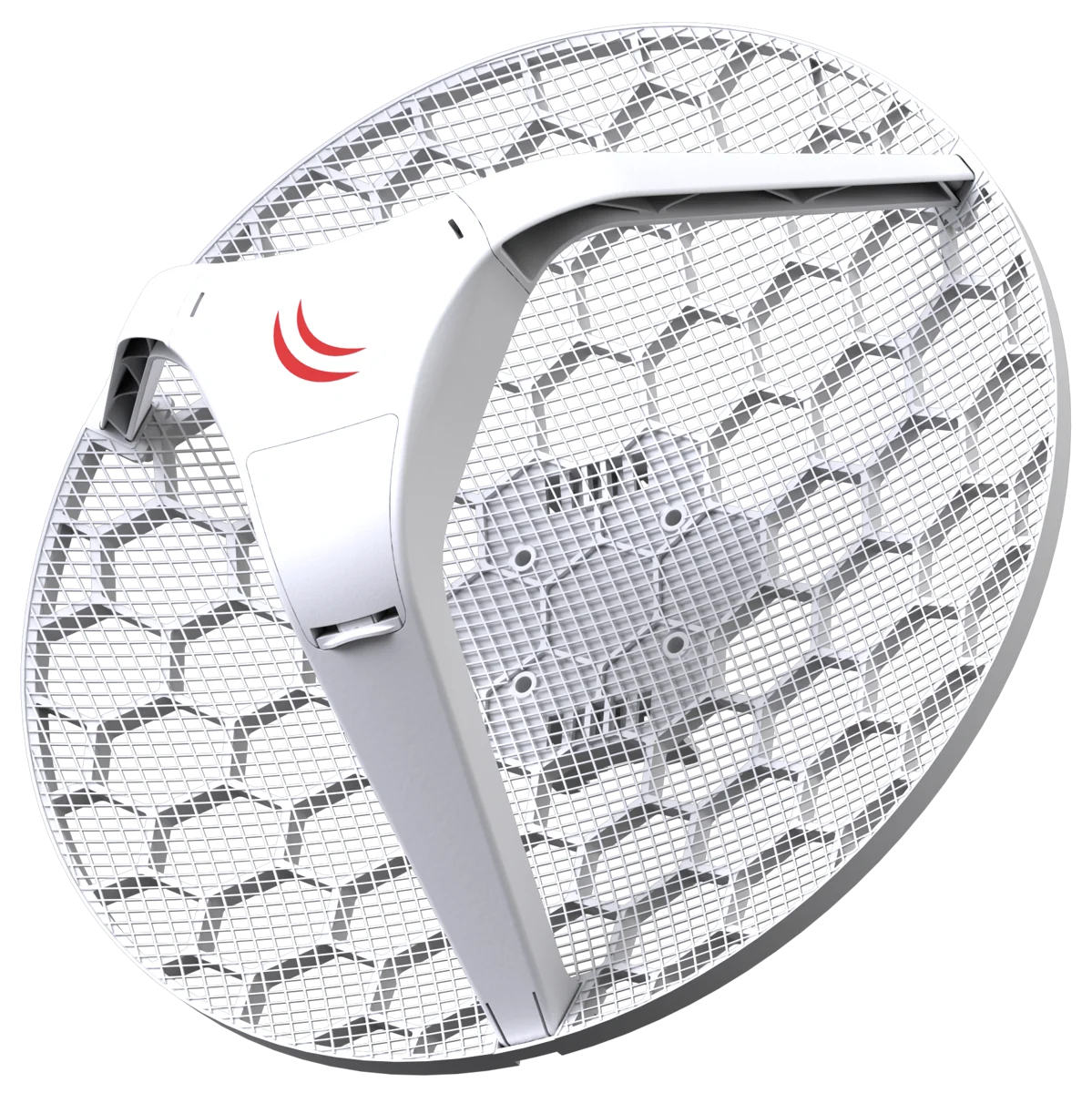

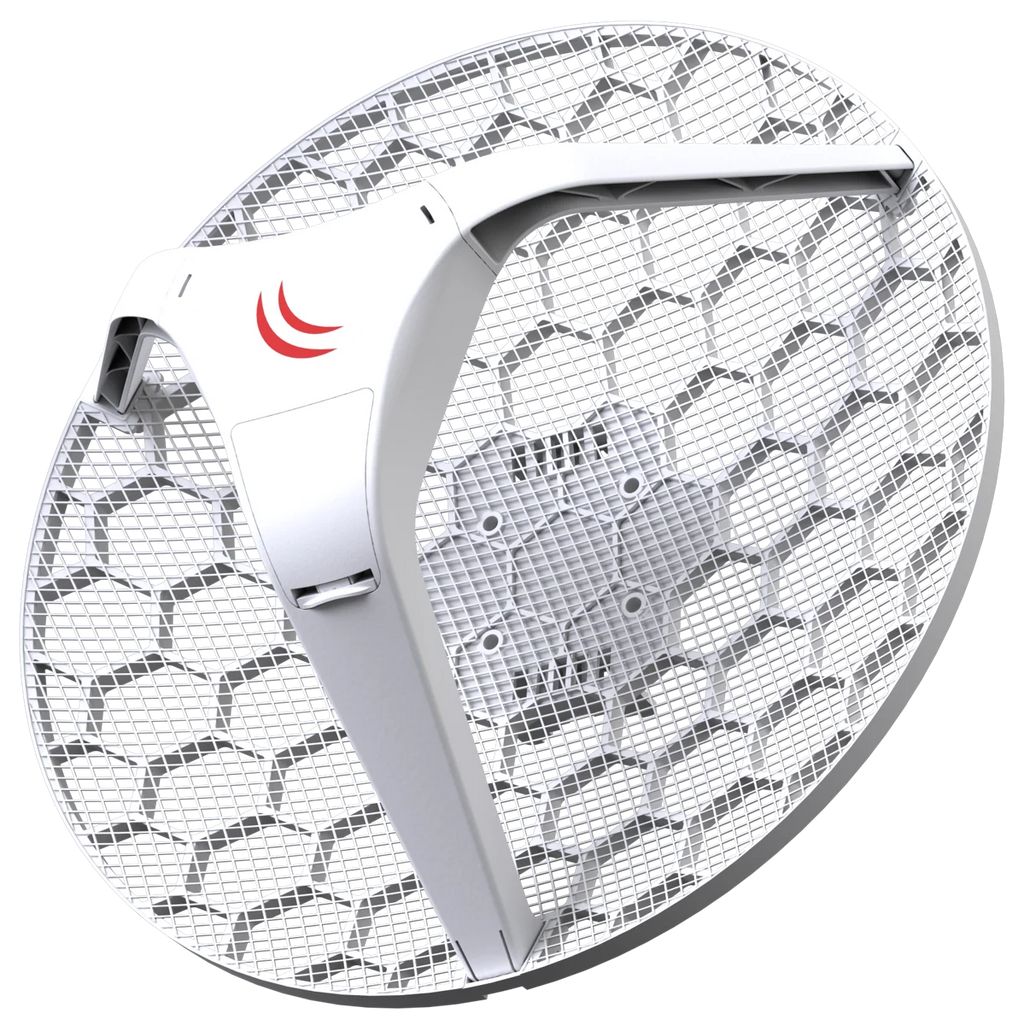

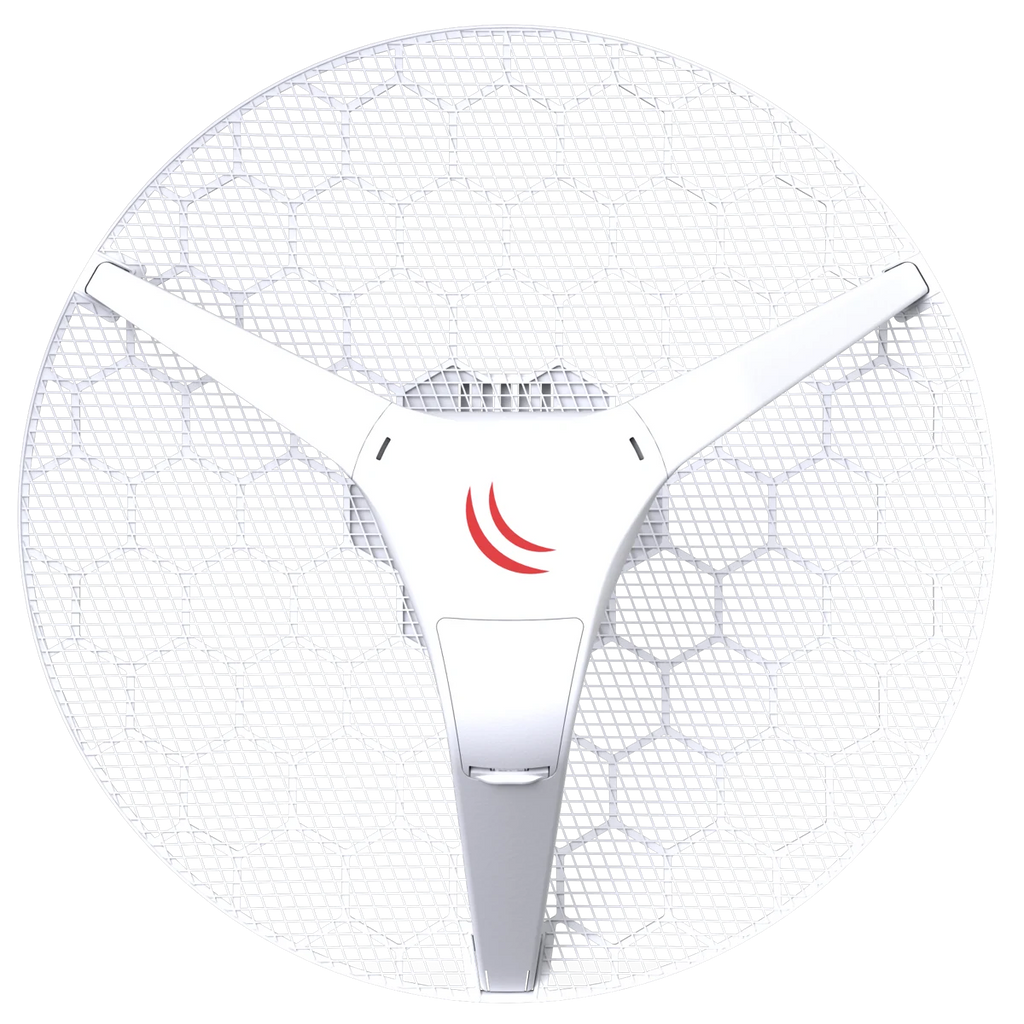

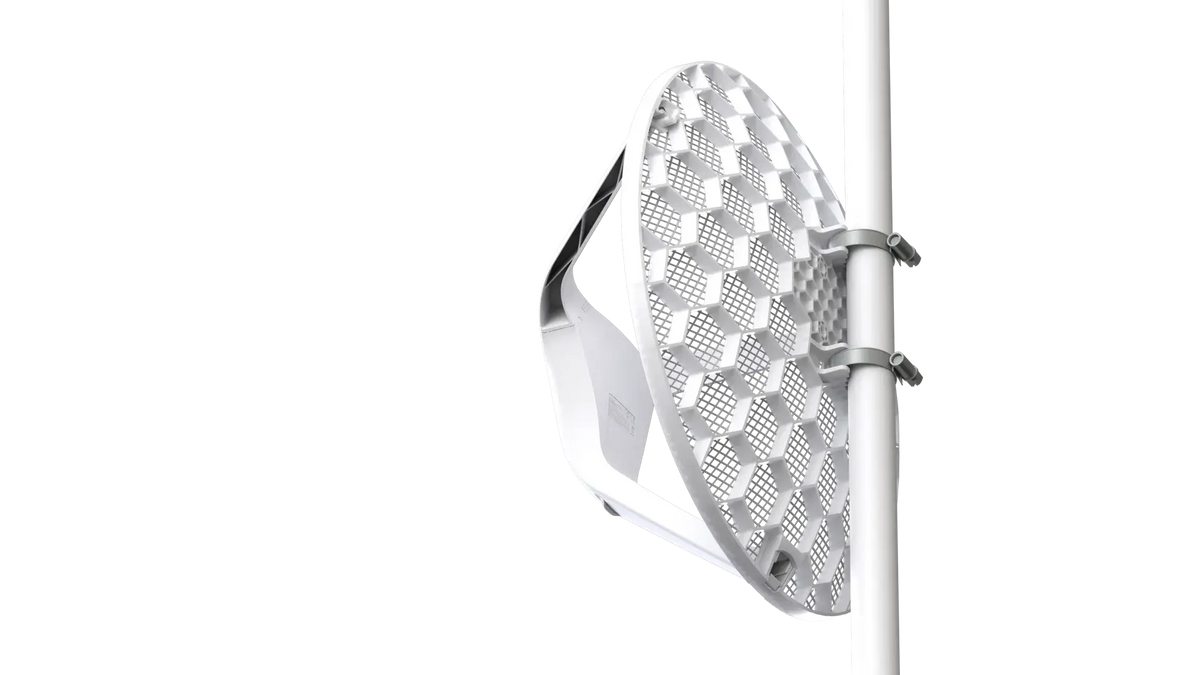

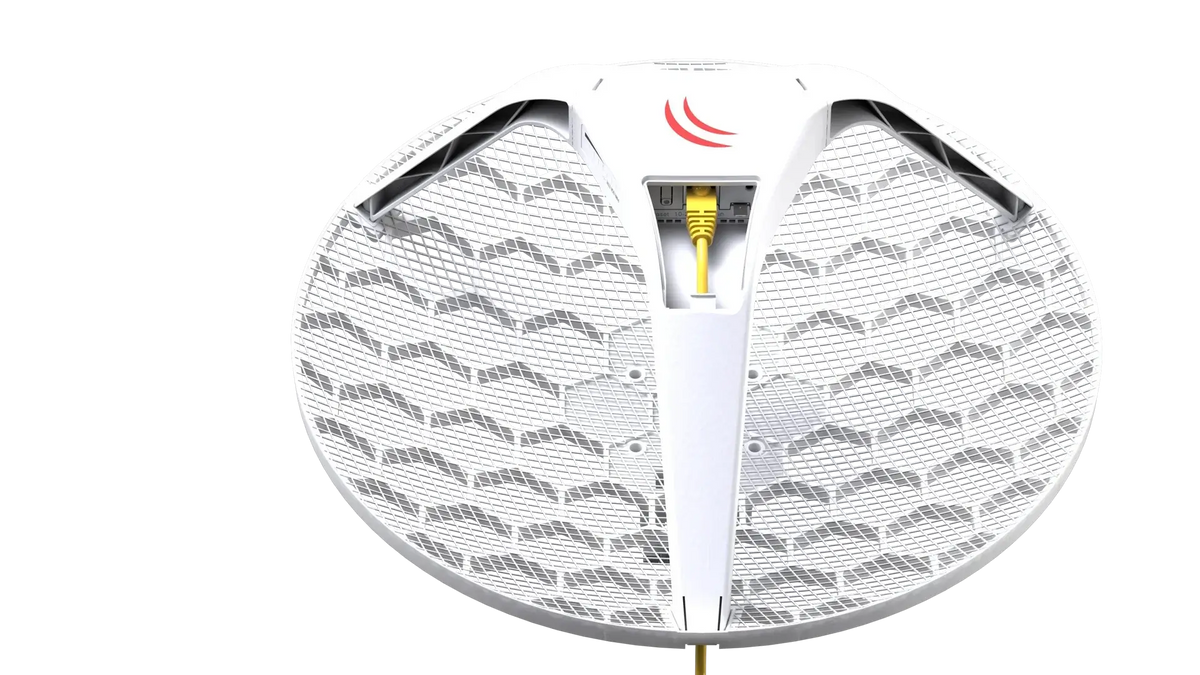

The LHG 5 is a compact and light 5GHz 802.11 a/n wireless device with an integrated dual polarization 24.5 dBi grid antenna at a revolutionary price. It is perfect for point to point links or for use as a CPE at longer distances and supports Nv2 TDMA protocol.

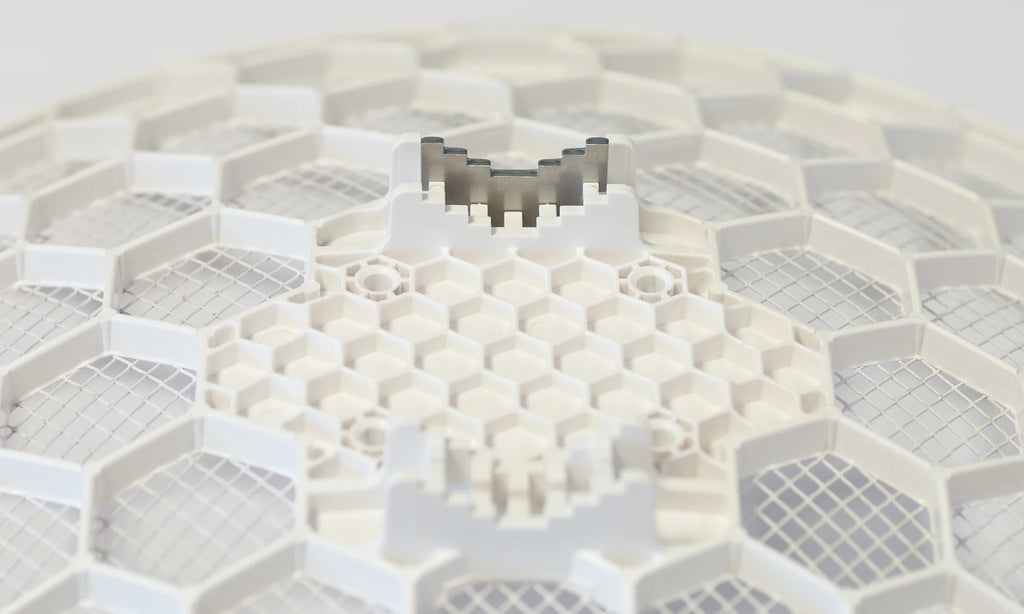

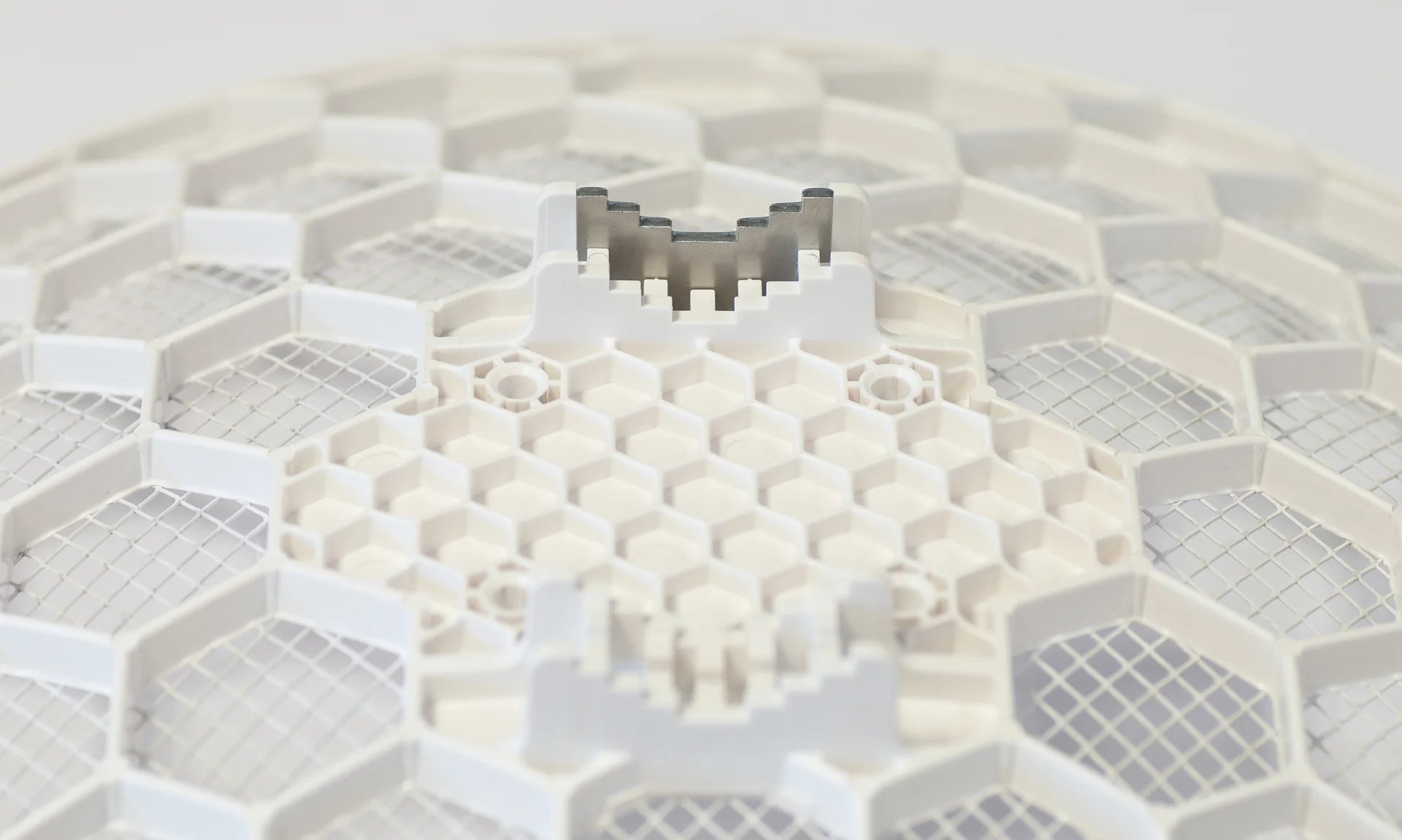

The grid design ensures protection against wind, and the fact that the antenna element is built into the wireless unit means no loss on cables.

Shipped as a kit of 3 units (RBLHG5kit) - 3 antennas in a single box.
LHG 5
  • LHG 5
  • LHG 5
  • LHG 5
  • LHG 5
  • LHG 5

We have two versions available.

  • LHG 5-US (USA) is factory locked for 5170-5250MHz and 5725-5835MHz frequencies. This lock can not be removed.
  • LHG 5 (International) supports 5150MHz-5875MHz range (Specific frequency range can be limited by country regulations).

Specification

Specifications

  • Product codeRBLHG-5nD
  • Suggested price$69.00
  • ArchitectureMIPSBE
  • CPUAR9344
  • CPU core count1
  • CPU nominal frequency600 MHz
  • DimensionsØ 391 x 222 mm; package 450 x 450 x 145 mm
  • RouterOS license3
  • Operating SystemRouterOS
  • Size of RAM64 MB
  • Storage size16 MB
  • Storage typeFLASH
  • MTBFApproximately 100'000 hours at 25C
  • Tested ambient temperature-40°C to 70°C

Powering

  • Number of DC inputs1 (PoE-IN)
  • Max power consumption6 W
  • PoE inPassive PoE
  • Cooling typePassive
  • PoE in input Voltage11-30 V

Wireless specifications

  • Wireless 5 GHz Max data rate300 Mbit/s
  • Wireless 5 GHz Number of chains2
  • Wireless 5 GHz standards802.11a/n
  • Antenna gain dBi for 5 GHz24.5
  • Wireless 5 GHz chip modelAR9344
  • Wireless 5 GHz generationWi-Fi 4

Ethernet

  • 10/100 Ethernet ports1

Certification & Approvals

  • CertificationCE, FCC, IC, EAC, ROHS
  • IPIP54

Included partsK-LHG kit24V 0.38A power adapterPoE injectorMetal rings (two)NoteThe device has an operating system preinstalled and licensed. No separate purchase is necessary and the product is ready to use. The device includes free software updates for the life of the product or a minimum of 5 years starting from date of purchase.
