LHG 5 ax

LHG 5 ax

$138.51 CAD
LHG 5 ax

LHG 5 ax

LHG-5axD
$138.51 CAD
Shipping calculated at checkout.
Out of stock

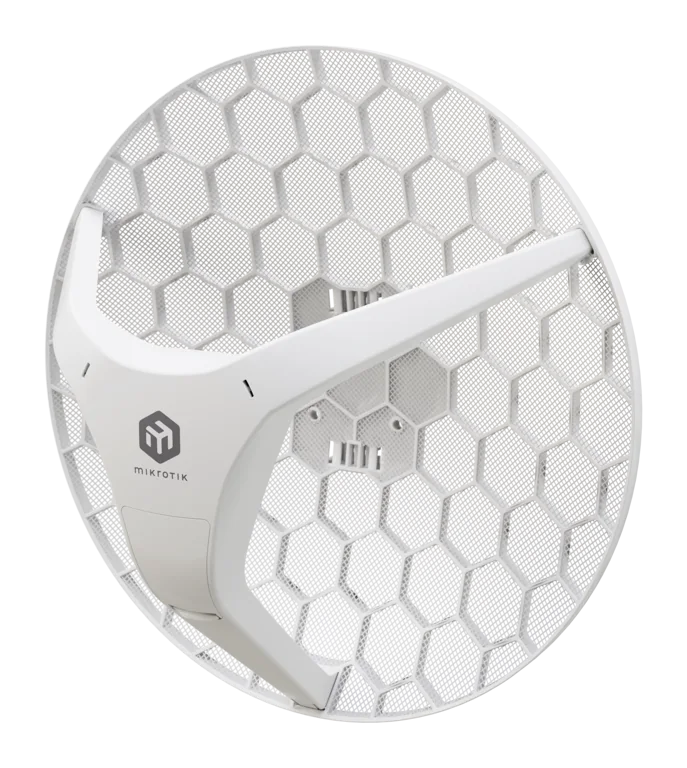

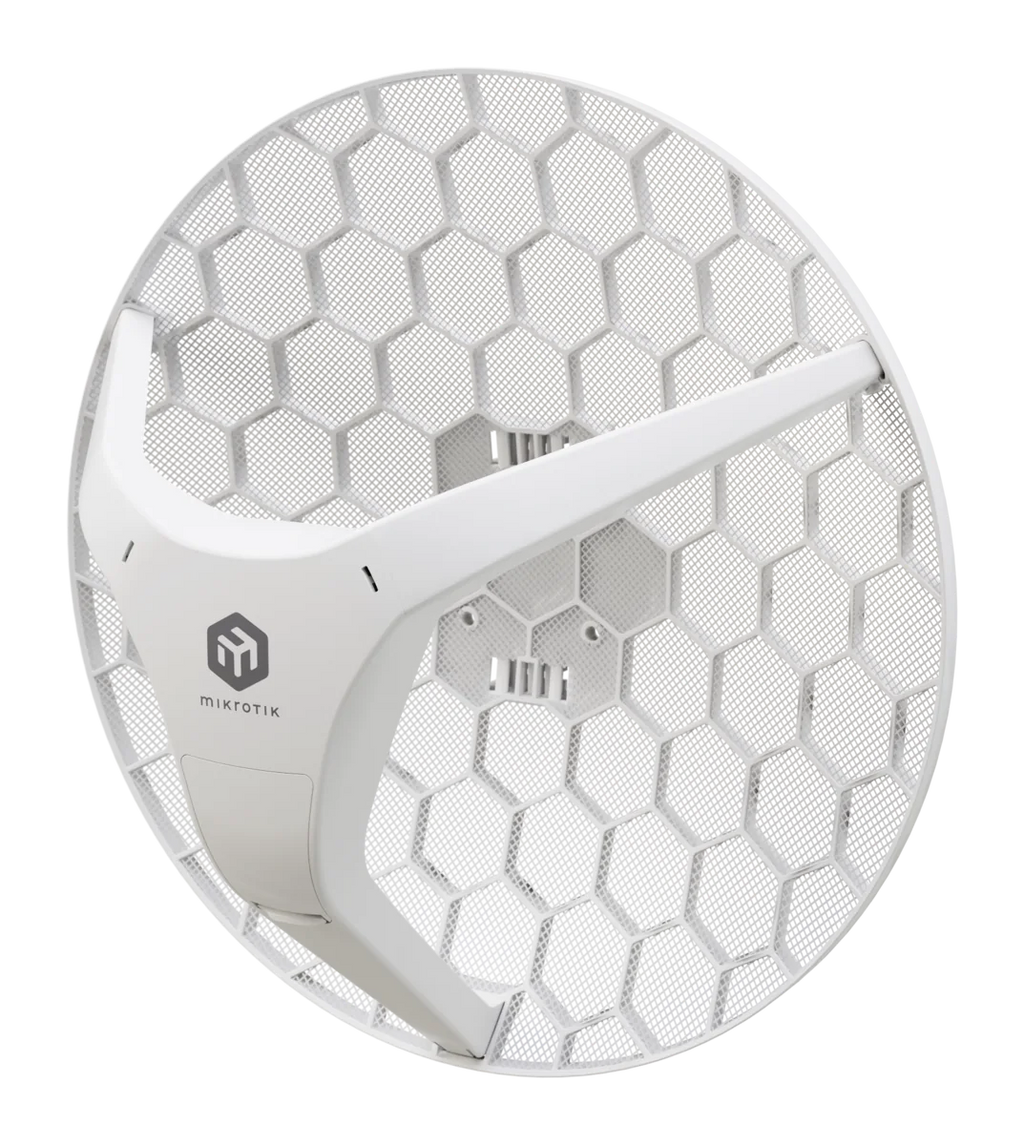

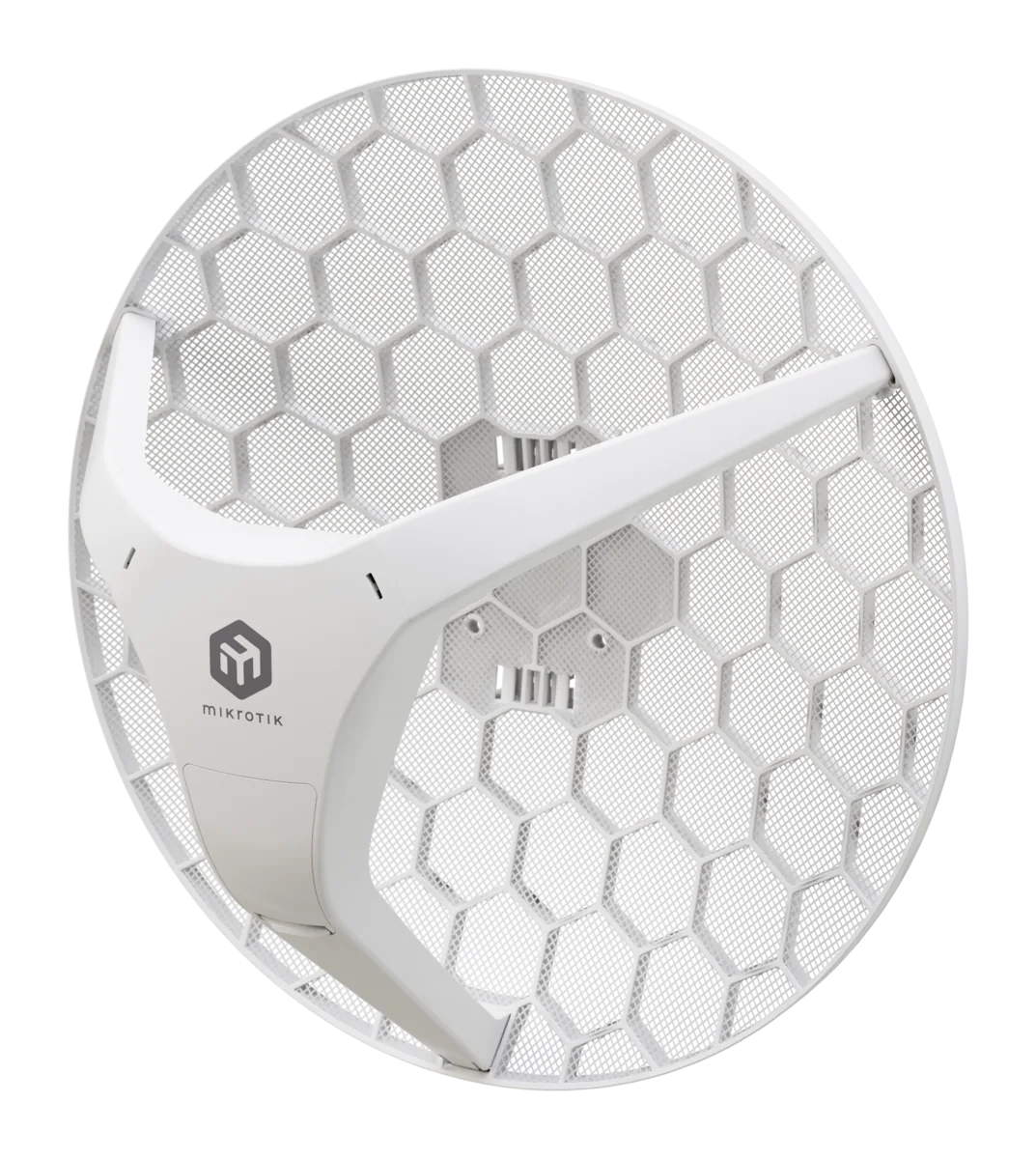

Long-range outdoor CPEs with modern Wi-Fi 6 performance, rugged design, and unbeatable pricing. Available in two models (24.5 or 27 dBi), they’re ideal for point-to-point links over great distances. This is the 24.5 dBi version.

Need a fast, stable connection across large distances?

Whether you’re bridging two buildings, connecting a remote site, or sharing your internet with nearby infrastructure — the new LHG Wi-Fi 6 series is built for the challenge. And here’s the best part: we’ve kept the same pricing as the previous generation. High performance, long range, and Wi-Fi 6 — all without breaking the budget.
LHG 5 ax
  • LHG 5 ax
  • LHG 5 ax
  • LHG 5 ax
  • LHG 5 ax
  • LHG 5 ax
  • LHG 5 ax

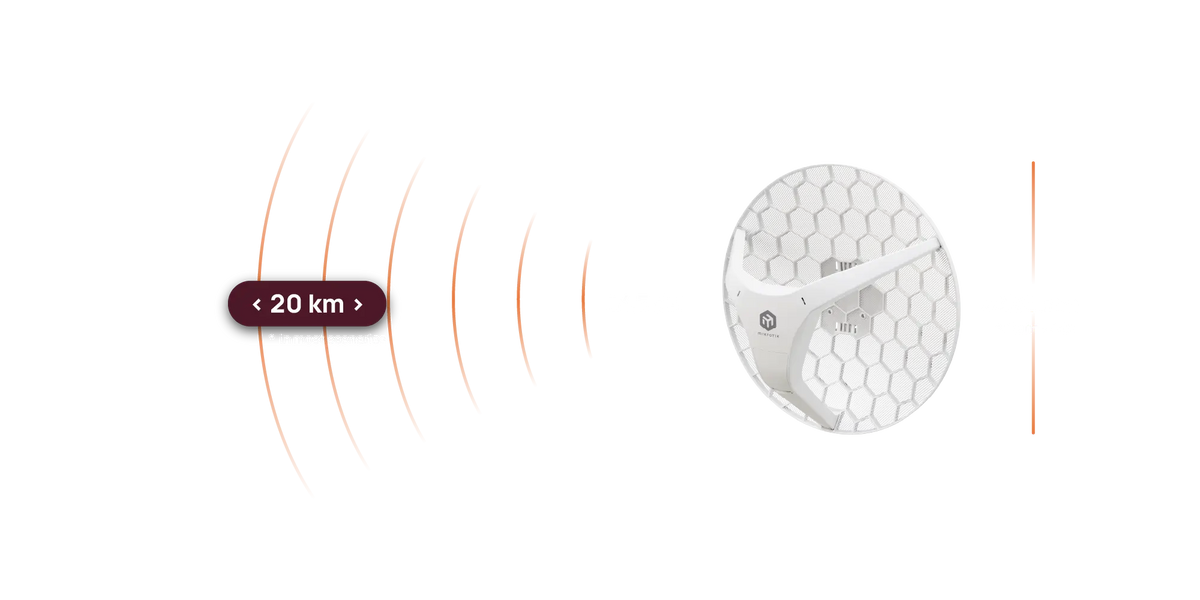

Reliable Wi-Fi 6 long-distance links

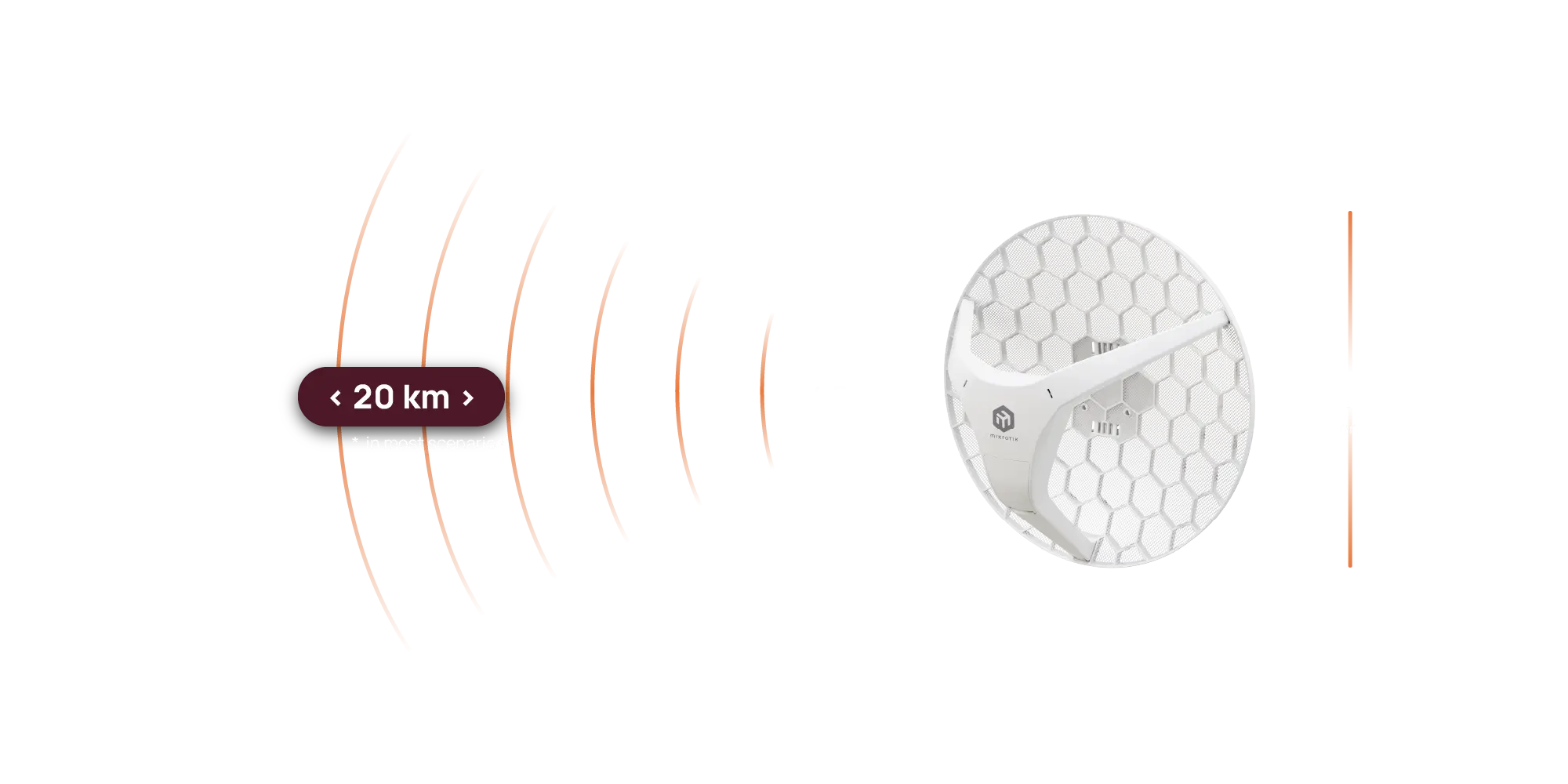

A compact, long-range CPE with a 24.5 dBi antenna.
Perfect for links up to 20 km in most scenarios.

Wi-Fi 6 can be a real game-changer! Here’s why:

The 802.11ax standard brings crucial improvements for long-distance wireless links — including better spectral efficiency, higher modulation rates (1024-QAM), and lower latency. That means stronger performance even in noisy environments and faster, more stable connections over a greater distance. Combined with WPA3 encryption and RouterOS v7, the LHG ax series is ready for the challenges of modern outdoor networking. Order yours today — and be ready too!

Specification

Specifications

  • Product codeLHG-5axD
  • Suggested price$99.00
  • ArchitectureARM 32bit
  • CPUIPQ-5010
  • CPU core count2
  • CPU nominal frequency800 MHz
  • CPU Threads count2
  • RouterOS license3
  • Operating SystemRouterOS v7
  • Size of RAM256 MB
  • Storage size128 MB
  • Storage typeNAND
  • MTBFApproximately 100'000 hours at 25C
  • Tested ambient temperature-40°C to 70°C

Powering

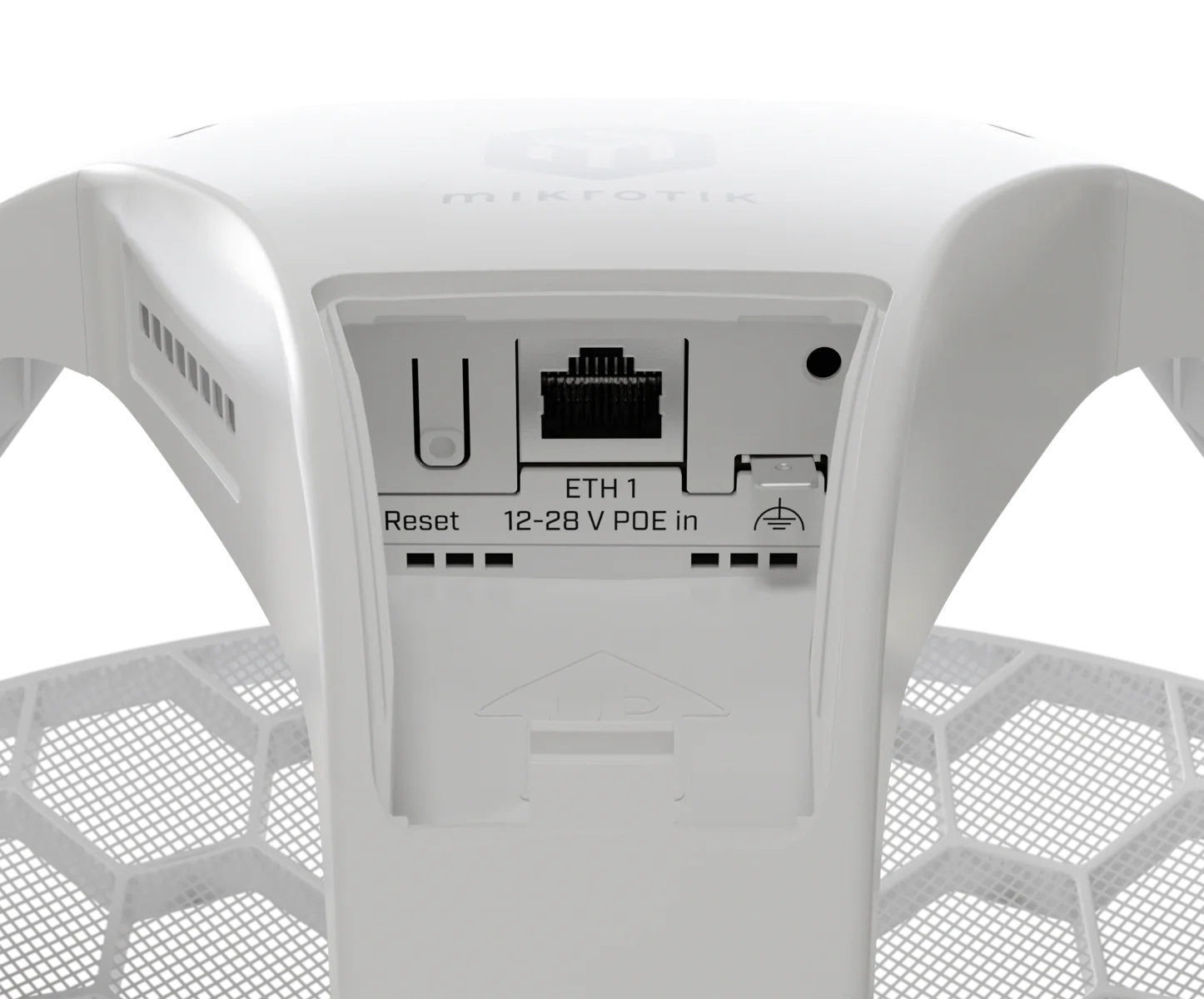

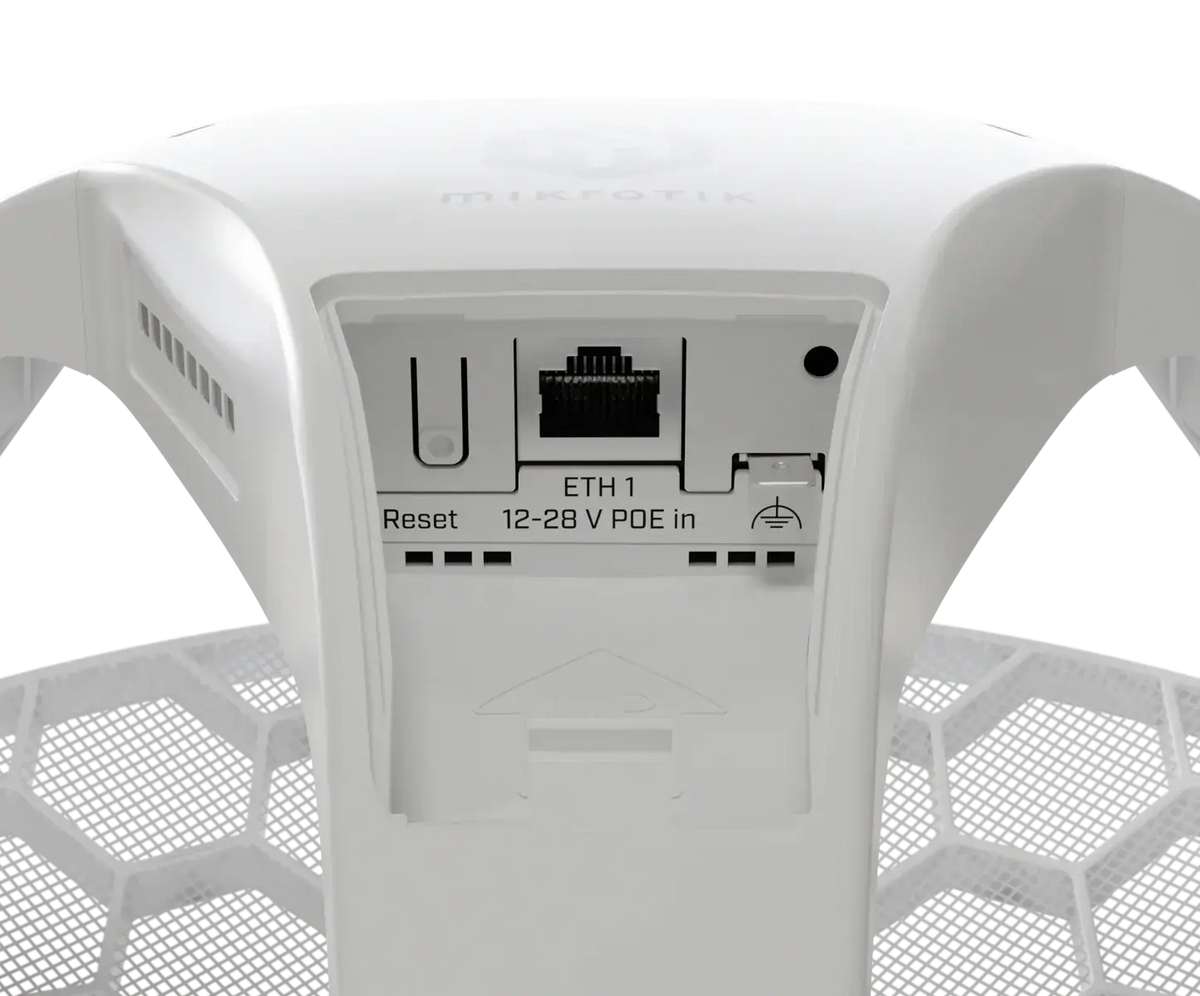

  • Number of DC inputs1 (PoE-IN)
  • Max power consumption5 W
  • PoE inPassive PoE
  • Cooling typePassive
  • PoE in input Voltage12-28 V

Wireless specifications

  • Wireless 5 GHz Max data rate1200 Mbit/s
  • Wireless 5 GHz Number of chains2
  • Wireless 5 GHz standards802.11a/n/ac/ax
  • Antenna gain dBi for 5 GHz24.5
  • Wireless 5 GHz chip modelQCN-6102
  • Wireless 5 GHz generationWi-Fi 6

Ethernet

  • 10/100/1000 Ethernet ports1

Other

  • CPU temperature monitorYes

Certification & Approvals

  • CertificationCE, FCC, IC, EAC, ROHS
  • IP54

Included parts24V 0.38A power adapterK-LHG kitGigabit PoE injectorHose clamp 2NoteThe device has an operating system preinstalled and licensed. No separate purchase is necessary and the product is ready to use. The device includes free software updates for the life of the product or a minimum of 5 years starting from date of purchase.
