L009UiGS-RM

L009UiGS-RM

$166.49 CAD
L009UiGS-RM

L009UiGS-RM

L009UiGS-RM
$166.49 CAD
Shipping calculated at checkout.
Out of stock

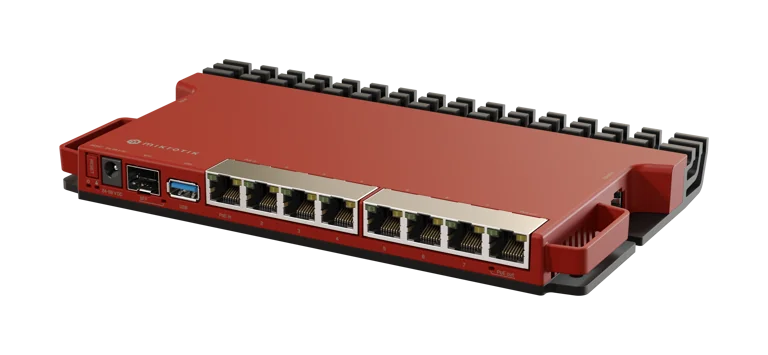

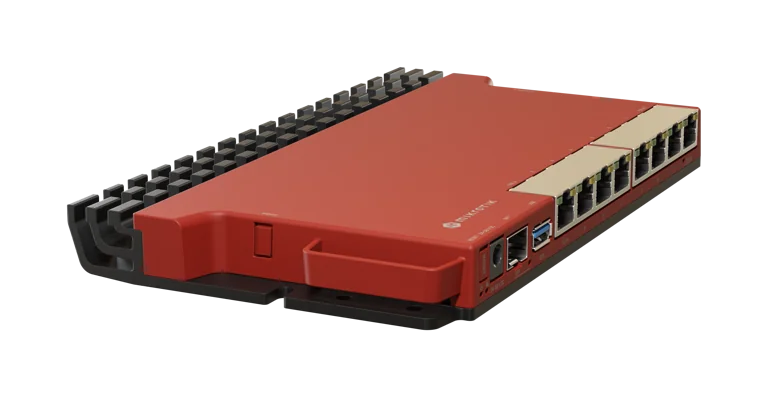

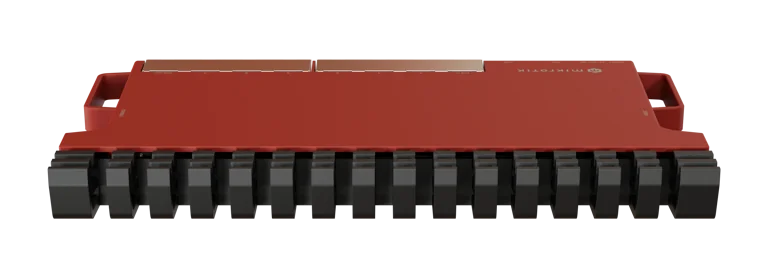

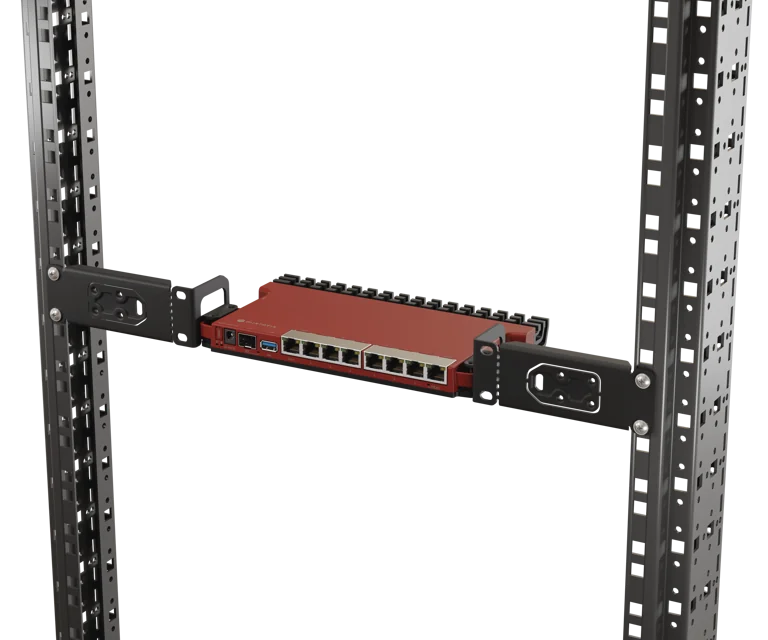

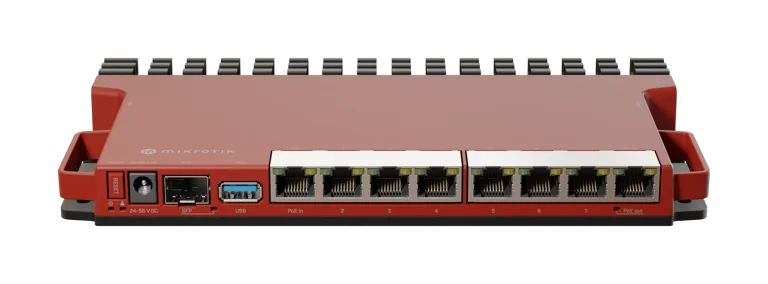

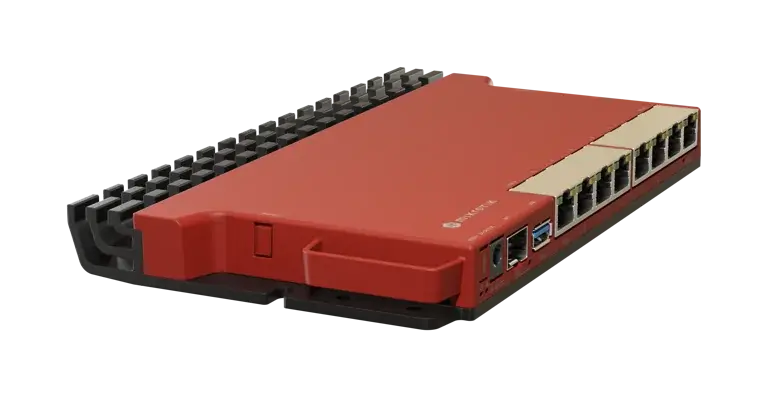

L009 is more than just a router. This product line is up to 4 times faster than RB2011, it has a modern ARM CPU with container support, an innovative enclosure that allows mounting up to four routers in a single 1U space, more RAM, PoE, and 2.5G SFP support. This version comes with 1U rackmount accessories.
L009UiGS-RM
  • L009UiGS-RM
  • L009UiGS-RM
  • L009UiGS-RM
  • L009UiGS-RM
  • L009UiGS-RM

Specification

Specifications

  • Product codeL009UiGS-RM
  • Suggested price$119.00
  • ArchitectureARM 32bit
  • CPUIPQ-5018
  • CPU core count2
  • CPU nominal frequency800 MHz
  • CPU Threads count2
  • Switch chip model88E6190
  • RouterOS license5
  • Operating SystemRouterOS v7
  • Size of RAM512 MB
  • Storage size128 MB
  • Storage typeNAND
  • MTBFApproximately 200'000 hours at 25C
  • Tested ambient temperature-40°C to 70°C

Powering

  • Number of DC inputs2 (DC jack, PoE-IN)
  • DC jack input Voltage24-56 V
  • Max power consumption40 W
  • Max power consumption without attachments8 W
  • PoE in802.3af/at
  • Cooling typePassive
  • PoE in input Voltage24-56 V

PoE-out

  • PoE-out portsEther8
  • PoE outPassive PoE
  • Low voltage PoE-Out current limit1 A
  • High voltage PoE-Out current limit450 mA
  • Max total out (A)1 A

Ethernet

  • 10/100/1000 Ethernet ports8
  • Number of 1G Ethernet ports with PoE-out1

Fiber

  • SFP ports1 (2.5G supported)

Peripherals

  • Serial console portRJ45
  • Number of USB ports1
  • USB Power ResetYes
  • USB slot typeUSB 3.0 type A
  • Max USB current (A)1.5

Other

  • Mode buttonYes

Certification & Approvals

  • CertificationCE, EAC, ROHS
  • IP20

Included parts24V 1.5A power adapterRackmount kit K-79K-55 screw kitK-87Adhesive padsNoteThe device has an operating system preinstalled and licensed. No separate purchase is necessary and the product is ready to use. The device includes free software updates for the life of the product or a minimum of 5 years starting from date of purchase.
