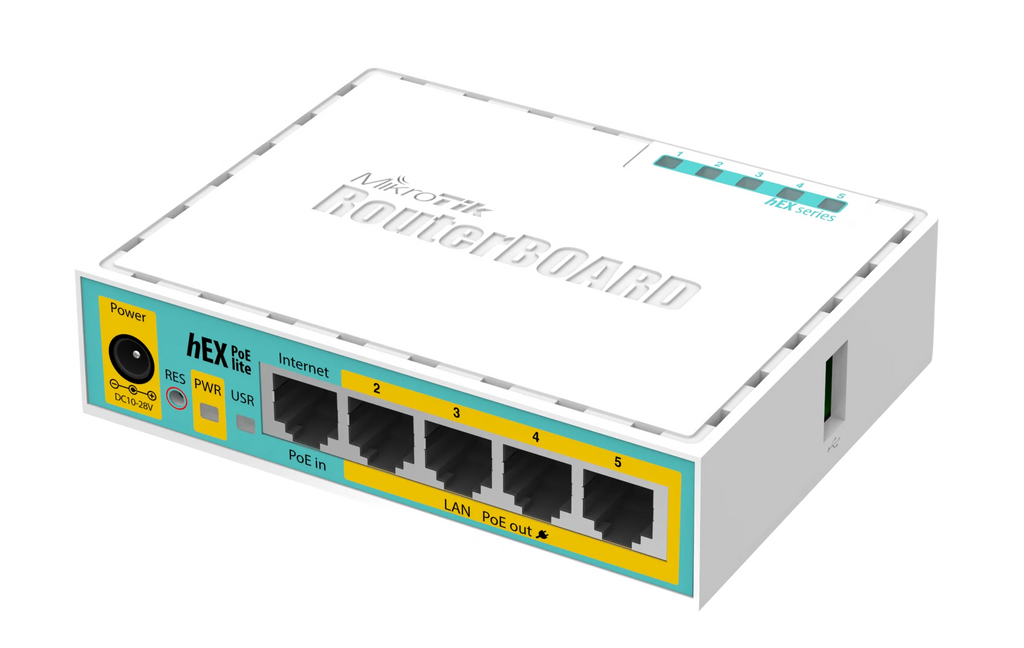

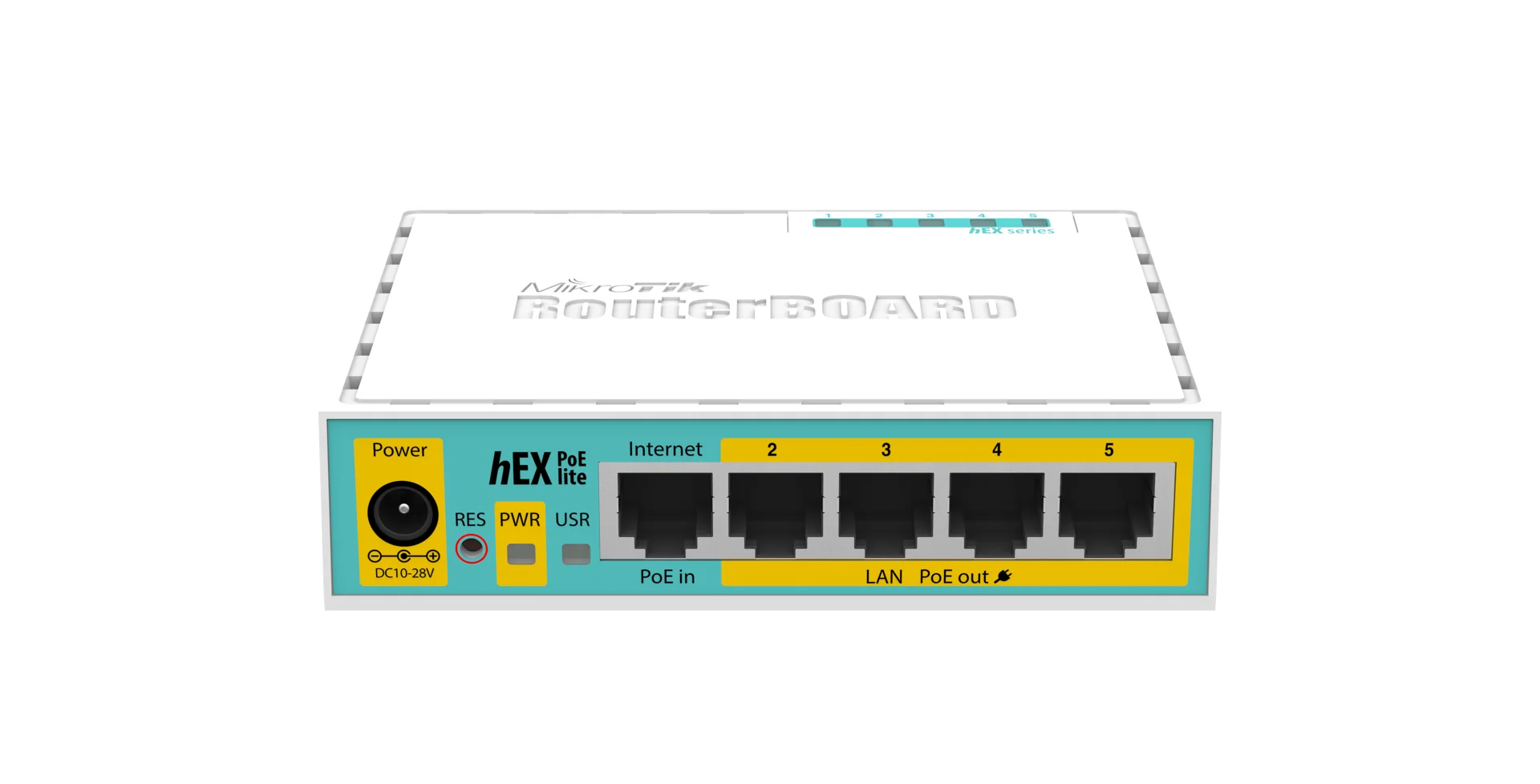

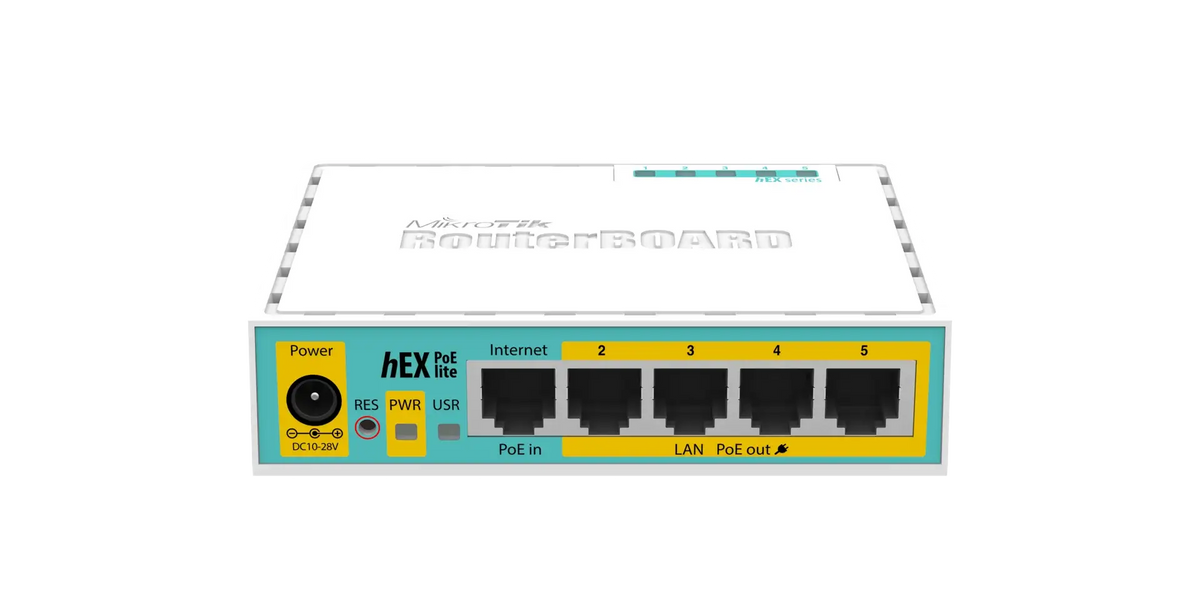

hEX PoE lite

hEX PoE lite

$83.87 CAD

hEX PoE lite

RB750UPr2
$83.87 CAD
Shipping calculated at checkout.
Out of stock

5xEthernet with PoE output for four ports, USB, 650MHz CPU, 64MB RAM, RouterOS L4

hEX PoE lite

Specification

Specifications

  • Product codeRB750UPr2
  • Suggested price$59.95
  • ArchitectureMIPSBE
  • CPUQCA9531
  • CPU core count1
  • CPU nominal frequency650 MHz
  • Switch chip modelQCA9531
  • Dimensions113x89x28mm
  • RouterOS license4
  • Operating SystemRouterOS
  • Size of RAM64 MB
  • Storage size16 MB
  • Storage typeFLASH
  • MTBFApproximately 100'000 hours at 25C
  • Tested ambient temperature-40°C to 70°C

Powering

  • Number of DC inputs2 (DC jack, PoE-IN)
  • DC jack input Voltage8-30 V
  • Max power consumption51 W
  • Max power consumption without attachments3 W
  • PoE inPassive PoE
  • Cooling typePassive
  • PoE in input Voltage8-30 V

PoE-out

  • PoE-out portsEther2-Ether5
  • PoE outPassive PoE
  • Low voltage PoE-Out current limit1 A
  • Max total out (A)2 A

Ethernet

  • 10/100 Ethernet ports5

Peripherals

  • Number of USB ports1
  • USB Power ResetYes
  • USB slot typeUSB type A
  • Max USB current (A)1

Other

  • Current MonitorYes
  • PCB temperature monitorYes
  • Voltage MonitorYes

Certification & Approvals

  • CertificationCE, EAC, ROHS
  • IP20

Included parts24V 2.5A power adapterIEC cordNoteThe device has an operating system preinstalled and licensed. No separate purchase is necessary and the product is ready to use. The device includes free software updates for the life of the product or a minimum of 5 years starting from date of purchase.
