$62.96 CAD
hAP

hAP

hAP
$62.96 CAD
Shipping calculated at checkout.
Out of stock

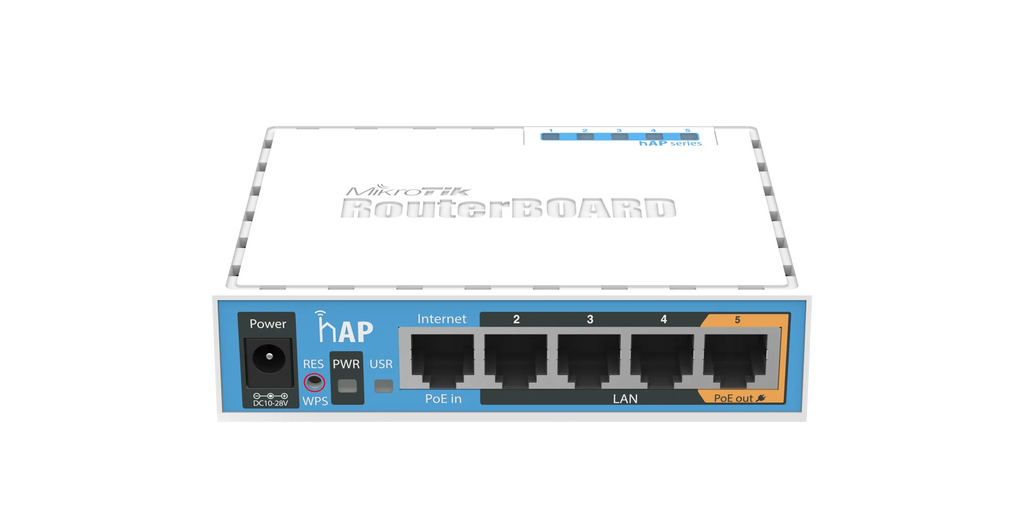

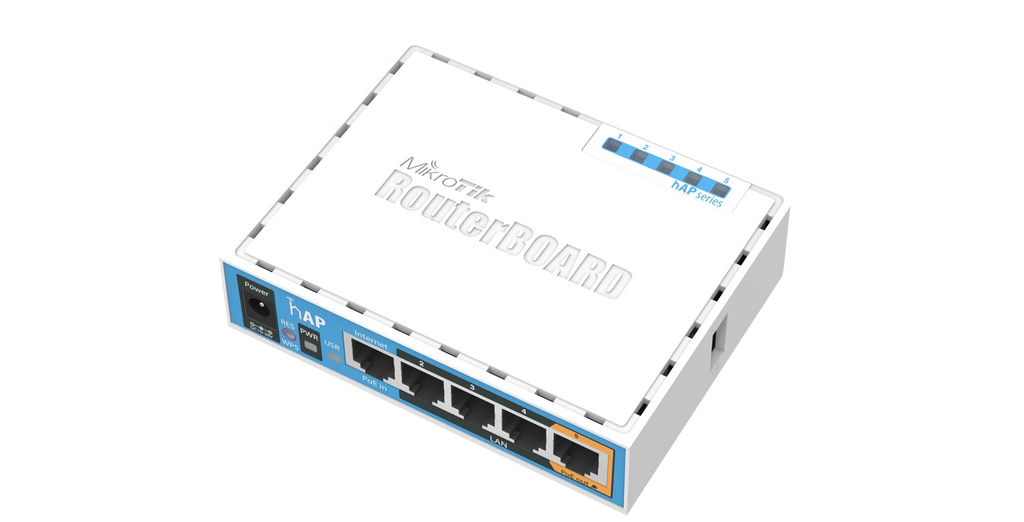

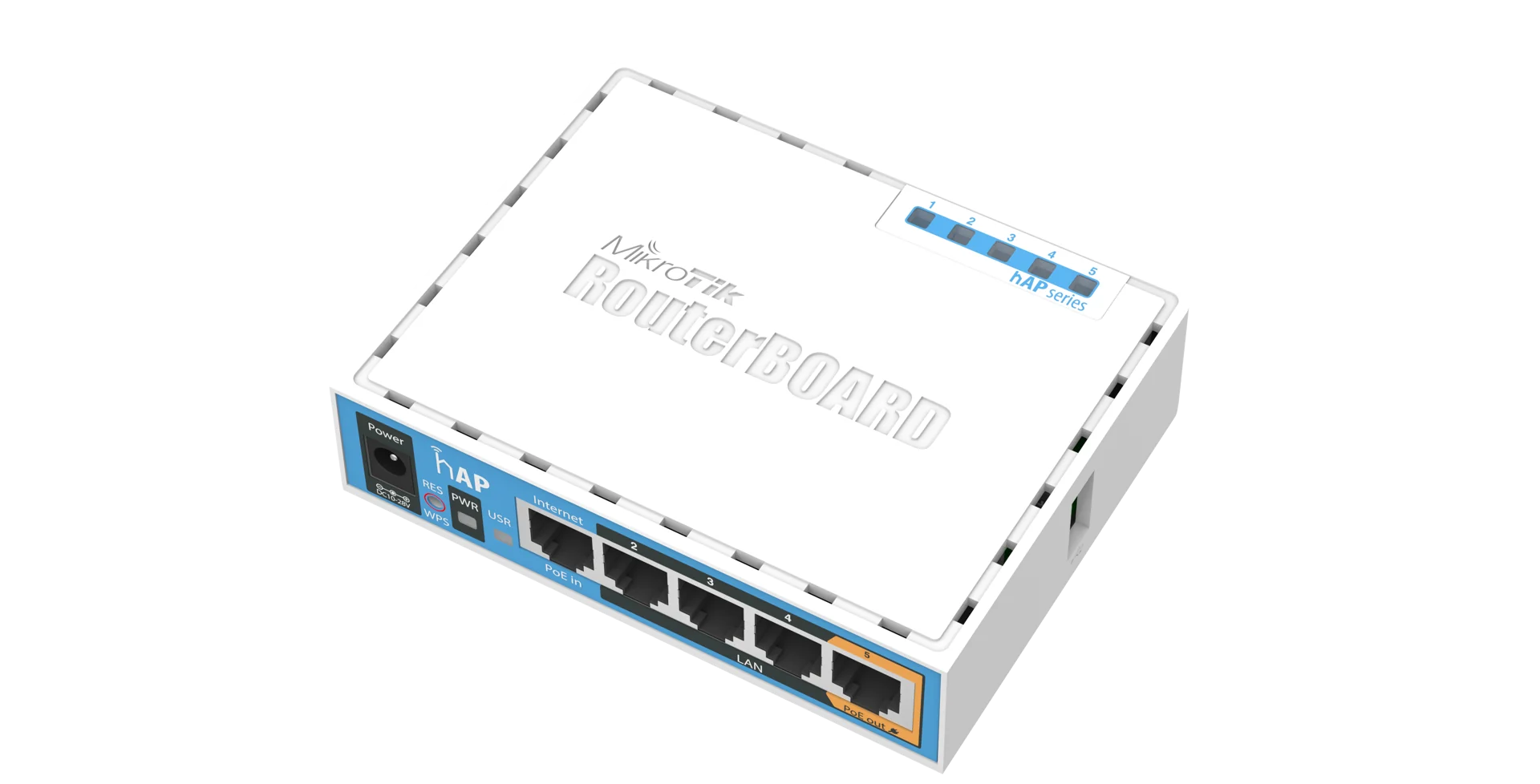

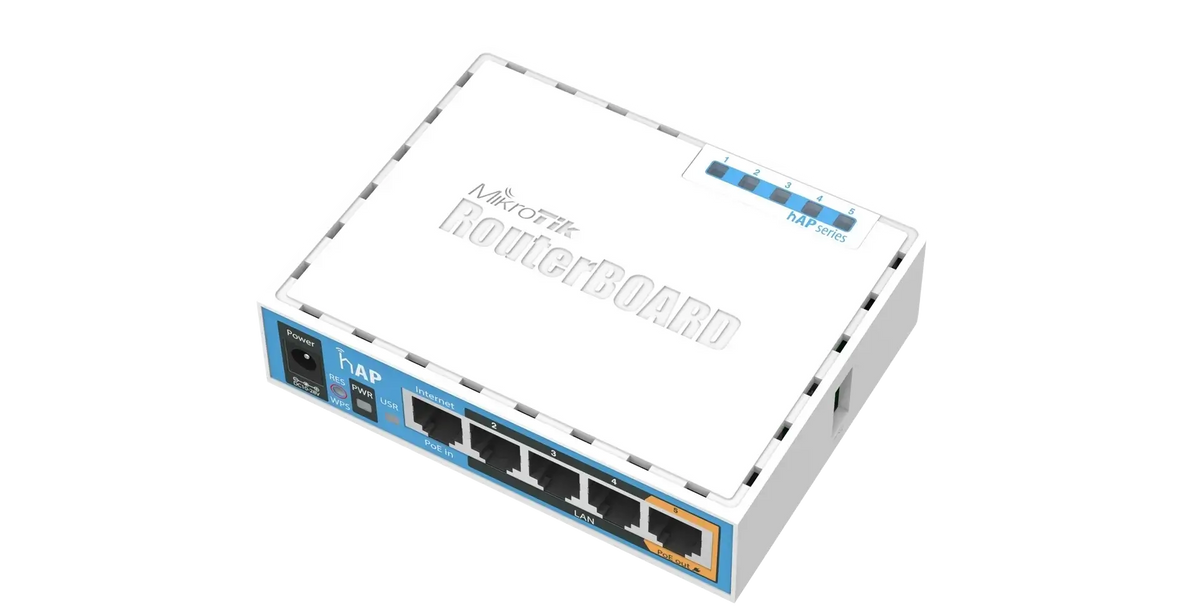

2.4GHz AP, Five Ethernet ports, PoE-out on port 5, USB for 3G/4G support.

This small home access point is the perfect device for homes or small offices where all you need is a wireless AP and a few wired devices connected. Based on our popular RB951-2n, the new hAP is an improvement in many areas.

The device can be powered from the power jack or with passive PoE from a PoE injector. The power adapter is included.

hAP provides PoE output function for port #5 - it can power other PoE capable devices with the same voltage as applied to the unit. Maximum load on the port is 500mA.

The hAP is preconfigured, so all you need to do, is plug in the internet cable, the power, and start using the internet by connecting to the MikroTik network.
hAP
  • hAP
  • hAP

Specification

Specifications

  • Product codeRB951Ui-2nD
  • Suggested price$45.00
  • ArchitectureMIPSBE
  • CPUQCA9531
  • CPU core count1
  • CPU nominal frequency650 MHz
  • Switch chip modelQCA9531
  • Dimensions113 x 89 x 28mm
  • RouterOS license4
  • Operating SystemRouterOS
  • Size of RAM64 MB
  • Storage size16 MB
  • Storage typeFLASH
  • MTBFApproximately 100'000 hours at 25C
  • Tested ambient temperature-30°C to 70°C

Wireless capabilities

  • Wireless 2.4 GHz Max data rate300 Mbit/s
  • Wireless 2.4 GHz Number of chains2
  • Wireless 2.4 GHz standards802.11b/g/n
  • Antenna gain dBi for 2.4 GHz1.5
  • Wireless 2.4 GHz chip modelQCA9531
  • Wireless 2.4 GHz generationWi-Fi 4

Ethernet

  • 10/100 Ethernet ports5

Peripherals

  • Number of USB ports1
  • USB Power ResetYes
  • USB slot typeUSB type A
  • Max USB current (A)1

Powering

  • Number of DC inputs2 (DC jack, PoE-IN)
  • DC jack input Voltage10-28 V
  • Max power consumption5 W
  • PoE inPassive PoE
  • Cooling typePassive
  • PoE in input Voltage10-28 V

PoE-out

  • PoE-out portsEther5
  • PoE outPassive PoE
  • Low voltage PoE-Out current limit500 mA
  • Max total out (A)500 mA

Certification & Approvals

  • CertificationCE, FCC, IC, EAC, ROHS
  • IPIP20

Included parts24V 0.8A power adapterNoteThe device has an operating system preinstalled and licensed. No separate purchase is necessary and the product is ready to use. The device includes free software updates for the life of the product or a minimum of 5 years starting from date of purchase.
