hAP ax³

hAP ax³

$194.47 CAD
hAP ax³

hAP ax³

C53UiG+5HPaxD2HPaxD
$194.47 CAD
Shipping calculated at checkout.
Out of stock

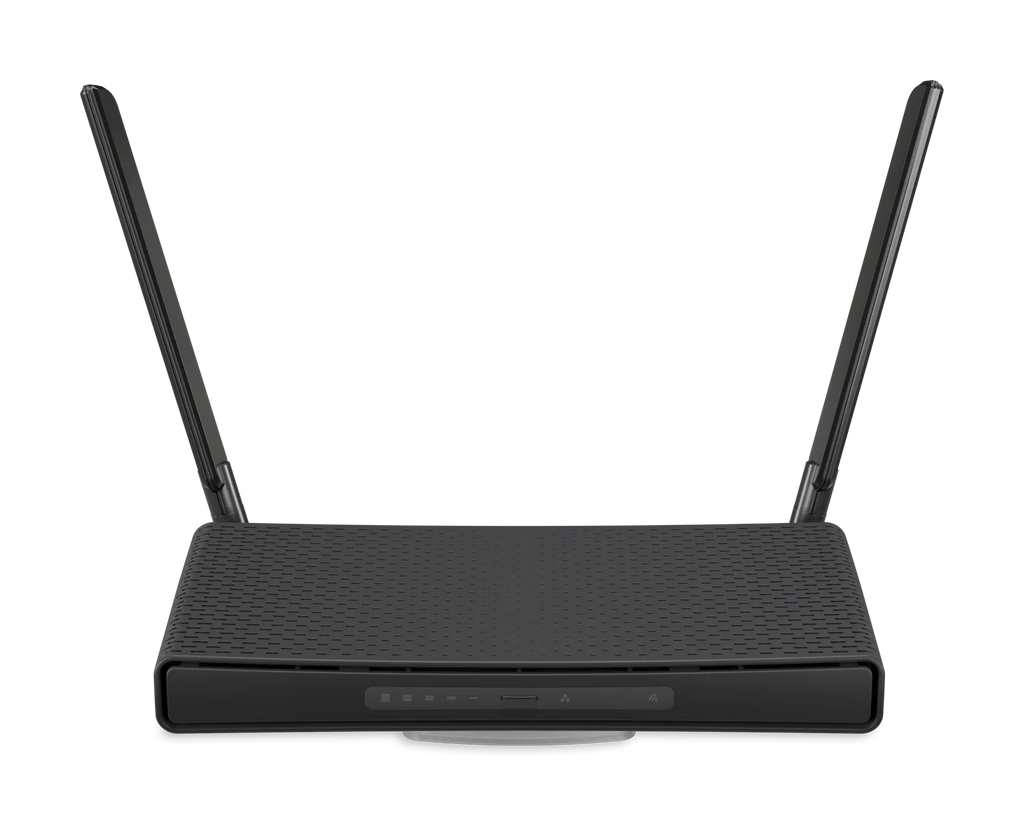

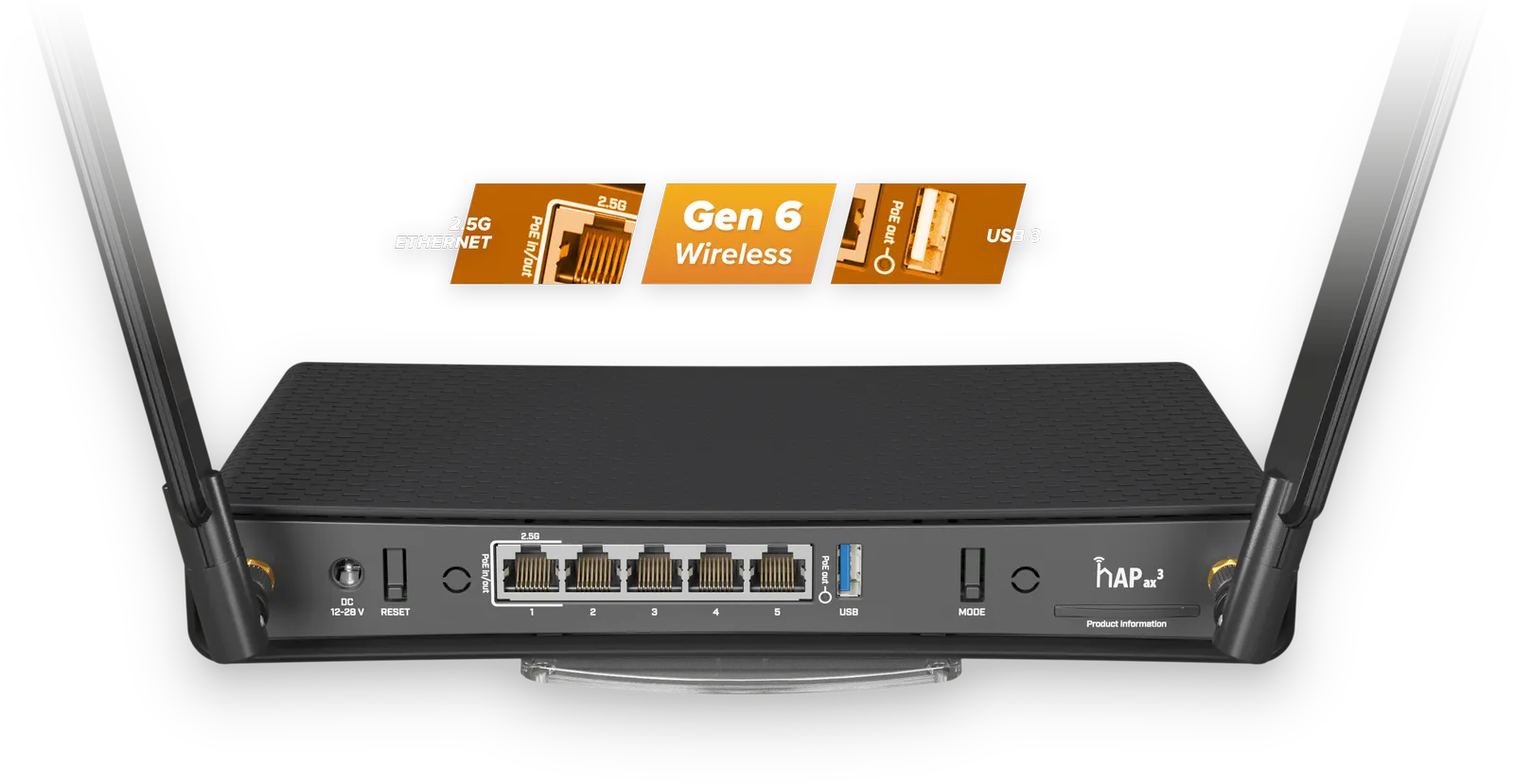

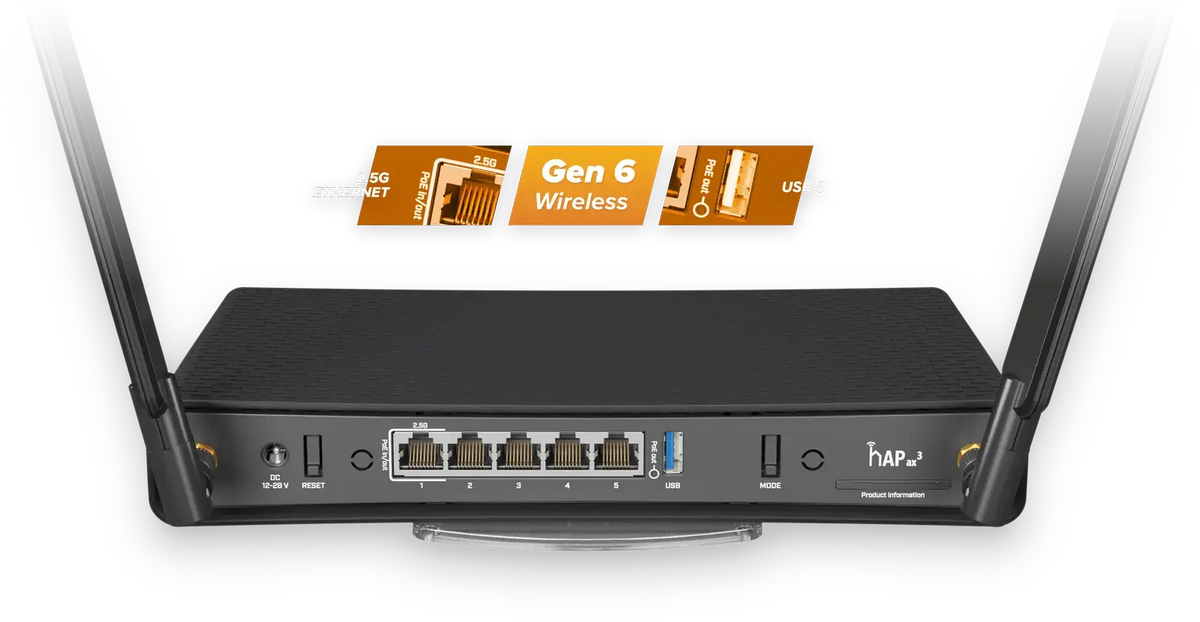

Our top-of-the-line AX home access point. With all the processing power and speed your household might ever need. Gen 6 wireless, 2.5 Gigabit Ethernet, PoE, WPA3, and more!

Ultimate power for your whole home

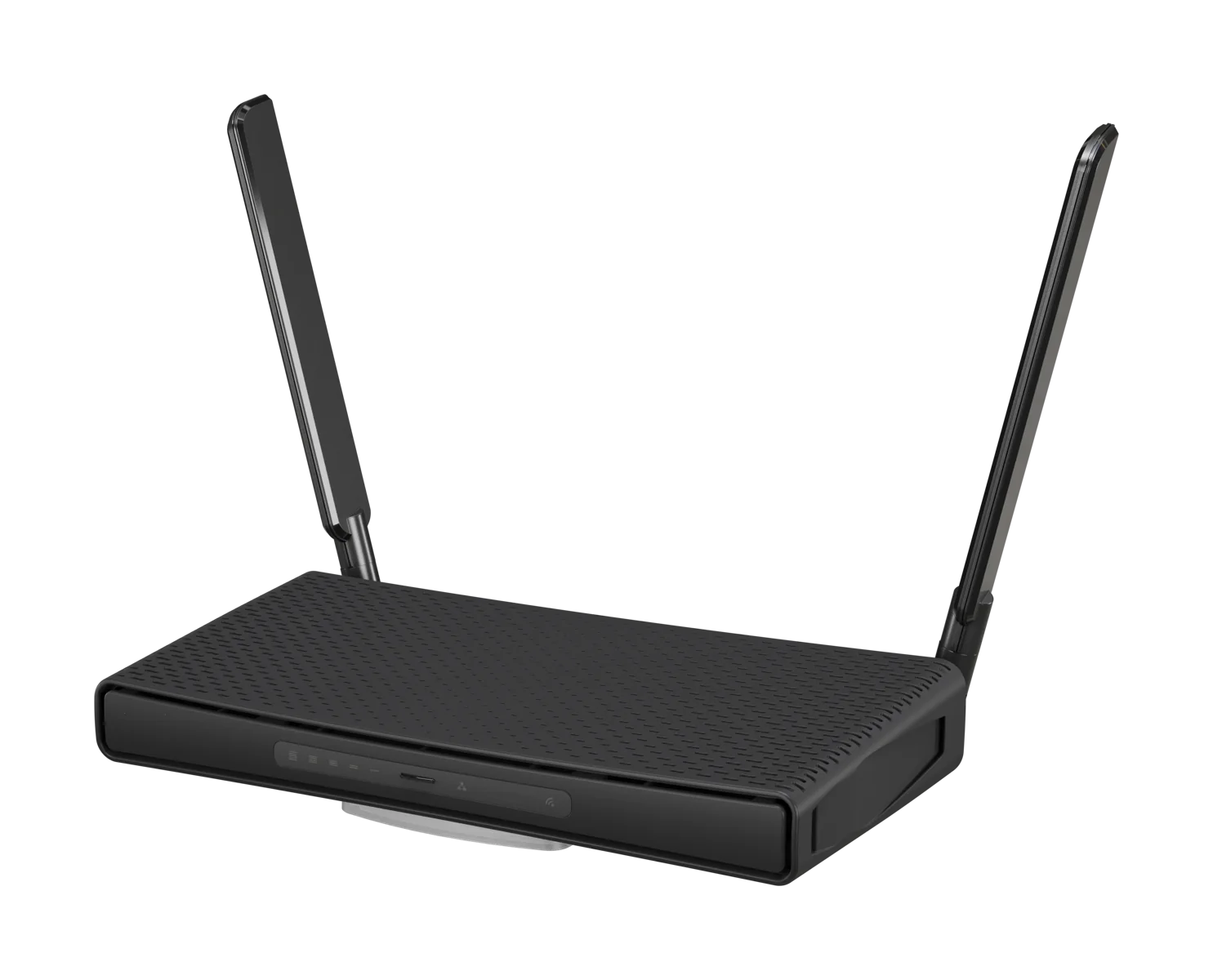

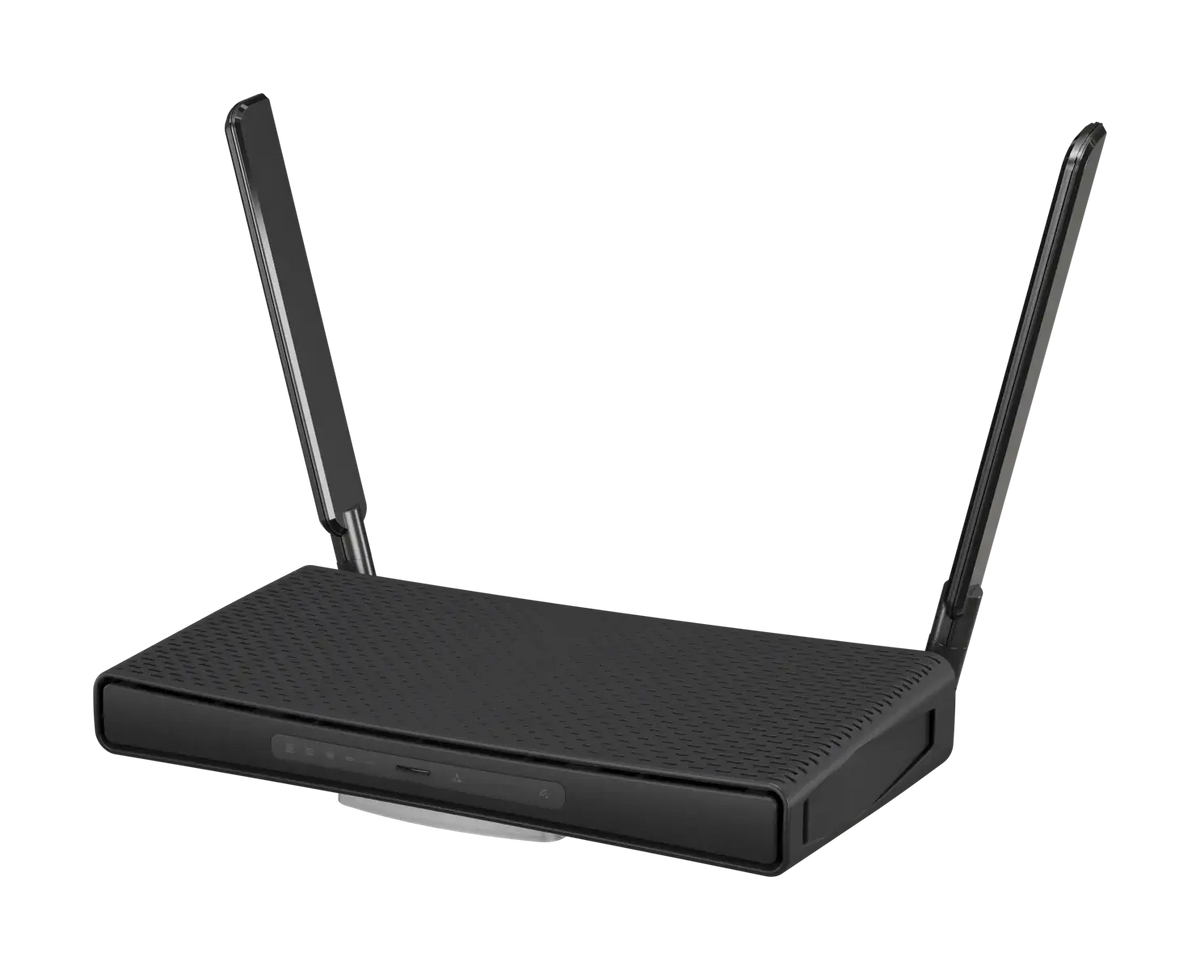

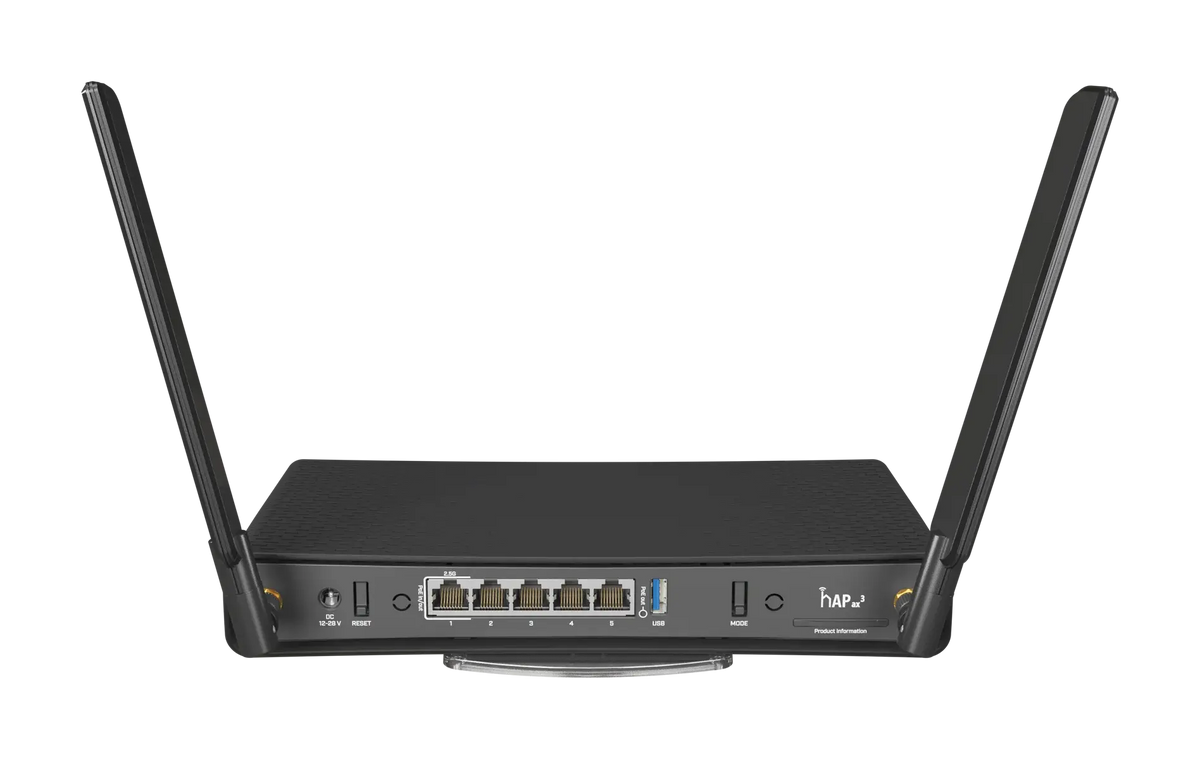

hAP ax³ is our most powerful AX device with the best wireless network coverage so far. It features a modern quad-core ARM CPU running at 1.8 GHz and enough memory (1GB RAM + 128 MB NAND) for most tasks. Complex firewall rules, IPsec hardware encryption, Wireguard, BGP, advanced routing, or multiple remote work VPN tunnels won’t stop your family from comfortable browsing, streaming, gaming, and so on. There’s enough processing power for everyone. And we’ve added a speedy USB 3 port for all your storage purposes or an additional LTE modem.
hAP ax³
  • hAP ax³
  • hAP ax³
  • hAP ax³
  • hAP ax³
  • hAP ax³
  • hAP ax³

AX wireless – as strong as an ox

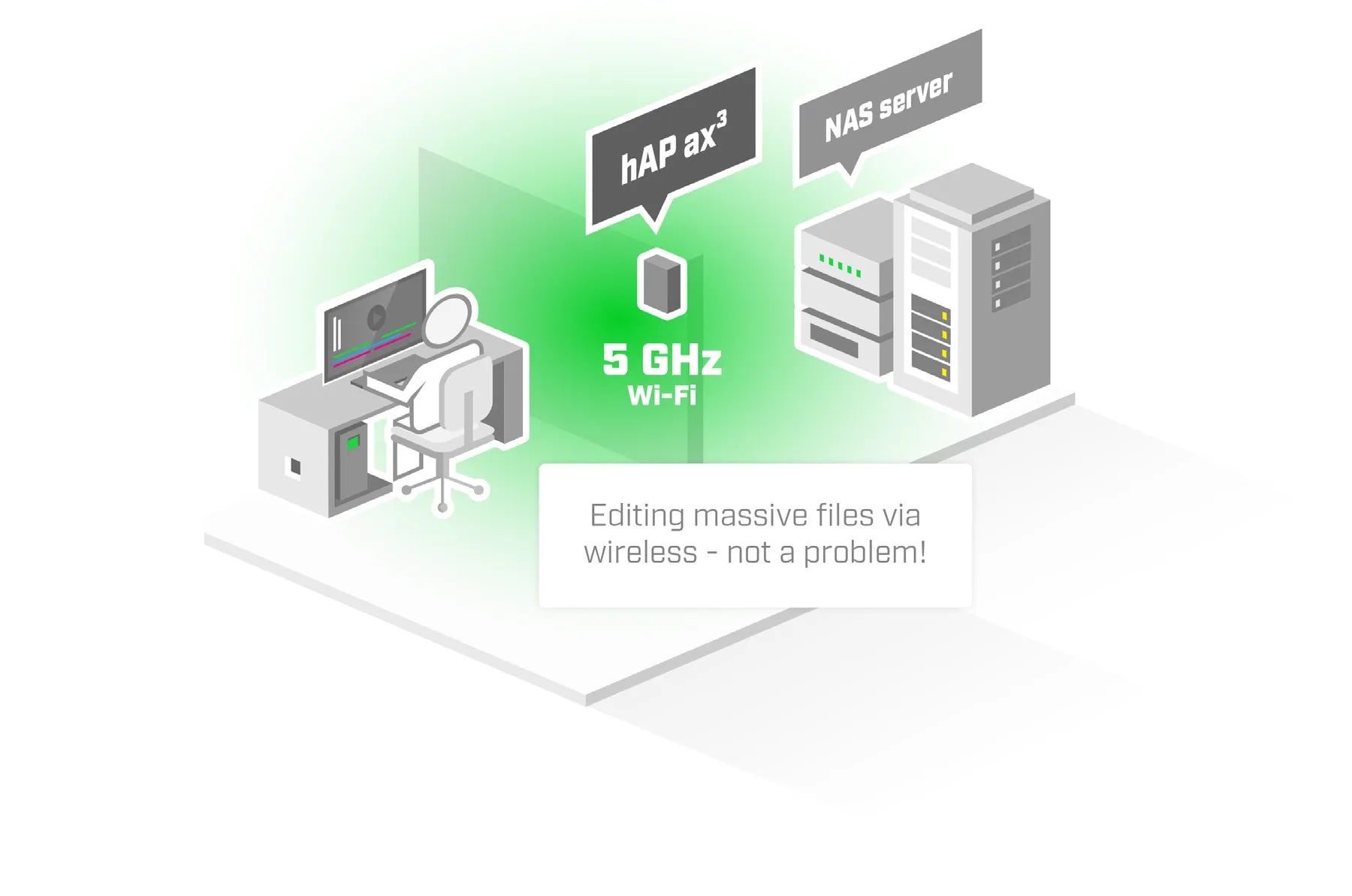

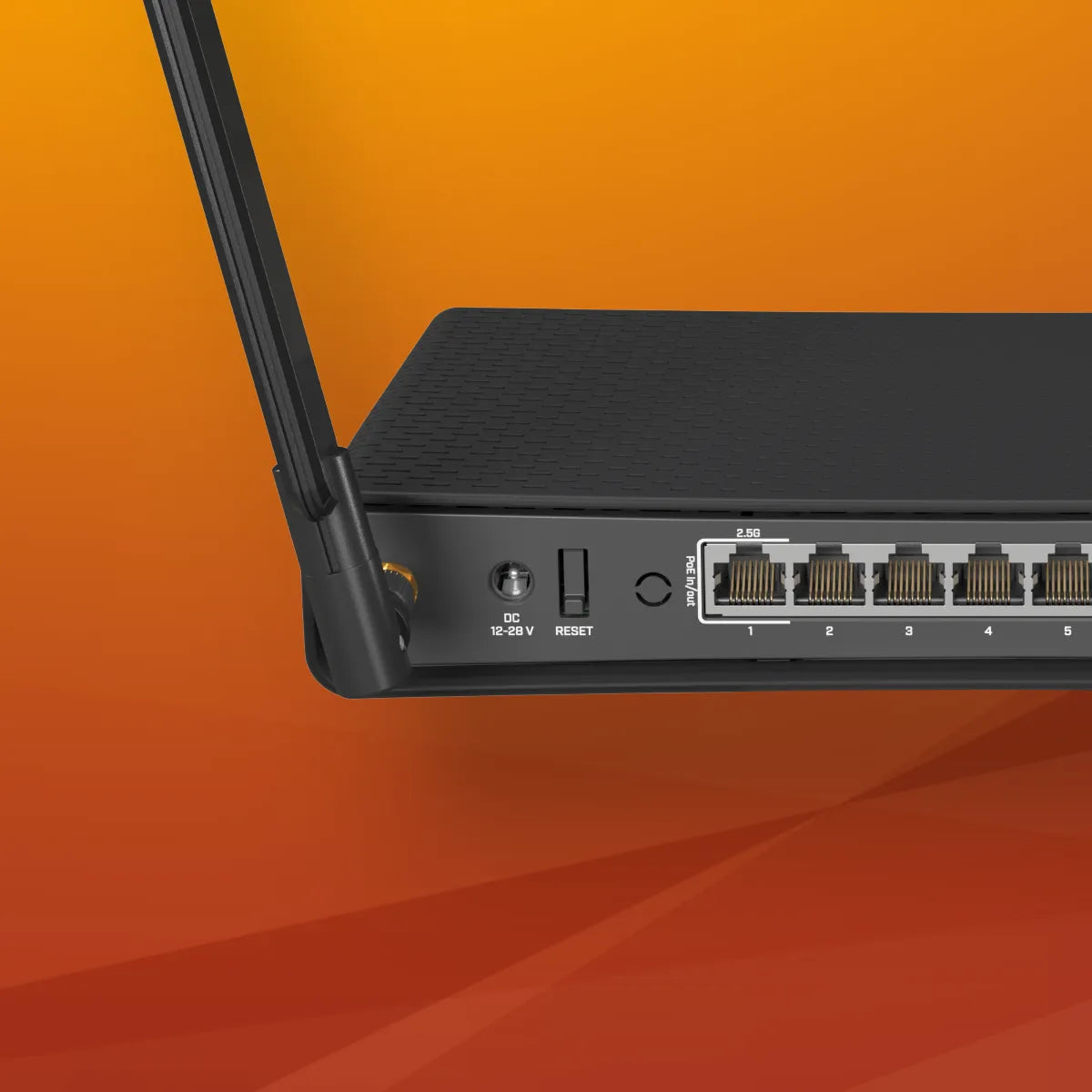

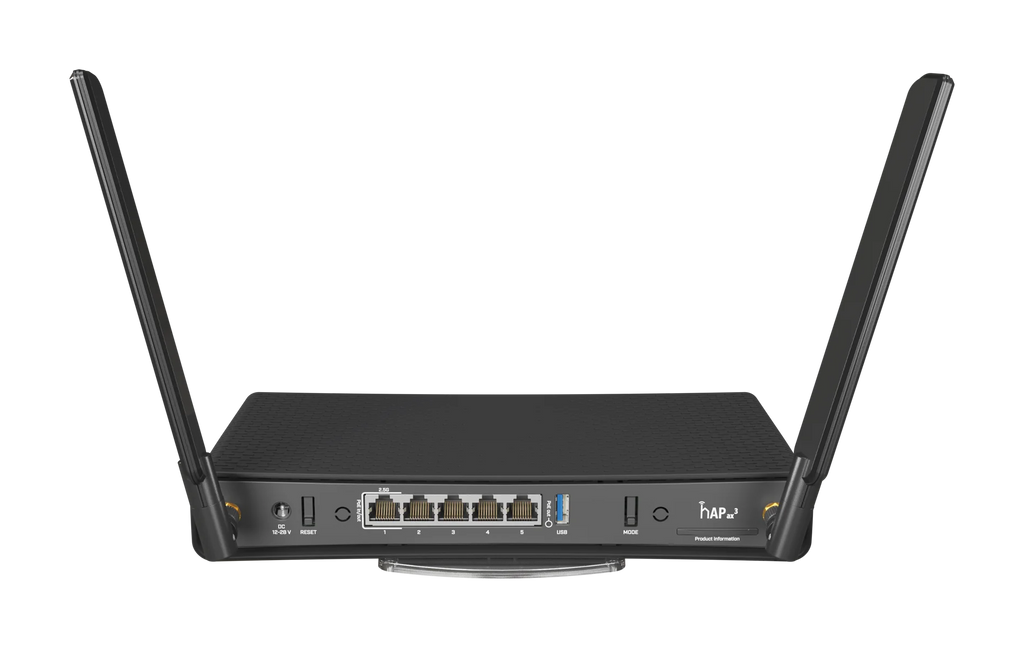

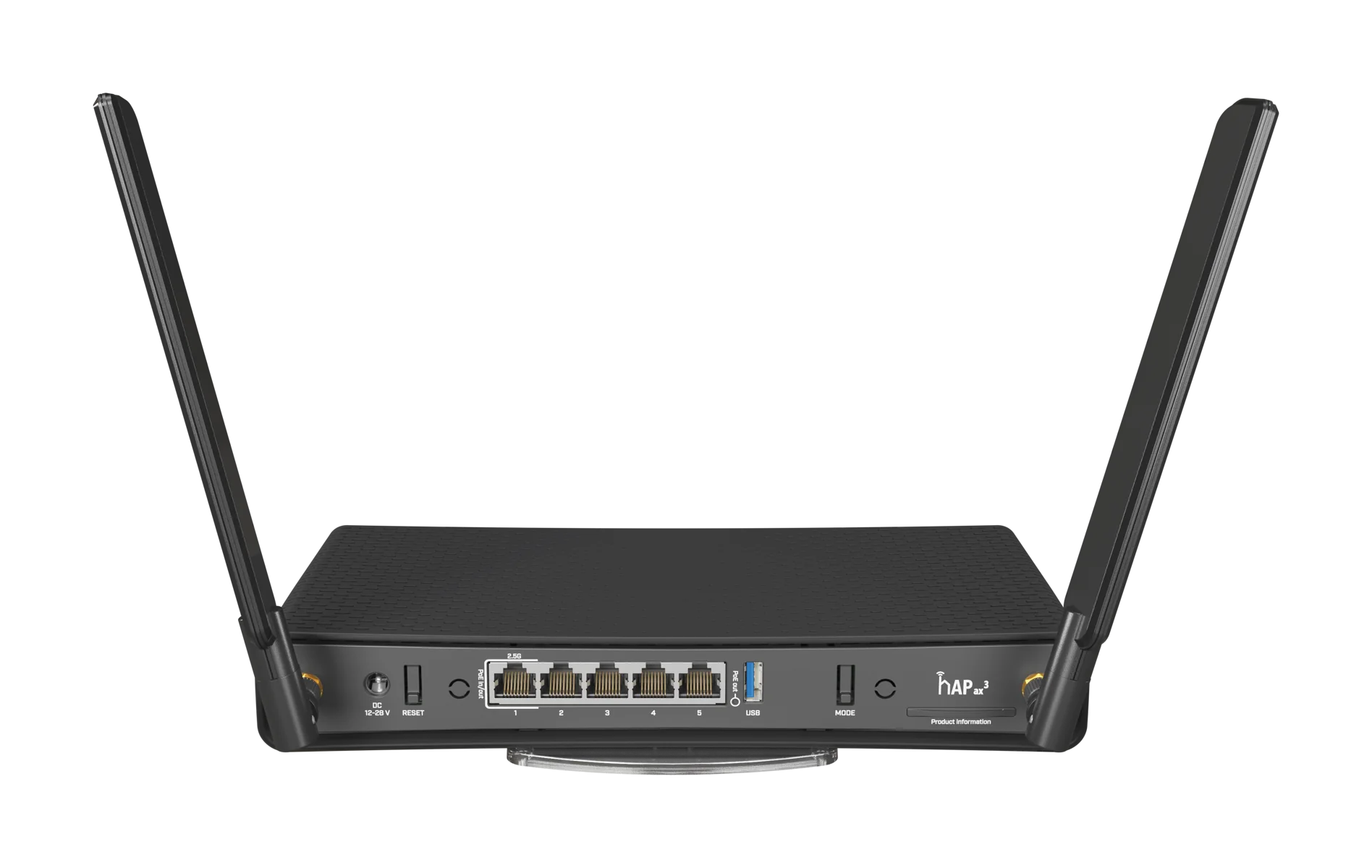

Depending on your overall setup, our AX product family offers up to 40% higher speed in the 5 GHz and up to 90% higher speed in the 2.4 GHz spectrum! Potent external antennas (via built-in RP-SMA female ports) allow reaching gain up to 5.5 dBi, so you can forget about Wi-Fi Boosters and other tricks. Smooth and fast connectivity for your whole apartment – that’s just how hAP ax³ works. Home network speeds are getting serious. There are 4x Gigabit Ethernet ports and an ultra-fast 2.5 Gigabit port.

Safer in many ways

hAP ax³ can ease your mind on multiple levels simultaneously. European-based production, our famous Northern work ethic, and cooperation with the EU lawmakers ensure full compliance with all the necessary safety policies. Multiple power options (DC Jack & PoE-in) result in fewer worries about potential downtime. The latest RouterOS v7 updates and the addition of WPA3 advanced encryption support bring unprecedented software security.

To sum things up - hAP ax³ is among the fastest, safest, and most powerful choices in the home access point world. Wired or wireless. And it comes with the most advanced networking software on the market – RouterOS. Unlike many other vendors, we don’t limit what you can do. There are no paywalls or confusing subscriptions. All our devices share the same limitless operating system. Imagination is the only limitation.

Specification

Specifications

  • Product codeC53UiG+5HPaxD2HPaxD
  • Suggested price$139.00
  • ArchitectureARM 64bit
  • CPUIPQ-6010
  • CPU core count4
  • CPU nominal frequencyauto (864 - 1800) MHz
  • CPU Threads count4
  • Switch chip modelIPQ-6010
  • RouterOS license6
  • Operating SystemRouterOS v7
  • Size of RAM1 GB
  • Storage size128 MB
  • Storage typeNAND
  • MTBFApproximately 200'000 hours at 25C
  • Tested ambient temperature-40°C to 70°C

Wireless capabilities

  • Wireless 2.4 GHz Max data rate574 Mbit/s
  • Wireless 2.4 GHz Number of chains2
  • Wireless 2.4 GHz standards802.11b/g/n/ax
  • Antenna gain dBi for 2.4 GHz3.3
  • Wireless 2.4 GHz chip modelQCN-5022
  • Wireless 2.4 GHz generationWi-Fi 6
  • Wireless 5 GHz Max data rate1200 Mbit/s
  • Wireless 5 GHz Number of chains2
  • Wireless 5 GHz standards802.11a/n/ac/ax
  • Antenna gain dBi for 5 GHz5.5
  • Wireless 5 GHz chip modelQCN-5052
  • Wireless 5 GHz generationWi-Fi 6
  • WiFi speedAX1800

Ethernet

  • 10/100/1000 Ethernet ports4
  • Number of 1G Ethernet ports with PoE-out1
  • Number of 2.5G Ethernet ports1

Peripherals

  • Number of USB ports1
  • USB Power ResetYes
  • USB slot typeUSB 3.0 type A
  • Max USB current (A)1.5

Powering

  • Number of DC inputs2 (DC jack, PoE-IN)
  • DC jack input Voltage12-28 V
  • Max power consumption38 W
  • Max power consumption without attachments15 W
  • PoE inPassive PoE
  • Cooling typePassive
  • PoE in input Voltage18-28 V

PoE-out

  • PoE-out portsEther 1
  • PoE outPassive PoE
  • Low voltage PoE-Out current limit0.625 A
  • Max total out (A)0.625 A
  • Total output current0.625
  • Total output power15

Certification & Approvals

  • CertificationCE, FCC, IC, EAC, ROHS
  • IP20

Other

  • CPU temperature monitorYes
  • Mode buttonYes

Included parts24V 1.5A power adapterHGO indoor antenna kitK-47 wall mount sethAP case baseNoteThe device has an operating system preinstalled and licensed. No separate purchase is necessary and the product is ready to use. The device includes free software updates for the life of the product or a minimum of 5 years starting from date of purchase.
