CRS504-4XQ-IN

CRS504-4XQ-IN

$1,117.84 CAD
CRS504-4XQ-IN

CRS504-4XQ-IN
$1,117.84 CAD
Shipping calculated at checkout.
Out of stock

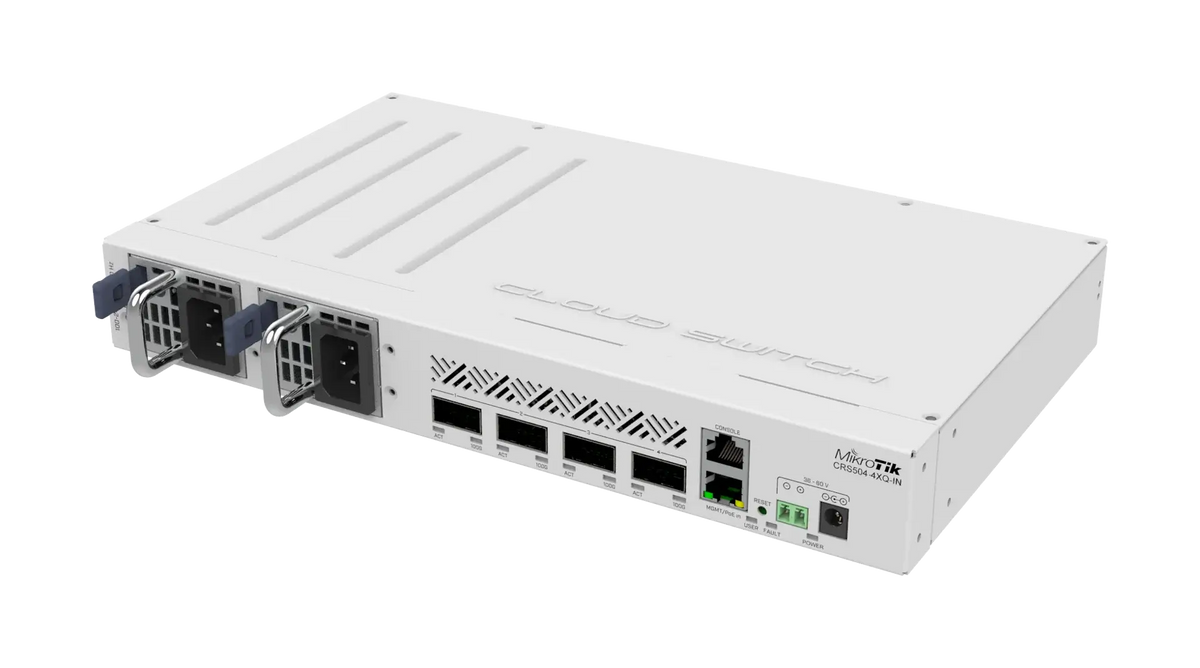

Your most affordable, compact, energy-efficient doorway to the world of 100 Gigabit networking. This switch is the next step in upgrading existing 10 or 25 Gigabit networks. Multiple powering options, dual hot-swap power supplies.

Our 100 Gigabit family keeps expanding – you’ve already seen the incredible CCR2216 100 Gigabit router. Now it’s time for a matching switch – the CRS504-4XQ-IN. The small size combined with the low power consumption (25W without attachments!) is perfect to start expanding 100 Gigabit networking in everyday setups. This speed is no longer limited to data centers, ISPs, and large offices. You too can upgrade your 10 or 25 Gigabit network and join the one hundred club!
CRS504-4XQ-IN
  • CRS504-4XQ-IN
  • CRS504-4XQ-IN
  • CRS504-4XQ-IN
  • CRS504-4XQ-IN
  • CRS504-4XQ-IN
  • CRS504-4XQ-IN
  • CRS504-4XQ-IN
  • CRS504-4XQ-IN

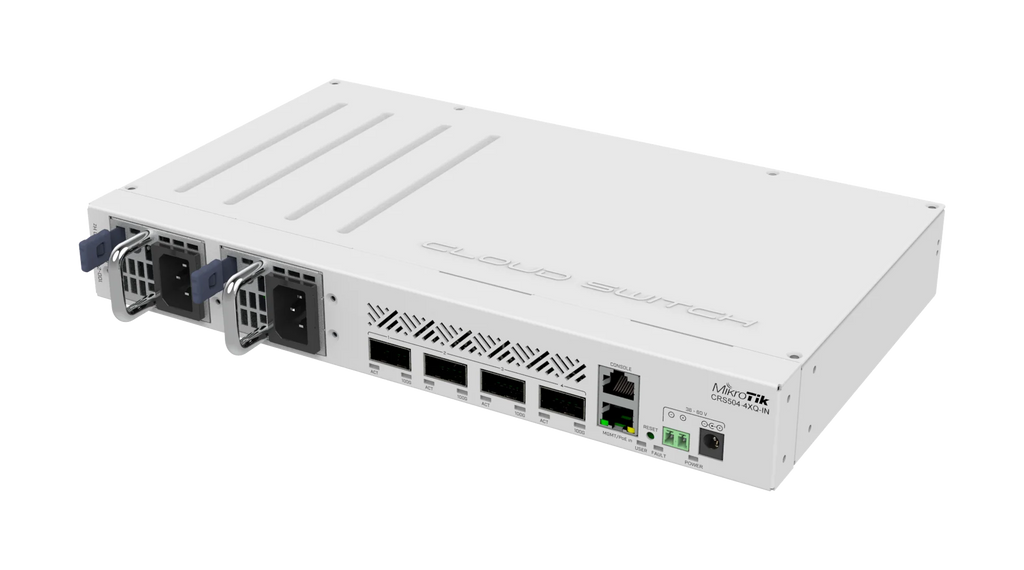

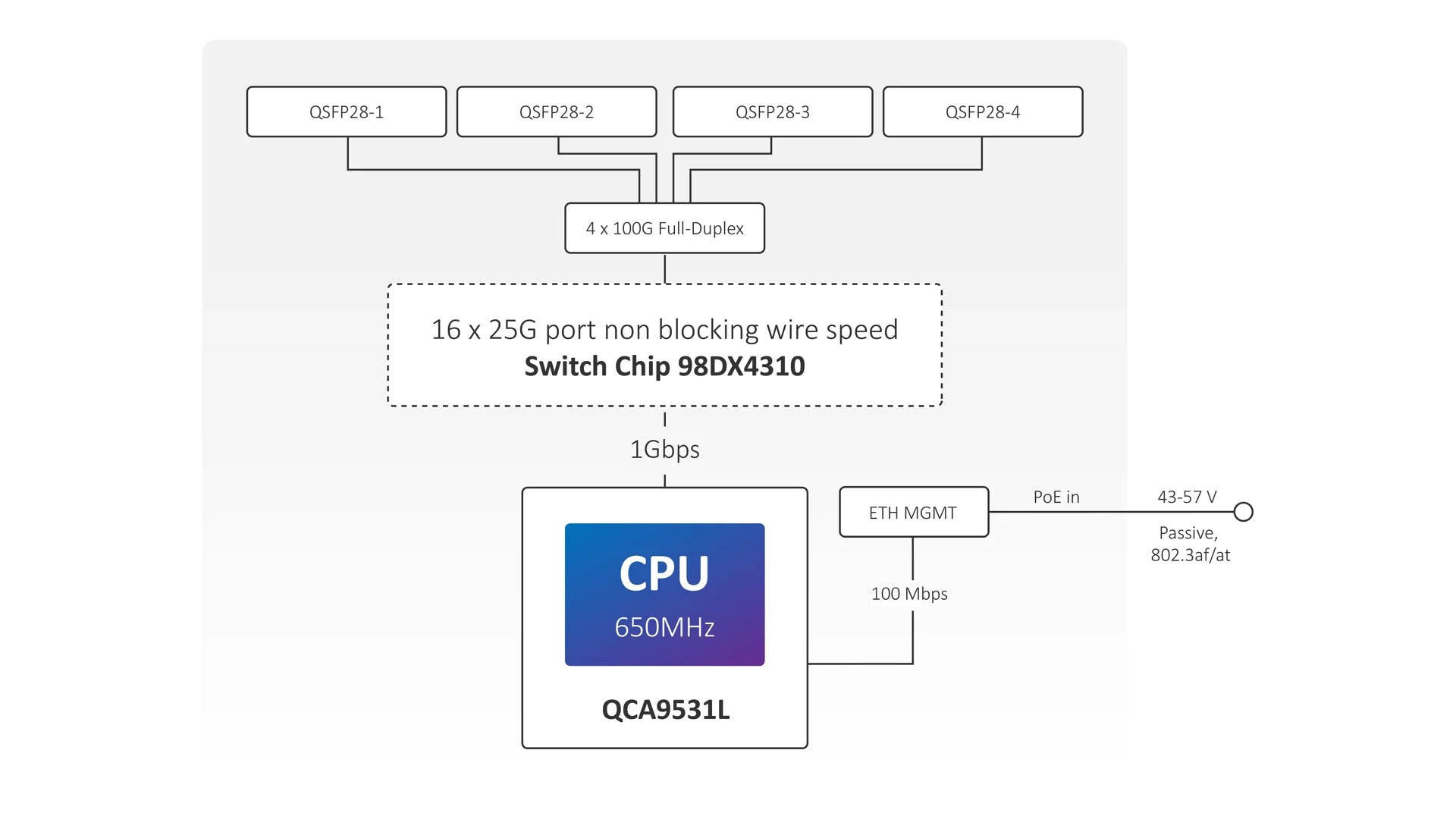

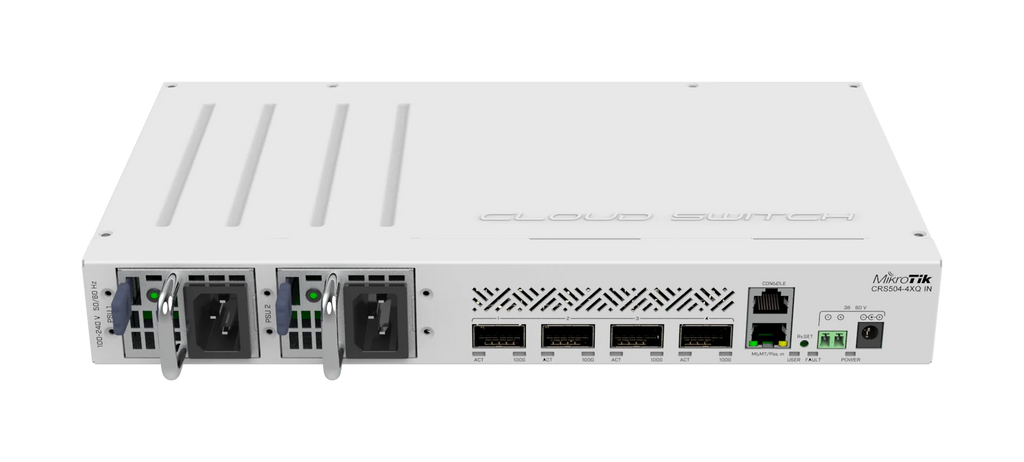

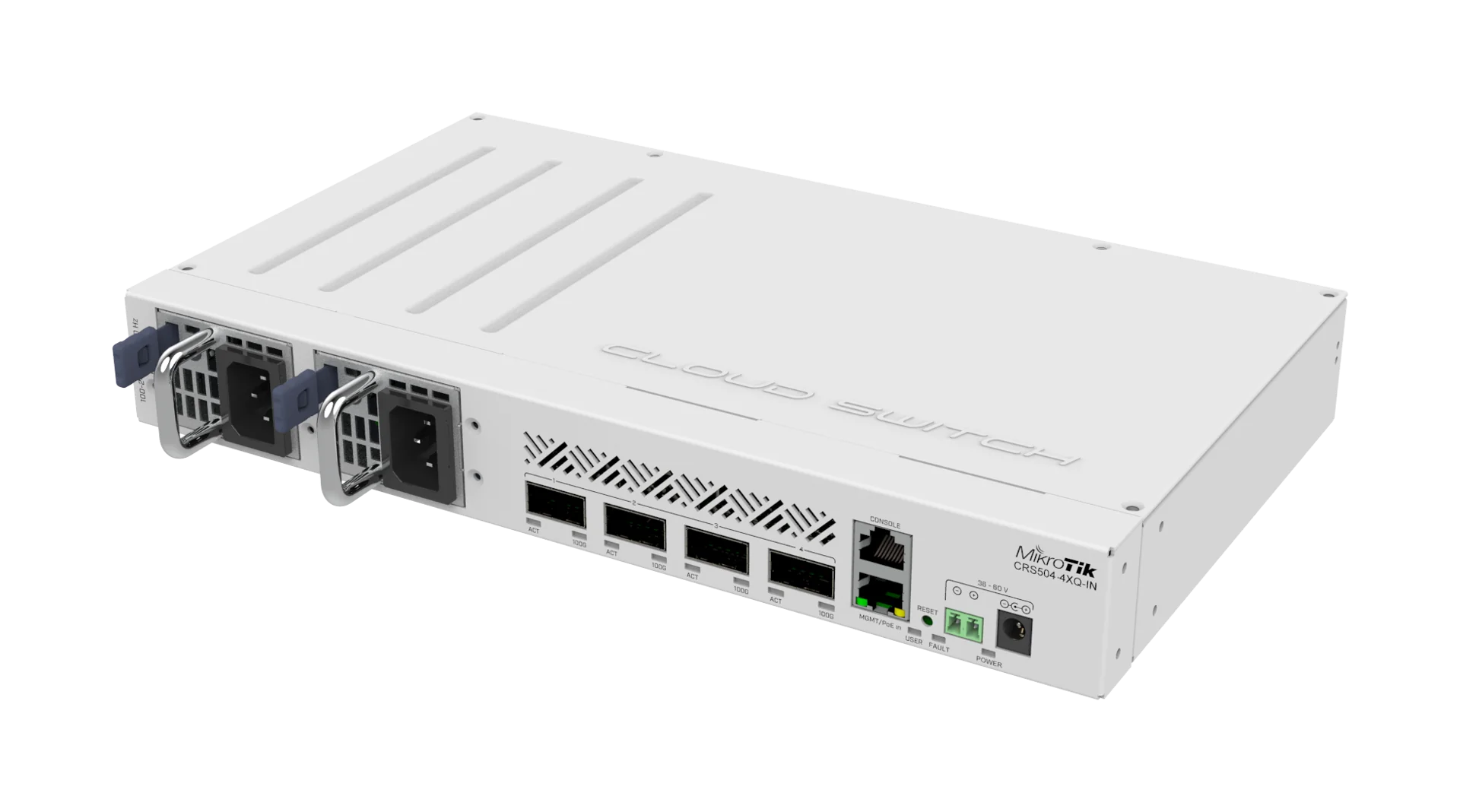

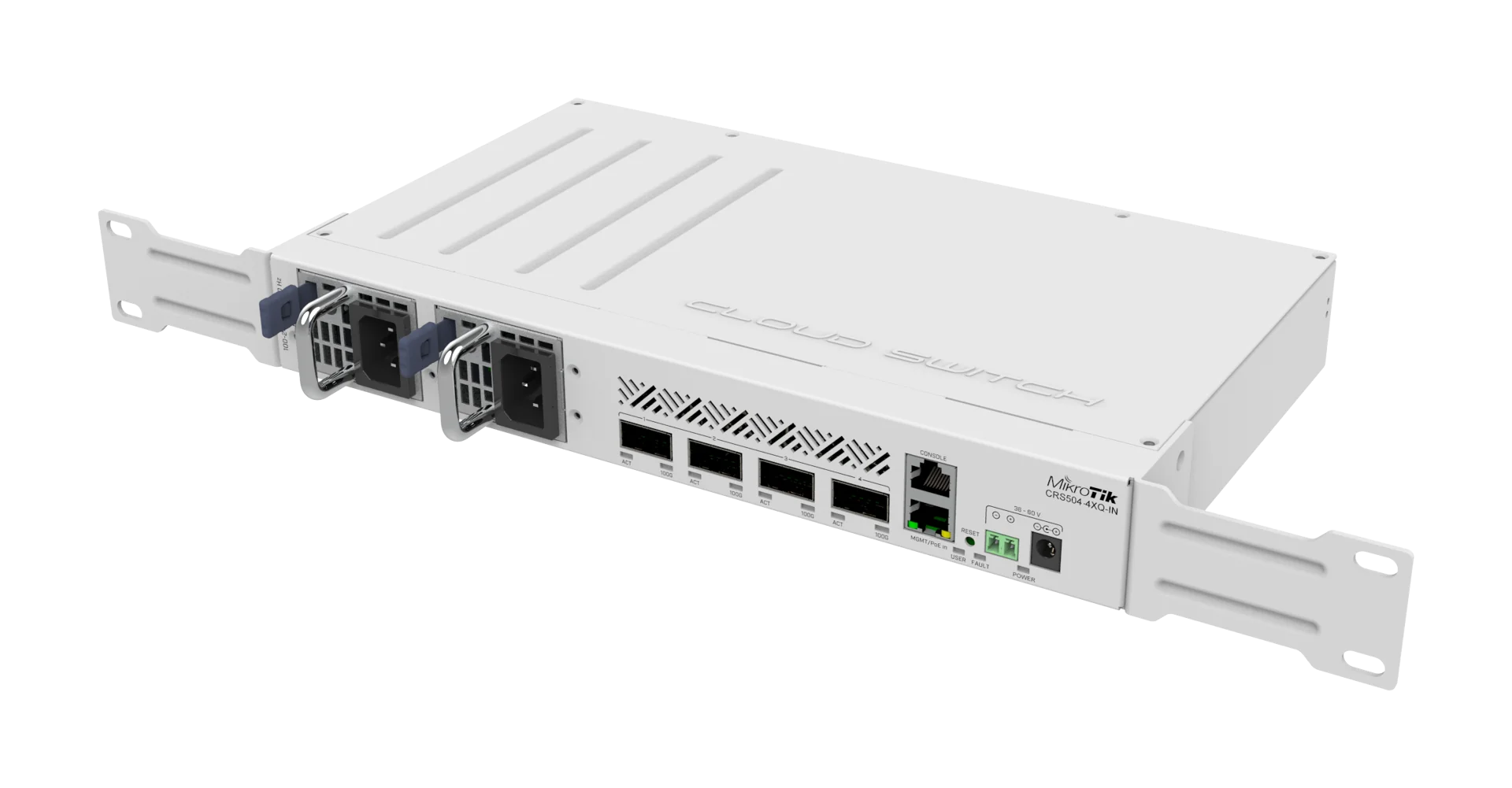

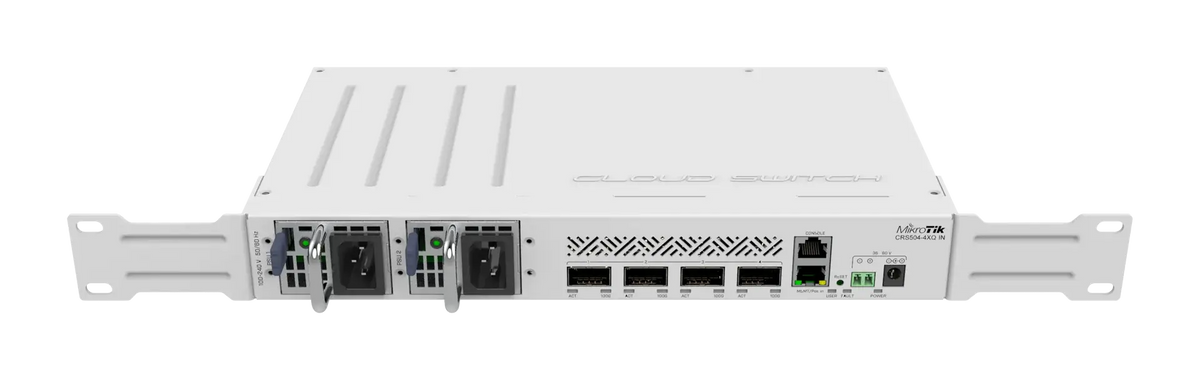

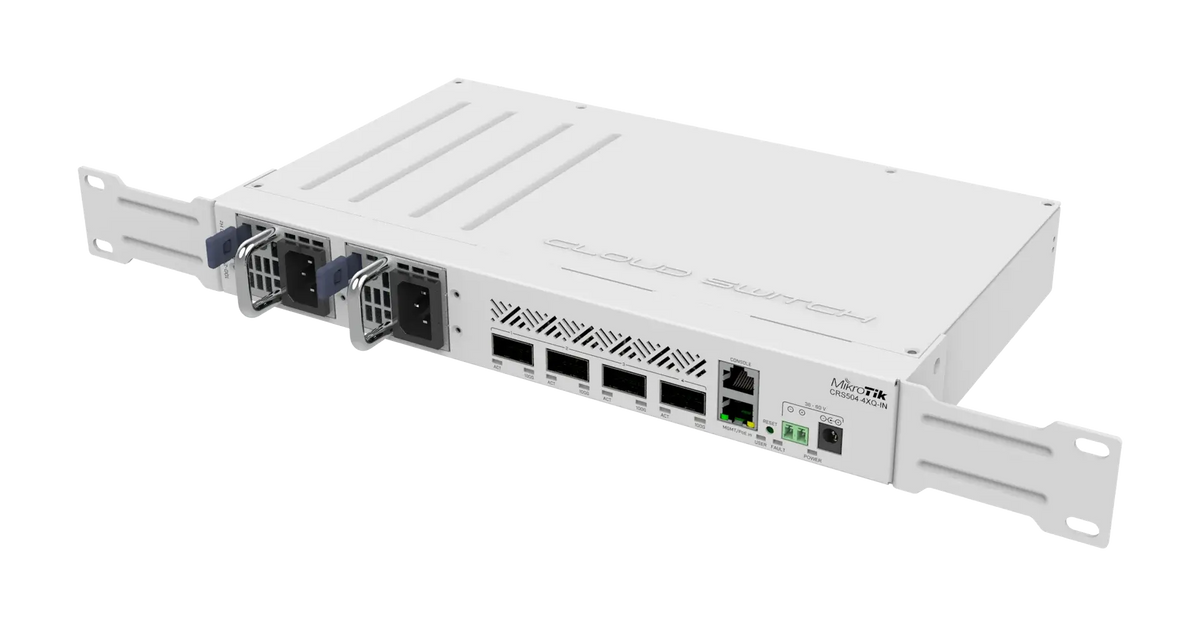

There are four 100 Gigabit QSFP28 ports. Use them to connect other 100 Gigabit devices or grab a breakout cable to connect multiple 25 Gigabit devices: each port is connected to four 25 Gigabit lines, allowing you to connect 16 x 25 Gigabit devices. In fact, you can mix and match all kinds of connections this way: 100 Gigabits on one port, 40 Gigabits on the other, 4x25 Gigabits on the third, and maybe even some 10G or 1G cables on the fourth. The mighty Marvell DX4310 switch-chip will handle everything without breaking a sweat!

Obviously, there is an Ethernet port for management purposes as well.

Specification

Specifications

  • Product codeCRS504-4XQ-IN
  • Suggested price$799.00
  • ArchitectureMIPSBE
  • CPUQCA9531
  • CPU core count1
  • CPU nominal frequency650 MHz
  • Switch chip model98DX4310
  • Dimensions320 x 185 x 44 mm
  • RouterOS license5
  • Operating SystemRouterOS v7
  • Size of RAM64 MB
  • Storage size16 MB
  • Storage typeFLASH
  • MTBFApproximately 200'000 hours at 25C
  • Tested ambient temperature-40°C to 70°C

Powering

  • Number of AC inputs2
  • AC input range100-240
  • Number of DC inputs3 (DC jack, PoE-IN, 2-pin terminal)
  • DC jack input Voltage36-57 V
  • Number of PSU slots2
  • 2-pin terminal input Voltage36-57 V
  • Frequency (Hz)47-63
  • Max power consumption41 W
  • Max power consumption without attachments25 W
  • PoE in802.3 bt
  • Cooling type2 fans
  • PoE in input Voltage43-57 V

Ethernet

  • 10/100 Ethernet ports1

Fiber

  • Number of 100G QSFP28 ports4

Peripherals

  • Serial console portRJ45

Other

  • PCB temperature monitorYes

Certification & Approvals

  • CertificationCE, EAC, ROHS
  • IP20

Included partsRack ears (CRS504)K10 screw kitIEC cordIEC cordNoteThe device has an operating system preinstalled and licensed. No separate purchase is necessary and the product is ready to use. The device includes free software updates for the life of the product or a minimum of 5 years starting from date of purchase.
