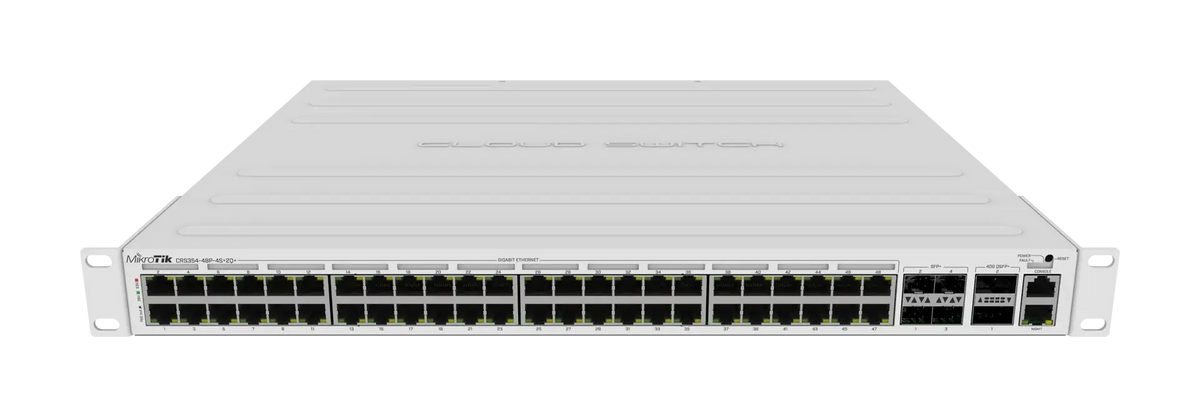

The 48 port champion you’ve been waiting for - now with PoE-out!

If you are looking for a single switch that will put your network setup ahead of the curve and power all the necessary devices – look no further! The new CRS354-48P-4S+2Q+RM is an effective and adaptable rackmount solution for managing networks in the most demanding environments. Unlike many other switches out there, our products are made with the system administrator in mind.
CRS354-48P-4S+2Q+RM
  • CRS354-48P-4S+2Q+RM
  • CRS354-48P-4S+2Q+RM
  • CRS354-48P-4S+2Q+RM
  • CRS354-48P-4S+2Q+RM
  • CRS354-48P-4S+2Q+RM

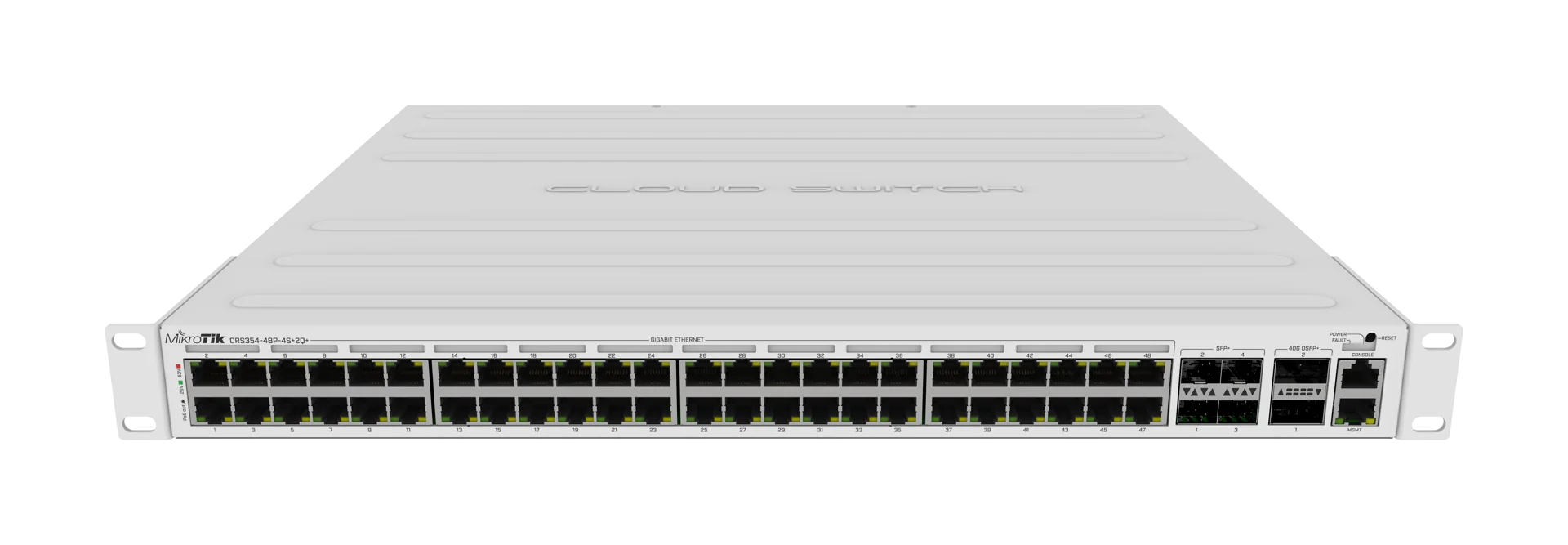

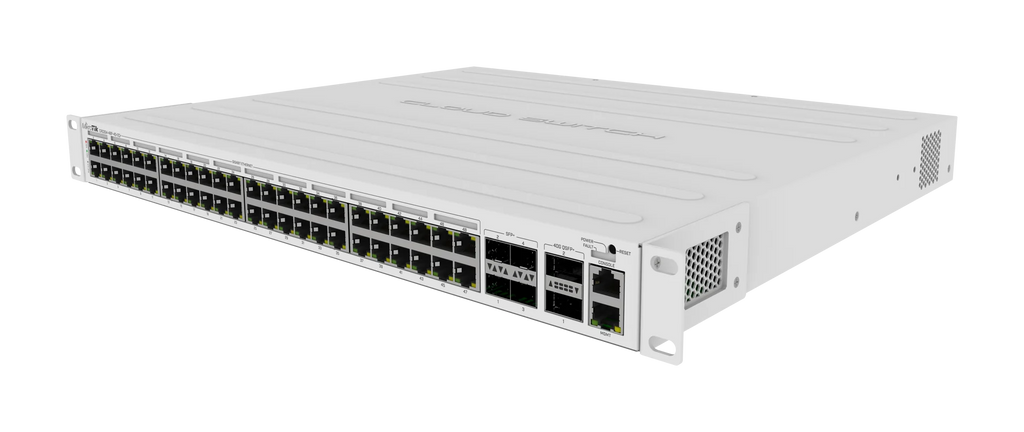

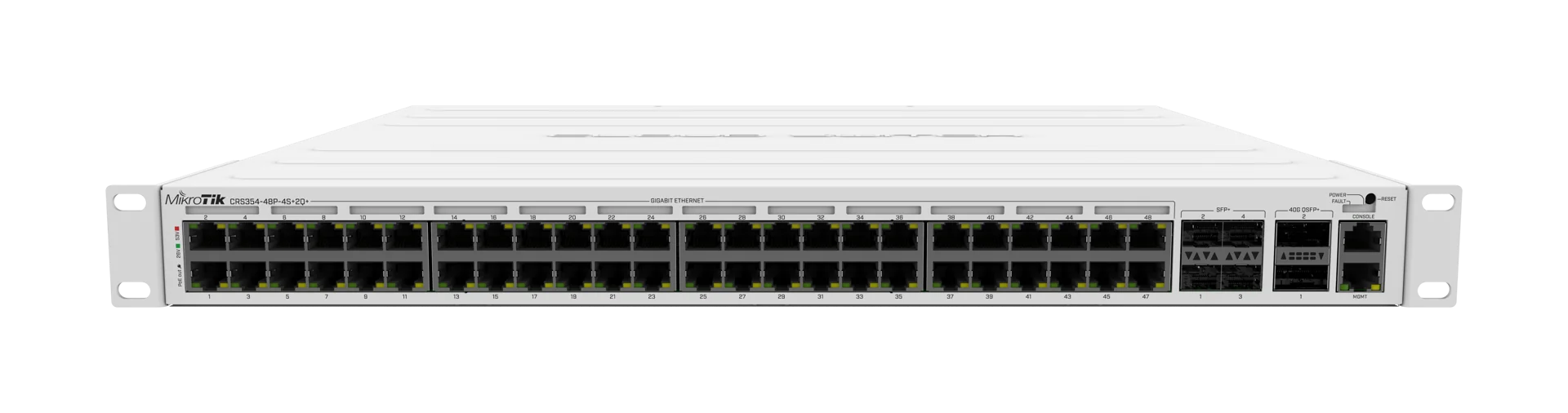

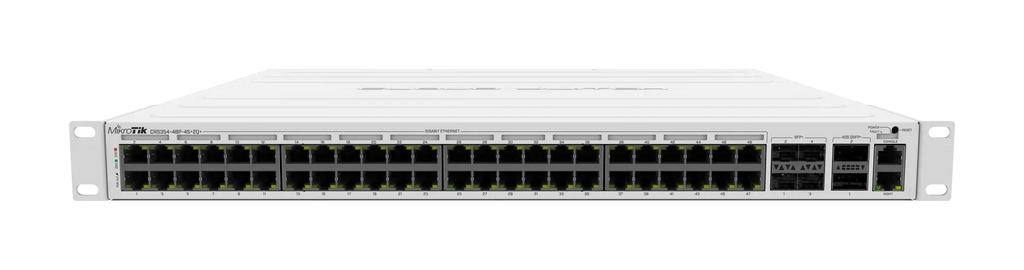

This powerful switch has 48 x 1G RJ45 ports and 4 x 10G SFP+ ports. There are also 2 x 40G QSFP+ ports for extremely fast fiber connections or linking with other 40 Gbps devices. All 48 Ethernet ports offer different power output options: Passive PoE, low voltage PoE, 802.3af/at (Type 1 “PoE” / Type 2 “PoE+”) with auto-sensing, making this switch the easiest solution to power even the largest setups. We have included a mighty power supply that can provide 750 W of power – this switch can handle a lot. And there is a special bracket for easy cable management.

CRS354-48P-4S+2Q+RM is extremely functional, and it has the best price-point on the market – it will make the perfect addition to a professional setup.

The total non-blocking throughput is 168 Gbps, switching capacity is 336 Gbps and the forwarding rate reaches 235 Mpps.

Specification

Specifications

  • Product codeCRS354-48P-4S+2Q+RM
  • Suggested price$999.00
  • ArchitectureMIPSBE
  • CPUQCA9531
  • CPU core count1
  • CPU nominal frequency650 MHz
  • Switch chip model98DX3257
  • Dimensions443 x 382 x 44 mm
  • RouterOS license5
  • Operating SystemRouterOS v7 / SwitchOS
  • Size of RAM128 MB
  • Storage size32 MB
  • Storage typeFLASH
  • MTBFApproximately 200'000 hours at 25C
  • Tested ambient temperature-20°C to 60°C

Powering

  • Number of AC inputs1
  • AC input range100-240
  • Number of PSU slots1
  • Frequency (Hz)50-60
  • Max power consumption800 W
  • Max power consumption without attachments85 W
  • Cooling type4 fans

PoE-out

  • PoE-out portsEther1-Ether48
  • PoE out802.3af/at
  • Low voltage PoE-Out current limit1000 mA
  • High voltage PoE-Out current limit570 mA
  • Total output current27A at 26V OR 13.2A at 53V
  • Total output power700W

Ethernet

  • 10/100 Ethernet ports1
  • 10/100/1000 Ethernet ports48

Fiber

  • SFP+ ports4
  • Number of 40G QSFP+ ports2

Peripherals

  • Serial console portRJ45

Other

  • CPU temperature monitorYes
  • Current MonitorYes
  • PCB temperature monitorYes
  • Voltage MonitorYes

Certification & Approvals

  • CertificationCE, EAC, ROHS
  • IPIP20

Included partsIEC cordCable managment bracketsRackmount ears (CRS)Rackmount rear support ears (1/2)Rackmount rear support ears (2/2)K-48 fastening setNoteThe device has an operating system preinstalled and licensed. No separate purchase is necessary and the product is ready to use. The device includes free software updates for the life of the product or a minimum of 5 years starting from date of purchase.
