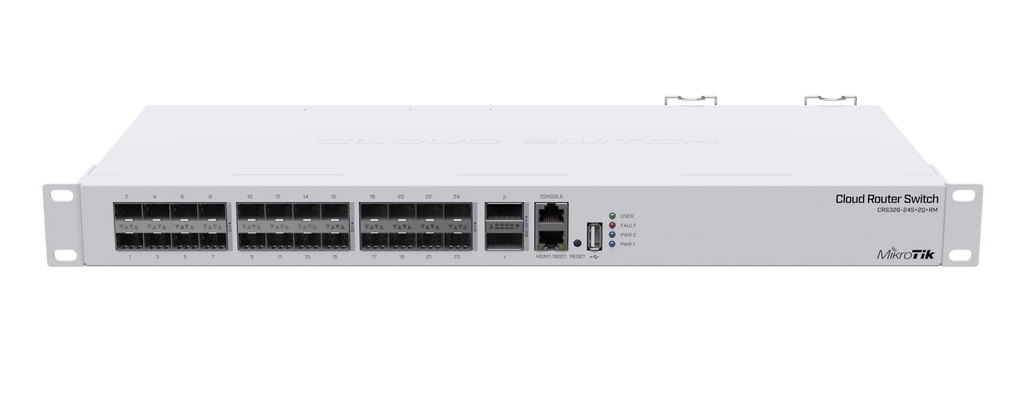

CRS326-24S+2Q+RM

CRS326-24S+2Q+RM

$838.03 CAD
CRS326-24S+2Q+RM

CRS326-24S+2Q+RM

CRS326-24S+2Q+RM
$838.03 CAD
Shipping calculated at checkout.
Out of stock

One of our faster switches for the most demanding setups.

If you are working with substantial amount of data – like providing Internet access or maintaining a huge data center – this is the perfect upgrade for your setup. CRS326-24S+2Q+RM is our first product with 40 Gbps QSFP+ ports for remarkably fast and stable fiber connection.

Overall it has two 40 Gbps QSFP+ ports and twenty four 10 Gbps SFP+ ports, which provides total nonblocking throughput of 320 Gbps and switching capacity of 640 Gbps with forwarding rate of 252 Mpps with most common packets.
CRS326-24S+2Q+RM
  • CRS326-24S+2Q+RM
  • CRS326-24S+2Q+RM

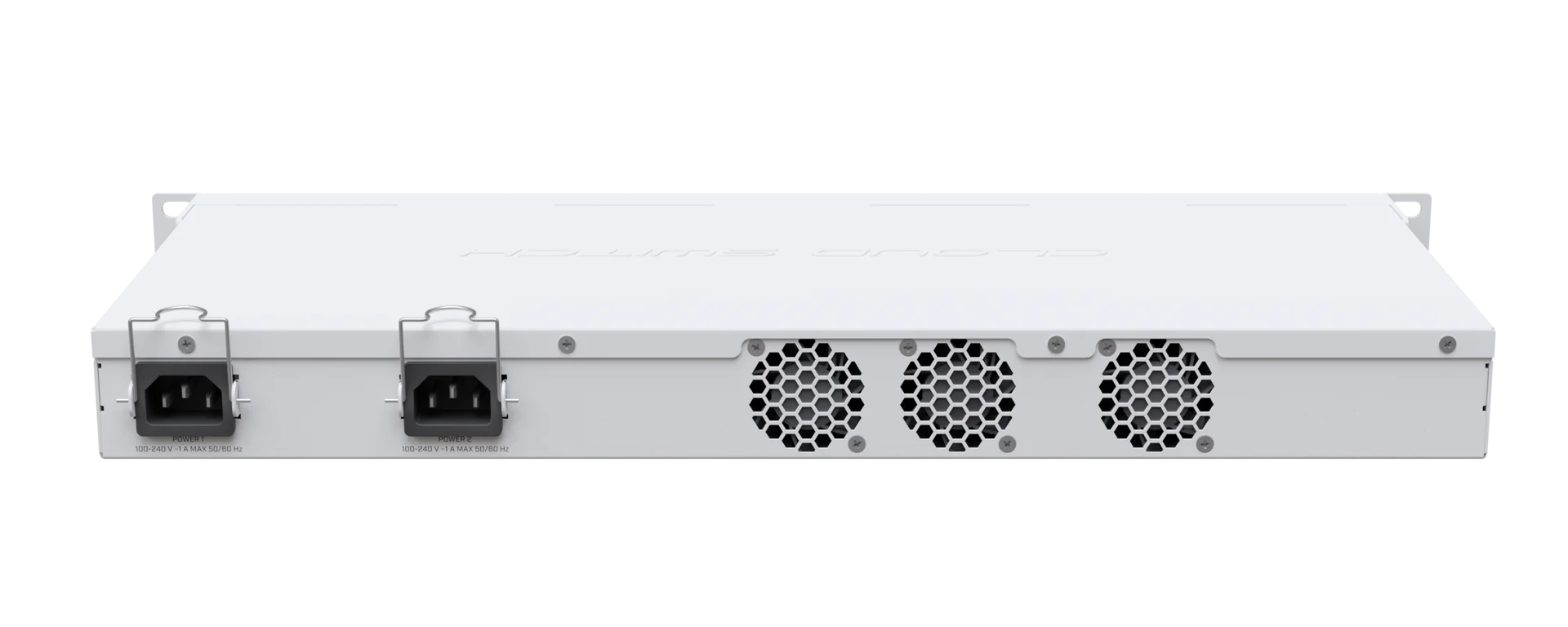

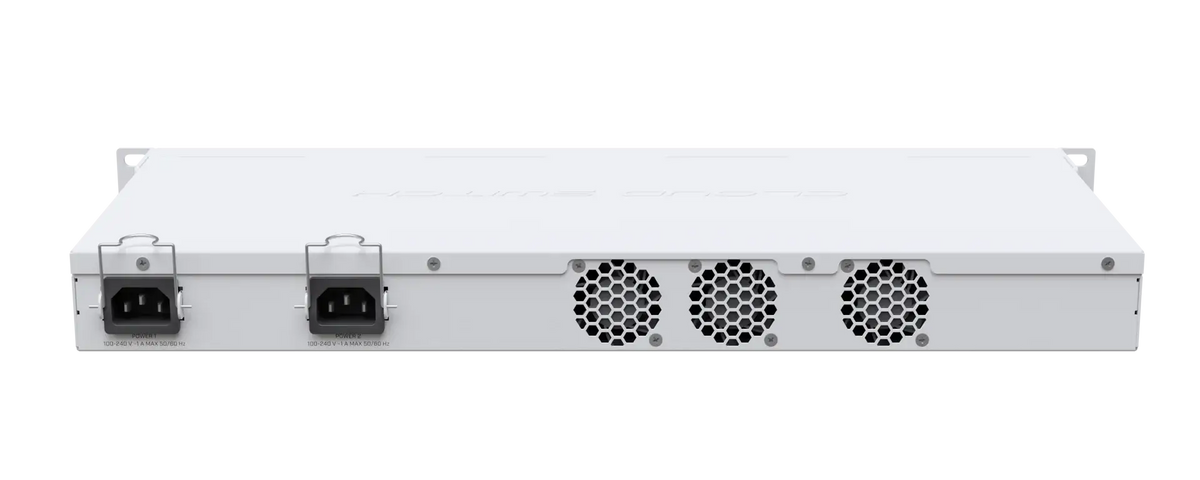

CRS326-24S+2Q+RM is easy to manage – it has a full size USB port for configuration and dual power supply for redundancy – no unexpected downtime, your clients and colleagues will be thankful!

You can choose between our legendary feature-packed RouterOS for booting or a simpler, but still powerful SwOS. If you would like the ability to use routing and other Layer 3 features in your CRS, use RouterOS.

Specification

Specifications

  • Product codeCRS326-24S+2Q+RM
  • Suggested price$599.00
  • ArchitectureMIPSBE
  • CPUQCA9531
  • CPU core count1
  • CPU nominal frequency650 MHz
  • Switch chip model98DX8332
  • Dimensions443 x 200 x 44 mm
  • RouterOS license5
  • Operating SystemRouterOS v7 / SwitchOS
  • Size of RAM128 MB
  • Storage size32 MB
  • Storage typeFLASH
  • MTBFApproximately 200'000 hours at 25C
  • Tested ambient temperature-20°C to 60°C

Powering

  • Number of AC inputs2
  • AC input range100-240
  • Number of PSU slots2
  • Frequency (Hz)50-60
  • Max power consumption69 W
  • Max power consumption without attachments42 W
  • Cooling type3 fans

Ethernet

  • 10/100 Ethernet ports1

Fiber

  • SFP+ ports24
  • Number of 40G QSFP+ ports2

Peripherals

  • Serial console portRJ45
  • Number of USB ports1
  • USB Power ResetYes
  • USB slot typeUSB type A
  • Max USB current (A)1

Certification & Approvals

  • CertificationCE, EAC, ROHS
  • IPIP20

Included partsScrew and feet kit (K10)2x IEC cordsRack earsNoteThe device has an operating system preinstalled and licensed. No separate purchase is necessary and the product is ready to use. The device includes free software updates for the life of the product or a minimum of 5 years starting from date of purchase.
