CRS305-1G-4S+IN

CRS305-1G-4S+IN

$208.46 CAD
CRS305-1G-4S+IN

CRS305-1G-4S+IN

CRS305-1G-4S+IN
$208.46 CAD
Shipping calculated at checkout.
Out of stock

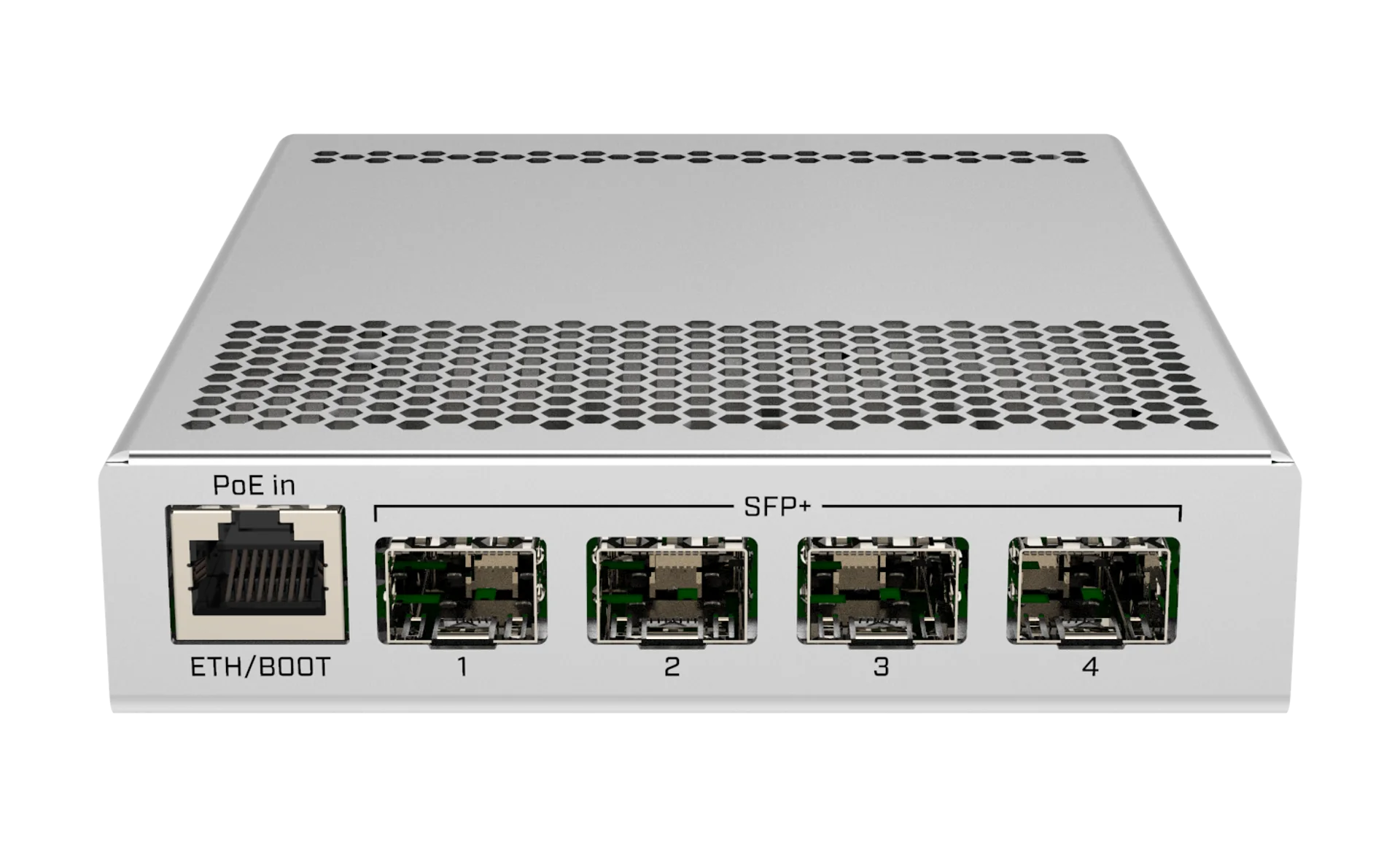

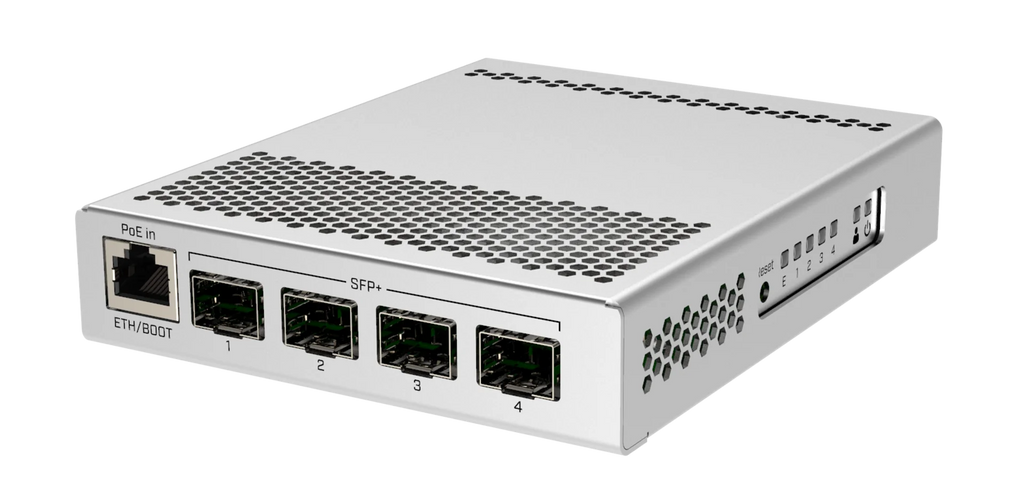

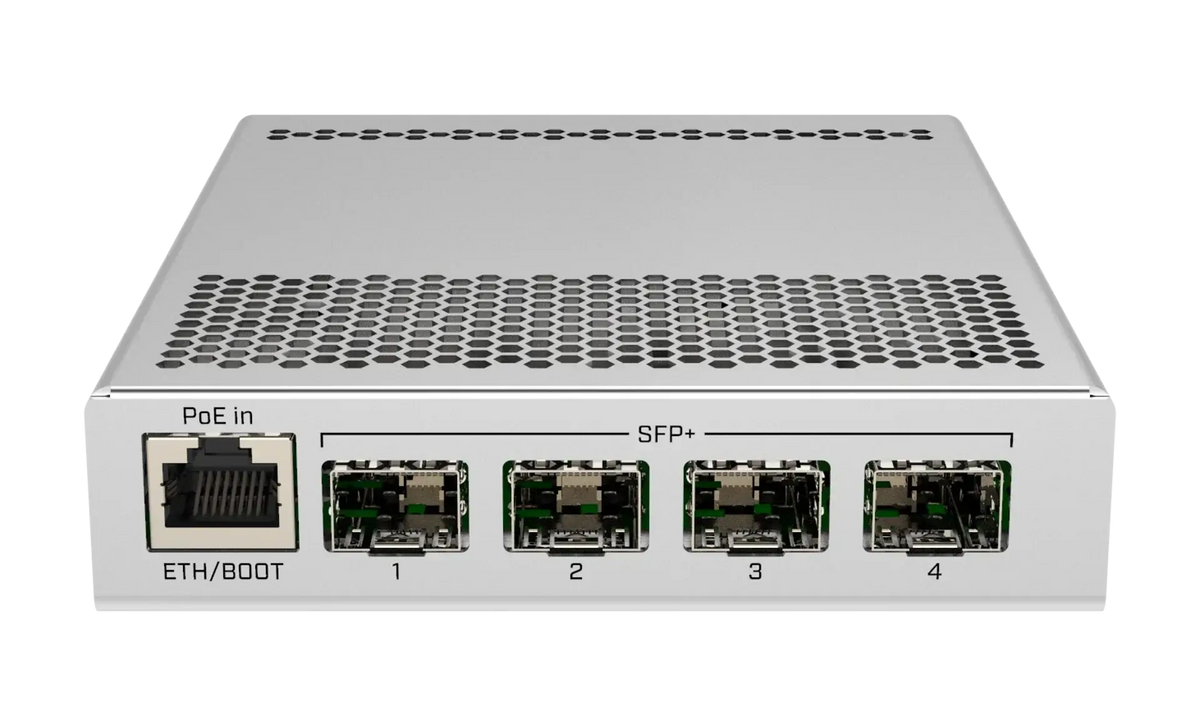

Five-port desktop switch with one Gigabit Ethernet port and four SFP+ 10Gbps ports.

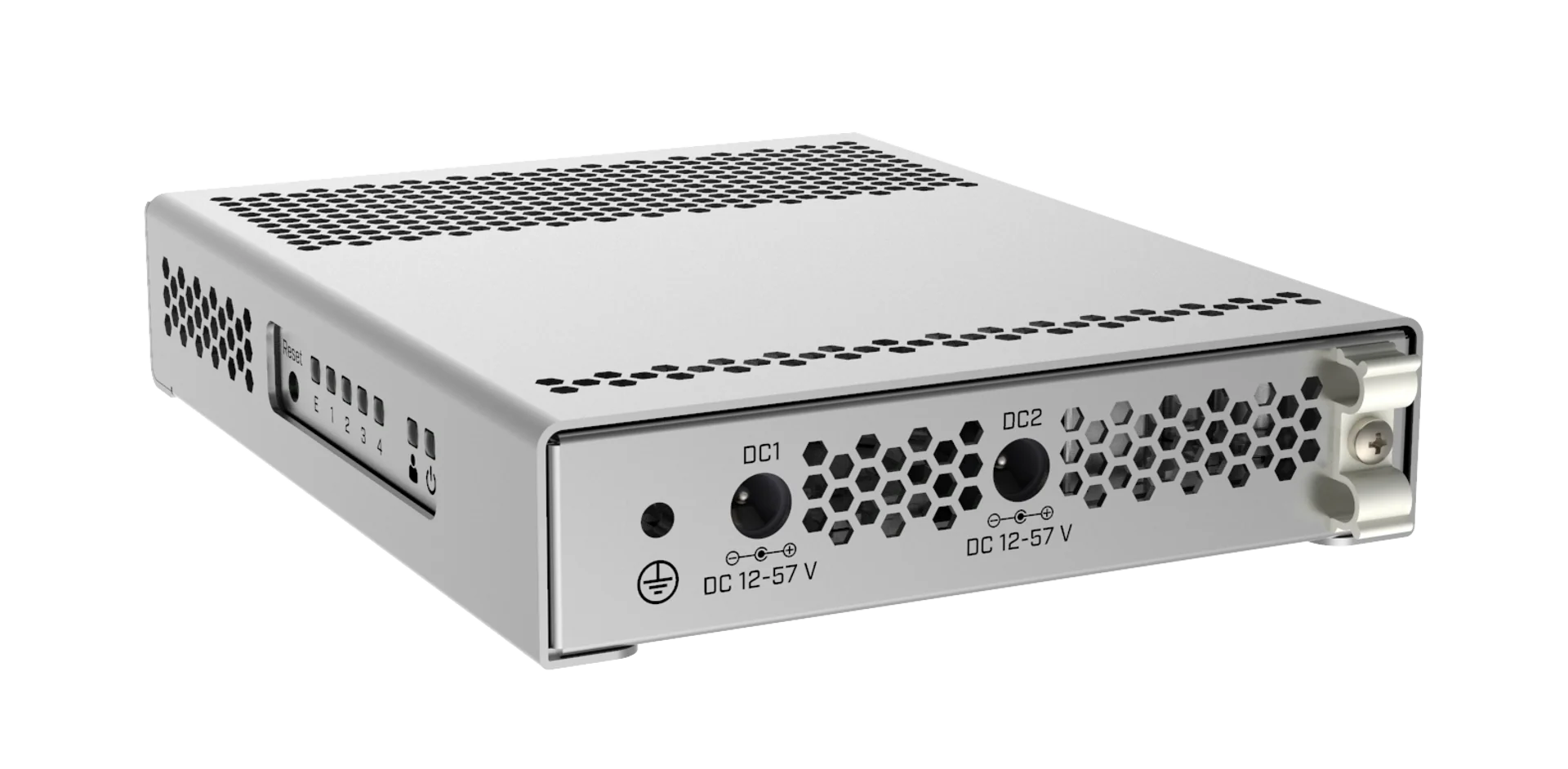

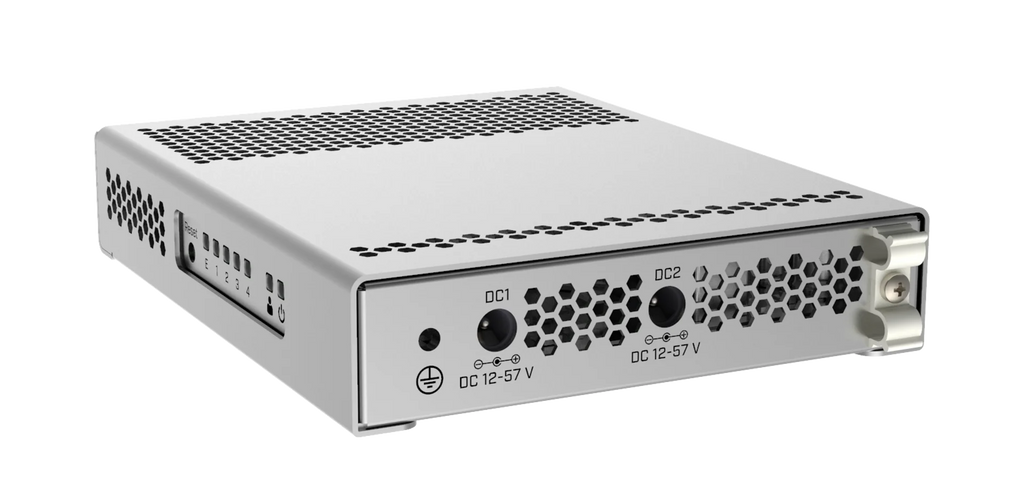

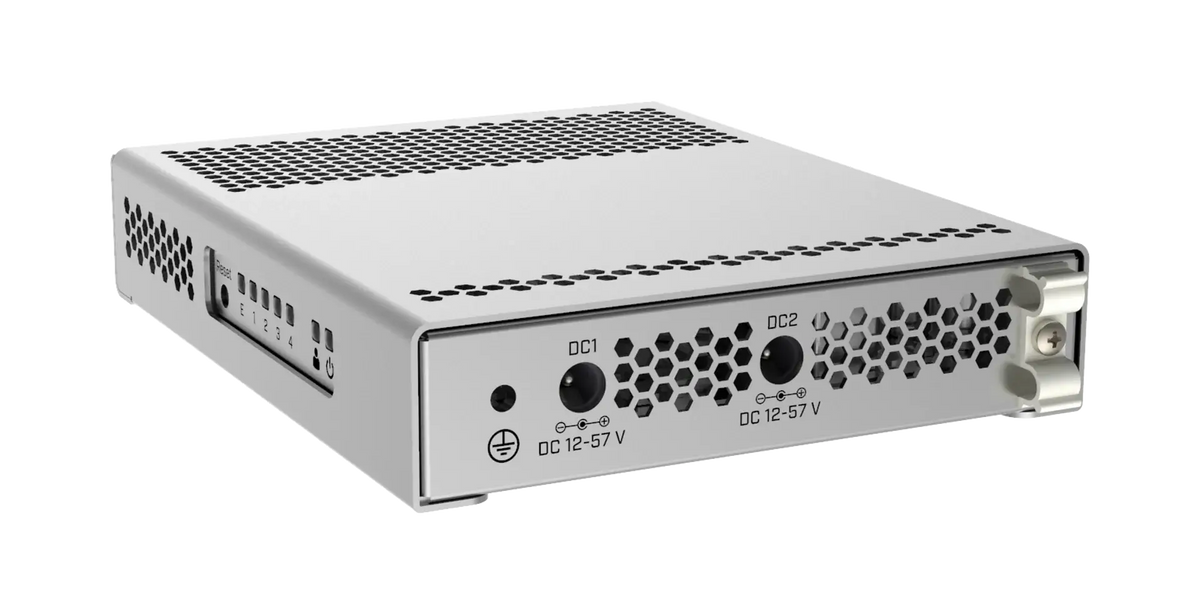

The CRS305 is a compact yet very powerful switch, featuring four SFP+ ports, for up to 10 Gbit per port. The device has a 1 Gbit copper ethernet port for management access or regular traffic forwarding and two DC jacks for power redundancy. The device is a very sleek and compact metallic case without any fans, for silent operation.
CRS305-1G-4S+IN
  • CRS305-1G-4S+IN
  • CRS305-1G-4S+IN
  • CRS305-1G-4S+IN


The device has a “Dual boot” feature that allows you to choose between two operating systems - RouterOS or SwOS. If you prefer to have a simplified operating system with only switch specific features, use SwOS. If you would like the ability to use routing and other Layer 3 features in your CRS, use RouterOS. You can select the desired operating system from RouterOS, from SwOS or from the RouterBOOT loader settings. All the feature set comes with a disruptive price, providing the best price/performance on the market.

Specification

Specifications

  • Product codeCRS305-1G-4S+IN
  • Suggested price$149.00
  • ArchitectureARM 32bit
  • CPU98DX3236
  • CPU core count2
  • CPU nominal frequency800 MHz
  • Switch chip model98DX3236
  • Dimensions141 x 115 x 28 mm
  • RouterOS license5
  • Operating SystemRouterOS / SwitchOS
  • Size of RAM512 MB
  • Storage size16 MB
  • Storage typeFLASH
  • MTBFApproximately 200'000 hours at 25C
  • Tested ambient temperature-40°C to 70°C

Powering

  • Number of DC inputs3 (DC jack, PoE-IN)
  • DC jack input Voltage12-57 V
  • Max power consumption18 W
  • Max power consumption without attachments10 W
  • PoE in802.3af/at
  • Cooling typePassive
  • PoE in input Voltage12-57 V

Ethernet

  • 10/100/1000 Ethernet ports1

Fiber

  • SFP+ ports4

Other

  • CPU temperature monitorYes

Certification & Approvals

  • CertificationCE, EAC, ROHS
  • IPIP20

Included parts24V 0.8A power adapterNoteThe device has an operating system preinstalled and licensed. No separate purchase is necessary and the product is ready to use. The device includes free software updates for the life of the product or a minimum of 5 years starting from date of purchase.
