CRS112-8P-4S-IN

CRS112-8P-4S-IN

$292.40 CAD
CRS112-8P-4S-IN

CRS112-8P-4S-IN

CRS112-8P-4S-IN
$292.40 CAD
Shipping calculated at checkout.
Out of stock

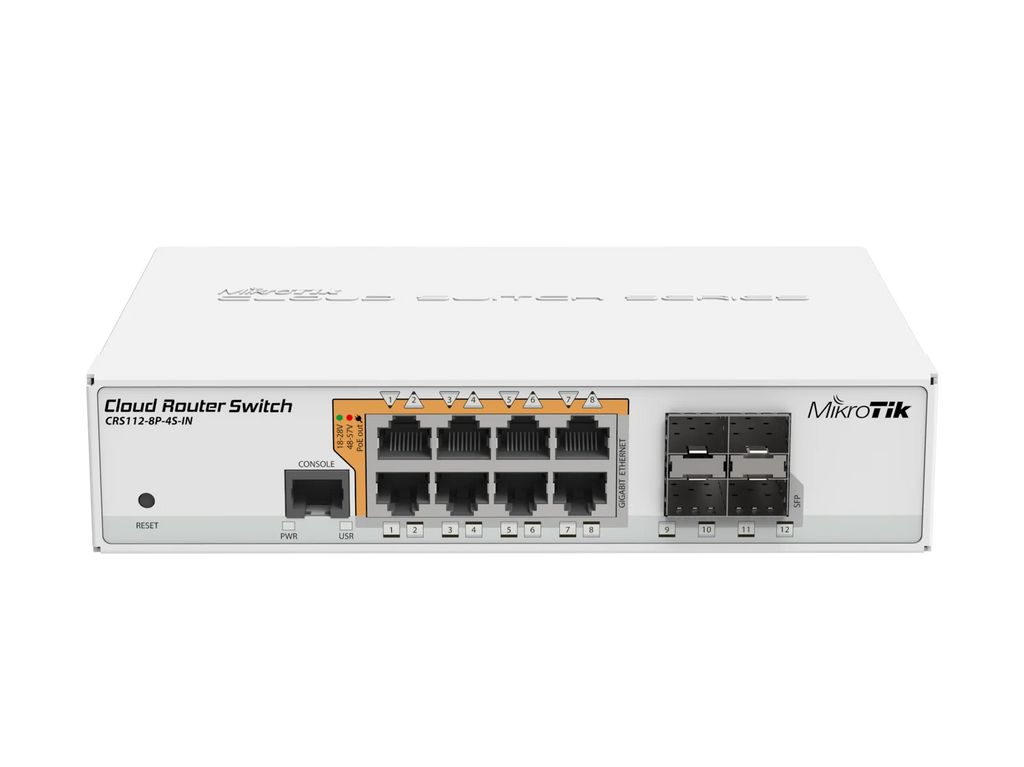

8x Gigabit Ethernet Smart Switch with PoE-out, 4x SFP cages, 400MHz CPU, 128MB RAM, desktop case, RouterOS L5.

CRS112-8P-4S-IN is an eight Gigabit RJ45 port PoE switch, that offers different power output options: autosensing 802.3af/at PoE/PoE+ and Passive PoE, and four SFP ports provide optical fiber connectivity options to support uplinks of up to 1 Gbps.
CRS112-8P-4S-IN
  • CRS112-8P-4S-IN
  • CRS112-8P-4S-IN

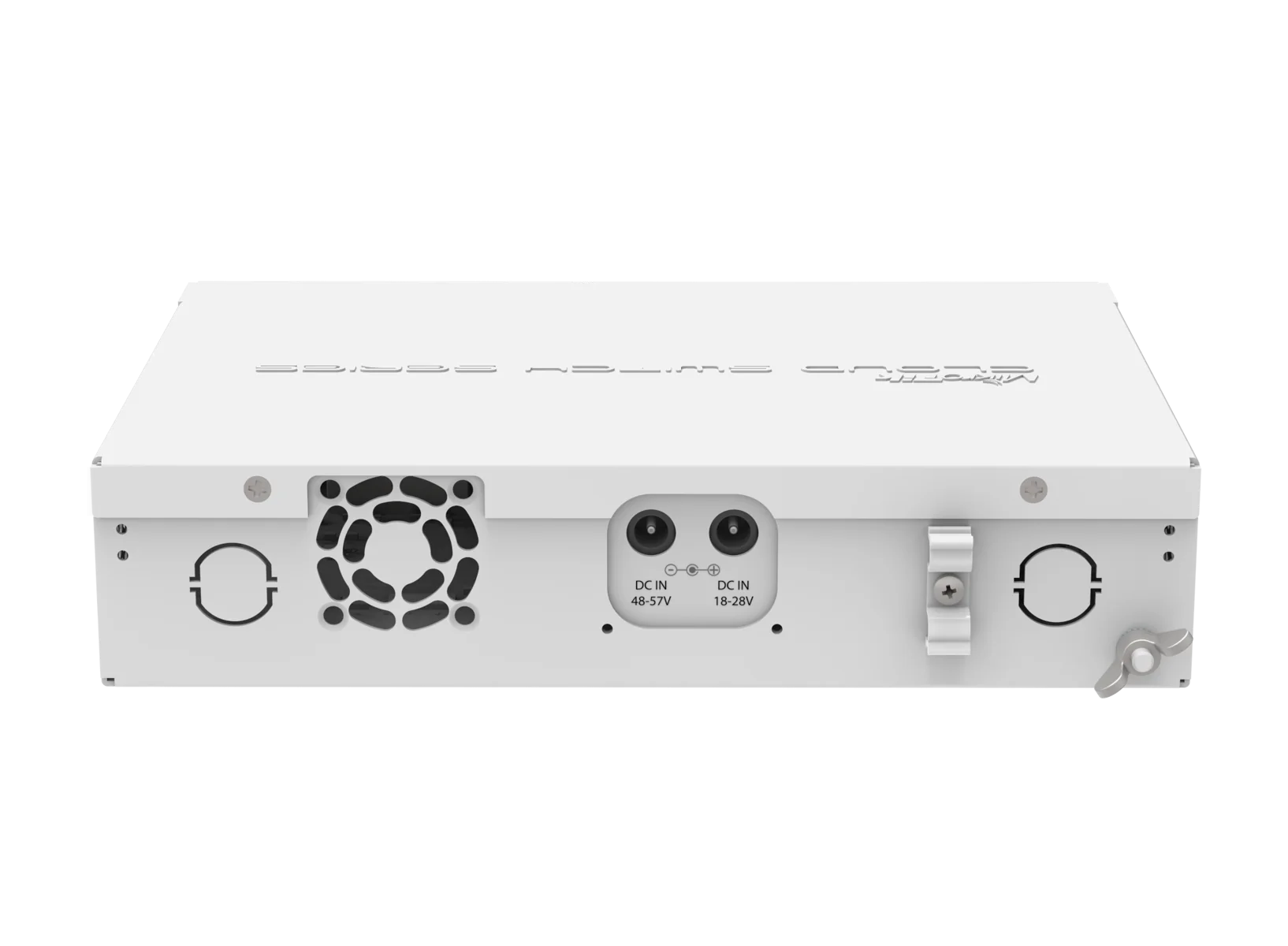

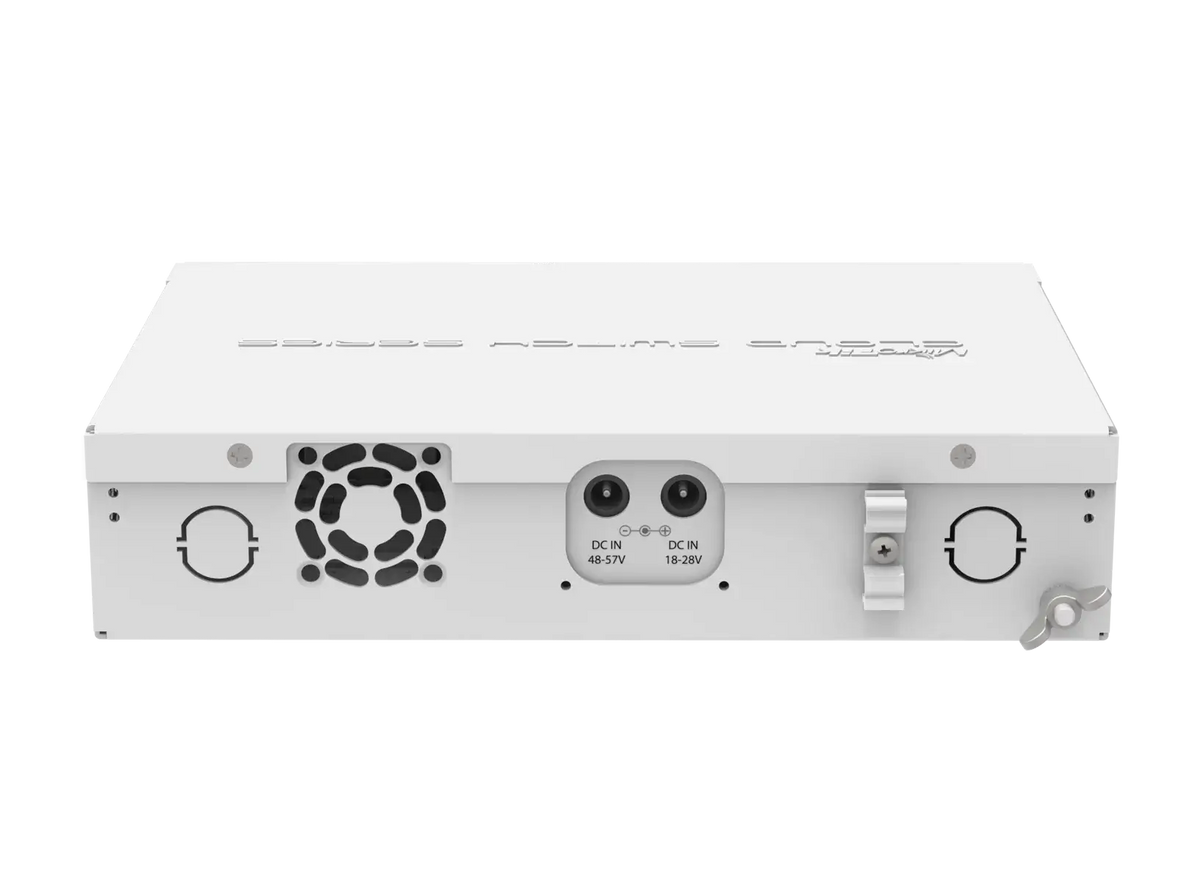

CRS112-8P-4S-IN is equipped with 12 independent switching ports. 28 V 3.4 A power supply is already included in the box. There is secondary DC jack on the back of the enclosure that supports 48-57 V power supply (not included, can be purchased separately - product codes 48POW (1.46A 70W) and 48V2A96W (2A 96W)). CRS112-8P-4S-IN can power 802.3af/at devices if 48-57 V DC input is used (unit will automatically detect and provide correct power to devices). Max current is 1 A per port if input voltage is 18-28 V, 450 mA if 48-57 V. Total limit is 2.8A@24V and 1.4A@48-57V. PoE-Out is passed over mode B 4,5 (+) and 7,8 (-) pins.

Specification

Specifications

  • Product codeCRS112-8P-4S-IN
  • Suggested price$209.00
  • ArchitectureMIPSBE
  • CPUQCA8511
  • CPU core count1
  • CPU nominal frequency400 MHz
  • Switch chip modelQCA8511
  • Dimensions200 x 142 x 44 mm
  • RouterOS license5
  • Operating SystemRouterOS
  • Size of RAM128 MB
  • Storage size16 MB
  • Storage typeFLASH
  • MTBFApproximately 200'000 hours at 25C
  • Tested ambient temperature-20°C to 60°C

Powering

  • Number of DC inputs2 (DC jack)
  • DC jack input Voltage18-28 V / 48-57 V
  • Max power consumption160 W
  • Max power consumption without attachments10 W
  • Cooling typePassive

PoE-out

  • PoE-out portsEther1-Ether8
  • PoE out802.3af/at
  • Low voltage PoE-Out current limit1 A
  • High voltage PoE-Out current limit450 mA
  • Max total out (A)2.8A (18V-28V) & 1.4A (48V-57V) A

Ethernet

  • 10/100/1000 Ethernet ports8
  • Number of 1G Ethernet ports with PoE-out8

Fiber

  • SFP ports4

Peripherals

  • Serial console portRJ45

Other

  • PCB temperature monitorYes

Certification & Approvals

  • CertificationCE, EAC, ROHS
  • IPIP20

Included partsIEC cord28V 3.4A power adapterEarsK-48 fastening setNoteThe device has an operating system preinstalled and licensed. No separate purchase is necessary and the product is ready to use. The device includes free software updates for the life of the product or a minimum of 5 years starting from date of purchase.
