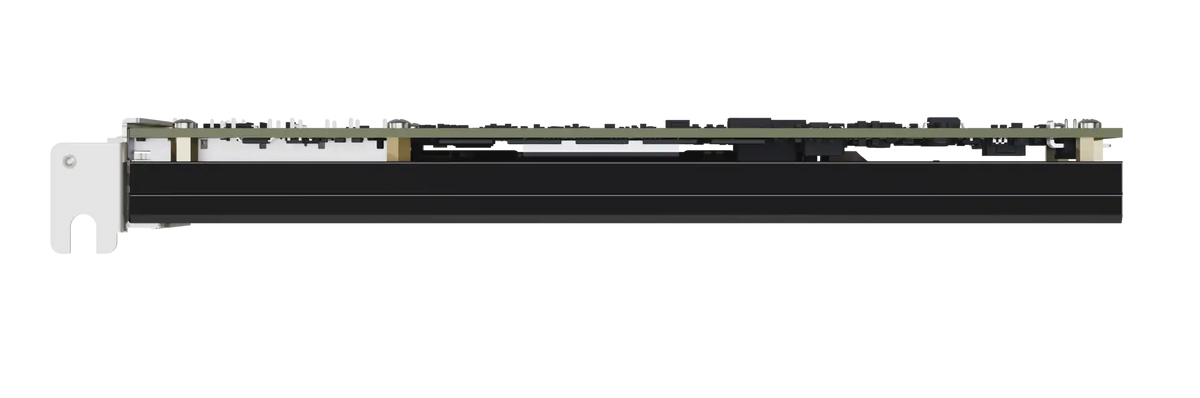

CCR2004-1G-2XS-PCIe

CCR2004-1G-2XS-PCIe

$278.41 CAD
CCR2004-1G-2XS-PCIe

CCR2004-1G-2XS-PCIe

CCR2004-1G-2XS-PCIe
$278.41 CAD
Shipping calculated at checkout.
Out of stock

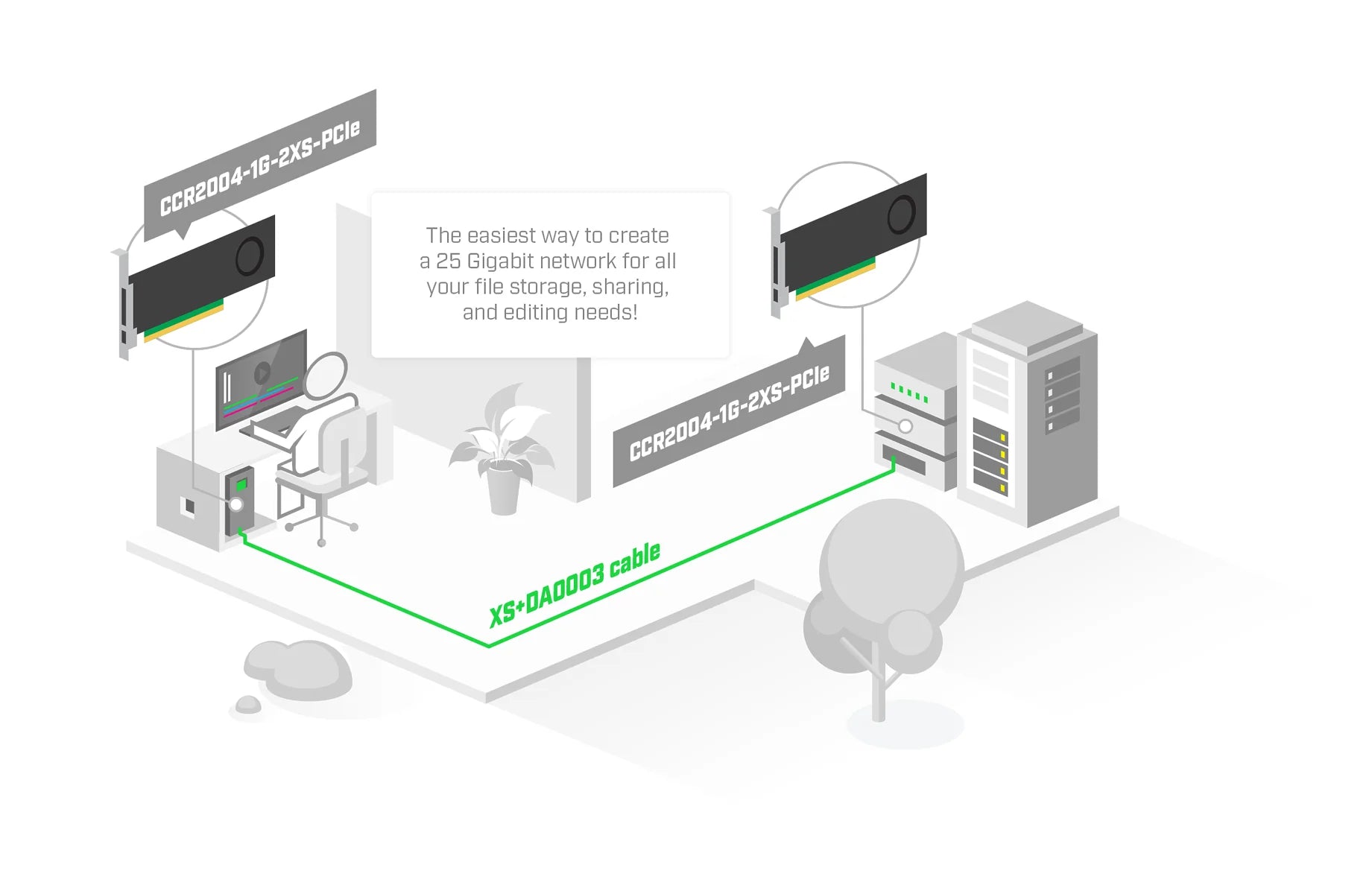

A smart PCIe network interface card that adds full-fledged router capabilities to your servers. The smart and easy way to create 25 Gigabit networks if you want to save space in your server room!
CCR2004-1G-2XS-PCIe
  • CCR2004-1G-2XS-PCIe
  • CCR2004-1G-2XS-PCIe
  • CCR2004-1G-2XS-PCIe
  • CCR2004-1G-2XS-PCIe
  • CCR2004-1G-2XS-PCIe
  • CCR2004-1G-2XS-PCIe

Specification

Specifications

  • Product codeCCR2004-1G-2XS-PCIe
  • Suggested price$199.00
  • ArchitectureARM 64bit
  • CPUAL52400
  • CPU core count4
  • CPU nominal frequency1500 MHz
  • CPU Threads count4
  • Dimensions170 x 69 x 18 mm
  • RouterOS license6
  • Operating SystemRouterOS v7
  • Size of RAM4 GB
  • Storage size128 MB
  • Storage typeNAND
  • MTBFApproximately 200'000 hours at 25C
  • Tested ambient temperature-20°C to 60°C

Powering

  • Max power consumption29 W
  • Max power consumption without attachments22 W
  • Cooling type1 fan

Ethernet

  • 10/100/1000 Ethernet ports1

Fiber

  • Number of 25G SFP28 ports2

Other

  • CPU temperature monitorYes
  • Current MonitorYes
  • PCB temperature monitorYes
  • Voltage MonitorYes

Certification & Approvals

  • CertificationCE, EAC, ROHS
  • IP20

Included partsSmall bracketLarge bracketNoteThe device has an operating system preinstalled and licensed. No separate purchase is necessary and the product is ready to use. The device includes free software updates for the life of the product or a minimum of 5 years starting from date of purchase.
