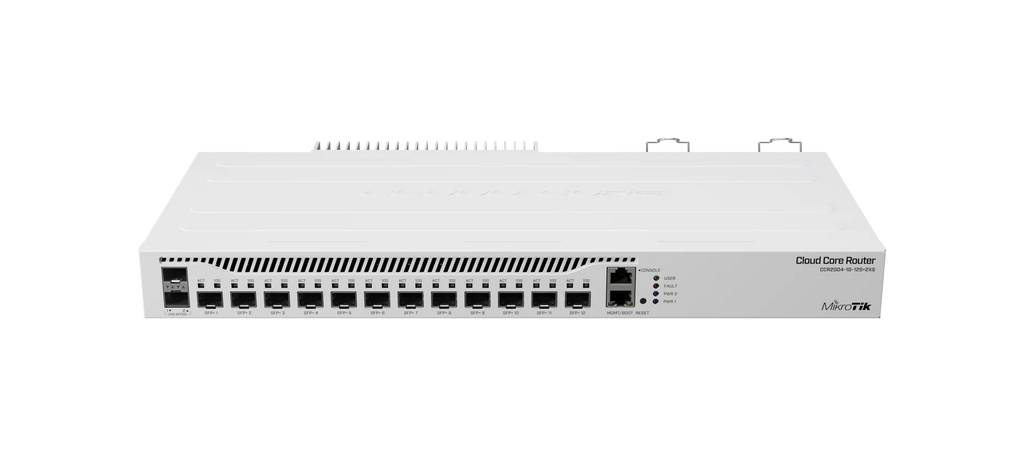

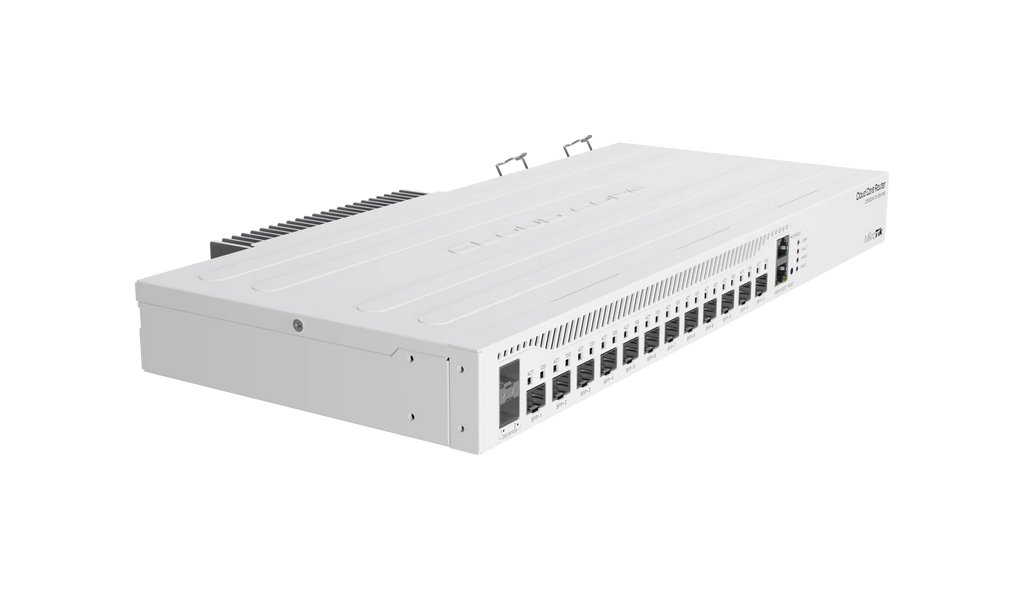

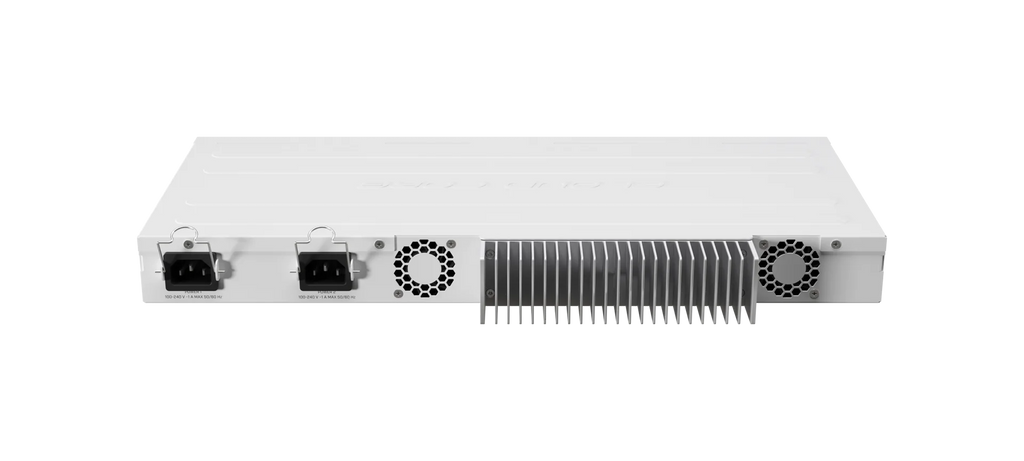

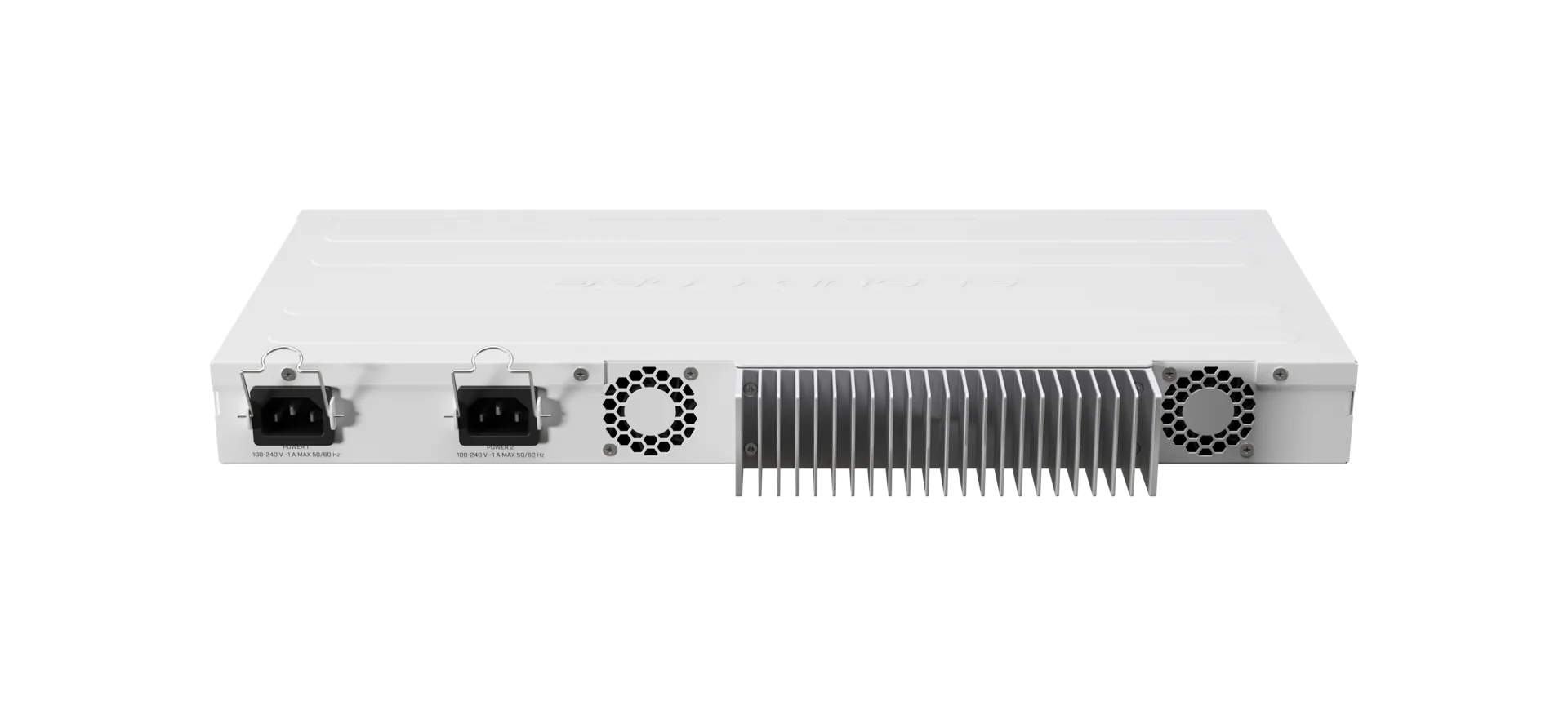

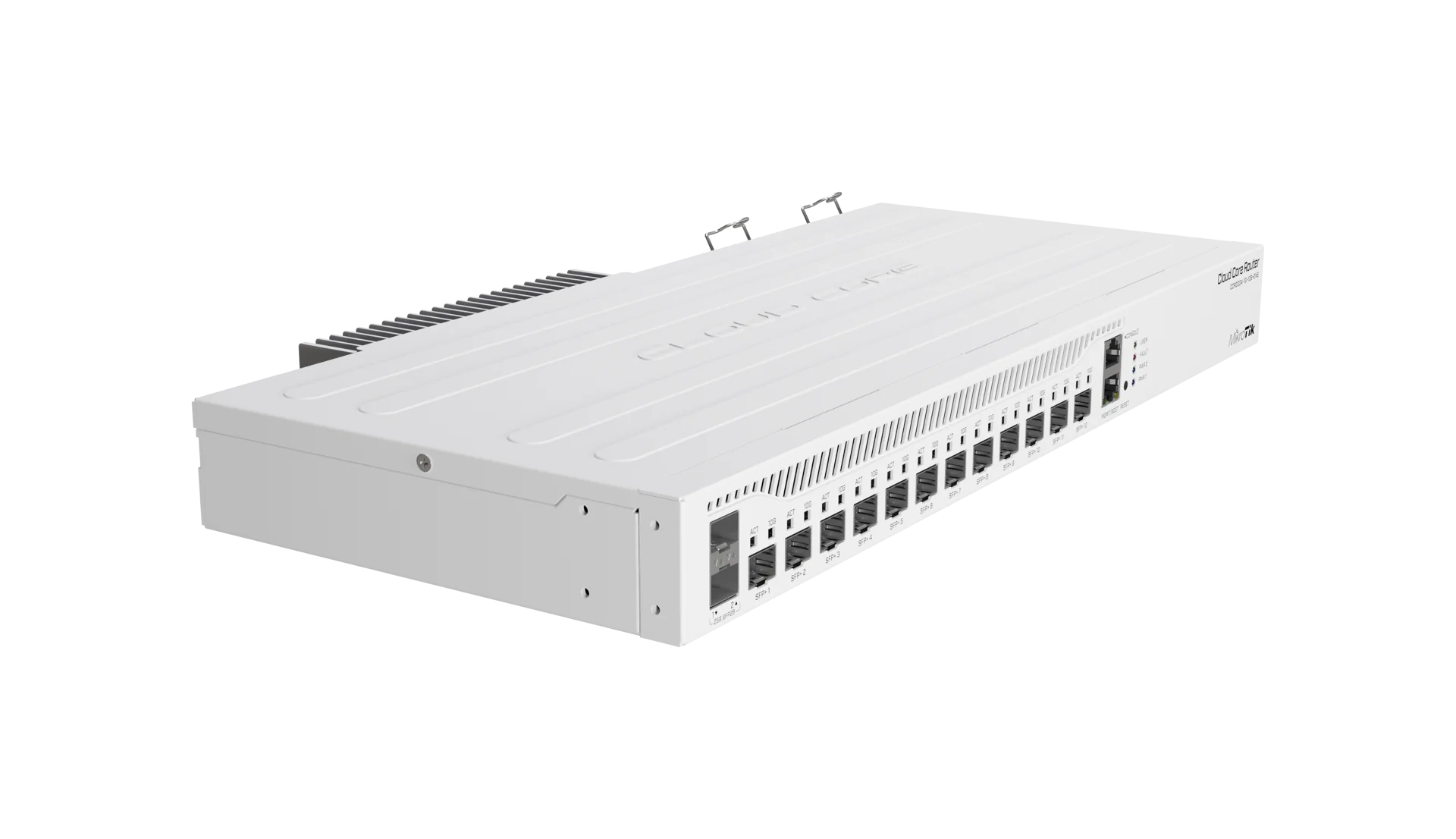

CCR2004-1G-12S+2XS

CCR2004-1G-12S+2XS

$832.43 CAD
CCR2004-1G-12S+2XS

CCR2004-1G-12S+2XS

CCR2004-1G-12S+2XS
$832.43 CAD
Shipping calculated at checkout.
Out of stock

The Connectivity Router - your best companion when it comes to SFP, SFP+ and SFP28 management! 1, 10 and 25 Gbps ports in a single device to make your life easier.
CCR2004-1G-12S+2XS
  • CCR2004-1G-12S+2XS
  • CCR2004-1G-12S+2XS
  • CCR2004-1G-12S+2XS

Specification

Specifications

  • Product codeCCR2004-1G-12S+2XS
  • Suggested price$595.00
  • ArchitectureARM 64bit
  • CPUAL32400
  • CPU core count4
  • CPU nominal frequency1700 MHz
  • CPU Threads count4
  • Dimensions443 x 224 x 44 mm
  • RouterOS license6
  • Operating SystemRouterOS v7
  • Size of RAM4 GB
  • Storage size128 MB
  • Storage typeNAND
  • MTBFApproximately 200'000 hours at 25C
  • Tested ambient temperature-20°C to 60°C

Powering

  • Number of AC inputs2
  • AC input range100-240
  • Max power consumption60 W
  • Max power consumption without attachments31 W
  • Cooling type2 fans

Ethernet

  • 10/100/1000 Ethernet ports1

Fiber

  • SFP+ ports12
  • Number of 25G SFP28 ports2

Peripherals

  • Serial console portRJ45

Other

  • CPU temperature monitorYes
  • PCB temperature monitorYes
  • Voltage MonitorYes

Certification & Approvals

  • CertificationCE, EAC, ROHS
  • IP20

Included parts2x IEC cordsScrew and feet kit (K10)Rackmount bracket whiteNoteThe device has an operating system preinstalled and licensed. No separate purchase is necessary and the product is ready to use. The device includes free software updates for the life of the product or a minimum of 5 years starting from date of purchase.
