CCR2004-16G-2S+

CCR2004-16G-2S+

$650.56 CAD
CCR2004-16G-2S+

CCR2004-16G-2S+

CCR2004-16G-2S+
$650.56 CAD
Shipping calculated at checkout.
Out of stock

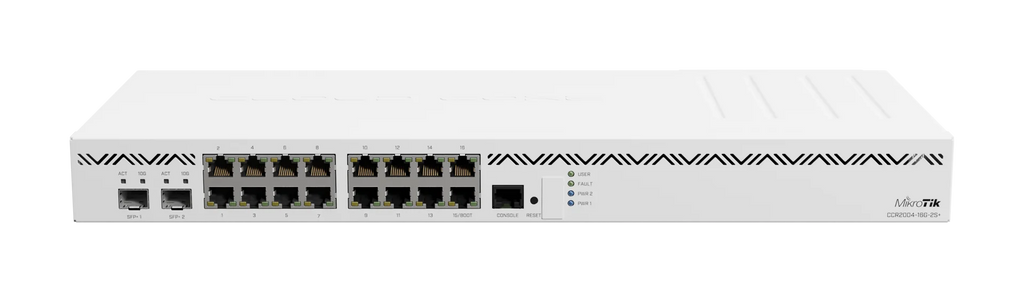

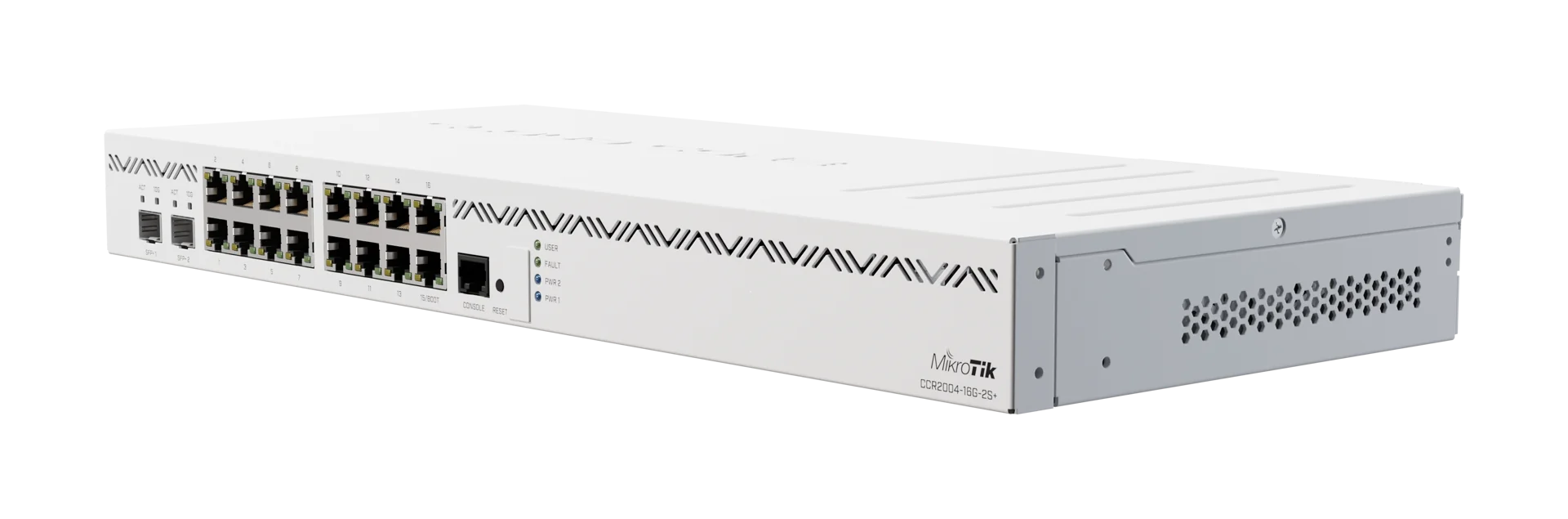

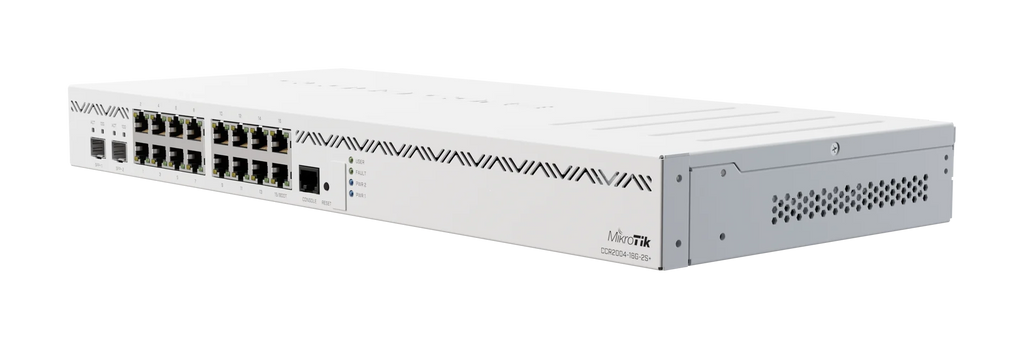

This powerful and affordable router crushes all previous CCR models in single-core performance. 16x Gigabit Ethernet ports, USB, 2x10G SFP+ cages, active cooling and the best single-core performance per watt & best overall performance per watt among all the CCR devices.
CCR2004-16G-2S+
  • CCR2004-16G-2S+
  • CCR2004-16G-2S+
  • CCR2004-16G-2S+

Specification

Specifications

  • Product codeCCR2004-16G-2S+
  • Suggested price$465.00
  • ArchitectureARM 64bit
  • CPUAL32400
  • CPU core count4
  • CPU nominal frequency1700 MHz
  • CPU Threads count4
  • Switch chip model88E6191X
  • Dimensions443 x 210 x 44 mm
  • RouterOS license6
  • Operating SystemRouterOS v7
  • Size of RAM4 GB
  • Storage size128 MB
  • Storage typeNAND
  • MTBFApproximately 200'000 hours at 25C
  • Tested ambient temperature-20°C to 60°C

Powering

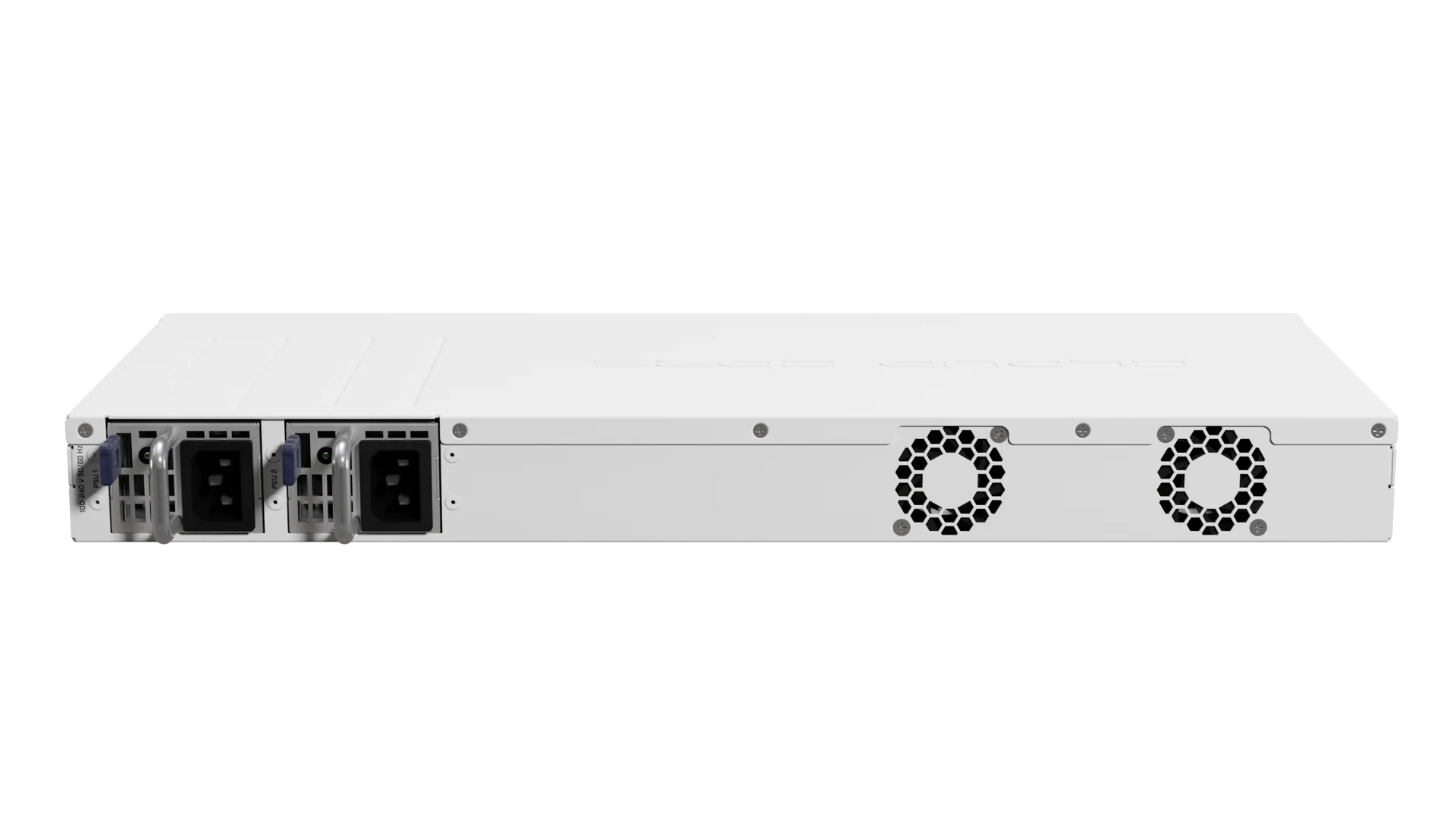

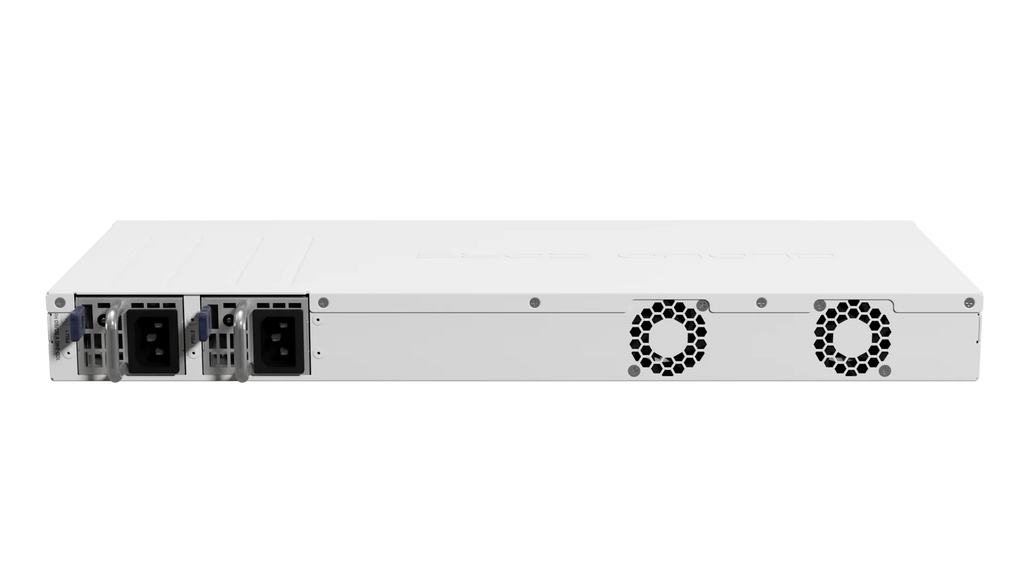

  • Number of AC inputs2
  • AC input range100-240
  • Number of PSU slots2
  • Frequency (Hz)50-60
  • Max power consumption48 W
  • Max power consumption without attachments35 W
  • Cooling type2 fans

Ethernet

  • 10/100/1000 Ethernet ports16

Fiber

  • SFP+ ports2

Peripherals

  • Serial console portRJ45
  • Number of USB ports1

Other

  • CPU temperature monitorYes
  • PCB temperature monitorYes
  • Voltage MonitorYes

Certification & Approvals

  • CertificationCE, EAC, ROHS
  • IPIP20

Included partsRack earsIEC cordIEC cordK-57 kit
