Ceiling AP, Dual-Chain 2.4GHz, 650MHz CPU, RouterOS L4, 802.3at/af support.

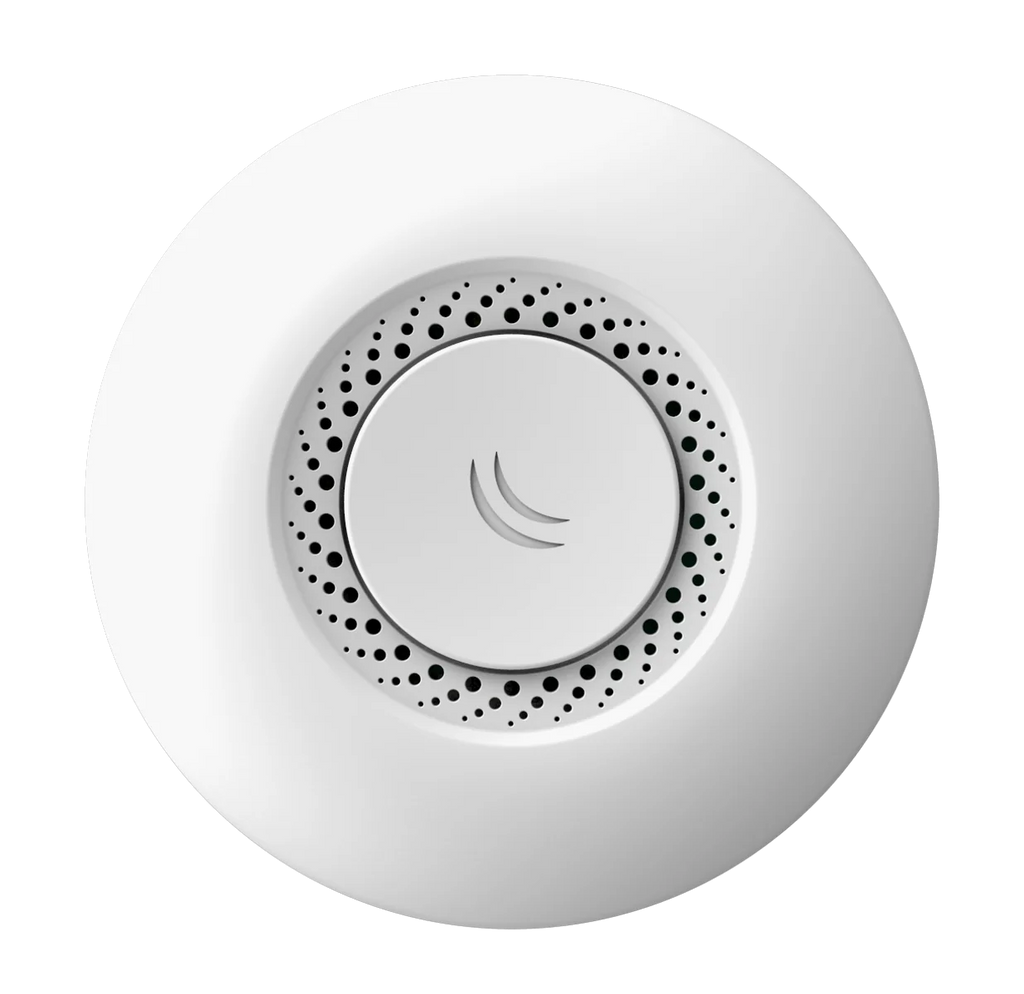

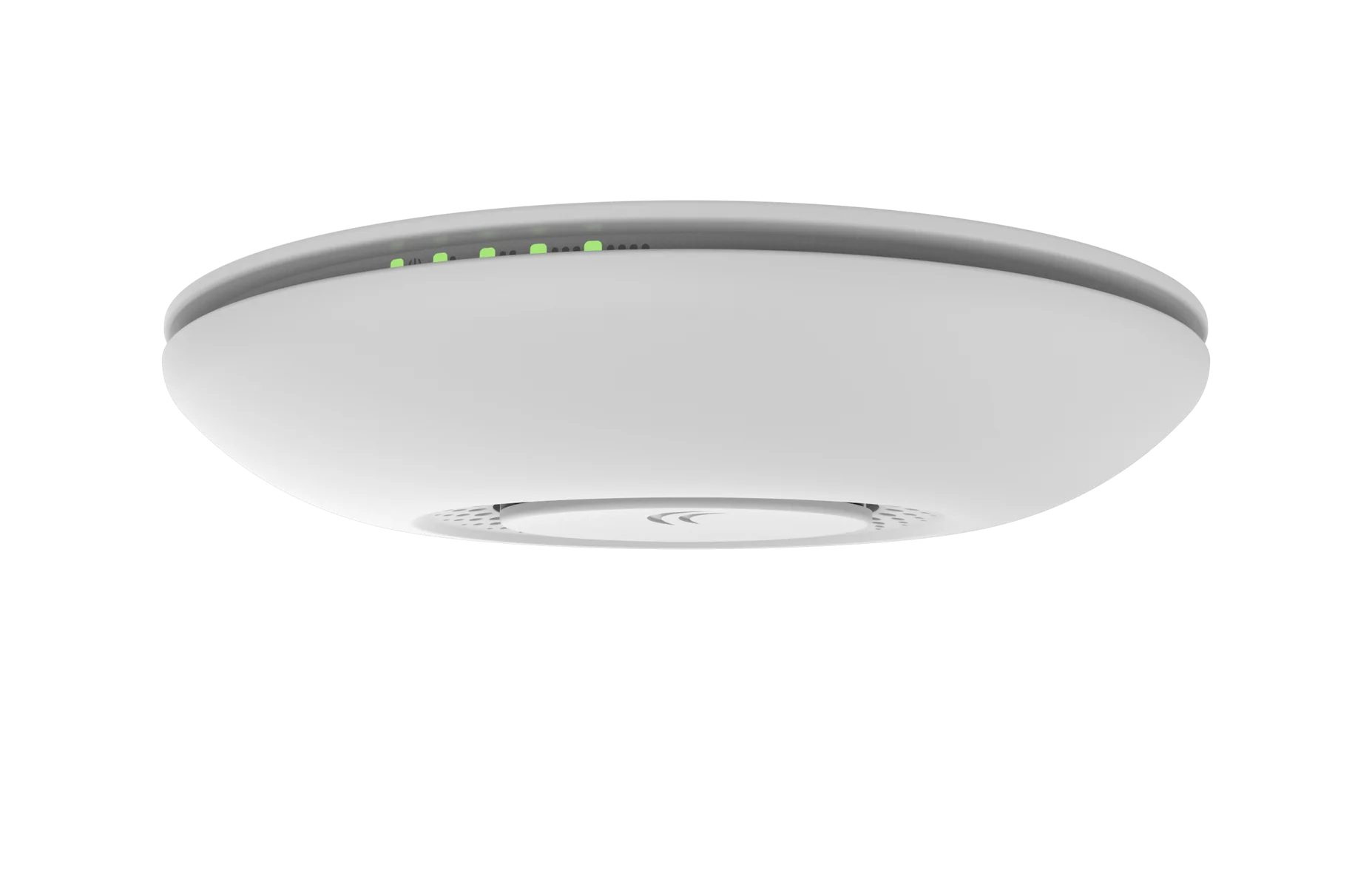

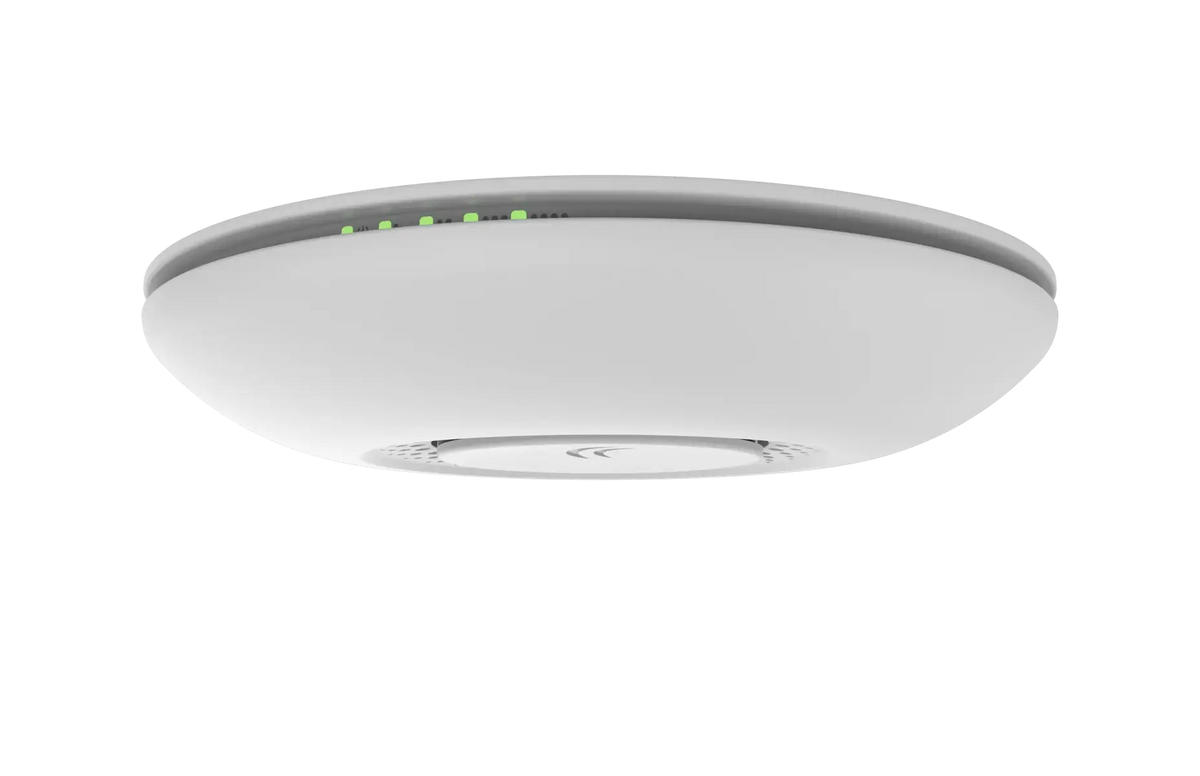

RouterBOARD cAP-2nD (ceiling Access Point) is our first 2.4GHz Dual-Chain ceiling AP. Inconspicuously designed, it blends into the environment, perfect for hospitality business like hotels, airports, shopping malls etc.

cAP-2nD supports 802.11b/g/n and can be powered by PoE. It’s a perfect companion for the MikroTik CAPsMAN (controlled AP system manager), allowing you to control all your AP devices from one central location.


cAP
  • cAP
  • cAP

Unlike traditional controller software, which requires a separate PC/Mac to run, our CAPsMAN runs on any existing RouterBOARD device in your network. No need for a separate controller machine.

Everything is included to get you started, wall/ceiling mount, PoE injector, power adapter and even the screws and screw anchors.

Specification

Specifications

  • Product codeRBcAP2nD
  • Suggested price$49.95
  • ArchitectureMIPSBE
  • CPUQCA9533
  • CPU core count1
  • CPU nominal frequency650 MHz
  • Dimensions185mm diameter, 31mm height
  • RouterOS license4
  • Operating SystemRouterOS
  • Size of RAM64 MB
  • Storage size16 MB
  • Storage typeFLASH
  • MTBFApproximately 100'000 hours at 25C
  • Tested ambient temperature-40°C to 70°C

Wireless capabilities

  • Wireless 2.4 GHz Max data rate300 Mbit/s
  • Wireless 2.4 GHz Number of chains2
  • Wireless 2.4 GHz standards802.11b/g/n
  • Antenna gain dBi for 2.4 GHz2
  • Wireless 2.4 GHz chip modelQCA9533
  • Wireless 2.4 GHz generationWi-Fi 4

Ethernet

  • 10/100 Ethernet ports1

Powering

  • Number of DC inputs1 (PoE-IN)
  • Max power consumption4 W
  • PoE in802.3af/at
  • Cooling typePassive
  • PoE in input Voltage11-57 V

Certification & Approvals

  • CertificationCE, FCC, IC, EAC, ROHS
  • IPIP20

Other

  • Mode buttonYes

Included partsPoE injectorK-46 screw kitCeiling mount24V 0.2A power adapterNoteThe device has an operating system preinstalled and licensed. No separate purchase is necessary and the product is ready to use. The device includes free software updates for the life of the product or a minimum of 5 years starting from date of purchase.
