cAP lite

cAP lite

$40.57 CAD
cAP lite

cAP lite

RBcAPL-2nD
$40.57 CAD
Shipping calculated at checkout.
Out of stock

Low-cost dual-chain 2.4GHz AP with wall and ceiling enclosure.

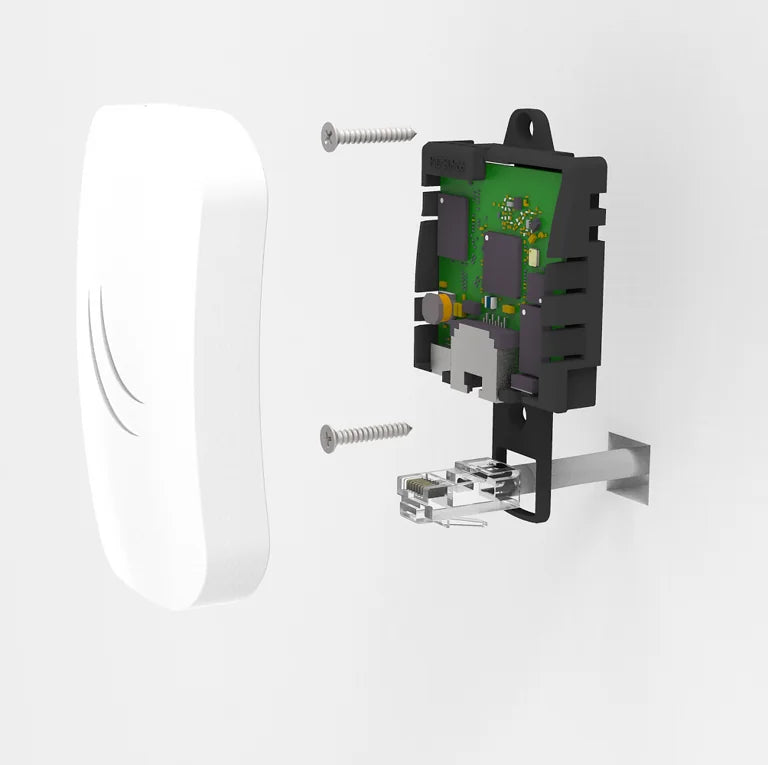

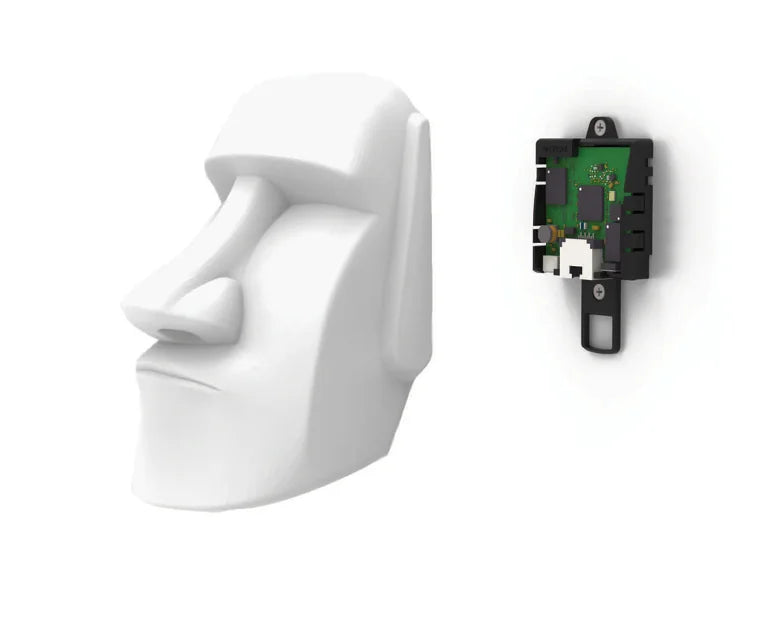

The cAP lite is a tiny access point device, perfect for public locations and hospitality businesses like hotels, airports, shopping malls etc. Included with the product are two different casings, which can easily be swapped out, or, if you really like to fit the design with the environment, we are providing 3D printer friendly design files.

The cAP lite supports 802.11b/g/n and can be powered by power over ethernet. It’s a perfect companion for the MikroTik CAPsMAN (controlled AP system manager), allowing you to control all your AP devices from one central location. The cAP lite can also be used as a stand alone access point with the full potential of RouterOS.


cAP lite
  • cAP lite
  • cAP lite
  • cAP lite

Specification

Specifications

  • Product codeRBcAPL-2nD
  • Suggested price$29.00
  • ArchitectureMIPSBE
  • CPUQCA9533
  • CPU core count1
  • CPU nominal frequency650 MHz
  • DimensionsWall case: 88 x 52 x 20 mm Ceiling case: ⌀88 mm x 20 mm
  • RouterOS license4
  • Operating SystemRouterOS
  • Size of RAM64 MB
  • Storage size16 MB
  • Storage typeFLASH
  • MTBFApproximately 100'000 hours at 25C
  • Tested ambient temperature-40°C to 70°C

Wireless capabilities

  • Wireless 2.4 GHz Max data rate300 Mbit/s
  • Wireless 2.4 GHz Number of chains2
  • Wireless 2.4 GHz standards802.11b/g/n
  • Antenna gain dBi for 2.4 GHz1.5
  • Wireless 2.4 GHz chip modelQCA9533
  • Wireless 2.4 GHz generationWi-Fi 4

Ethernet

  • 10/100 Ethernet ports1

Powering

  • MicroUSB input Voltage5 V
  • Number of DC inputs2 (PoE-IN, MicroUSB)
  • Max power consumption4 W
  • PoE in802.3af/at
  • Cooling typePassive
  • PoE in input Voltage10-60 V

Certification & Approvals

  • CertificationCE, FCC, IC, EAC, ROHS
  • IPIP20

Included parts24V 0.2A power adapterFastening setPoE injectorNoteThe device has an operating system preinstalled and licensed. No separate purchase is necessary and the product is ready to use. The device includes free software updates for the life of the product or a minimum of 5 years starting from date of purchase.
