BaseBox 5

BaseBox 5

$124.52 CAD
BaseBox 5

BaseBox 5

RB912UAG-5HPnD-OUT
$124.52 CAD
Shipping calculated at checkout.
Out of stock

5Ghz integrated AP/Backbone/CPE, 2xRP-SMA Female connectors, miniPCI-e slot, Gigabit Ethernet

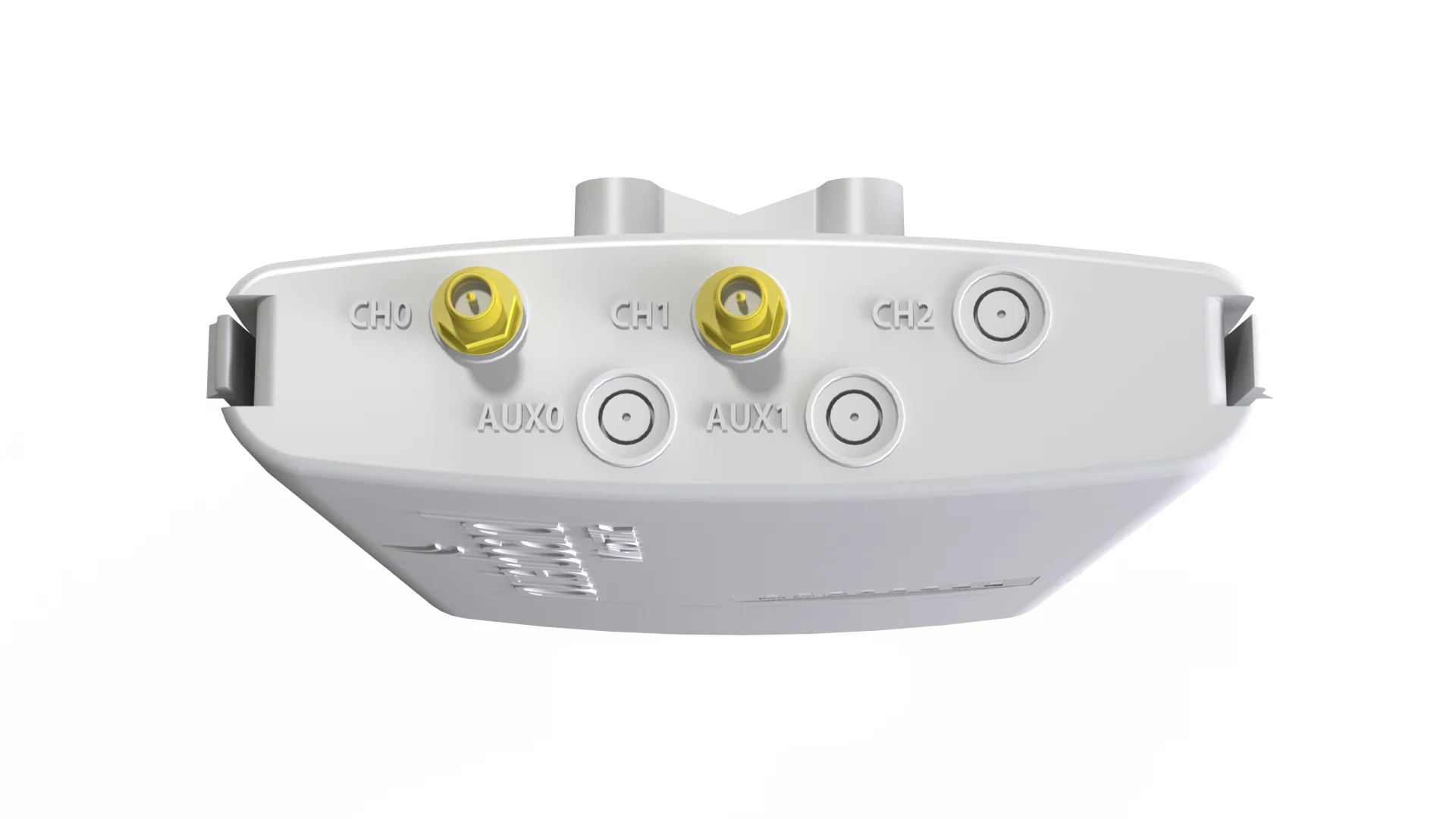

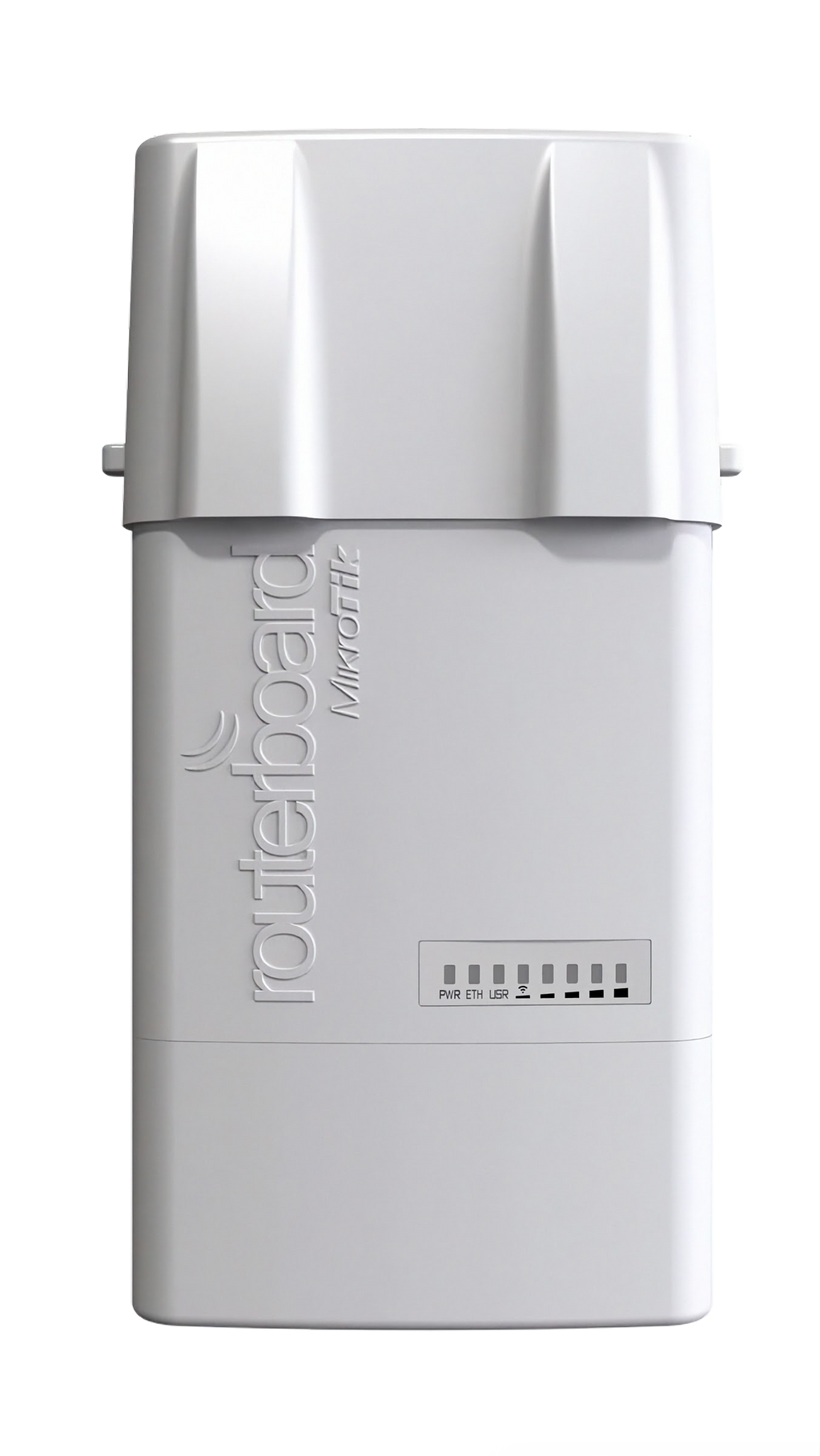

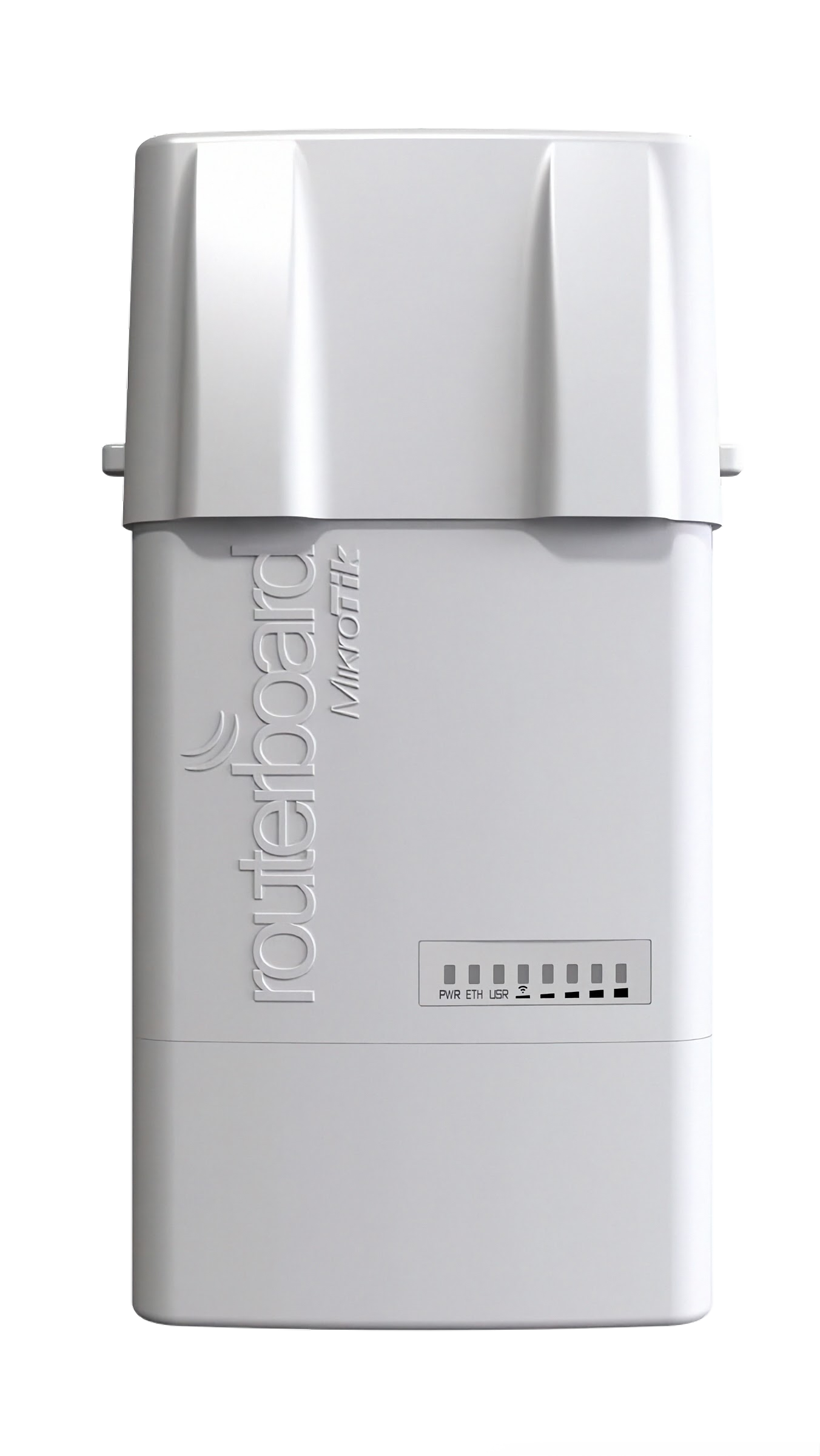

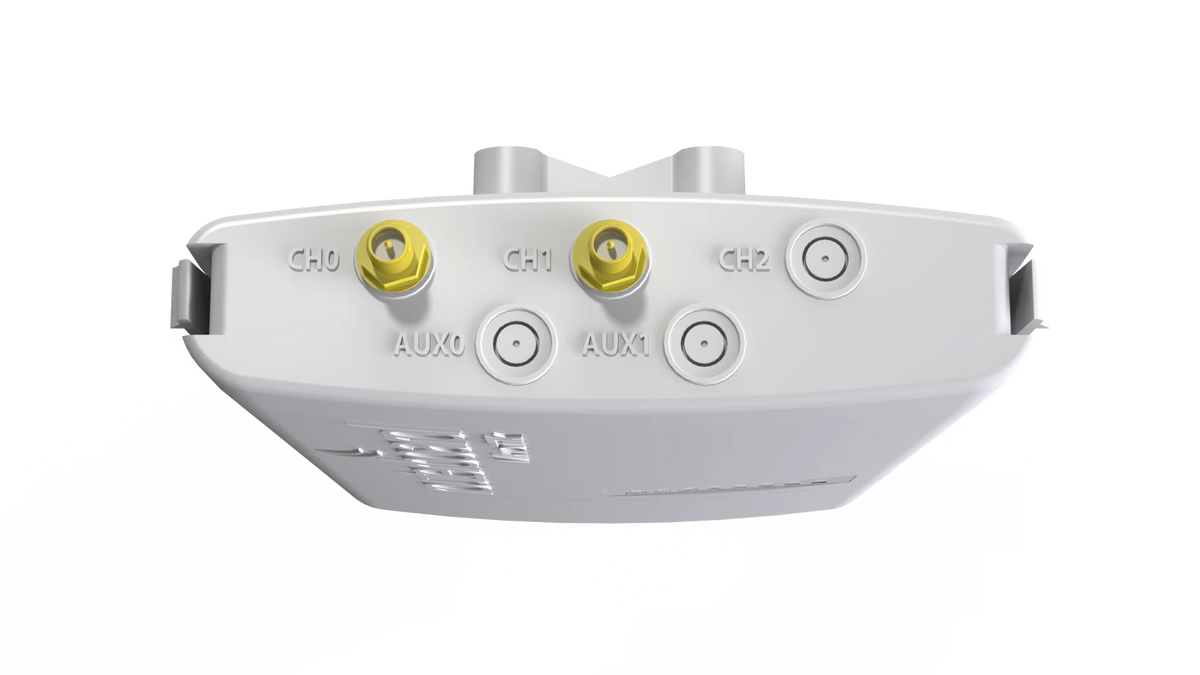

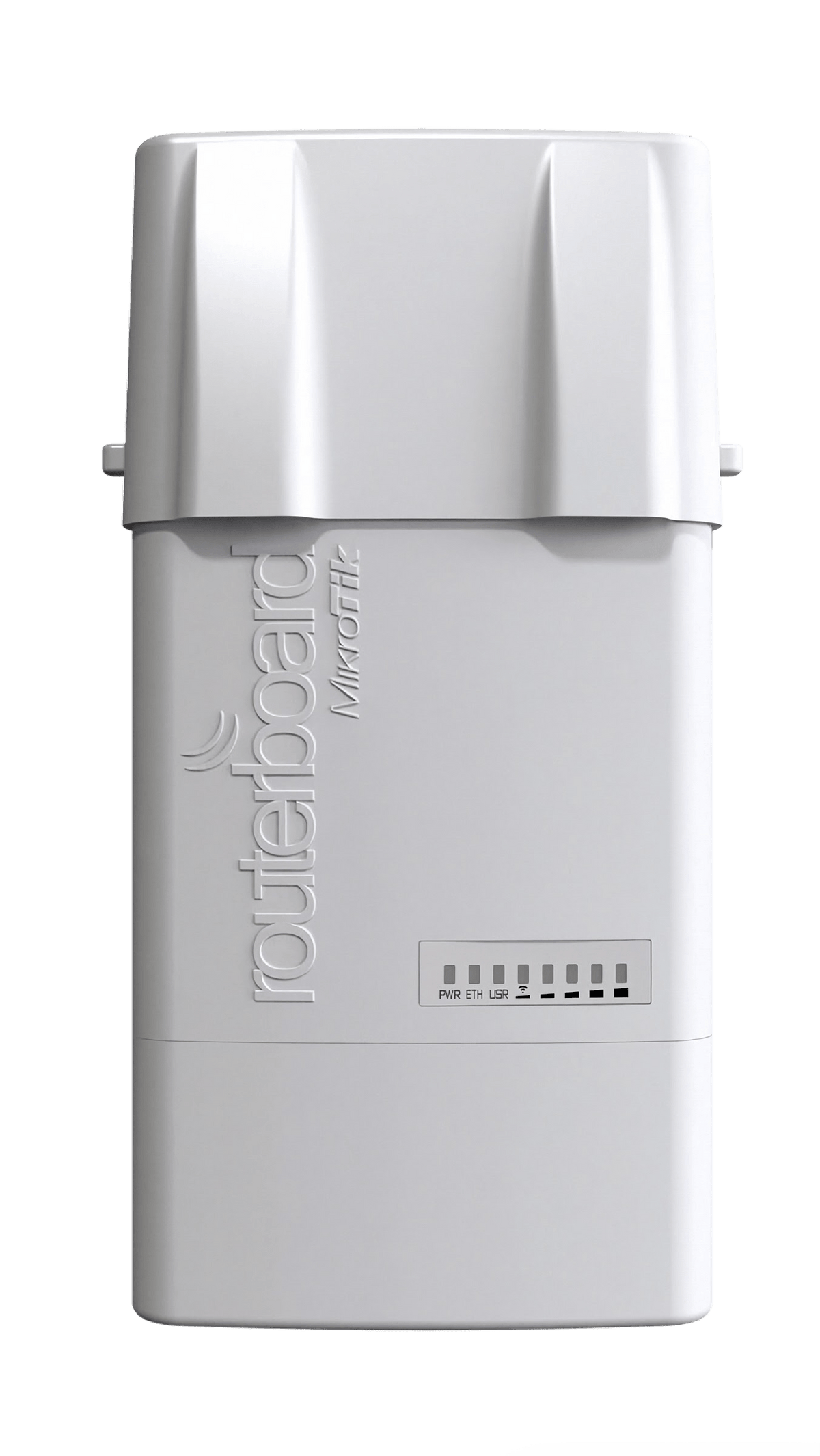

The RB912 in an outdoor enclosure, fit with two RP-SMA Female connectors for antennas, and a cable hood for protection against moisture. Also available are three additional places for antenna connectors, in case you wish to use the RB912 miniPCIe slot for one more wireless interface to make a dual band device.

The case can be opened with one hand, and is protected against the elements. USB, Ethernet and a Grounding wire exits are provided on the bottom, behind a protective door.

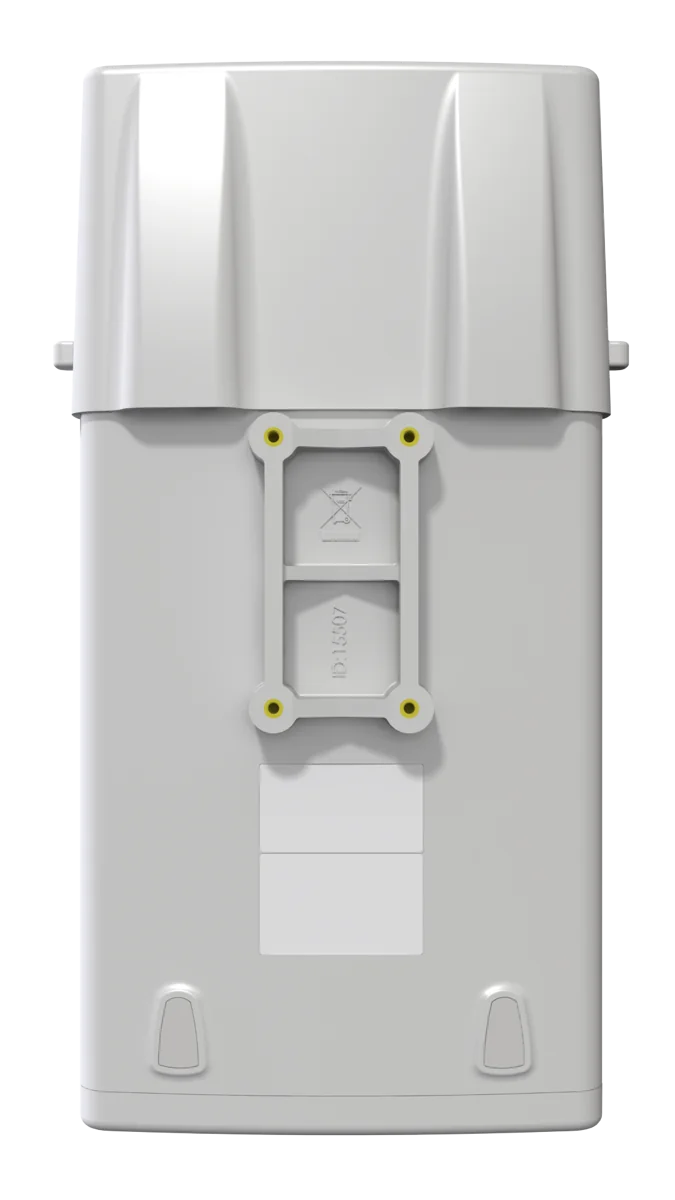

Comes with a mounting loop for tower/pole mounting, and a separate DIN rail mount is also provided. Package also includes a PoE injector
and power supply unit.
BaseBox 5
  • BaseBox 5
  • BaseBox 5
  • BaseBox 5
  • BaseBox 5

Box contains: RB912 outdoor unit, PSU, PoE injector, mounting loop, DIN rail mount

- RB912UAG-5HPnD-OUT-US (USA) is factory locked for 5170-5250MHz and 5725-5835MHz frequencies. This lock can not be removed.

- RB912UAG-5HPnD-OUT (International) supports 5150MHz-5875MHz range (Specific frequency range can be limited by country regulations).

Specification

Specifications

  • Product codeRB912UAG-5HPnD-OUT
  • Suggested price$89.00
  • ArchitectureMIPSBE
  • CPUAR9342
  • CPU core count1
  • CPU nominal frequency600 MHz
  • Dimensions246x135x50mm
  • RouterOS license4
  • Operating SystemRouterOS
  • Size of RAM64 MB
  • Storage size128 MB
  • Storage typeNAND
  • MTBFApproximately 100'000 hours at 25C
  • Tested ambient temperature-40°C to 70°C

Powering

  • Number of DC inputs1 (PoE-IN)
  • Max power consumption12 W
  • PoE inPassive PoE
  • Cooling typePassive
  • PoE in input Voltage8-30 V

Wireless specifications

  • Wireless 5 GHz Max data rate300 Mbit/s
  • Wireless 5 GHz Number of chains2
  • Wireless 5 GHz standards802.11a/n
  • Wireless 5 GHz chip modelAR9342
  • Wireless 5 GHz generationWi-Fi 4

Ethernet

  • 10/100/1000 Ethernet ports1

Peripherals

  • Number of SIM slots1 Modem (Mini SIM)
  • MiniPCI-e slots1
  • Number of USB ports1
  • USB Power ResetYes
  • USB slot typeUSB type A
  • Max USB current (A)1

Other

  • PCB temperature monitorYes
  • Voltage MonitorYes
  • BeeperYes

Certification & Approvals

  • CertificationCE, EAC, ROHS

Included parts24V 0.8A power adapterGigabit PoE injectorDIN mount (K-27)Metal ring (one)Fastening set K-25 for 1/2 Mini PCI express cardNoteThe device has an operating system preinstalled and licensed. No separate purchase is necessary and the product is ready to use. The device includes free software updates for the life of the product or a minimum of 5 years starting from date of purchase.
