SXTsq Lite5

SXTsq Lite5

$64.36 CAD
SXTsq Lite5

SXTsq Lite5

RBSXTsq5nD
$64.36 CAD
Shipping calculated at checkout.
Out of stock

Low-cost small-size 16dBi 5GHz dual chain integrated CPE/Backbone.

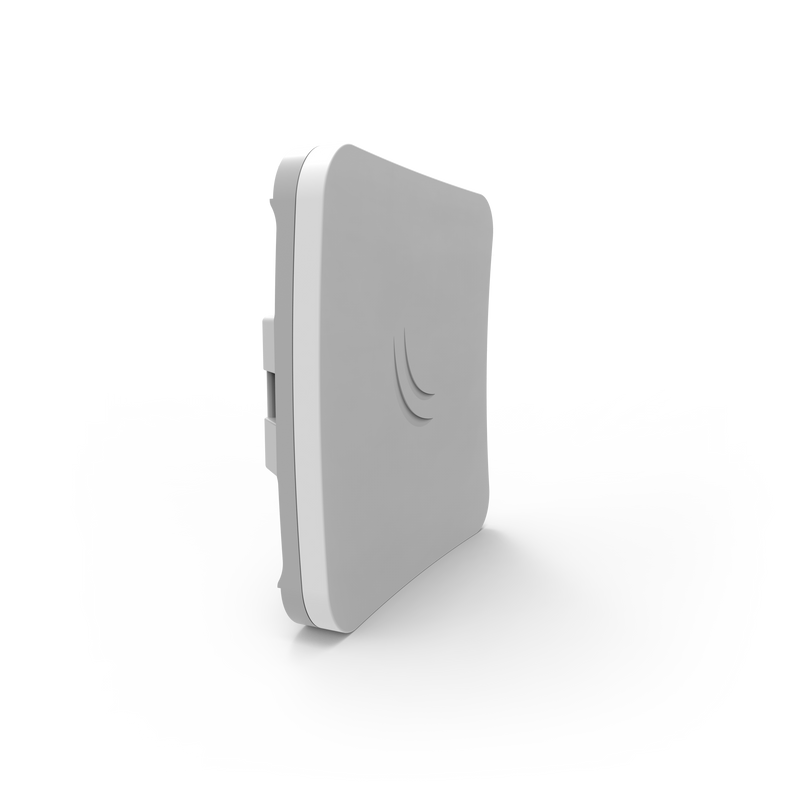

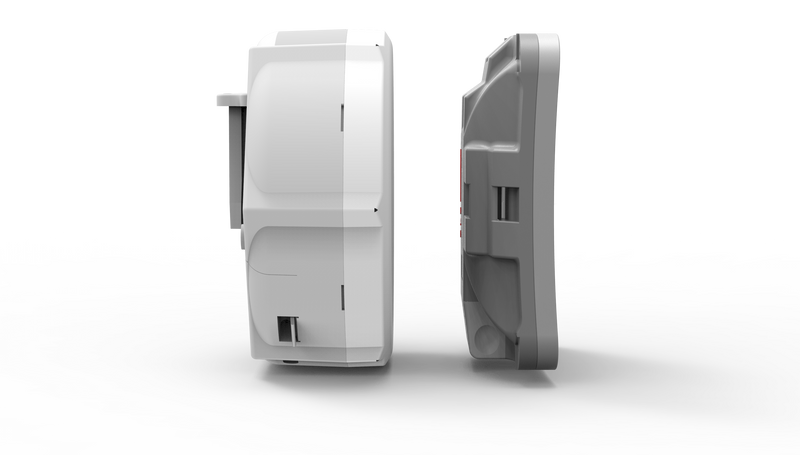

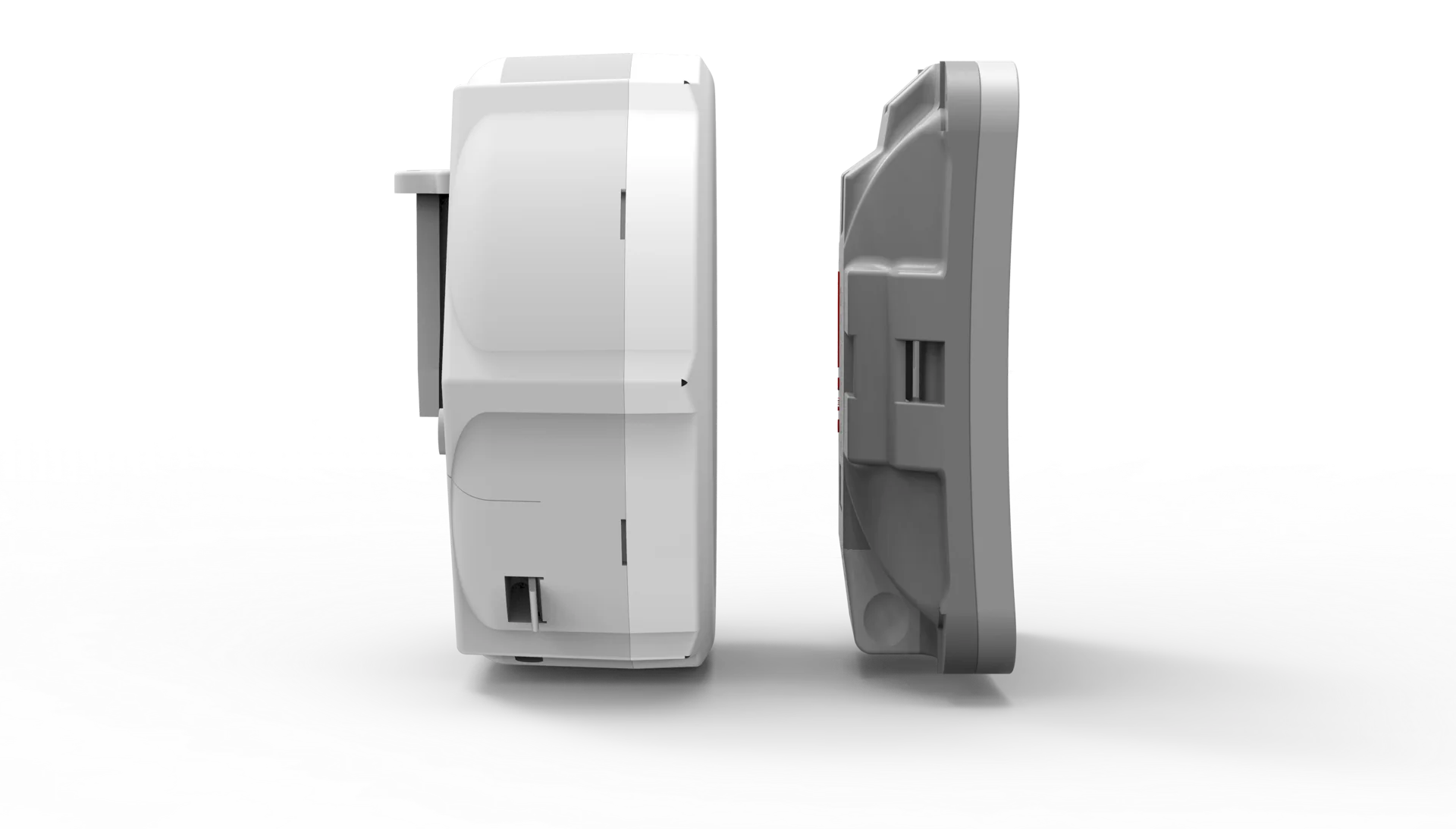

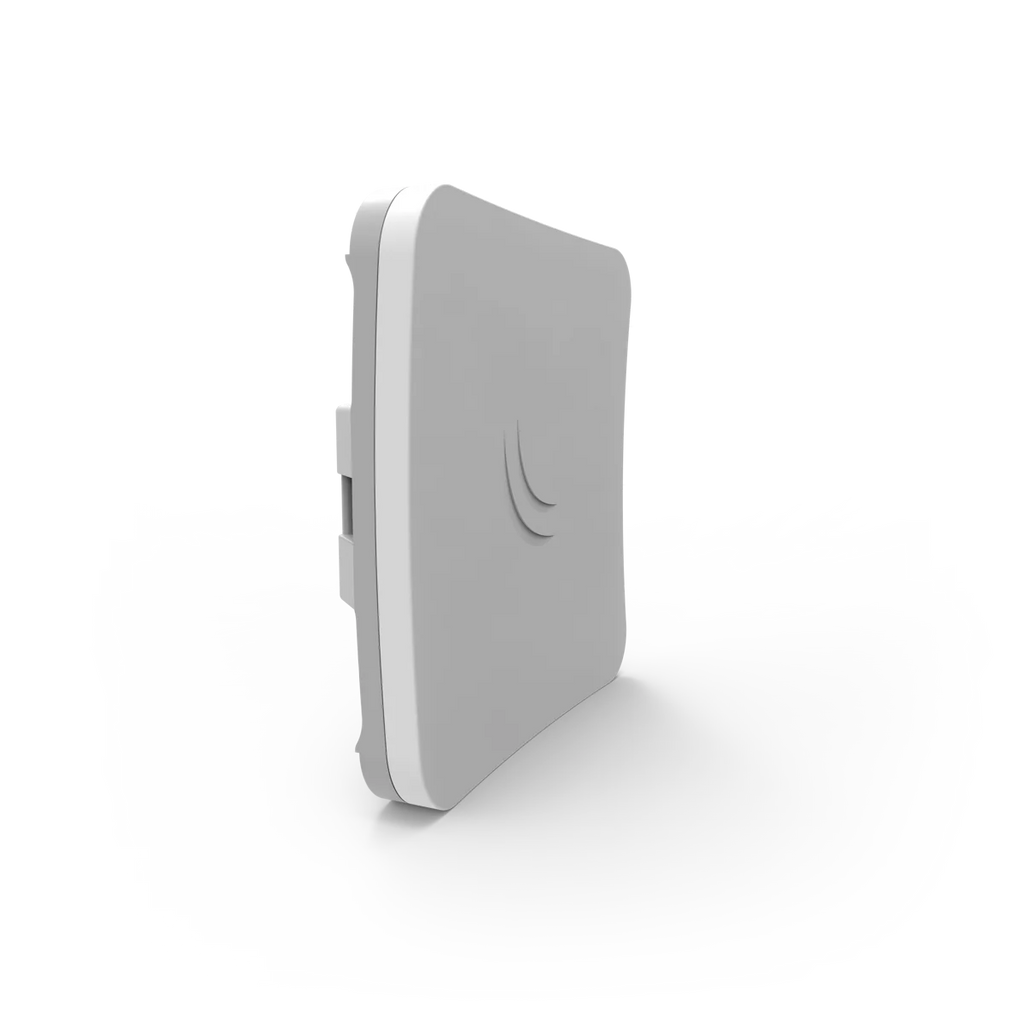

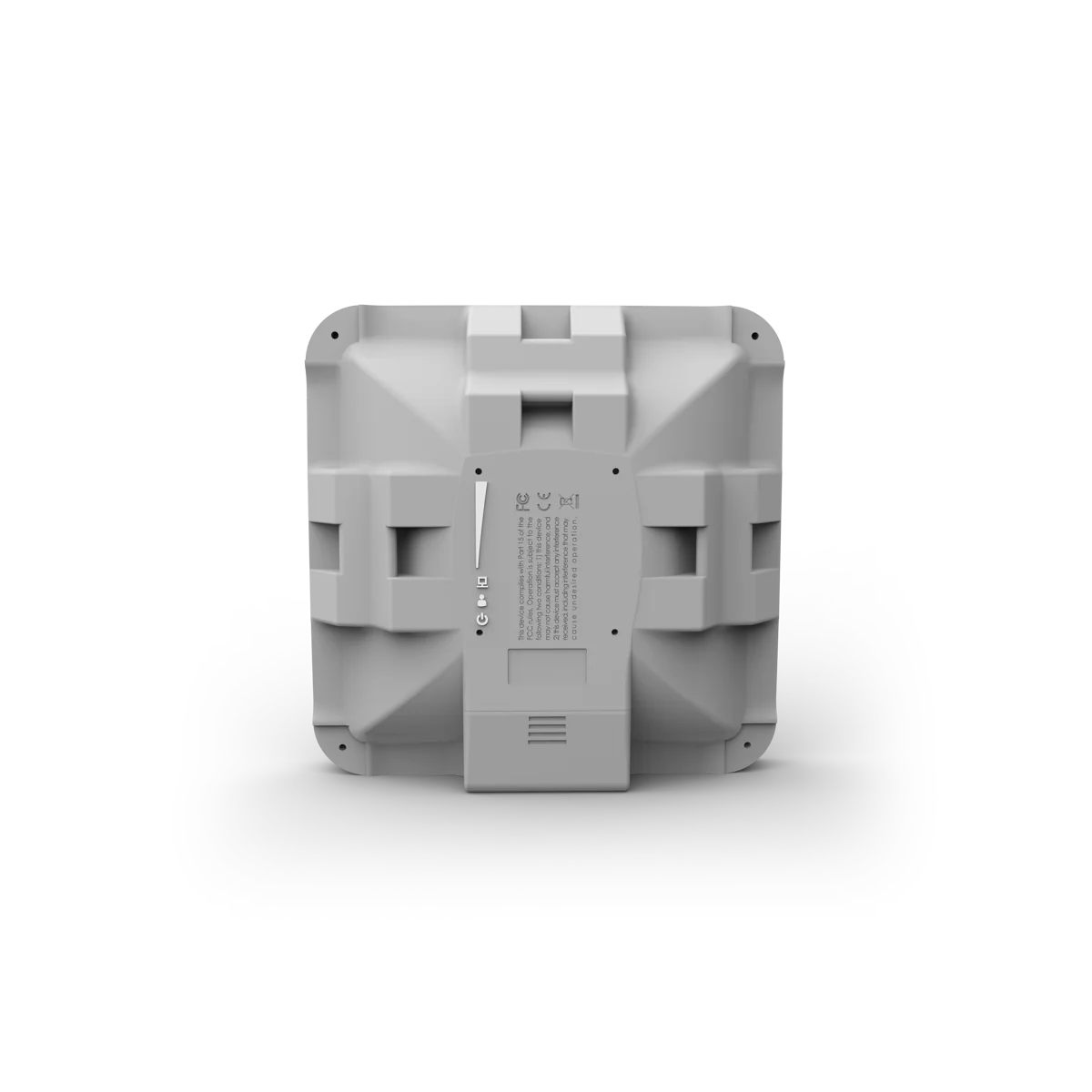

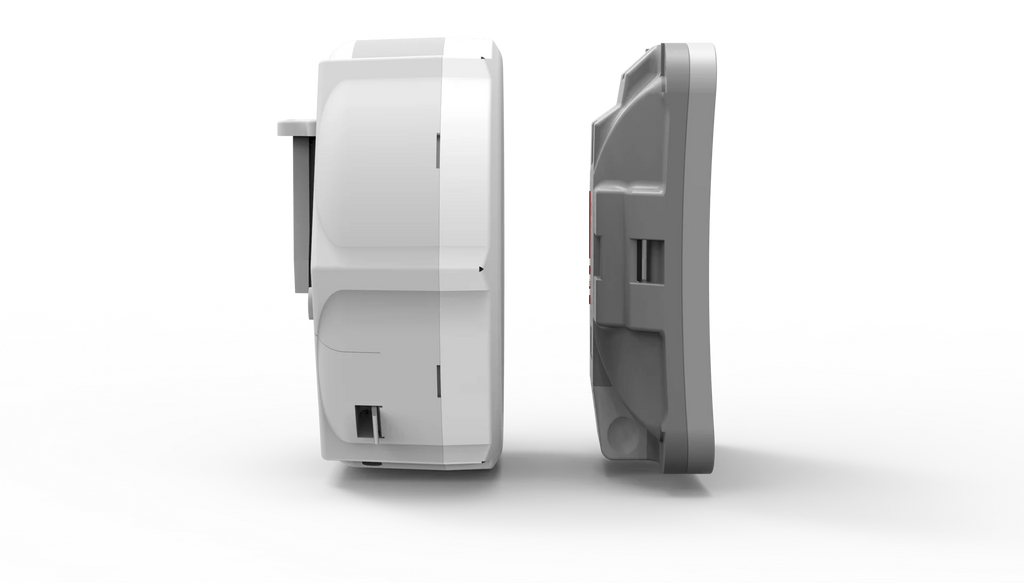

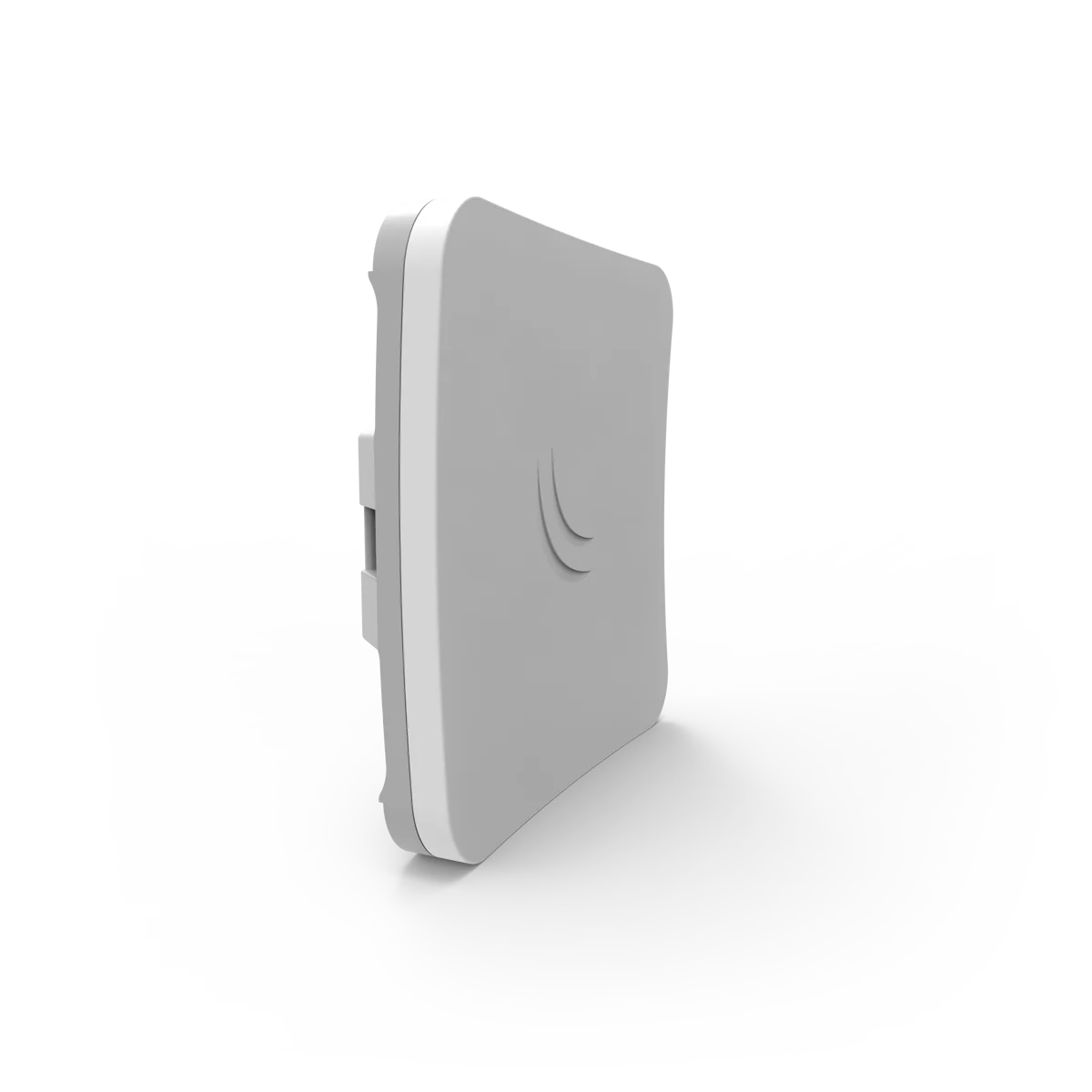

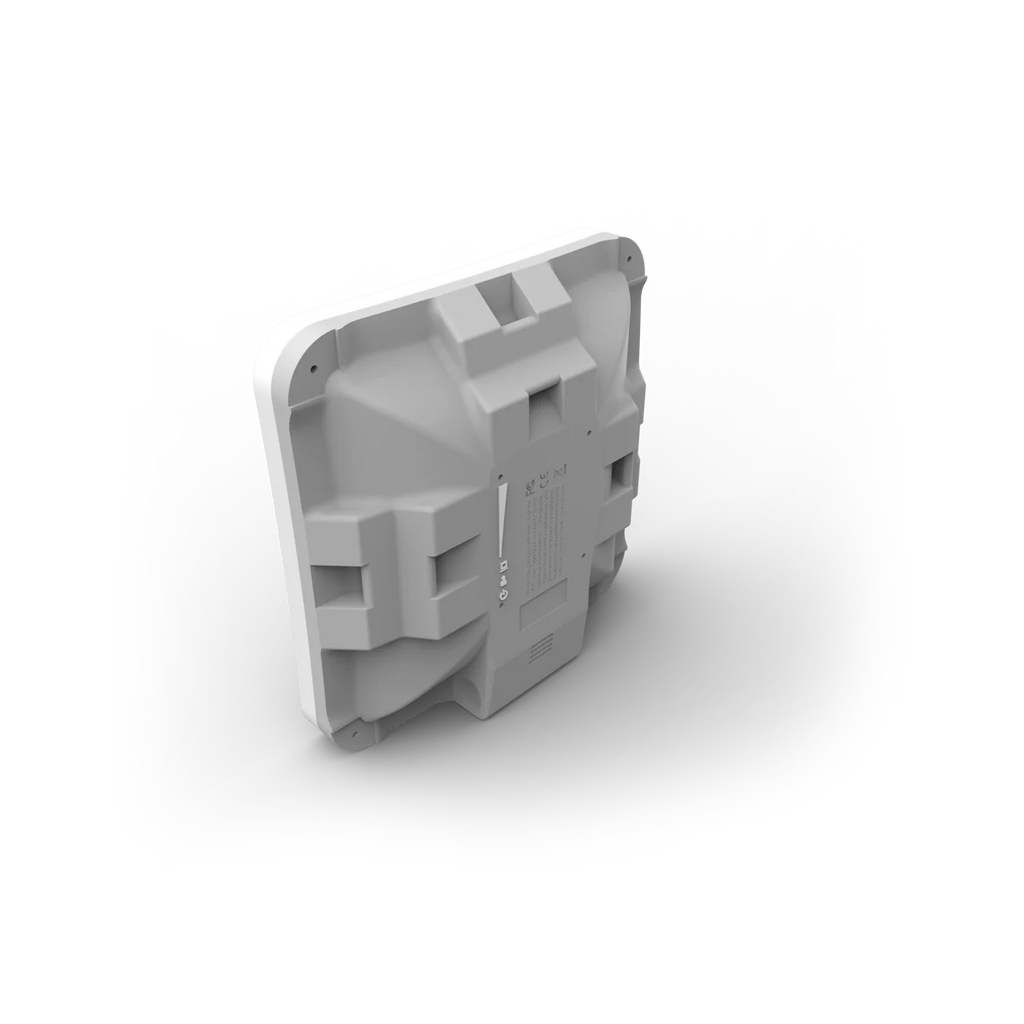

The SXTsq Lite5 is a compact and lightweight outdoor wireless device with an integrated antenna. Perfect for point to point links of up to 12 kilometers or as a CPE unit. It is compact, weatherproof and easy to mount. The SXTsq Lite5 retains a 16dBi antenna like the SXT Lite5, our previous model, yet the antenna design has been improved and the physical size has been dramatically reduced - the SXTsq is two times thinner (see photos for comparison).

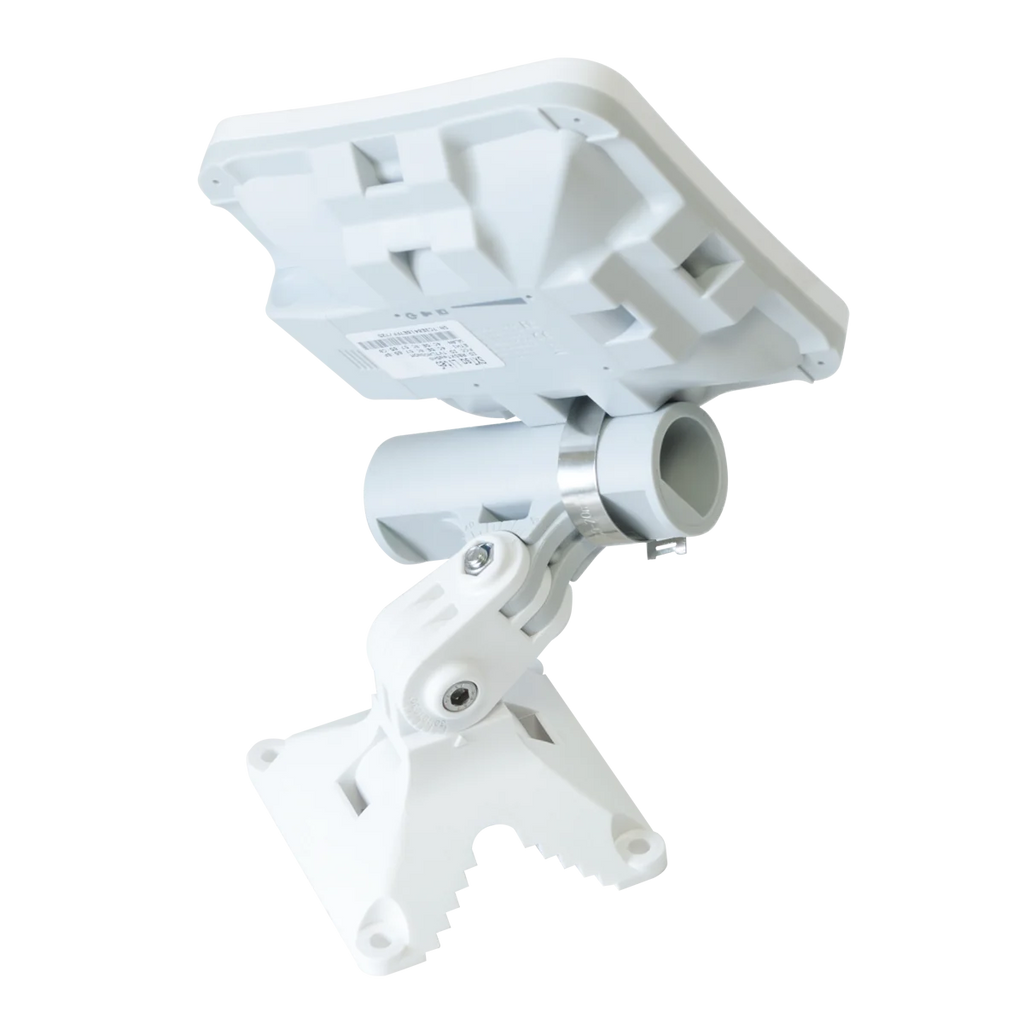

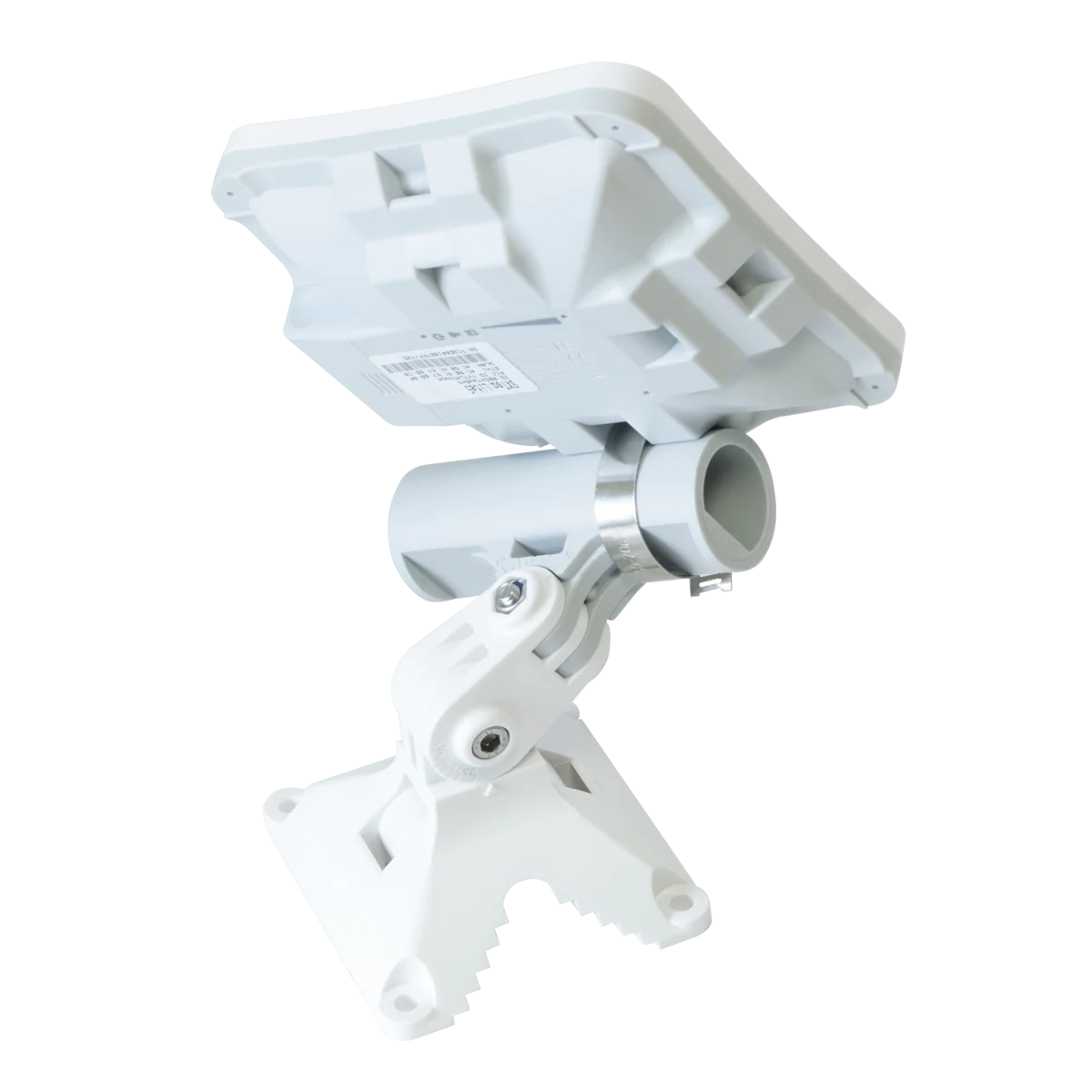

The device can be mounted on horizontal and vertical poles and masts, but for precise alignment, separately available is the QuickMount Pro, which allows to adjust in every angle (see photo and related product).

- SXTsq Lite5-US (USA) is factory locked for 5170-5250MHz and 5725-5835MHz frequencies. This lock can not be removed.

- SXTsq Lite5 (International) supports 5150MHz-5875MHz range (Specific frequency range can be limited by country regulations).
SXTsq Lite5
  • SXTsq Lite5
  • SXTsq Lite5
  • SXTsq Lite5
  • SXTsq Lite5
  • SXTsq Lite5
  • SXTsq Lite5
  • SXTsq Lite5

Specification

Specifications

  • Product codeRBSXTsq5nD
  • Suggested price$46.00
  • ArchitectureMIPSBE
  • CPUAR9344
  • CPU core count1
  • CPU nominal frequency600 MHz
  • Dimensions129x129x34mm
  • RouterOS license3
  • Operating SystemRouterOS
  • Size of RAM64 MB
  • Storage size16 MB
  • Storage typeFLASH
  • MTBFApproximately 100'000 hours at 25C
  • Tested ambient temperature-40°C to 70°C

Powering

  • Number of DC inputs1 (PoE-IN)
  • Max power consumption6 W
  • PoE inPassive PoE
  • Cooling typePassive
  • PoE in input Voltage10-30 V

Wireless specifications

  • Wireless 5 GHz Max data rate300 Mbit/s
  • Wireless 5 GHz Number of chains2
  • Wireless 5 GHz standards802.11a/n
  • Antenna gain dBi for 5 GHz16
  • Wireless 5 GHz chip modelAR9344
  • Wireless 5 GHz generationWi-Fi 4

Ethernet

  • 10/100 Ethernet ports1

Certification & Approvals

  • CertificationCE, FCC, IC, EAC, ROHS
  • IPIP54

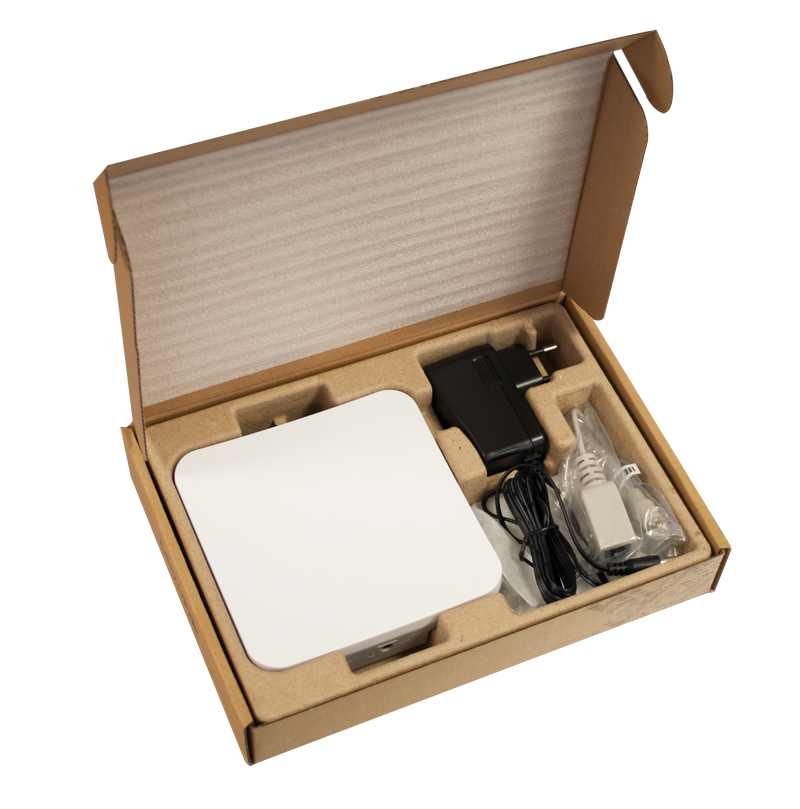

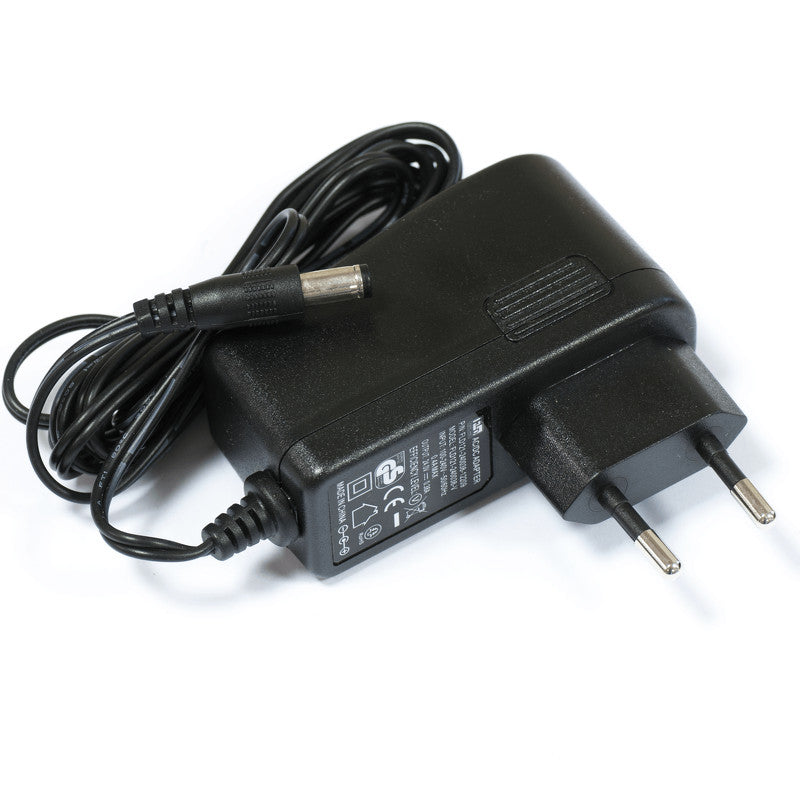

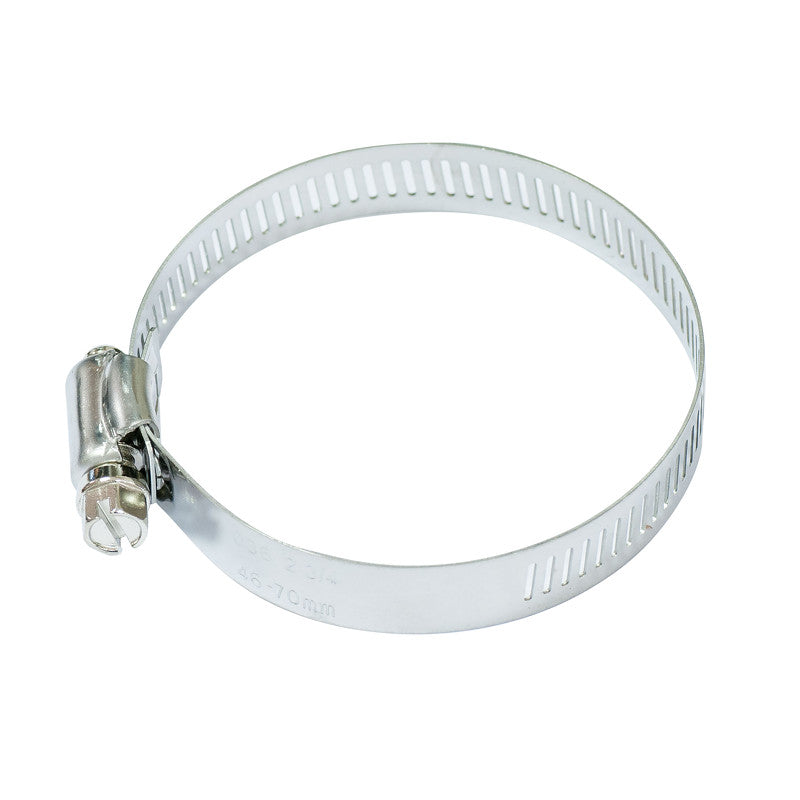

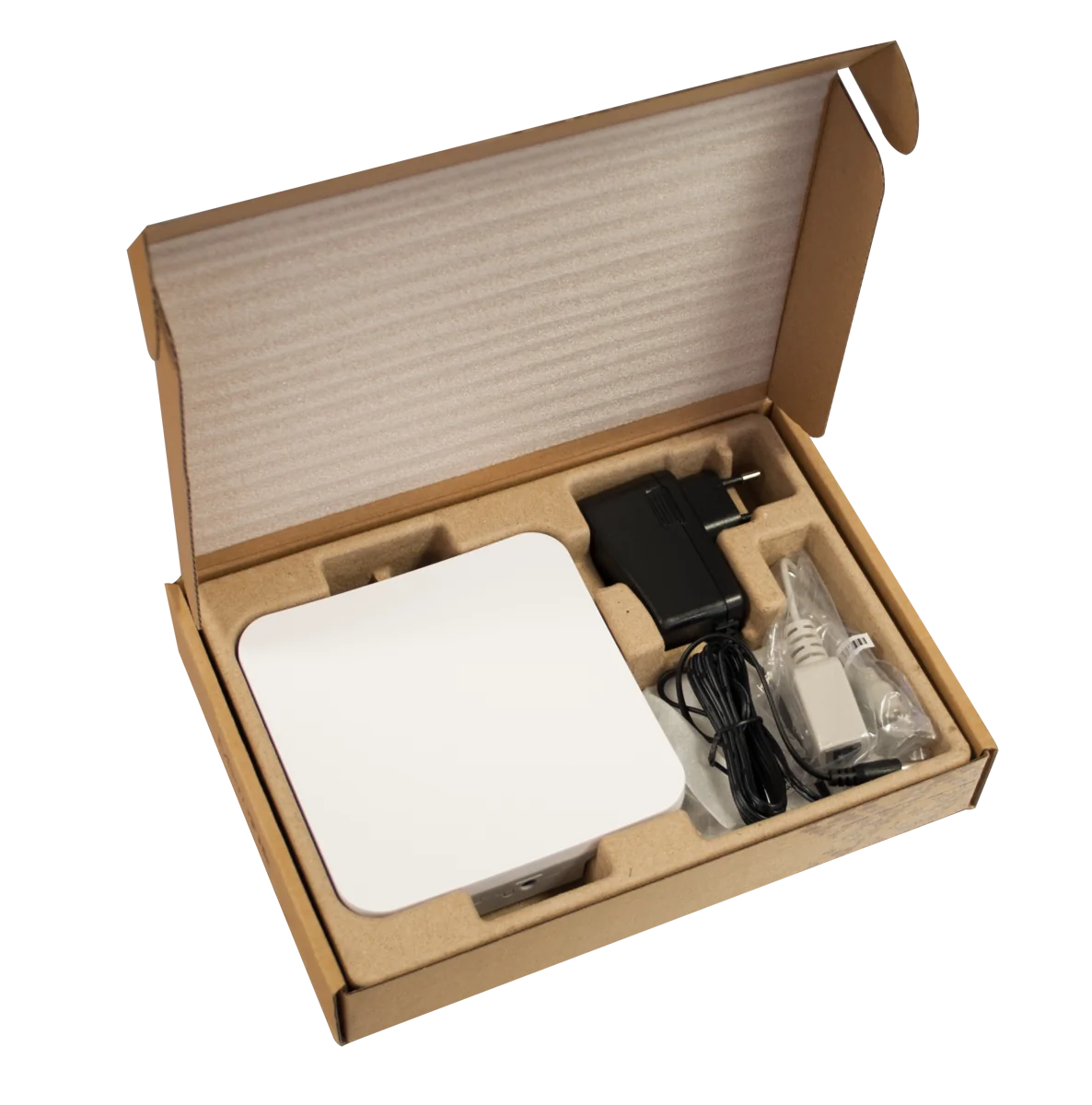

Included parts24V 0.38A power adapterMetal ring (one)PoE injectorNoteThe device has an operating system preinstalled and licensed. No separate purchase is necessary and the product is ready to use. The device includes free software updates for the life of the product or a minimum of 5 years starting from date of purchase.
