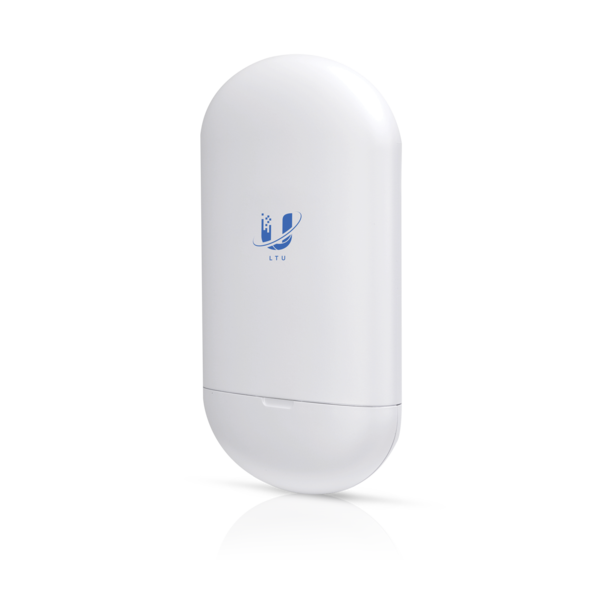

LTU Lite

5 GHz PtMP LTU Client, functions in a PtMP environment with the LTU-Rocket as the BaseStation.

Incorporating Ubiquiti’s proprietary LTU technology, the LTU-Lite is a 5 GHz radio with an integrated antenna design for use as a PtMP CPE. LTU technology breaks through the limitations of 802.11 Wi-Fi technology and supports 1024 QAM for superior performance. Channel width flexibility (10/20/30/40/50 MHz) allows independent TX and RX channel frequency configurations anywhere within the radio band to avoid local interference.

PtMP CPE
1024 QAM
10/20/30/40/50 MHz channel bandwidth
Central configuration management from AP side
Frequency split
Auto power adjustments
Router mode support
Functions in a PtMP environment with the LTU-Rocket as the basestation

LTU-Lite
Dimensions	153 x 84 x 39.5 mm (6.02 x 3.31 x 1.56")
Weight	250 g (8.82 oz)

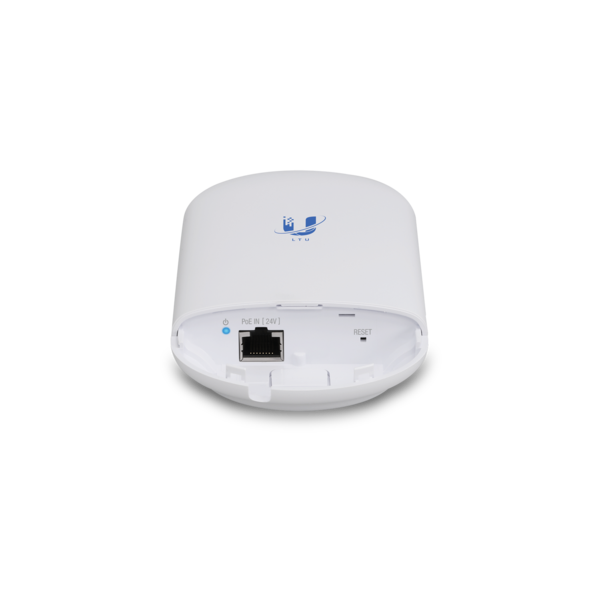

Networking Interface	(1) 10/100/1000 Ethernet Port
Enclosure	Outdoor UV Stabilized Plastic
Max. Power Consumption	8.5W
Power Supply	24V, 0.5A Gigabit PoE Adapter (Included)
Power Method	24V Passive PoE (Pairs 4, 5+; 7, 8-)
Voltage Range	22 - 26V
Max. Conducted TX Power	22 dBm per Chain
Gain	13 dBi
Cross-pol Isolation	20 dB Minimum
Max. VSWR	1.8:1
Beamwidth	45° (H-pol) / 45° (V-pol) / 45° (Elevation)
Polarization	Dual Linear

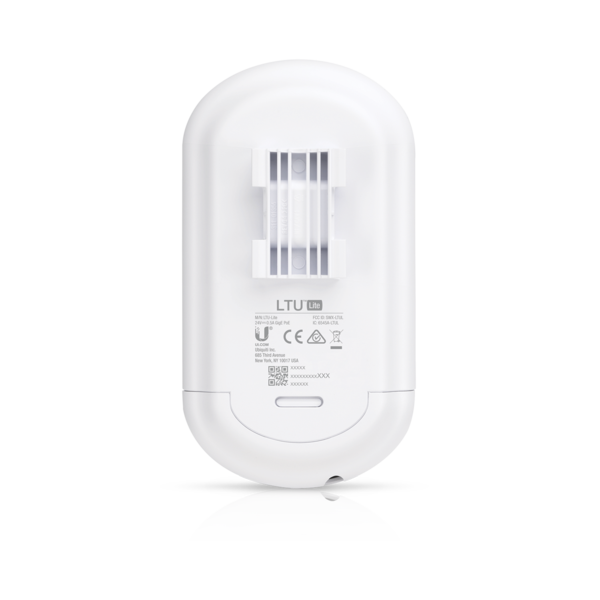

Mounting	Pole-Mount Wall Mount (Kit Included)
Wind Loading	20 N @ 200 km/h (4.5 lbf @ 125 mph)
Wind Survivability	200 km/h (125 mph)
ESD/EMP Protection	± 24kV Contact/Air
Operating Temperature	-40 to 60° C (-40 to 140° F)
Operating Humidity	5 to 95% Noncondensing
Certifications	CE, FCC, IC
Operating Frequency (MHz)
Worldwide	2400 - 2483.5* 4800 - 6200*
US/CA U-NII-1 U-NII-2A U-NII-2C U-NII-3	5150 - 5250 5250 - 5350 5470 - 5725 5725 - 5850
EU	2400 - 2483.5 5150 - 5875

*Depends on regulatory region
