Mikrotik

hAP ac

hAP ac

Regular price $113.52 USD
Regular price $0.00 USD Sale price $113.52 USD
Sale Call for Availability
RB962UiGS-5HacT2HnT

There are 36 units left in stock.

Shipping calculated at checkout.

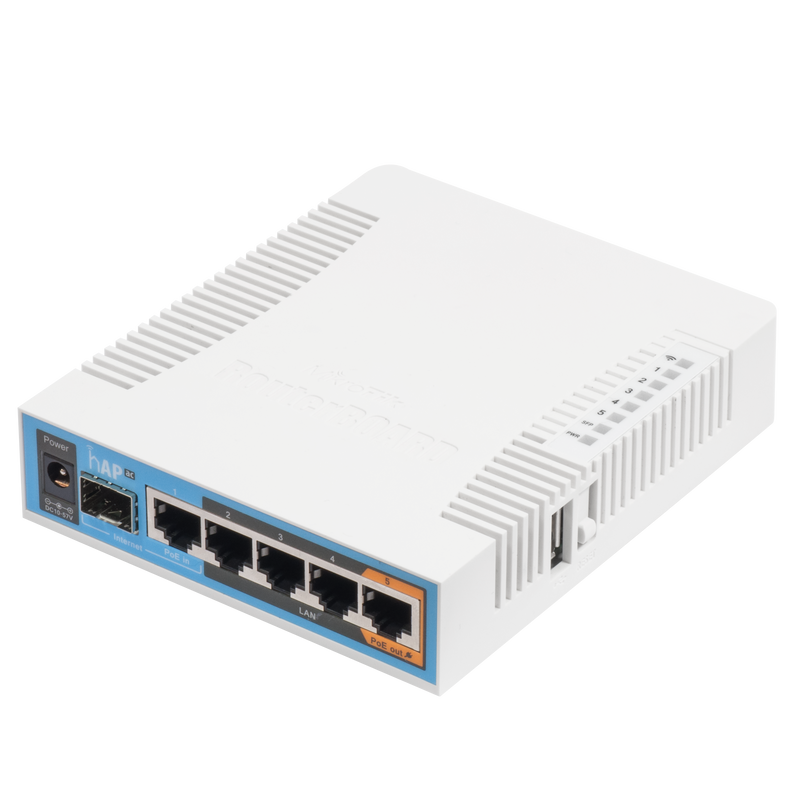

The hAP ac is our most universal home or office wireless device. It is a dual band device with Gigabit ports that allow the full advantages of 802.11ac technology speed, while maintaining compatibility with legacy devices in 2GHz 802.11 b/g/n and 5GHz a/n modes.

The omnidirectional antennas allow to mount the hAP ac in any location, and the high power transmitter will ensure good coverage for the mobile devices in your home, office or public location.

Other helpful features include a USB port for attaching extra storage or a 3G/4G modem, PoE output on the last Ethernet port, to power other RouterBOARD devices without needing an extra power adapter and an SFP cage, for connecting active or passive optical network modules.

We have two versions available.

- RB962UiGS-5HacT2HnT-US (USA) is factory locked for 2412-2462MHz, 5170-5250MHz and 5725-5835MHz frequencies. This lock can not be removed.

- RB962UiGS-5HacT2HnT (International) supports 2412-2484MHz and 5150MHz-5875MHz range (Specific frequency range can be limited by country regulations).


Specifications

Details
Product code RB962UiGS-5HacT2HnT
Architecture MIPSBE
CPU QCA9558
CPU core count 1
CPU nominal frequency 720 MHz
Switch chip model QCA8337
Dimensions 114 x 137 x 29mm
RouterOS license 4
Operating System RouterOS
Size of RAM 128 MB
Storage size 16 MB
Storage type FLASH
MTBF Approximately 200'000 hours at 25C
Tested ambient temperature -40°C to 70°C

Wireless capabilities

Details
Wireless 2.4 GHz Max data rate 450 Mbit/s
Wireless 2.4 GHz number of chains 3
Wireless 2.4 GHz standards 802.11b/g/n
Antenna gain dBi for 2.4 GHz 2.5
Wireless 2.4 GHz chip model QCA9558
Wireless 2.4 GHz generation Wi-Fi 4
Wireless 5 GHz Max data rate 1300 Mbit/s
Wireless 5 GHz number of chains 3
Wireless 5 GHz standards 802.11a/n/ac
Antenna gain dBi for 5 GHz 2
Wireless 5 GHz chip model QCA9880
Wireless 5 GHz generation Wi-Fi 5
WiFi speed AC1750

Ethernet

Details
10/100/1000 Ethernet ports 5

Fiber

Details
SFP ports 1

Peripherals

Details
Number of USB ports 1
USB Power Reset Yes
USB slot type USB type A
Max USB current (A) 1

Powering

Details
Number of DC inputs 2 (DC jack, PoE-IN)
DC jack input Voltage 11-57 V
Max power consumption 17 W
Cooling type Passive
PoE in Passive PoE
PoE in input Voltage 11-57 V

PoE-out

Details
PoE-out ports Ether5
PoE out Passive PoE
Max out per port output (input 18-30 V) 700 mA
Max out per port output (input 30-57 V) 350 mA
Max total out (A) 700 mA

Certification & Approvals

Details
Certification CE, FCC, IC, EAC, ROHS
IP IP20

Other

Details
PCB temperature monitor Yes
Voltage Monitor Yes
Beeper Yes

Wireless specifications

2.4 GHz Transmit (dBm) Receive Sensitivity
1MBit/s 29 -100
11MBit/s 29 -94
6MBit/s 29 -96
54MBit/s 26 -81
MCS0 29 -96
MCS7 25 -77

5 GHz Transmit (dBm) Receive Sensitivity
6MBit/s 28 -96
54MBit/s 25 -81
MCS0 28 -96
MCS7 24 -77
MCS9 21 -72
