Dual-Concurrent 2.4/5GHz AP, 802.11a/b/g/n/ac, Five Gigabit Ethernet ports, USB for 3G/4G support, universal tower case and IPsec hardware encryption support.

The hAP ac² is a Dual-concurrent Access Point, that provides Wifi coverage for 2.4 GHz and 5 GHz frequencies at the same time. Five 10/100/1000 Ethernet ports provide Gigabit connections for your wired devices, USB can be used for external storage or 4G/LTE modem, and device supports IPsec hardware acceleration.

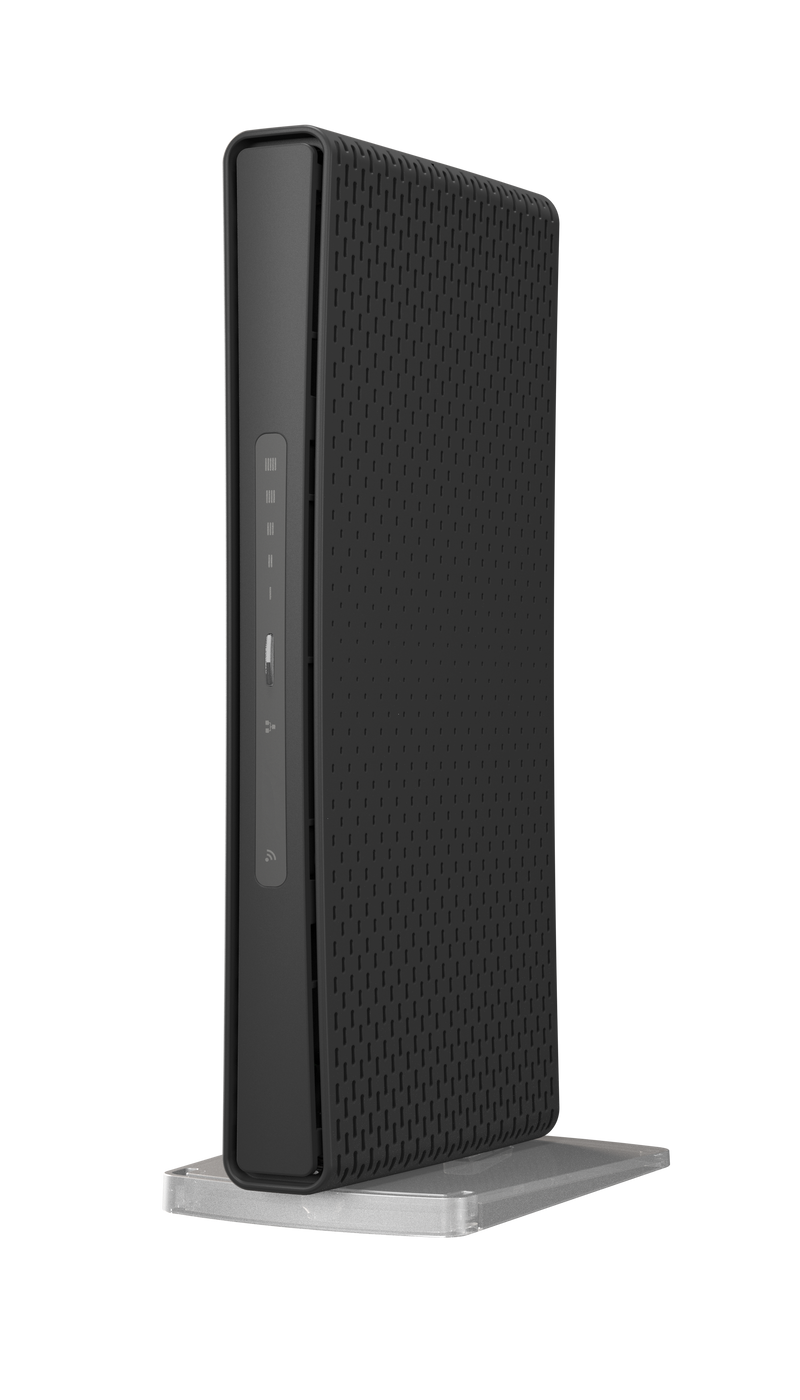

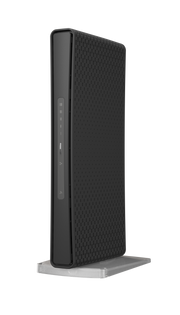

New design universal case allows unit to be positioned either horizontally (desktop) or vertically (tower case). Wall anchored mounting kit is provided.
hAP ac²
  • hAP ac²
  • hAP ac²
  • hAP ac²
  • hAP ac²

We have two versions available.

- hAP ac²-US (USA) is factory locked for 2412-2462MHz, 5170-5250MHz and 5725-5835MHz frequencies. This lock can not be removed.

- hAP ac² (International) supports 2412-2484MHz and 5150MHz-5875MHz range (Specific frequency range can be limited by country regulations).

Specification

Specifications

  • Product codeRBD52G-5HacD2HnD-TC
  • Suggested price$79.00
  • ArchitectureARM 32bit
  • CPUIPQ-4018
  • CPU core count4
  • CPU nominal frequency488-896 (auto) MHz
  • CPU Threads count4
  • Switch chip modelIPQ-4018
  • Dimensions34 x 119 x 98mm
  • RouterOS license4
  • Operating SystemRouterOS
  • Size of RAM128 MB
  • Storage size16 MB
  • Storage typeFLASH
  • MTBFApproximately 100'000 hours at 25C
  • Tested ambient temperature-40°C to 50°C

Wireless capabilities

  • Wireless 2.4 GHz Max data rate300 Mbit/s
  • Wireless 2.4 GHz Number of chains2
  • Wireless 2.4 GHz standards802.11b/g/n
  • Antenna gain dBi for 2.4 GHz2.5
  • Wireless 2.4 GHz chip modelIPQ-4018
  • Wireless 2.4 GHz generationWi-Fi 4
  • Wireless 5 GHz Max data rate867 Mbit/s
  • Wireless 5 GHz Number of chains2
  • Wireless 5 GHz standards802.11a/n/ac
  • Antenna gain dBi for 5 GHz2.5
  • Wireless 5 GHz chip modelIPQ-4018
  • Wireless 5 GHz generationWi-Fi 5
  • WiFi speedAC1200

Ethernet

  • 10/100/1000 Ethernet ports5

Peripherals

  • Number of USB ports1
  • USB Power ResetYes
  • USB slot typeUSB type A
  • Max USB current (A)1

Powering

  • Number of DC inputs2 (DC jack, PoE-IN)
  • DC jack input Voltage12-30 V
  • Max power consumption21 W
  • Max power consumption without attachments16 W
  • PoE inPassive PoE
  • Cooling typePassive
  • PoE in input Voltage18-28 V

Certification & Approvals

  • CertificationCE, FCC, IC, EAC, ROHS
  • IPIP20

Other

  • Mode buttonYes

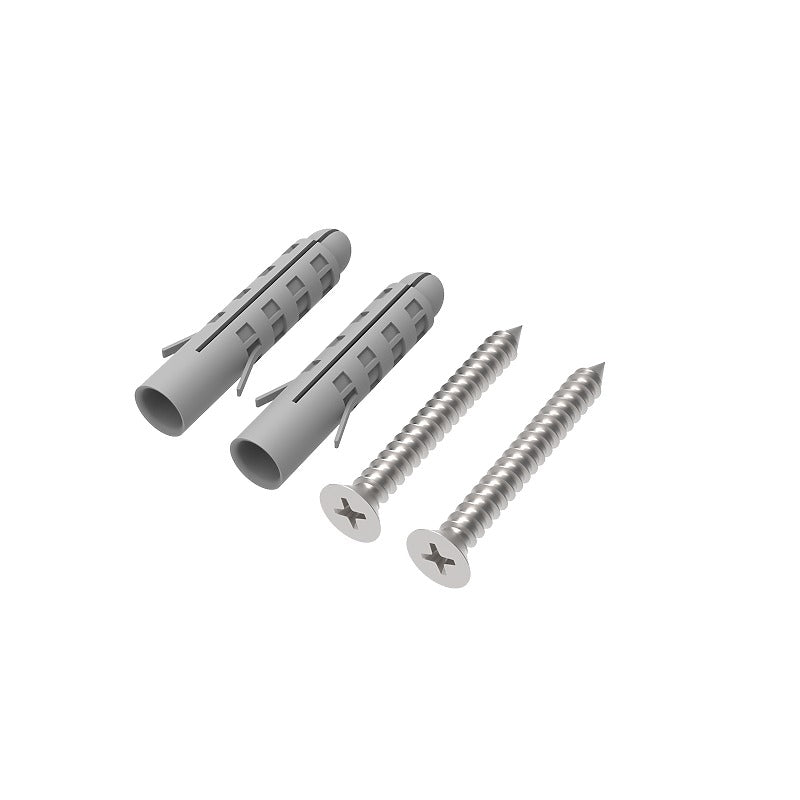

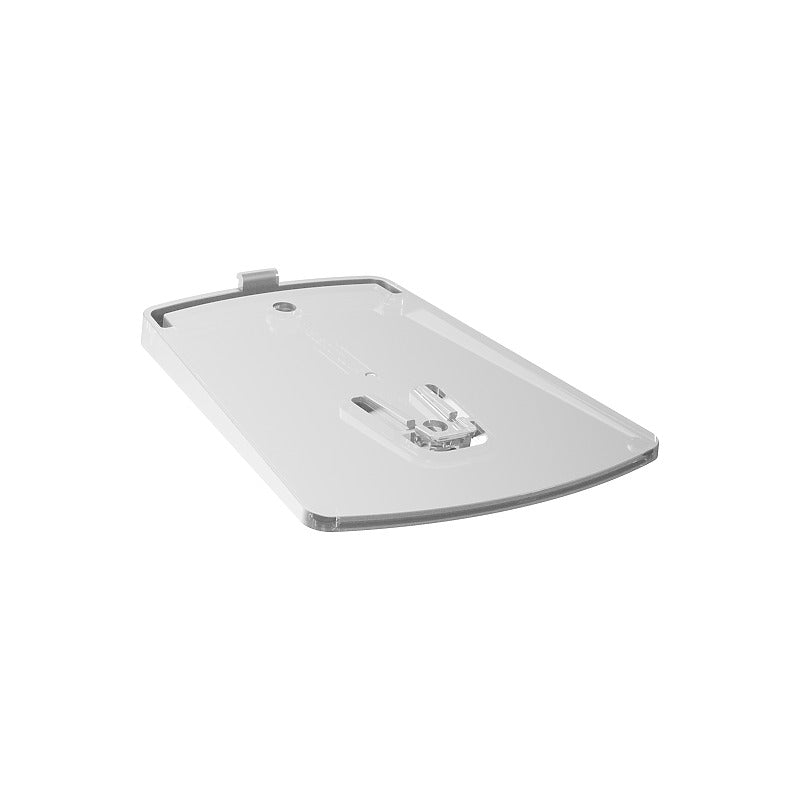

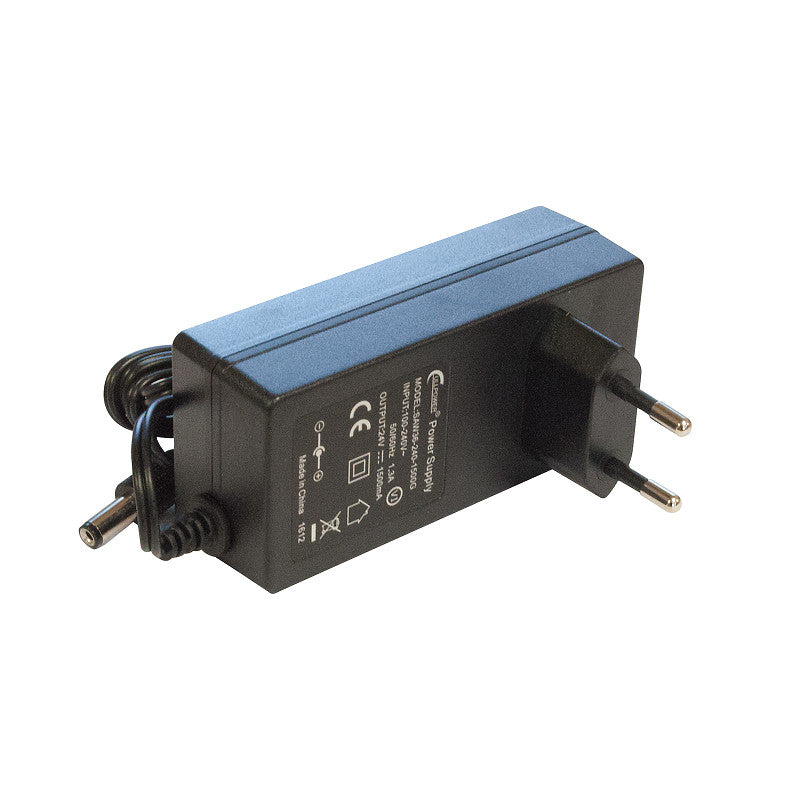

Included parts24V 0.8A power adapterK-47 wall mount sethAP case baseNoteThe device has an operating system preinstalled and licensed. No separate purchase is necessary and the product is ready to use. The device includes free software updates for the life of the product or a minimum of 5 years starting from date of purchase.
