GrooveA 52

GrooveA 52

$110.52 CAD
GrooveA 52

GrooveA 52

RBGrooveA-52HPn
$110.52 CAD
Shipping calculated at checkout.
Out of stock

2.4GHz/5GHz AP/Backbone/CPE, N-male connector, includes 2.4GHz/5GHz 6dBi Omni Antenna

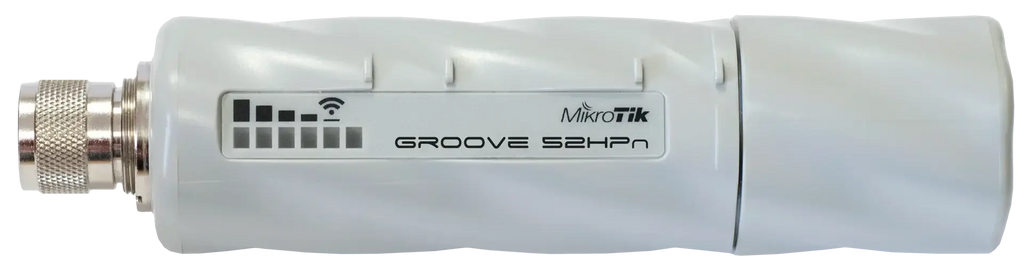

Our smallest outdoor series model - a fully featured wireless RouterBOARD powered by RouterOS. Weatherproof, durable and ready to use. It has one 10/100 Ethernet port with PoE support and a built in wireless radio. It has software selectable 2 or 5GHz wireless mode, and high output power! GrooveA has also supports AP mode.

With the Nv2 TDMA technology, up to 125Mbit aggregate throughput is possible! It has a built-in N-male connector, and pole attachment points, so you can attach it to an antenna directly, or use a standard antenna cable. LED signal indicators make it easy to install and align.

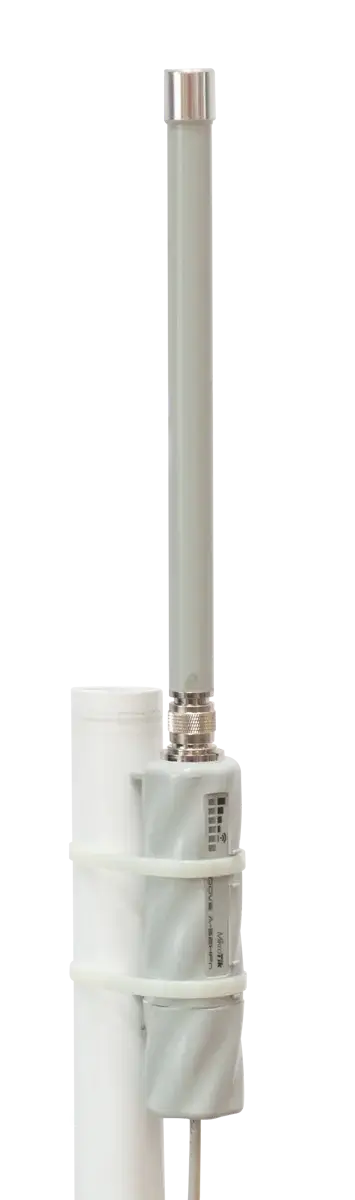

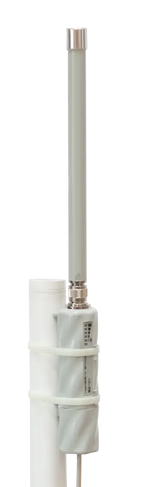

NEW- now comes packaged with a Omni directional antenna (6dBi 2.4GHz, 8dBi 5GHz)!
GrooveA 52
  • GrooveA 52
  • GrooveA 52

Box contains: Groove unit, mounting loops, PoE injector, power adapter, Omni directional antenna (6dBi 2.4GHz, 8dBi 5GHz).

We have two versions available.

- RBGrooveA-52HPn-US (USA) is factory locked for 2412-2462MHz, 5170-5250MHz and 5725-5835MHz frequencies. This lock can not be removed.

- RBGrooveA-52HPn (International) supports 2412-2484MHz and 5150MHz-5875MHz range (Specific frequency range can be limited by country regulations).

Specification

Specifications

  • Product codeRBGrooveA-52HPn
  • Suggested price$79.00
  • ArchitectureMIPSBE
  • CPUAR9342
  • CPU core count1
  • CPU nominal frequency600 MHz
  • Dimensions177x44x44mm, 193g
  • RouterOS license4
  • Operating SystemRouterOS
  • Size of RAM64 MB
  • Storage size16 MB
  • Storage typeFLASH
  • MTBFApproximately 100'000 hours at 25C
  • Tested ambient temperature-40°C to 70°C

Powering

  • Number of DC inputs1 (PoE-IN)
  • Max power consumption6 W
  • PoE inPassive PoE
  • Cooling typePassive
  • PoE in input Voltage9-30 V

Wireless specifications

  • Wireless 2.4 GHz/5 GHz Max data rate150 Mbit/s
  • Wireless 2.4 GHz/5 GHz Number of chains1
  • Wireless 2.4 GHz/5 GHz standards802.11b/g/n, 802.11a/n
  • Antenna gain dBi for 2.4 GHz/5 GHz6
  • Wireless 2.4 GHz/5 GHz chip modelAR9342
  • Wireless 2.4 GHz/5 GHz generationWi-Fi 4

Ethernet

  • 10/100 Ethernet ports1

Other

  • PCB temperature monitorYes
  • Voltage MonitorYes
  • BeeperYes

Certification & Approvals

  • CertificationCE, FCC, IC, EAC, ROHS

Included parts6dBi / 8dBi omni antennaPoE injector24V 0.38A power adapterMetal ring (one)NoteThe device has an operating system preinstalled and licensed. No separate purchase is necessary and the product is ready to use. The device includes free software updates for the life of the product or a minimum of 5 years starting from date of purchase.
