Camera G4 PTZ
Camera G4 PTZ
Couldn't load pickup availability

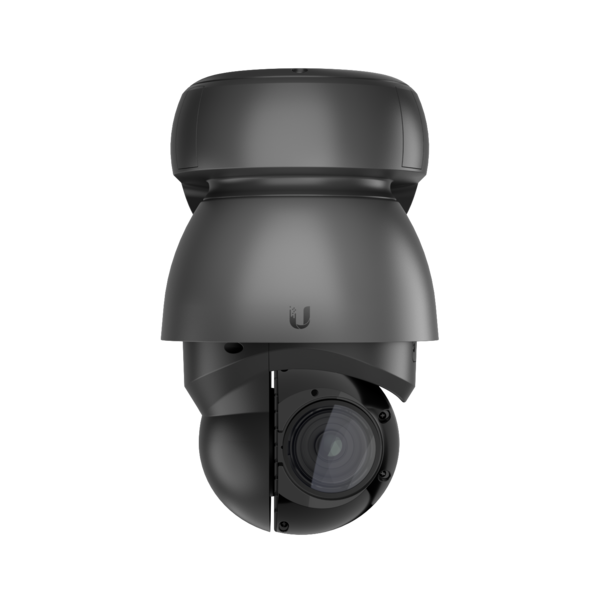

UniFi Protect G4 PTZ is a high-performance pan-tilt-zoom camera with 4K, 24 FPS video streaming, 22x optical zoom, and adaptive IR LED night vision.
G4 PTZ is a superior surveillance camera for shopping centers, parking lots, airports, train stations, and other transportation hubs. Pairing G4 PTZ’s advanced optical and video technologies with UniFi Protect’s ease of use creates a unique solution for the most demanding environments. G4 PTZ comes with IP66 weatherproof casing and flexible powering options.
Features:4K, 24 FPS video stream
22x optical zoom with F1.5 lens
Tamper-resistant pan and tilt with servo feedback
Multi-exposure HDR
Adaptive IR LEDs, night vision distance up to 100 m
Flexible power options: 802.3bt PoE++
IP66 weatherproof rating
Operating temperature -40˚ to + 50˚C (-40˚ to +122˚F)
Managed with UniFi Protect application and mobile app
Note: UniFi Protect is required to run this product with full functionality, we recommend using it with UniFi Dream Machine PRO or UniFi Protect Network Video Recorder.
| Mechanical | |
|---|---|
| Dimensions | 207 x 223.7 x 341.3 mm (8.15 x 8.81 x 13.44") |
| Weight |
Without Mount: 3.8 kg (8.38 lb) With Mount: 6.8 kg (14.99 lb) |
| Enclosure Materials | Metal and Plastic |
| Mount Material | Metal |
| IP Rating | IP66 |
| Optics | |
| Sensor | Sony 4K (8 MP) 1/1.8" CMOS Sensor |
| Lens | 22x Optical Zoom |
| View Angle |
H: 3 to 64° V: 2 to 37° |
| Night Mode | Built-in IR LED Illumination and IR Cut Filter |
| Video | |
| Video Compression | H.264 |
| Resolution | 4K2K (3840 x 2160) |
| Maximum Frame Rate | 24 FPS |
| System | |
| Processor Specs | Ambarella S5L66 |
| Memory Information | 1 GB |
| Networking Interface | RJ45, 10/100/1000 Mbps Gigabit Ethernet |
| Flash Memory Support | 256 MB |
| Max. Power Consumption | 42.9W |
| Power Method | 802.3bt PoE++ |
| Supported Voltage Range | 802.3bt PoE++ |
| Button | Factory Reset |
| Mounting | Wall Mount (Kit Included) |
| Operating Temperature | -40 to 50º C (-40 to 122º F) |
| Operating Humidity | 0 to 90% Noncondensing |
| Certifications | FCC, IC, CE |
| Software | |
| Controller Software | UniFi Protect |
| Mobile Apps | UniFi Protect iOS and Android |
