Cambium Networks

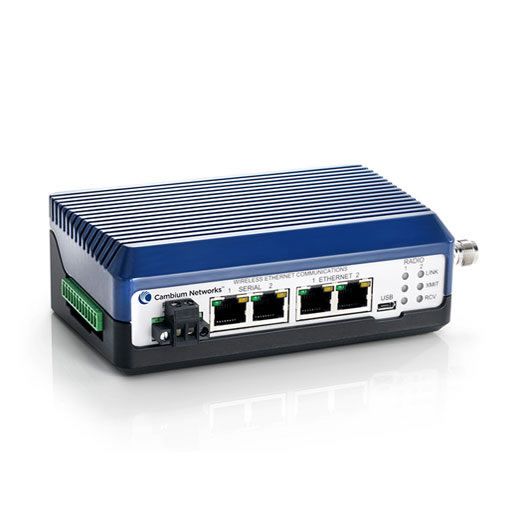

Cambium cnReach N500 900 MHz Dual Radio

Cambium cnReach N500 900 MHz Dual Radio

Regular price $0.00 USD
Regular price Sale price $0.00 USD
Sale Call for Availability
NB-N500920B-US
Shipping calculated at checkout.

For outdoor critical infrastructure operations, NB-N500920B-US transports process monitoring and control data from the remote sensor back to the operations center supporting real-time automated decision making and on-going analytics. Covering large geographic areas, hard to reach terrain and challenging spectrum environments, cnReach delivers reliable, secure connectivity to the petrochemical, electric utility, water/wastewater/stormwater and transportation industries. cnReach eases the migration to modern networks by combining legacy serial and analog/digital I/O with TCP/IP and Ethernet connectivity. Fully integrated into a 'single pane-of-glass' management platform (cnMaestro) cnReach helps bridge the IT/OT sides of complex organizations. Combining cnReach's licensed and unlicensed narrow-band radios with Cambium Networks' broadband technologies, industrial organizations are delivering end-to-end industrial Internet of Things solutions today.

Product Features
• Licensed and unlicensed 900 MHz
• Secure communications with AES 128/256-bit encryption with password authentication
• Highly reliable communications with access point synchronization and adaptive modulation
• Dual radio confiuration for advanced relay and store-and-forward applications
• Sophisticated network planning with LINKPlanner, a no-charge planning tool enabling network designers to predict both capacity and availability of networks crossing all of Cambium's technologies
• Supported by cnMaestro software for monitoring the status of entire networks carrying traffic across sensors

Product Specifications
• Frequency Range: (ISM) 902 - 928 MHz / (MAS) 928 - 960 MHz
• Output Power: (ISM) 10 mW to 1 W (10 dBm to 30 dBm) / (MAS) 10 mW to 3 W (10 dBm to 34.8 dBm)
• Step Size 10 mW
• Capacity: (ISM) 57 kbps up to 4.4 Mbps / (MAS) 10 kbps up to 210 kbps
• Range: Up to 70 miles
• Packet Handling: Layer 2 bridge, Layer 3 static routes, VLAN support
• Error Correction: Up to 32-bit CRC, Retransmit on error
• Data Encryption: 128/256-bit AES
• Management:
  -Web-based Interface via HTTP/HTTPS
  -Remote Management via SNMP
  -cnMaestro integration (roadmap)
  -Support for configuration files, remote software upgrades
  -Built-in diagnostic tools via web interface such as RF Ping and RF Throughput
• Ethernet Interfaces: 2 x RJ-45, 10/100BaseT, Full Duplex, rate auto negotiated (802.3 compliant)
• Serial Interfaces: 2 x RJ-45, RS-232/422/485, up to 230.4 kbps
• RF / Antenna: TNC RF connectors
• Power Input: 10-32VDC with reverse polarity protection
• Dimensions: 6.625 x 3.45 x 1.835" (168 x 876 x 466 mm)
• Weight: 1.61 lbs. (0.73 kg)
• Operating Temperature: -40 to 60°C
• Humidity: 95% operating humidity @ 40°C non-condensing
• HAZLOC: UL-Approved to Class 1 / Div 2

Product Documentation
NB-N500920B-US Datasheet
