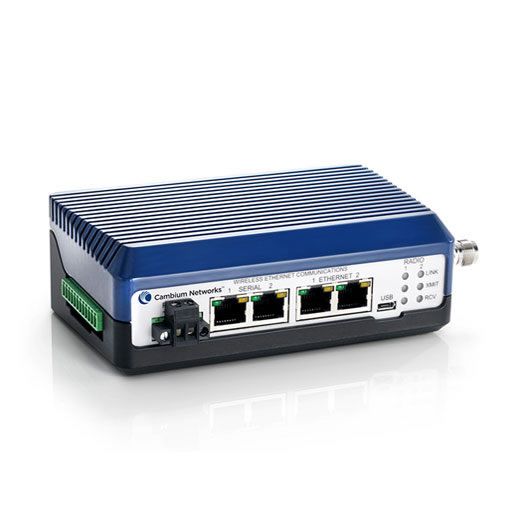

Cambium cnReach N500 450 MHz Dual Radio
Cambium cnReach N500 450 MHz Dual Radio
Couldn't load pickup availability
Share
For outdoor critical infrastructure operations, NB-N500420B-US transports process monitoring and control data from the remote sensor back to the operations center supporting real-time automated decision making and on-going analytics. Covering large geographic areas, hard to reach terrain and challenging spectrum environments, cnReach delivers reliable, secure connectivity to the petrochemical, electric utility, water/wastewater/stormwater and transportation industries. cnReach eases the migration to modern networks by combining legacy serial and analog/digital I/O with TCP/IP and Ethernet connectivity. Fully integrated into a 'single pane-of-glass' management platform (cnMaestro) cnReach helps bridge the IT/OT sides of complex organizations. Combining cnReach's licensed and unlicensed narrow-band radios with Cambium Networks' broadband technologies, industrial organizations are delivering end-to-end industrial Internet of Things solutions today.
Product Features
• Licensed 450MHz (406-430 and 450-470MHz)
• Up to 8W transmit (39dBm)
• Point-to-Point, Point-to-Multipoint and Relay configurations in the same hardware
• Secure communications with AES 128/256-bit encryption and password authentication
• Highly reliable communications with access point synchronization and adaptive modulation
• Single and dual radio configurations for advanced back-to-back relay topologies
• Extensive I/O capabilities easing the transition from serial to all-IP networks with multiple serial ports, Ethernet ports and analog/digital I/O built-in
• Sophisticated network planning with LINKPlanner, a no-charge planning tool enabling network designers to predict both capacity and availability of networks crossing all of Cambium's technologies
• Support by cnMaestro software for monitoring the status of entire networks carrying traffic across sensors
Product Specifications
• Frequency Range: 406-430MHz and 450-470MHz
• Output Power: 50mW to 8W (10 to 39dBm)
• Step Size 10 mW
• Modulations: MKS / QPSK / 8PSK / 16QAM / 32QAM
• Capacity: 9.6kbps to 56.7kbps RF data rate; up to 30kbps UDP throughput in 12.5kHz channels
• Channel Bandwidths: 12.5kHz (25 / 50 / 100kHz available, regulations permitting)
• Range: Up to 70 miles
• Packet Handling:
Layer 2 bridge
Layer 3 static routers
VLAN support
• Error Correction: Up to 32-bit CRC, Retransmit on error
• Data Encryption: 128/256-bit AES
• I/O and Serial Data Access: Optional I/O allows seamless integration of Modbus RTU and Modbus TCP protocols
• Management:
Web-based interface via HTTP/HTTPS
LINKPlanner integration (capacity and availability planning)
Remote Management via SNMP
cnMaestro integration (roadmap)
Support for configuration files, remote software upgrades
Built-in diagnostic tools via web interface such as RF Ping and RF Throughput
• Ethernet Interfaces: (2) RJ45, 10/100BaseT, Full Duplex, rate auto negotiated (802.3 compliant)
• Serial Interfaces: (2) RJ45, RS-232/422/485, up to 230.4kbps
• Analog/Digital I/O (optional): 8 pins for analog input/output and digital input/output
• RF/Antenna: TNC RF connectors (1 or 2 depending on single or dual-radio configuration)
• Power Input: 10-32VDC with reverse polarity protection
• Power Consumption (12VDC average): 3W Output
• IO Expander: 293mA
• Dimensions: 6.625 x 3.45 x 1.835" (168 x 876 x 466mm)
• Weight: 1.61lbs (0.73kg)
• DIN Rail Mount: Optional
• Operating Temperature: -40 to 60°C
• Humidity: 95% operating humidity @ 40°C non-condensing
• HAZLOC: UL-Approved to Class 1 / Div 2
• Certifications: UL, FCC, IC
Product Documentation
NB-N500420B-US Datasheet
