Cambium cnRanger 3.5GHz CBRS Starter Kit

Maximize your networking potential with the Cambium Networks cnRanger CBRS starter kit.

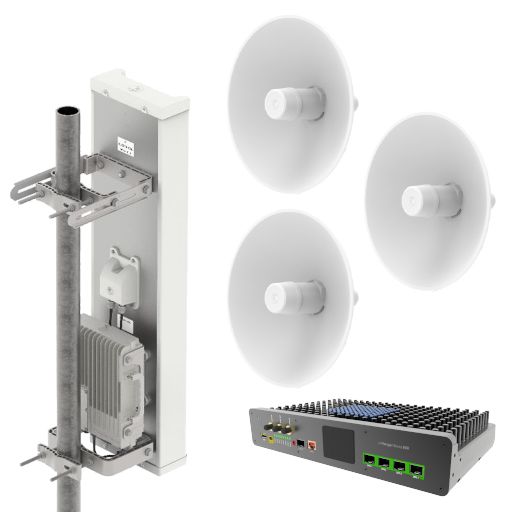

Starter Kit includes
(1) Remote Radio Head (RRH)
(1) Remote Radio Head pole mount
(1) Sector antenna
(1) 2 meter CPRI fiber cable
(1) 2 meter DC power cable
(1) 48V DC power cable
(1) Baseband Unit (BBU)
(10) SIM cards
(3) Subscriber modules (SM)

The Cambium Networks cnRanger Fixed CBRS LTE wireless Palisade Remote Radio Head substantially increases range and coverage, while reducing the cost and complexity typically associated with LTE networks.

RRH Features
• High Power Remote Radio Head (RRH) works through dense foliage where EIRP-limited 5 GHz is not an option.
• Fully managed and controlled by Baseband Unit (BBU)
• 2 LTE carrier support

RRH Specifications
• Model Name: 3.5GHz Palisade 210
• Model Numbers: 3LTE-RRH-210
• Physical Layer: 2x2 MIMO OFDMA, SC-FDMA
• BBU Interface: SFP+ / CPRI v7.0 Fiber cable: N000000L131A, pre-terminated, 2m cable
• DC Power: Power cable N000000L130A, two conductor plus ground
• Antenna Connection: 2 N-Type
• Surge Suppression: EN61000-4.5: 1.2us/50us, 500 V voltage waveform
• Environmental: IP67
• Temperature / Humidity: -40°C to +55°C (-40°F to +131°F), 5 to 95% non-condensing
• Wind Survival: 200Km/Hr
• Operational Mounting Kit: 1.5" to 3.0" (38 to 76 mm) pole N000000L128A
• Power Consumption: 55W nominal, 72 W peak
• Recommended Power Supply: P/N: N000000L129A PSU - XP Power 120W PSU
• Input Voltage: ±48V DC (36V to 60V)
• Frequency Range: 2300 - 2700 MHz, Bands 38, 40, 41
• Channel Width: 5 MHz, 10MHz, 15MHz, 20MHz
• Transmit Power Range: 42dB dynamic range (1 dB step)
• Maximum Transmit Power: 33dBm per chain, 36dBm combined
• FCC ID: Z8H89FT0045
• ETSI: EN 301 908-1 v11.1.1, EN 50385 / EN 62311, Draft EN 301 489-50 v2.1.0

Subscriber Module Features
• LTE Optimized for Fixed Wireless Broadband
• High Gain integrated parabolic dish for extended range
• Reliable yet cost effective subscriber modules for cnRanger system
• Easy installation, with “Point and Go” configuration and provisioning
• Surge Suppression: IEC/EN 61000-4-5, 4kV @ (1.2/50us(8/20us), 10/700us)
• Environmental: IP67
• Temperature -40°C to 55°C (-40°F to 131°F)
• Humidity: 0 - 95% non-condensing
• Wind Survival: 200 KPH (124 MPH)
• Pole Diameter Range (w/ included mount): 38mm to 76mm (1.5 in. to 3 in.)
• Power Consumption: 9W max
• Input Voltage: 30 V PoE

Subscriber Antenna Features
• Integrated Antenna Peak Gain: 21dBi
• 3 dB Beamwidth (Azimuth): 12°
• 3 dB Beamwidth (Elevation): 12°
• Polarization: Slant, ± 45 degrees
• Front-to-Back Isolation: >30dB
• Cross Polarization: >20dB
• Transmit Power Range (to EIRP limit by region): 66dB dynamic range
• Maximum Transit Power: 23dBm

Subscriber Module Specifications
• LTE UE Type: LTE Category 6
• Channel Spacing: 1 MHz as specified in the BBU
• Frequency Range:
     • LTE Band 42: 3400 - 3600MHz
     • LTE Band 43: 3600 - 3800MHz
     • LTE Band 48: 3550 - 3700MHz
• Channel Width: 5MHz, 10MHz, 15MHz, 20MHz
• MAC (Media Access Control) Layer: TDD-LTE Advanced Release 10
• Protocols Used: IPv4, IPv6, UDP, TCP/IP, ICMP
• Network Management: HTTP, HTTPS, SSH, Cambium Networks cnMaestro
• MTU: 1516 bytes
• Encryption: AES-128 and SNOW 3G
• Authentication: SIM authentication via BBU, cnMaestro or Web GUI provisions BBU with SIM information
