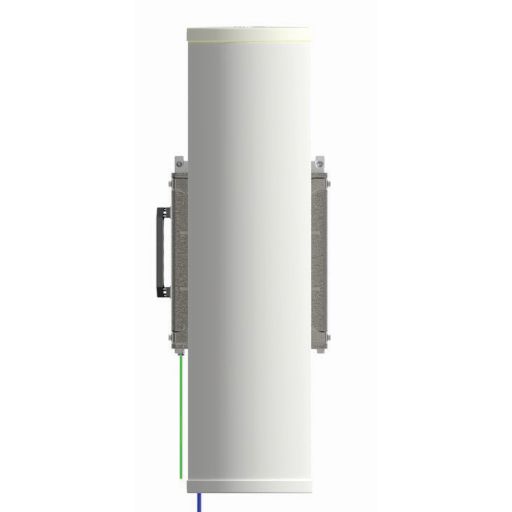

Cambium cnRanger 3.5GHz 90 degree 17dBi CBRS Sector Antenna

The Cambium Networks cnRanger Fixed CBRS LTE wireless 90° Sector Antenna substantially increases range and coverage, while reducing the cost and complexity typically associated with LTE networks.

Product Features
• Optimized coverage for fixed wireless deployment
• Innovative antenna design
• Simplified design to attach RRH

Product Specifications
• Frequency Range: 3400 MHz to 3900 MHz
• Gain: 17 dBi
• VSWR: 2:1 max
• Azimuth Beamwidth (3 dB): 90°
• Azimuth Beamwidth (6 dB): 120°
• Elevation Beamwidth (3 dB): 7°
• Pattern Roll Off at Sector Edge: 8 dB
• Electrical Tilt: -2° (2° downtilt)
• Polarization: Slant, ± 45 Degrees
• Front-to-back isolation: >25 dB
• Cross Polarization: >16 dB
• Port-to-Port Isolation: >20 dB
• Maximum Input Power: 5 W
• Input Impedance: 50 Ohms
• Environmental: IP56
• Operating Temperature: -40°C to +85°C
• Rated Wind Velocity: 180 Km/Hr

Product Includes
(1) Cambium 3GHz cnRanger 90 sector antenna
(1) Mounting Hardware

Product Documentation
Cambium cnRanger Sector Antenna 3LTE-ANT-90
