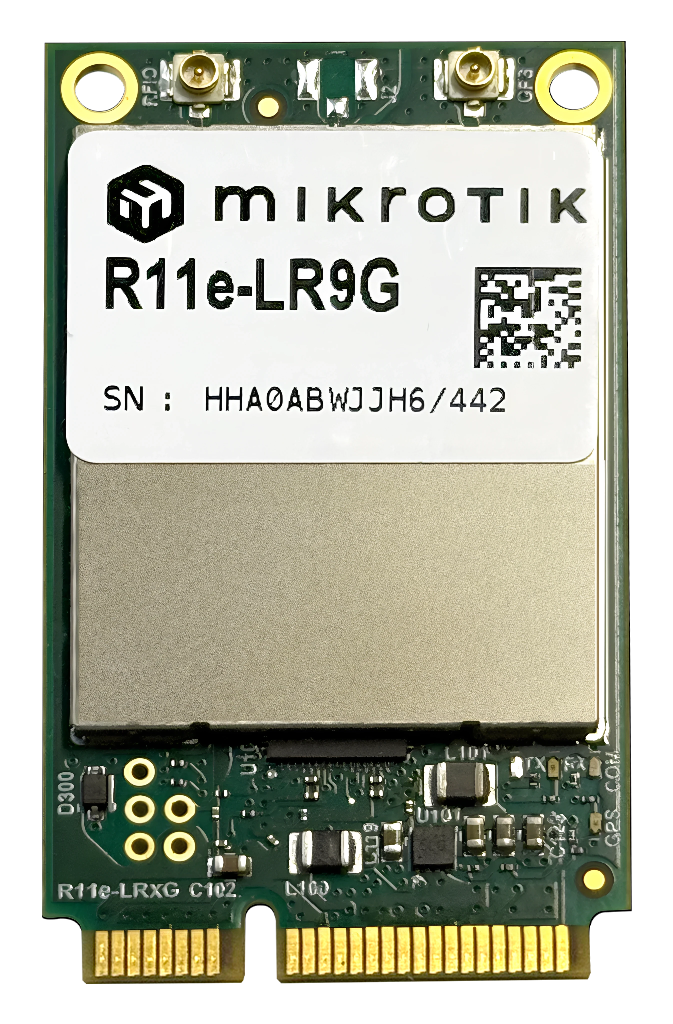

The R11e-LR9G is a next-generation concentrator card for 915 MHz LoRa® networks, compatible with any MikroTik device that has a miniPCIe slot and USB lines.
The R11e-LR9G is a next-generation concentrator card for LoRa® networks, compatible with any MikroTik device that has a miniPCIe slot and USB lines. It includes:
• 915 MHz LoRa® support (AU915–928, US902–928, AS923, KR920–923)
• GPS support (MT3337V interface)
• Enhanced receive sensitivity: -141 dBm
• Max power consumption: 1.3 W
• Standard miniPCIe form factor
Now with GPS on board, the R11e-LR9G is ideal for mobile LoRa® base stations, vehicle tracking solutions, or precision deployment scenarios that benefit from time-sync or geolocation
Specifications
| Details | |
|---|---|
| Product code | R11e-LR9G |
| Tested ambient temperature | -40°C to 70°C |
Powering
| Details | |
|---|---|
| Max power consumption | 1.3 W |
Other
| Details | |
|---|---|
| GPS RF connector type | uUFL |
Certification & Approvals
| Details | |
|---|---|
| Certification | FCC, IC |
| IP | 00 |
