An industrial-grade IoT gateway for smart asset tracking, remote monitoring, and efficient automation – now with enhanced LoRa® reception, concurrent GPS + LTE CAT-M, and a lower price.

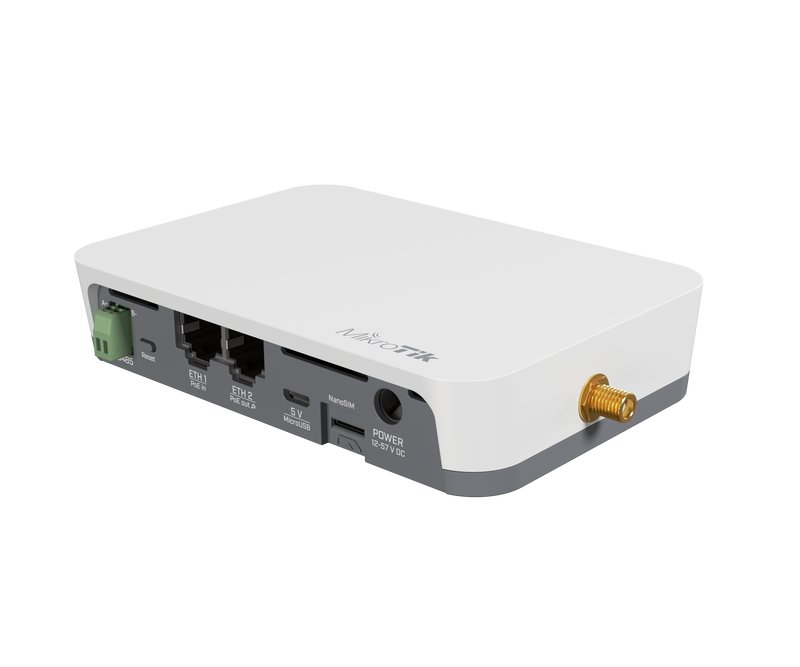

The KNOT LR8G is a compact, out-of-the-box gateway for LoRa®-based networks, designed to bring affordable, reliable connectivity to even the most remote or infrastructure-light environments. It supports LTE CAT-M1 and NB2, Bluetooth 5.2, 2.4 GHz Wi-Fi, GPS, and Ethernet with PoE, making it a flexible centrepiece for any IoT deployment. CAT-M1 and NB2 mobile internet connectivity allows you to save tons of money and remotely monitor and manage equipment without needing high-cost data plans or full LTE coverage.
Whether you’re tracking high-value assets across a hospital, managing a vending machine in a shopping mall, or monitoring sensors in an agricultural field – the KNOT LR8G ties everything together and keeps everything connected.
Key Features & Upgrades
• Concurrent GPS and LTE CAT-M
Track assets in motion with precise GPS while maintaining a live LTE CAT-M1 connection. Ideal for mobile units like service vehicles, containers, or roaming field equipment.
• Versatile Powering

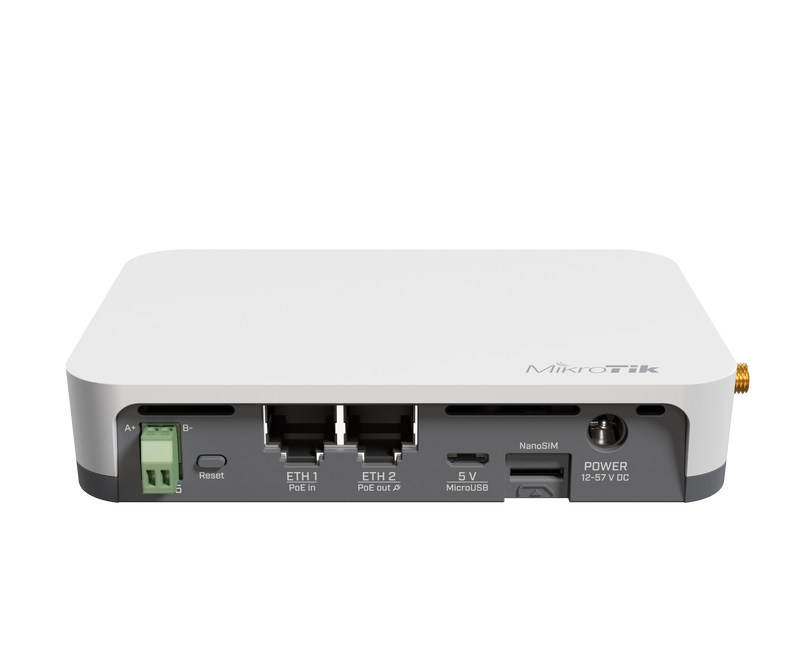

Choose from PoE-in, DC jack, or MicroUSB – including PoE-out on Ether2 for powering other devices.

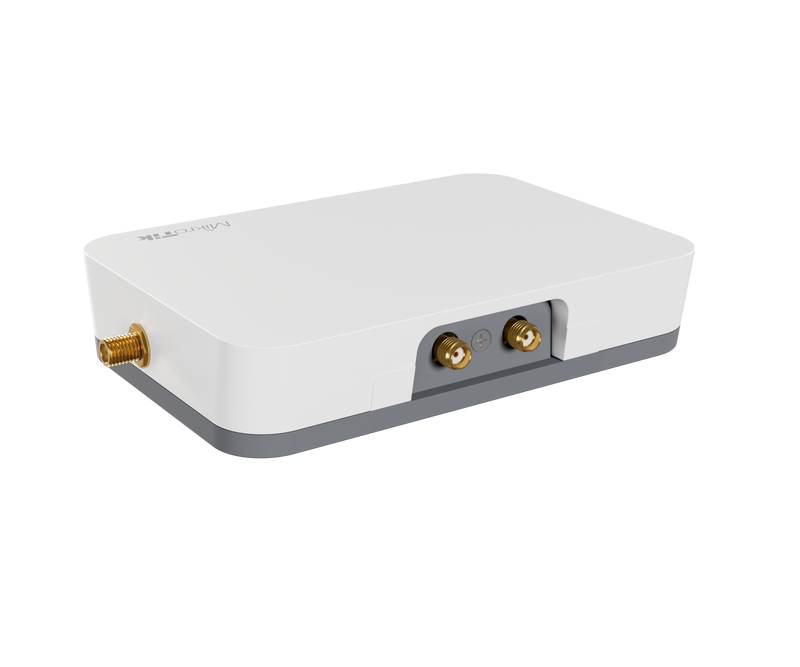

• SMA Female Connectors for All Main Interfaces
Easy antenna setup for LTE, GPS, and LoRa®.
• Improved 868 MHz LoRa® Reception
Enhanced sensitivity for stronger signal and longer range, even in interference-heavy environments.
• Lower Price, Same Reliability
Cost-effective for large-scale deployments without sacrificing performance.
• Powered by RouterOS v7
– for full control, custom scripting, and advanced routing features.
At just 6W consumption and small footprint (122 × 87 × 26 mm), the KNOT LR8G is perfect for deployments where space, power, and budget are limited – but performance can’t be.
Specifications
| Details |
| Product code |
RB924iR-2nD-BT5&BG770A&R11e-LR8G |
| Architecture |
MIPSBE |
| CPU |
QCA9531 |
| CPU core count |
1 |
| CPU nominal frequency |
650 MHz |
| Switch chip model |
QCA9531 |
| RouterOS license |
4 |
| Operating System |
RouterOS v7 |
| Size of RAM |
64 MB |
| Storage size |
128 MB |
| Storage type |
NAND |
| MTBF |
Approximately 200'000 hours at 25C |
| Tested ambient temperature |
-40°C to 70°C |
|
|
Powering
| Details |
| MicroUSB input Voltage |
5 V |
| Number of DC inputs |
3 (DC jack, PoE-IN, MicroUSB) |
| DC jack input Voltage |
12-57 V |
| Max power consumption |
23 W |
| Max power consumption without attachments |
6 W |
| PoE in |
802.3af/at |
| Cooling type |
Passive |
| PoE in input Voltage |
18-57 V |
PoE-out
| Details |
| PoE-out ports |
Ether2 |
| PoE out |
Passive PoE |
| Low voltage PoE-Out current limit |
650 mA |
| High voltage PoE-Out current limit |
450 mA |
| Total output power |
12 |
Wireless specifications
| Details |
| Wireless 2.4 GHz Max data rate |
300 Mbit/s |
| Wireless 2.4 GHz number of chains |
2 |
| Wireless 2.4 GHz standards |
802.11b/g/n |
| Antenna gain dBi for 2.4 GHz |
1.5 |
| Wireless 2.4 GHz chip model |
QCA9531 |
| Wireless 2.4 GHz generation |
Wi-Fi 4 |
Ethernet
| Details |
| 10/100 Ethernet ports |
2 |
Peripherals
| Details |
| Number of SIM slots |
1 Smart card (Nano SIM) |
| MiniPCI-e slots |
1 |
| Serial console port |
RS485 |
| Number of USB ports |
1 |
| USB slot type |
microUSB type AB |
| Max USB current (A) |
1 |
Other
| Details |
| PCB temperature monitor |
Yes |
| Voltage Monitor |
Yes |
| Bluetooth version |
5.2 |
| Bluetooth RF connector type |
uUFL |
| GPS RF connector type |
SMA |
Certification & Approvals
| Details |
| Certification |
CE, EAC, ROHS |
| IP |
20 |
Wireless specifications
| 2.4 GHz |
Transmit (dBm) |
Receive Sensitivity |
| 1MBit/s |
22 |
-96 |
| 11MBit/s |
22 |
-89 |
| 6MBit/s |
20 |
-93 |
| 54MBit/s |
18 |
-74 |
| MCS0 |
20 |
-93 |
| MCS7 |
16 |
-71 |
